SAXSdb — 5jhp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein TPR1

Oryza sativa

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–209 Chain B； UniProt 1–209 Chain C； UniProt 1–209 Chain D； UniProt 1–209	Fragment：N-terminal topless domain (UNP residues 1-209)	The rice D53 EAR peptide (794-808) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；20% w/v Polyethylene glycol 3350, 0.2 M Lithium sulfate monohydrate, pH 6.0	Resolution 3.15 Å R-free 0.284

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5JHP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4ZHE Crystal structure of the SeMet substituted Topless related protein 2 (TPR2) N-terminal domain (1-209) from rice Deposited 2015-04-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–209（209 aa） Fragment：N-TERMINAL DOMAIN (UNP residues 1-209) Chain B 1–209（209 aa） Fragment：N-TERMINAL DOMAIN (UNP residues 1-209) Chain C 1–209（209 aa） Fragment：N-TERMINAL DOMAIN (UNP residues 1-209) Chain D 1–209（209 aa） Fragment：N-TERMINAL DOMAIN (UNP residues 1-209)	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；25% w/v PEG 3,350, 0.2 M Magnesium chloride, 0.1 M BIS-TRIS, pH 6.5, 19.6 mM 5-Methyl-6-O-(N-heptylcarbamoyl)-alpha-D-glucopyranoside	Resolution 2.50 Å R-free 0.242
5C6Q Crystal structure of the apo TOPLESS related protein 2 (TPR2) N-terminal domain (1-209) from rice Deposited 2015-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；25% PEG 3350, 0.2 M magnesium chloride, 0.1 M BIS-TRIS, pH 6.5	Resolution 3.25 Å R-free 0.270
5C6V Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal domain (1-209) in complex with Arabidopsis NINJA peptide Deposited 2015-06-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain B 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain C 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain D 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；25% w/v PEG 3,350, 0.2 M NaCl, 0.1 M BIS-TRIS pH 5.5, 3.0% w/v D-(+)-glucose monohydrate	Resolution 3.10 Å R-free 0.286
5C7E Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal domain (1-209) in complex with Arabidopsis IAA10 peptide Deposited 2015-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain B 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain C 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain D 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% w/v PEG 3,350, 0.2 M sodium citrate tribasic dihydrate	Resolution 3.10 Å R-free 0.229
5C7E Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal domain (1-209) in complex with Arabidopsis IAA10 peptide Deposited 2015-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain F 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% w/v PEG 3,350, 0.2 M sodium citrate tribasic dihydrate	Resolution 3.10 Å R-free 0.229
5C7F Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal domain (1-209) in complex with Arabidopsis IAA1 peptide Deposited 2015-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain B 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain C 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209) Chain D 1–209（209 aa） Fragment：N-terminal domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；25% w/v PEG 3,350, 0.2 M NaCl, 0.1 M BIS-TRIS pH 5.5	Resolution 2.70 Å R-free 0.256
5J9K Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal topless domain (1-209) in complex with rice D53 repressor EAR peptide motif Deposited 2016-04-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–209（209 aa） Fragment：N-terminal topless domain (UNP residues 1-209) Chain B 1–209（209 aa） Fragment：N-terminal topless domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；25% w/v Polyethylene glycol 3350, 0.2 M Ammonium sulfate, 0.1 M BIS-TRIS, pH 6.5	Resolution 2.55 Å R-free 0.253
5JA5 Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal topless domain (1-209) L111A and L130A mutant in complex with rice D53 repressor EAR peptide motif Deposited 2016-04-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–209（209 aa） Fragment：N-terminal topless domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.8；293 K；20% w/v Polyethylene glycol 3350, 0.2 M Potassium phosphate monobasic, pH 4.8	Resolution 2.00 Å R-free 0.228
5JGC Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal topless domain (1-209) L111A, L130A, L179A and I195A mutant Deposited 2016-04-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–209（209 aa） Fragment：N-terminal topless domain (UNP residues 1-209)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；15% w/v Polyethylene glycol 4000, 0.2 M Magnesium chloride hexahydrate, 0.1 M TRIS hydrochloride pH 8.5	Resolution 2.08 Å R-free 0.246

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TPR1_ORYSJ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–209； UniProt 1–209 Author chain B； PDBConstruct 1–209； UniProt 1–209 Author chain C； PDBConstruct 1–209； UniProt 1–209 Author chain D； PDBConstruct 1–209； UniProt 1–209

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5jhp
Deposition date deposition_date	2016-04-21
Structure title title	Crystal structure of the rice Topless related protein 2 (TPR2) N-terminal topless domain (1-209) L179A and I195A mutant in complex with rice D53 repressor EAR peptide motif
Keywords keywords	;TRANSCRIPTION REPRESSION, TRANSCRIPTIONAL COREPRESSOR TOPLESS, ALPHA-HELICAL STRUCTURE, TETRAMER, TRANSCRIPTIONAL REPRESSOR D53, TRANSCRIPTION ;; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.22 Å
Radius of gyration Rg (electron density) rg_electron	36.09 Å
Forward intensity I(0) i0	107623000.00
Molecular weight molecular_weight	87402.0 kDa
Excluded volume excluded_volume	111160 Å³
Envelope volume envelope_volume	151070 Å³
Hydration-shell volume shell_volume	36089 Å³
Envelope diameter envelope_diameter	139.5 Å
Shell Rg shell_rg	40.92 Å
Envelope Rg envelope_rg	35.37 Å
Shape Rg shape_rg	36.09 Å
Total Rg total_rg	36.48 Å
Total atoms total_atoms	6181
Residues n_residues	739
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

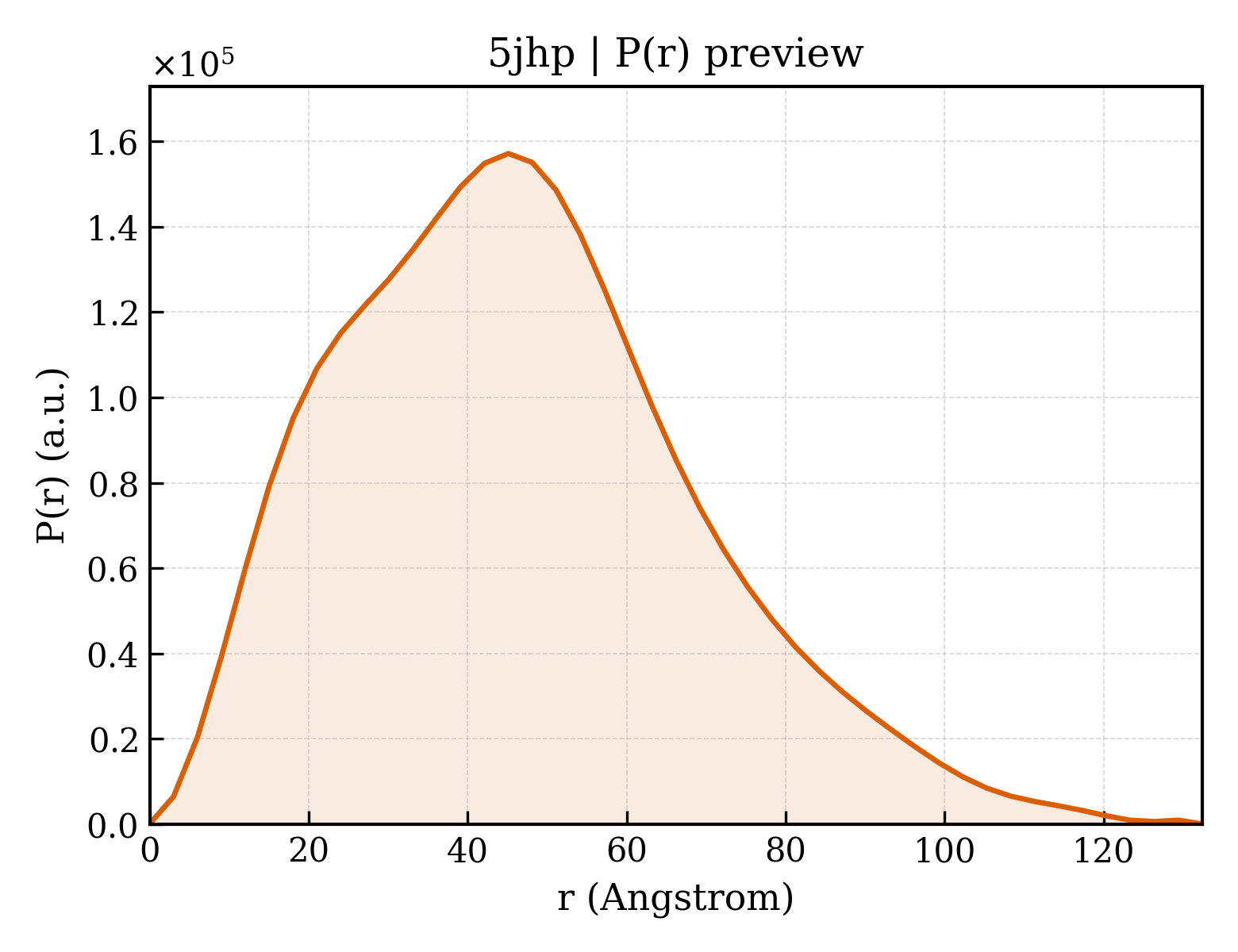

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	132.4 Å
Rg (real space) rg_real	36.45 Å
Rg uncertainty (real space) rg_real_error	1.32 Å
I(0) (real space) i0_real	1.0760e+08
I(0) uncertainty (real space) i0_real_error	1.8390e+06
Rg (reciprocal space) rg_reciprocal	36.31 Å
I(0) (reciprocal space) i0_reciprocal	107600000.0000
Solution quality estimate total_estimate	0.8297
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	45.1 Å
Skewness Skewness skewness	0.509
Kurtosis Kurtosis kurtosis	0.012
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13780000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.674; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.834; Smooth: 0.927

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Protein TPR1
Molecular weight formula_weight	24819.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6181

MSSLSRELVFLILQFLDEEKFKETVHKLEQESGFFFNMKYFEEKVHAGEWDEVEKYLSGFTKVDDNRYSMKIFFEIRKQKYLEALDRHDRAKAVDILVKDLKVFSTFNEELYKEITQLLTLENFRENEQLSKYGDTKSARSIMLIELKKLIEANPLFREKLVFPTLKASRLRTLINQSANWQHQLCKNPRPNPDAKTLFTDHTCTPPNG

来源 Source

来源生物 organism	Oryza sativa
通用名 common_name	Rice
NCBI Class编号 ncbi_taxonomy_id	4530
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	The rice D53 EAR peptide (794-808)
Molecular weight formula_weight	1865.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

DNLIYLDLNLQDWDD

▶

8. Citations (2)

▶

Unit-cell length a length_a	77.999 Å
Unit-cell length b length_b	64.066 Å
Unit-cell length c length_c	106.971 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.03 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	25.810 Å
R factor r_factor	0.2347
R_work r_work	0.2321
R_free r_free	0.2838

fit	/app/data/saxs_computation/jh/5jhp/5jhp.fit
pddf	/app/data/pr_computation/jh/5jhp/5jhp.pr.out
profile	/app/data/saxs_computation/jh/5jhp/5jhp.dat
