5joh

CRYSTAL STRUCTURE OF CSN5(2-257) IN COMPLEX WITH CNS5i-1b

Method: X-RAY DIFFRACTION Dmax: 86.0 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

COP9 signalosome complex subunit 5

Homo sapiens

UniProt Q92905

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 2–257 Not recorded ZN ZINC ION × 1 6M3 2'-chloro-6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-carbonitrile × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；Protein solution: 15 mg/ml CSN5 in 50mM NaCl, 50mM Mes/NaOH pH 6.0, 10uM ZnCl2, 0.5 mM TCEP with 1mM ligand Crystallization solution: 35% MPD, 0.2M LiSO4, 0.1 M MES/NaOH pH 6.0 Resolution 1.99 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5JOH Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4D10 Crystal structure of the COP9 signalosome Deposited 2014-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain M 1–334（334 aa） Fragment：RESIDUES 1-423
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.4；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4, 10 MM UREA.
Resolution 3.80 Å R-free 0.228
4D10 Crystal structure of the COP9 signalosome Deposited 2014-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–334（334 aa） Fragment：RESIDUES 1-423
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.4；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4, 10 MM UREA.
Resolution 3.80 Å R-free 0.228
4D18 Crystal structure of the COP9 signalosome Deposited 2014-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 12–334（323 aa） Fragment：RESIDUES 12-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.4；CRYSTAL GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4. CRYSTAL DEHYDRATED OVERNIGHT WITH 20% PEG 6000 IN WELL
Resolution 4.08 Å R-free 0.253
4D18 Crystal structure of the COP9 signalosome Deposited 2014-05-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain M 12–334（323 aa） Fragment：RESIDUES 12-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.4；CRYSTAL GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4. CRYSTAL DEHYDRATED OVERNIGHT WITH 20% PEG 6000 IN WELL
Resolution 4.08 Å R-free 0.253
4F7O Crystal structure of CSN5 Deposited 2012-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–257（257 aa） Fragment：UNP residues 1-257
Chain B 1–257（257 aa） Fragment：UNP residues 1-257
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 SCN THIOCYANATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG3350, KSCN, Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.60 Å R-free 0.274
4F7O Crystal structure of CSN5 Deposited 2012-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–257（257 aa） Fragment：UNP residues 1-257
Chain B 1–257（257 aa） Fragment：UNP residues 1-257
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 SCN THIOCYANATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG3350, KSCN, Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.60 Å R-free 0.274
4WSN Crystal structure of the COP9 signalosome, a P1 crystal form Deposited 2014-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 14–334（321 aa） Fragment：UNP residues 14-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4.
Resolution 5.50 Å R-free 0.282
4WSN Crystal structure of the COP9 signalosome, a P1 crystal form Deposited 2014-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain M 14–334（321 aa） Fragment：UNP residues 14-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4.
Resolution 5.50 Å R-free 0.282
4WSN Crystal structure of the COP9 signalosome, a P1 crystal form Deposited 2014-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain U 14–334（321 aa） Fragment：UNP residues 14-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4.
Resolution 5.50 Å R-free 0.282
4WSN Crystal structure of the COP9 signalosome, a P1 crystal form Deposited 2014-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain c 14–334（321 aa） Fragment：UNP residues 14-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4.
Resolution 5.50 Å R-free 0.282
4WSN Crystal structure of the COP9 signalosome, a P1 crystal form Deposited 2014-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain k 14–334（321 aa） Fragment：UNP residues 14-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4.
Resolution 5.50 Å R-free 0.282
4WSN Crystal structure of the COP9 signalosome, a P1 crystal form Deposited 2014-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain s 14–334（321 aa） Fragment：UNP residues 14-334
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 9.3 MG/ML PROTEIN IN 50 MM HEPES PH 7.4, 200 MM NACL, 2 MM EQUALLY WITH 12% PEG 6000, 100 MM TRISODIUM CITRATE PH 5.4, 0.1 M LI2SO4.
Resolution 5.50 Å R-free 0.282
5JOG CRYSTAL STRUCTURE OF CSN5(2-257) IN COMPLEX WITH CNS5i-3 Deposited 2016-05-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–257（256 aa）
Not recorded ZN ZINC ION × 1 6LT 3-(difluoromethyl)-N-{6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-yl}-1-(propan-2-yl)-1H-pyrazole-5-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；Protein solution: 18.9 mg/ml protein in 50mM NaCl, 50mM Mes/NaOH pH 6.0, 10uM ZnCl2, 0.5 mM TCEP with 1mM compound Crystallization solution: 35% MPD, 0.1M MES/NaOH pH 6.0, 0.2 M Li2SO4
Resolution 2.46 Å R-free 0.243
5M5Q COPS5(2-257) IN COMPLEX WITH A AZAINDOLE (COMPOUND 4) Deposited 2016-10-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–257（256 aa） Fragment：UNP residues 2-257
Not recorded ZN ZINC ION × 1 7K1 1-[(3~{R})-3-(1~{H}-benzimidazol-2-yl)morpholin-4-yl]-3-[2-(4-methyl-2-phenyl-phenyl)-1~{H}-pyrrolo[2,3-b]pyridin-3-yl]propan-1-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；35% MPD, 0.2M LiSO4, 0,1 M Mes pH 6.0
Resolution 2.20 Å R-free 0.219
6R6H Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5 100 mM NaCl 0.5 mM DTT 1% glycerol
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 8.40 Å
6R7F Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain E 24–334（311 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM HEPES pH 7.5 100 mM NaCL 0.5 mM DTT 1% Glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.20 Å
6R7H Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 24–334（311 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM HEPES pH 7.5 100 mM NaCl 0.5 mM DTT 1% Glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.80 Å
6R7I Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
8H38 Cryo-EM Structure of the KBTBD2-CRL3~N8-CSN(mutate) complex Deposited 2022-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain E 1–334（334 aa）
Mutation：H138A ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
Resolution 4.25 Å
8H3A Cryo-EM Structure of the KBTBD2-CRL3~N8(removed)-CSN complex Deposited 2022-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.51 Å
8H3F Cryo-EM Structure of the KBTBD2-CRL3-CSN complex Deposited 2022-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.73 Å
9E5Z Cryo-EM structure of COP9 signalosome Deposited 2024-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9E77 Cryo-EM structure of CSN-N8 in complex with CSN5i-3 Deposited 2024-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain E 1–334（334 aa）
Not recorded 6LT 3-(difluoromethyl)-N-{6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-yl}-1-(propan-2-yl)-1H-pyrazole-5-carboxamide × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9E81 Cryo-EM structure of COP9 signalosome in complex with CSN5i-3 Deposited 2024-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–334（334 aa）
Not recorded 6LT 3-(difluoromethyl)-N-{6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-yl}-1-(propan-2-yl)-1H-pyrazole-5-carboxamide × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9EFM Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-1 Deposited 2024-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 1–334（334 aa）
Mutation：E76A , D151N ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9EFQ Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-2 Deposited 2024-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 1–334（334 aa）
Mutation：E76A , D151N ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.96 Å
9EFV Cryo-EM structure of CSN-N8CUL1 in complex with CSN5i-3 Deposited 2024-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 1–334（334 aa）
Not recorded 6LT 3-(difluoromethyl)-N-{6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-yl}-1-(propan-2-yl)-1H-pyrazole-5-carboxamide × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.03 Å
9EG1 COP9 signalosome deneddylation complex with cullin-5 Deposited 2024-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 1–334（334 aa）
Mutation：E76A, D151N ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å
9EG8 Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-4A Deposited 2024-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 1–334（334 aa）
Mutation：E76A, D151N ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9EGL Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-3 Deposited 2024-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 1–334（334 aa）
Mutation：E76A, D151N ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9PH4 Cryo-EM structure of COP9 signalosome in complex with CSN5i-1a Deposited 2025-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 1 A1CH3 6-[(4R,5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-carbonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9QO0 Pre-activated 9-subunit COP9 signalosome and neddylated SCF (Skp1-Skp2-Cks1) complex structure Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: 15-meric
Chain E 1–334（334 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
9QO1 Activated 9-subunit COP9 signalosome and neddylated SCF (SKP1-SKP2-CKS1) complex structure Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain E 1–334（334 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.23 Å
9QO2 Dissociation-state-1 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain E 1–334（334 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9QO3 Dissociation-state-2 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
9QO4 Dissociation-state-3 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain E 1–334（334 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9QO5 Dissociation-state-4 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain E 1–334（334 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9QO6 9-subunit COP9 signalosome complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain E 1–334（334 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å

30 other PDB entries and 38 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CSN5_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–257； UniProt 2–257

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 5joh

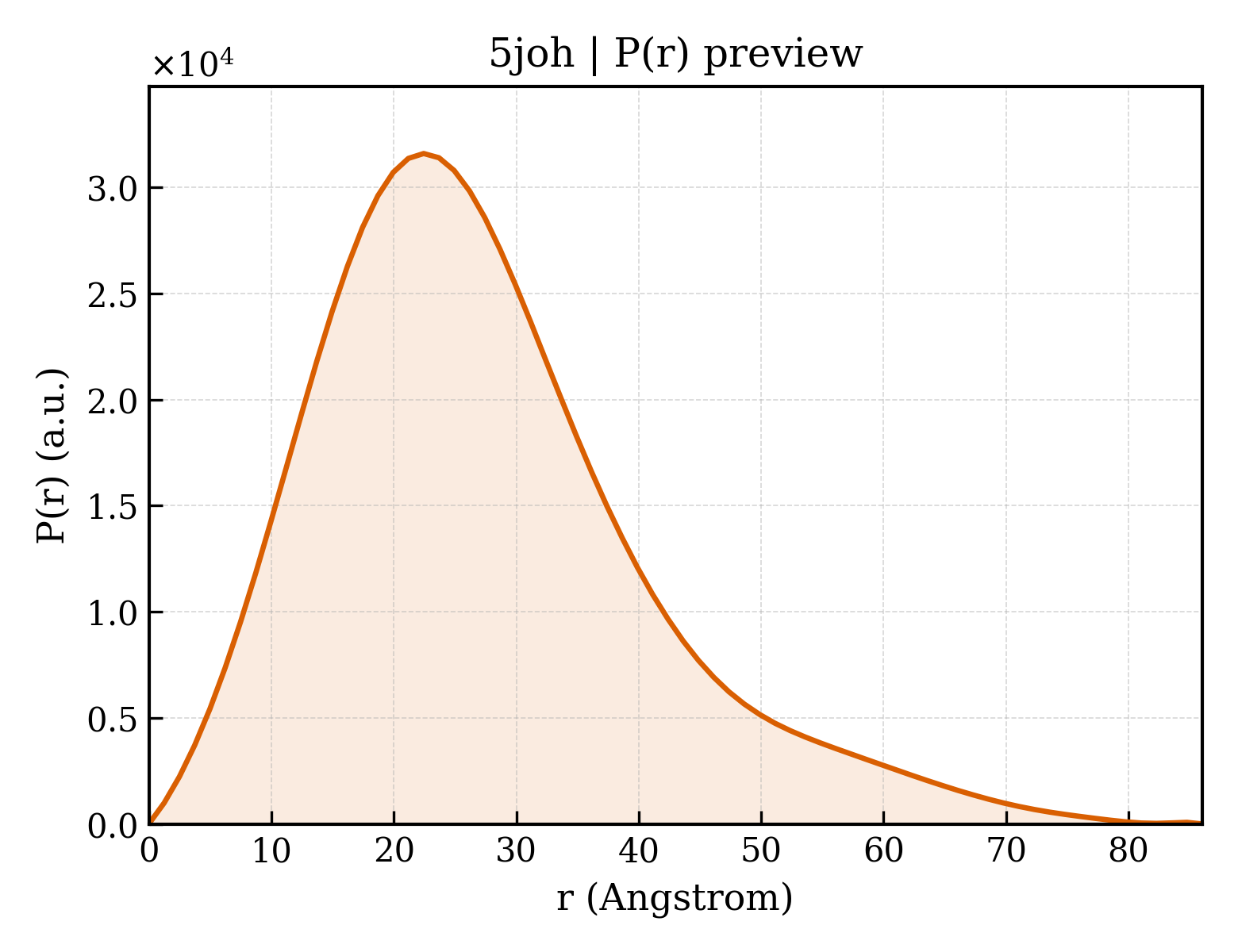

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 5joh
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5joh
Deposition date deposition_date2016-05-02
Structure title titleCRYSTAL STRUCTURE OF CSN5(2-257) IN COMPLEX WITH CNS5i-1b
Keywords keywordsCOP9 signalosome, metal protease, inhibitor, HYDROXYLASE; HYDROXYLASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier21.05 Å
Radius of gyration Rg (electron density) rg_electron20.44 Å
Forward intensity I(0) i011544100.00
Molecular weight molecular_weight25585.0 kDa
Excluded volume excluded_volume32111 ų
Envelope volume envelope_volume40500 ų
Hydration-shell volume shell_volume17977 ų
Envelope diameter envelope_diameter88.7 Å
Shell Rg shell_rg25.13 Å
Envelope Rg envelope_rg21.34 Å
Shape Rg shape_rg20.39 Å
Total Rg total_rg21.30 Å
Total atoms total_atoms1796
Residues n_residues221
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax86.0 Å
Rg (real space) rg_real21.36 Å
Rg uncertainty (real space) rg_real_error1.10 Å
I(0) (real space) i0_real1.1540e+07
I(0) uncertainty (real space) i0_real_error1.6380e+05
Rg (reciprocal space) rg_reciprocal21.30 Å
I(0) (reciprocal space) i0_reciprocal11540000.0000
Solution quality estimate total_estimate0.7168
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary22.4 Å
Skewness Skewness skewness0.852
Kurtosis Kurtosis kurtosis0.789
Angular range angular_range— – 0.3800 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha2248000.0000
Real-space data points n_real_points70
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.295; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.437; Smooth: 0.991
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▶

8. Citations (1)

▶

9. Files and Curves (10)
