SAXSdb — 5k1b

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

WD repeat-containing protein 48

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–677	Not recorded	Ubiquitin carboxyl-terminal hydrolase 12 × 1 （O75317） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；0.1 M imidazole, 18% PEG 2000MME, 0.3 M ammonium citrate	Resolution 3.30 Å R-free 0.286

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5K1B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5CVL WDR48 (UAF-1), residues 2-580 Deposited 2015-07-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–580（579 aa） Fragment：UNP residues 2-580	Not recorded	PO4 PHOSPHATE ION × 2 AU GOLD ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；0.72 M sodium phosphate, 0.72 M potassium phosphate, 90 mM HEPES pH 7.5	Resolution 3.00 Å R-free 0.233
5CVN WDR48 (2-580):USP46~ubiquitin ternary complex Deposited 2015-07-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–580（579 aa） Fragment：UNP residues 2-580	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；292 K；0.1 M sodium chloride, 5% ethanol, 15% MPD, 0.1 M Tris pH 8.8	Resolution 3.36 Å R-free 0.222
5CVO WDR48:USP46~ubiquitin ternary complex Deposited 2015-07-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；15% MPD, 0.1 M NaCl, 0.1 M HEPES, pH 7.0	Resolution 3.88 Å R-free 0.275
5CVO WDR48:USP46~ubiquitin ternary complex Deposited 2015-07-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；15% MPD, 0.1 M NaCl, 0.1 M HEPES, pH 7.0	Resolution 3.88 Å R-free 0.275
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1C Crystal structure of the UAF1/WDR20/USP12 complex Deposited 2016-05-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–563（563 aa） Fragment：residues 1-563	Not recorded	ZN ZINC ION × 1 PO4 PHOSPHATE ION × 1 TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；0.1 M MES, 1.3 M ammonium phosphate dibasic	Resolution 3.00 Å R-free 0.271
5L8E Structure of UAF1 Deposited 2016-06-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–580（572 aa）	Not recorded	GOL GLYCEROL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；20% PEG3350, 200mM Tri-Sodium Citrate, Bis-Tris Propane Cryo -30% Glycerol	Resolution 2.30 Å R-free 0.224
5L8E Structure of UAF1 Deposited 2016-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 9–580（572 aa）	Not recorded	GOL GLYCEROL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；20% PEG3350, 200mM Tri-Sodium Citrate, Bis-Tris Propane Cryo -30% Glycerol	Resolution 2.30 Å R-free 0.224
5L8W Structure of USP12-UB-PRG/UAF1 Deposited 2016-06-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 9–580（572 aa）	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1 AYE prop-2-en-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；3.2% PEG4000, 0.1mM MMT pH6.5, 0.1 mM TCEP. Cryo- 30% Glycerol	Resolution 2.79 Å R-free 0.259
6JLQ Crystal structure of human USP46-WDR48-WDR20 complex Deposited 2019-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–580（580 aa）	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 8 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；1.0M Sodium phosphate monobasic monohydrate, Potassium phosphate dibasic, pH 7.2	Resolution 3.10 Å R-free 0.272
7AY0 Crystal structure of truncated USP1-UAF1 Deposited 2020-11-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–563（563 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；10% w/v PEG4000, 100 mM MES/Imidazole pH 6.0-6.5, 30 mM CaCl2, 30 mM MgCl2, 20-25% glycerol v/v	Resolution 3.60 Å R-free 0.266
7AY0 Crystal structure of truncated USP1-UAF1 Deposited 2020-11-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–563（563 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；10% w/v PEG4000, 100 mM MES/Imidazole pH 6.0-6.5, 30 mM CaCl2, 30 mM MgCl2, 20-25% glycerol v/v	Resolution 3.60 Å R-free 0.266
7AY1 Cryo-EM structure of USP1-UAF1 bound to mono-ubiquitinated FANCD2, and FANCI Deposited 2020-11-10	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain E 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7AY2 Crystal structure of truncated USP1-UAF1 reacted with ubiquitin-prg Deposited 2020-11-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–563（563 aa）	Not recorded	ZN ZINC ION × 1 AYE prop-2-en-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；8-13% w/v PEG3350, 0.1 M citric acid/Bis-Tris propane pH 4.1	Resolution 3.20 Å R-free 0.234
7AY2 Crystal structure of truncated USP1-UAF1 reacted with ubiquitin-prg Deposited 2020-11-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–563（563 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；8-13% w/v PEG3350, 0.1 M citric acid/Bis-Tris propane pH 4.1	Resolution 3.20 Å R-free 0.234
8A9J Cryo-EM structure of USP1-UAF1 bound to FANCI and mono-ubiquitinated FANCD2 without ML323 (consensus reconstruction) Deposited 2022-06-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain E 1–677（677 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blotted for 3.0 secs before plunging	Resolution 2.80 Å
8A9K Cryo-EM structure of USP1-UAF1 bound to FANCI and mono-ubiquitinated FANCD2 with ML323 (consensus reconstruction) Deposited 2022-06-28	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain E 1–677（677 aa）	Not recorded	ZN ZINC ION × 1 JDA 5-methyl-2-(2-propan-2-ylphenyl)-~{N}-[[4-(1,2,3-triazol-1-yl)phenyl]methyl]pyrimidin-4-amine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.85 Å
9DI1 Cryo-EM structure of the USP1-UAF1-Ubiquitin complex inhibited by KSQ-4279 Deposited 2024-09-04	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–677（677 aa）	Not recorded	ZN ZINC ION × 1 A1IB8 6-(4-cyclopropyl-6-methoxy-pyrimidin-5-yl)-1-[[4-[1-propan-2-yl-4-(trifluoromethyl)imidazol-2-yl]phenyl]methyl]pyrazolo[3,4-d]pyrimidine × 1 A1A4Y 3-(methanesulfonyl)propan-1-amine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9DI2 Cryo-EM structure of the USP1-UAF1-Ubiquitin-VS complex Deposited 2024-09-04	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–677（677 aa）	Not recorded	ZN ZINC ION × 1 A1A4Y 3-(methanesulfonyl)propan-1-amine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9EBS Cryo-EM structure of USP1-UAF1-Ubiquitin in complex with TNG348 Deposited 2024-11-13	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–677（677 aa）	Not recorded	A1A4Y 3-(methanesulfonyl)propan-1-amine × 1 ZN ZINC ION × 1 A1BHF 2-(4-cyclopropyl-6-methoxypyrimidin-5-yl)-9-({4-[1-methyl-4-(trifluoromethyl)-1H-imidazol-2-yl]phenyl}methyl)-7-(2,2,2-trifluoroethyl)-7,9-dihydro-8H-purin-8-imine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9HNW USP1-UAF1 bound to Lys63-linked diubiquitin Deposited 2024-12-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–672（672 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
9N9Y Crystal structure of truncated USP1:UAF1 in complex with compound 18 Deposited 2025-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–563（563 aa） Fragment：residues 1-563	Not recorded	ZN ZINC ION × 1 A1BWW 2-(4-cyclopropyl-6-methoxypyrimidin-5-yl)-7-({4-[1-methyl-4-(trifluoromethyl)-1H-imidazol-2-yl]phenyl}methyl)-5H-pyrrolo[3,2-d]pyrimidine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；1M sodium citrate (pH 6.5)	Resolution 3.15 Å R-free 0.291

18 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	WDR48_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–677； UniProt 1–677

Ubiquitin carboxyl-terminal hydrolase 12

Homo sapiens

UniProt O75317

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 4–370	Not recorded	WD repeat-containing protein 48 × 1 （Q8TAF3） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；0.1 M imidazole, 18% PEG 2000MME, 0.3 M ammonium citrate	Resolution 3.30 Å R-free 0.286

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5K1B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5K16 Crystal structure of free Ubiquitin-specific protease 12 Deposited 2016-05-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–370（355 aa） Fragment：residues 16-370	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M Tris-HCl, 18% PEG 3350, 0.2 M Lithium Sulfate	Resolution 2.60 Å R-free 0.246
5K16 Crystal structure of free Ubiquitin-specific protease 12 Deposited 2016-05-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 16–370（355 aa） Fragment：residues 16-370	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M Tris-HCl, 18% PEG 3350, 0.2 M Lithium Sulfate	Resolution 2.60 Å R-free 0.246
5K16 Crystal structure of free Ubiquitin-specific protease 12 Deposited 2016-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 16–370（355 aa） Fragment：residues 16-370 Chain B 16–370（355 aa） Fragment：residues 16-370	Not recorded	ZN ZINC ION × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M Tris-HCl, 18% PEG 3350, 0.2 M Lithium Sulfate	Resolution 2.60 Å R-free 0.246
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 40–370（331 aa） Fragment：residues 40-370	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 40–370（331 aa） Fragment：residues 40-370	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 40–370（331 aa） Fragment：residues 40-370	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1A Crystal structure of the UAF1-USP12 complex in C2 space group Deposited 2016-05-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 40–370（331 aa） Fragment：residues 40-370	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate, 7% PEG 3350, 0.15 M NaCl	Resolution 2.30 Å R-free 0.239
5K1C Crystal structure of the UAF1/WDR20/USP12 complex Deposited 2016-05-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 16–370（355 aa） Fragment：residues 16-370	Not recorded	ZN ZINC ION × 1 PO4 PHOSPHATE ION × 1 TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；0.1 M MES, 1.3 M ammonium phosphate dibasic	Resolution 3.00 Å R-free 0.271
5L8W Structure of USP12-UB-PRG/UAF1 Deposited 2016-06-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–370（370 aa）	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1 AYE prop-2-en-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；3.2% PEG4000, 0.1mM MMT pH6.5, 0.1 mM TCEP. Cryo- 30% Glycerol	Resolution 2.79 Å R-free 0.259

4 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UBP12_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–367； UniProt 4–370

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5k1b
Deposition date deposition_date	2016-05-18
Structure title title	Crystal structure of the UAF1/USP12 complex in F222 space group
Keywords keywords	;WD40 domain, SUMO-like domain, Ubiquitin-Specific Protease 12, USP12, USP1-associated factor 1, Deubiquitinating enzyme, DUB, PROTEIN BINDING-HYDROLASE complex ;; PROTEIN BINDING/HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.01 Å
Radius of gyration Rg (electron density) rg_electron	32.55 Å
Forward intensity I(0) i0	129888000.00
Molecular weight molecular_weight	90513.0 kDa
Excluded volume excluded_volume	113070 Å³
Envelope volume envelope_volume	153160 Å³
Hydration-shell volume shell_volume	39242 Å³
Envelope diameter envelope_diameter	102.2 Å
Shell Rg shell_rg	39.60 Å
Envelope Rg envelope_rg	32.05 Å
Shape Rg shape_rg	32.57 Å
Total Rg total_rg	33.10 Å
Total atoms total_atoms	6366
Residues n_residues	843
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

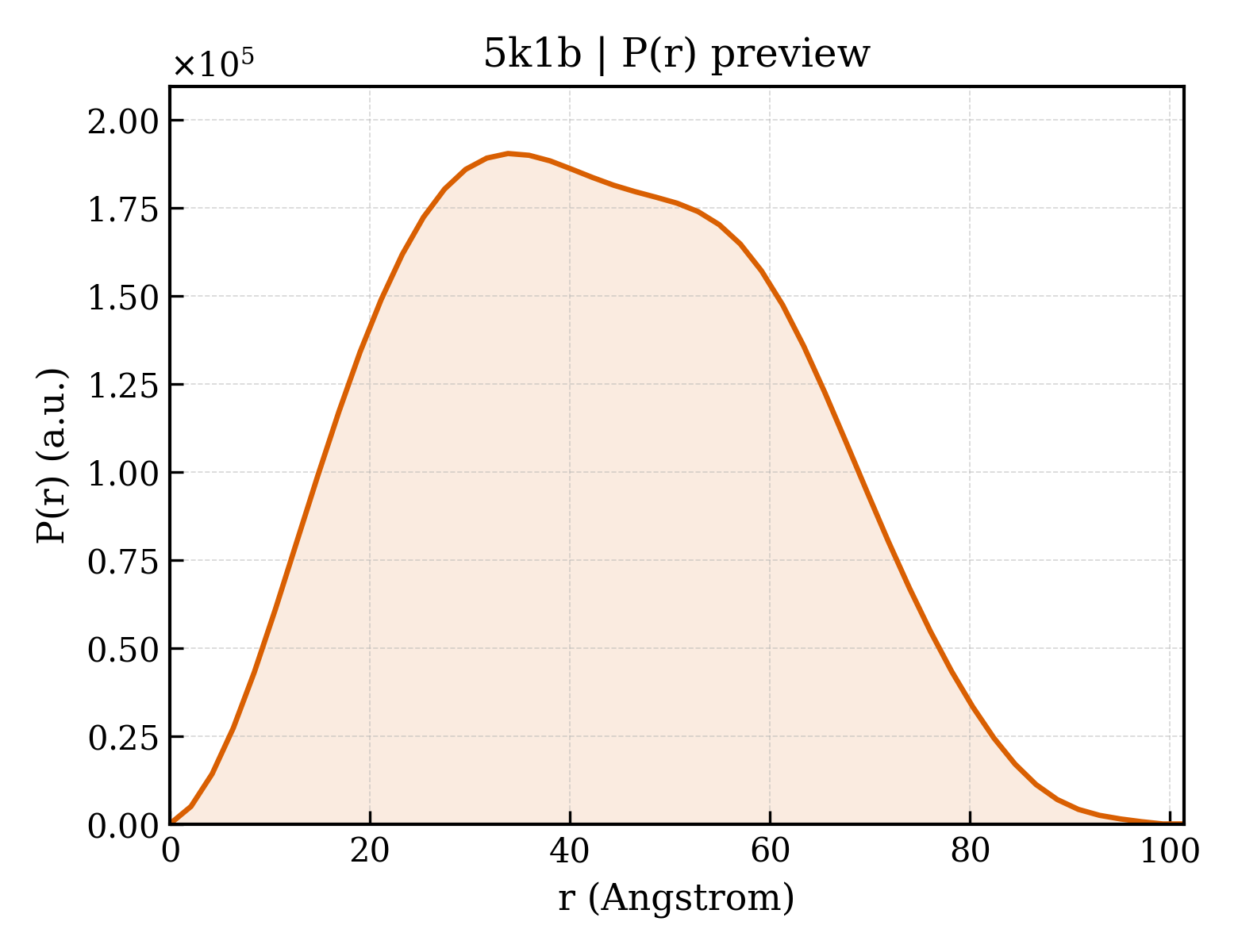

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.4 Å
Rg (real space) rg_real	32.90 Å
Rg uncertainty (real space) rg_real_error	0.69 Å
I(0) (real space) i0_real	1.2990e+08
I(0) uncertainty (real space) i0_real_error	1.9690e+06
Rg (reciprocal space) rg_reciprocal	32.95 Å
I(0) (reciprocal space) i0_reciprocal	129900000.0000
Solution quality estimate total_estimate	0.9026
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	33.8 Å
Skewness Skewness skewness	0.148
Kurtosis Kurtosis kurtosis	-0.724
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	26840000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.836

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	WD repeat-containing protein 48
Molecular weight formula_weight	76312.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	6366

MAAHHRQNTAGRRKVQVSYVIRDEVEKYNRNGVNALQLDPALNRLFTAGRDSIIRIWSVNQHKQDPYIASMEHHTDWVNDIVLCCNGKTLISASSDTTVKVWNAHKGFCMSTLRTHKDYVKALAYAKDKELVASAGLDRQIFLWDVNTLTALTASNNTVTTSSLSGNKDSIYSLAMNQLGTIIVSGSTEKVLRVWDPRTCAKLMKLKGHTDNVKALLLNRDGTQCLSGSSDGTIRLWSLGQQRCIATYRVHDEGVWALQVNDAFTHVYSGGRDRKIYCTDLRNPDIRVLICEEKAPVLKMELDRSADPPPAIWVATTKSTVNKWTLKGIHNFRASGDYDNDCTNPITPLCTQPDQVIKGGASIIQCHILNDKRHILTKDTNNNVAYWDVLKACKVEDLGKVDFEDEIKKRFKMVYVPNWFSVDLKTGMLTITLDESDCFAAWVSAKDAGFSSPDGSDPKLNLGGLLLQALLEYWPRTHVNPMDEEENEVNHVNGEQENRVQKGNGYFQVPPHTPVIFGEAGGRTLFRLLCRDSGGETESMLLNETVPQWVIDITVDKNMPKFNKIPFYLQPHASSGAKTLKKDRLSASDMLQVRKVMEHVYEKIINLDNESQTTSSSNNEKPGEQEKEEDIAVLAEEKIELLCQDQVLDPNMDLRTVKHFIWKSGGDLTLHYRQKST

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli K-12

Entity 2 Entity 2 polymer

Description description	Ubiquitin carboxyl-terminal hydrolase 12
Molecular weight formula_weight	42540.3 kDa
EC 编号 ec_number	3.4.19.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

LMTVSKFASICTMGANASALEKEIGPEQFPVNEHYFGLVNFGNTCYCNSVLQALYFCRPFREKVLAYKSQPRKKESLLTCLADLFHSIATQKKKVGVIPPKKFITRLRKENELFDNYMQQDAHEFLNYLLNTIADILQEERKQEKQNGRLPNGNIDNENNNSTPDPTWVHEIFQGTLTNETRCLTCETISSKDEDFLDLSVDVEQNTSITHCLRGFSNTETLCSEYKYYCEECRSKQEAHKRMKVKKLPMILALHLKRFKYMDQLHRYTKLSYRVVFPLELRLFNTSGDATNPDRMYDLVAVVVHCGSGPNRGHYIAIVKSHDFWLLFDDDIVEKIDAQAIEEFYGLTSDISKNSESGYILFYQSRD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli K-12

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	120.958 Å
Unit-cell length b length_b	158.929 Å
Unit-cell length c length_c	234.584 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	F 2 2 2
Space-group number int_tables_number	22
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	50.010 Å
R factor r_factor	0.2374
R_work r_work	0.2350
R_free r_free	0.2855
