SAXSdb — 5l74

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plexin-A2

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 655–803	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 NA SODIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.5 K；25% (w/v) polyethylene glycol 3,350 and 100 mM BIS-TRIS pH 5.5	Resolution 1.36 Å R-free 0.203

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5L74	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3AL8 Plexin A2 / Semaphorin 6A complex Deposited 2010-07-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 31–561（531 aa） Fragment：sema and PSI domain (UNP RESIDUES 31-561)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；18-25% (wt./vol.) PEG 1000, 0.2-0.3M MgCl2, 0.1M Na-cacodylate pH 5.5-6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.60 Å R-free 0.287
3AL8 Plexin A2 / Semaphorin 6A complex Deposited 2010-07-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 31–561（531 aa） Fragment：sema and PSI domain (UNP RESIDUES 31-561)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；18-25% (wt./vol.) PEG 1000, 0.2-0.3M MgCl2, 0.1M Na-cacodylate pH 5.5-6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.60 Å R-free 0.287
3AL9 Mouse Plexin A2 extracellular domain Deposited 2010-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–561（531 aa） Fragment：sema and PSI domain (UNP RESIDUES 31-561) Chain B 31–561（531 aa） Fragment：sema and PSI domain (UNP RESIDUES 31-561)	Not recorded	EDO 1,2-ETHANEDIOL × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；24-28%(wt/vol) PEG 3350, 0-0.2M NaCl, 0.1M Tris-Cl pH 8.0-8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.257
3AL9 Mouse Plexin A2 extracellular domain Deposited 2010-07-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–561（531 aa） Fragment：sema and PSI domain (UNP RESIDUES 31-561)	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；24-28%(wt/vol) PEG 3350, 0-0.2M NaCl, 0.1M Tris-Cl pH 8.0-8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.257
3AL9 Mouse Plexin A2 extracellular domain Deposited 2010-07-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 31–561（531 aa） Fragment：sema and PSI domain (UNP RESIDUES 31-561)	Not recorded	EDO 1,2-ETHANEDIOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；24-28%(wt/vol) PEG 3350, 0-0.2M NaCl, 0.1M Tris-Cl pH 8.0-8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.257
3OKT Mouse Plexin A2, extracellular domains 1-4 Deposited 2010-08-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–703（669 aa） Fragment：residues 33-703, extracellular domains 1-4	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CL CHLORIDE ION × 2 NA SODIUM ION × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Polyethylene Glycol 6000 12.8% w/v, Magnesium Chloride 128mM, HEPES 64mM pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.251
3OKT Mouse Plexin A2, extracellular domains 1-4 Deposited 2010-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 35–703（669 aa） Fragment：residues 33-703, extracellular domains 1-4	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10 CL CHLORIDE ION × 4 NA SODIUM ION × 2 GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；Polyethylene Glycol 6000 12.8% w/v, Magnesium Chloride 128mM, HEPES 64mM pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.251
3OKY Plexin A2 in complex with Semaphorin 6A Deposited 2010-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 33–701（669 aa） Fragment：residues 33-703, extracellular domains 1-4	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12 GOL GLYCEROL × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；2-Methyl-2,4-Pentanediol 12.4% v/v, MES 124mM pH 6.0, ethyl acetate 1% v/v, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.19 Å R-free 0.230
4GZA Complex of mouse Plexin A2 - Semaphorin 3A - Neuropilin-1 Deposited 2012-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 33–703（671 aa） Fragment：UNP RESIDUES 33-703 Chain B 33–703（671 aa） Fragment：UNP RESIDUES 33-703 Chain C 33–703（671 aa） Fragment：UNP RESIDUES 33-703 Chain D 33–703（671 aa） Fragment：UNP RESIDUES 33-703 Chain E 33–703（671 aa） Fragment：UNP RESIDUES 33-703 Chain F 33–703（671 aa） Fragment：UNP RESIDUES 33-703	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；70mM HEPES, pH 7.5, 1.4% w/v PEG 400, 12% v/v glycerol, 1.4M ammonium sulphate, VAPOR DIFFUSION, SITTING DROP, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；70mM HEPES, pH 7.5, 1.4% w/v PEG 400, 12% v/v glycerol, 1.4M ammonium sulphate, 1% v/v ethyl acetate, VAPOR DIFFUSION, SITTING DROP, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；70mM HEPES, pH 7.5, 1.4% w/v PEG 400, 12% v/v glycerol, 1.4M ammonium sulphate, 8% v/v acetonitrile , VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 7.00 Å R-free 0.285
5L5G Plexin A2 full extracellular region, domains 1 to 8 modeled, data to 10 angstrom Deposited 2016-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–1231（1199 aa） Fragment：UNP residues 33-1231 Chain C 33–1231（1199 aa） Fragment：UNP residues 33-1231	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.5 K；0.68 M potassium/sodium tartrate, 85 mM HEPES, pH 7.5	Resolution 10.00 Å R-free 0.370
5L5G Plexin A2 full extracellular region, domains 1 to 8 modeled, data to 10 angstrom Deposited 2016-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 33–1231（1199 aa） Fragment：UNP residues 33-1231 Chain D 33–1231（1199 aa） Fragment：UNP residues 33-1231	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.5 K；0.68 M potassium/sodium tartrate, 85 mM HEPES, pH 7.5	Resolution 10.00 Å R-free 0.370

6 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLXA2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–151； UniProt 655–803

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5l74
Deposition date deposition_date	2016-06-01
Structure title title	Plexin A2 extracellular segment domains 4-5 (PSI2-IPT2), resolution 1.36 Angstrom
Keywords keywords	signaling protein, receptor, axon guidance, PSI-IPT domains; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.22 Å
Radius of gyration Rg (electron density) rg_electron	17.24 Å
Forward intensity I(0) i0	6305160.00
Molecular weight molecular_weight	17564.0 kDa
Excluded volume excluded_volume	21667 Å³
Envelope volume envelope_volume	25539 Å³
Hydration-shell volume shell_volume	13288 Å³
Envelope diameter envelope_diameter	63.4 Å
Shell Rg shell_rg	22.26 Å
Envelope Rg envelope_rg	17.71 Å
Shape Rg shape_rg	17.21 Å
Total Rg total_rg	18.19 Å
Total atoms total_atoms	1226
Residues n_residues	151
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.0 Å
Rg (real space) rg_real	18.30 Å
Rg uncertainty (real space) rg_real_error	0.48 Å
I(0) (real space) i0_real	6.3050e+06
I(0) uncertainty (real space) i0_real_error	7.2360e+04
Rg (reciprocal space) rg_reciprocal	18.29 Å
I(0) (reciprocal space) i0_reciprocal	6305000.0000
Solution quality estimate total_estimate	0.8558
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.0 Å
Skewness Skewness skewness	0.474
Kurtosis Kurtosis kurtosis	-0.201
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1087000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.750; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.888; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Plexin-A2
Molecular weight formula_weight	16905.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1340

TGNCSAHQLCLSCVNSAFRCHWCKYRNLCTHDPTTCSFQEGRINVSEDCPQLVPTEEILIPVGEVKPITLKARNLPQPQSGQRGYECVLSIQGAVHRVPALRFNSSSVQCQNSSYQYDGMDISNLAVDFAVVWNGNFIIDNPQDLKVHLYK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	97

▶

8. Citations (1)

▶

Unit-cell length a length_a	107.710 Å
Unit-cell length b length_b	44.560 Å
Unit-cell length c length_c	33.010 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.360 Å
Low-resolution limit resolution_low	52.092 Å
R factor r_factor	0.1759
R_work r_work	0.1745
R_free r_free	0.2025

fit	/app/data/saxs_computation/l7/5l74/5l74.fit
pddf	/app/data/pr_computation/l7/5l74/5l74.pr.out
profile	/app/data/saxs_computation/l7/5l74/5l74.dat

Plexin A2 extracellular segment domains 4-5 (PSI2-IPT2), resolution 1.36 Angstrom

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plexin-A2

State in the Current Structure

Other States of the Same Protein in the Database

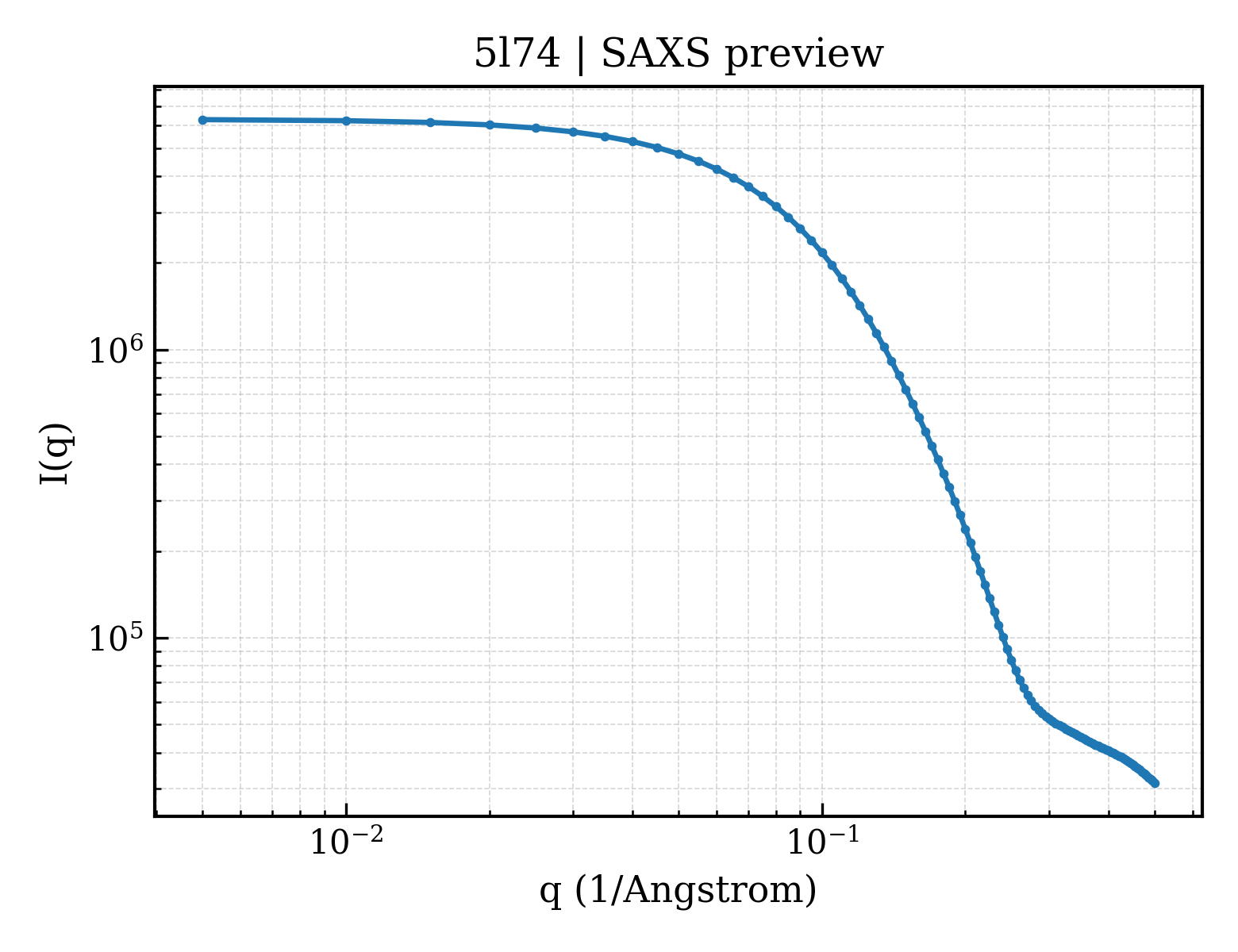

SAXS scattering curve SAXS Profile

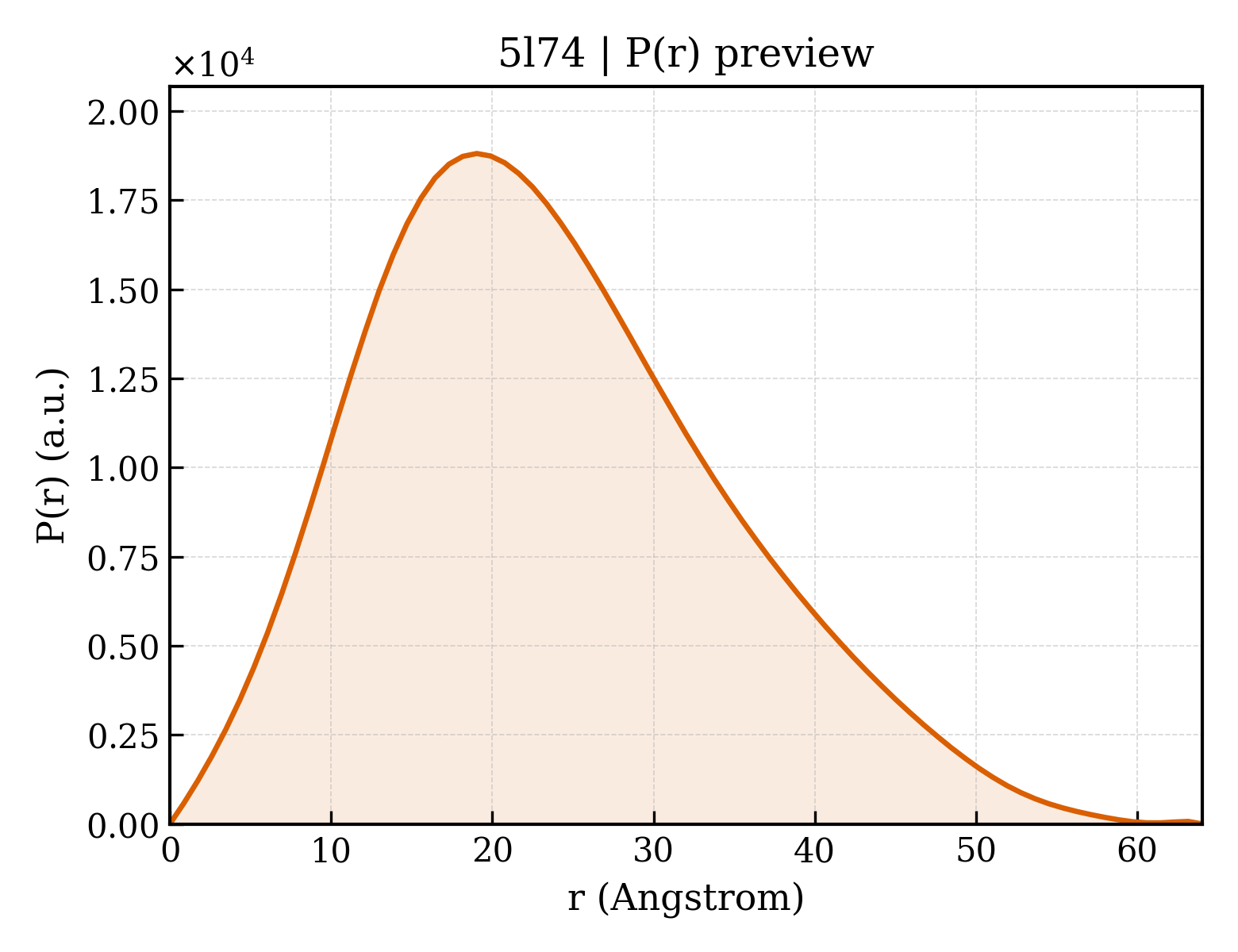

P(r) Distance Distribution P(r) Distribution
