SAXSdb — 5lm1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein phosphatase non-receptor type 23

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 362–713	Not recorded	UBAP-1 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M KSCN, 20% PEG3350	Resolution 2.55 Å R-free 0.254

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5LM1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3RAU Crystal structure of the HD-PTP Bro1 domain Deposited 2011-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–361（360 aa） Fragment：UNP residues 2-361 Chain B 2–361（360 aa） Fragment：UNP residues 2-361	Not recorded	ACT ACETATE ION × 8 EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH5.5, 16% PEG3350, 0.3M Magnesium Acetate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.95 Å R-free 0.215
5CRU Crystal structure of the Bro domain of HD-PTP Deposited 2015-07-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–361（361 aa） Fragment：UNP residues 1-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；0.03 M HEPES sodium, 16%(w/v) polyethylene glycol 3350, 0.67%(w/v) tryptone, 0.03 M urea	Resolution 2.40 Å R-free 0.259
5CRU Crystal structure of the Bro domain of HD-PTP Deposited 2015-07-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–361（361 aa） Fragment：UNP residues 1-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；0.03 M HEPES sodium, 16%(w/v) polyethylene glycol 3350, 0.67%(w/v) tryptone, 0.03 M urea	Resolution 2.40 Å R-free 0.259
5CRU Crystal structure of the Bro domain of HD-PTP Deposited 2015-07-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–361（361 aa） Fragment：UNP residues 1-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；0.03 M HEPES sodium, 16%(w/v) polyethylene glycol 3350, 0.67%(w/v) tryptone, 0.03 M urea	Resolution 2.40 Å R-free 0.259
5CRU Crystal structure of the Bro domain of HD-PTP Deposited 2015-07-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–361（361 aa） Fragment：UNP residues 1-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；0.03 M HEPES sodium, 16%(w/v) polyethylene glycol 3350, 0.67%(w/v) tryptone, 0.03 M urea	Resolution 2.40 Å R-free 0.259
5CRV Crystal structure of the Bro domain of HD-PTP in a complex with the core region of STAM2 Deposited 2015-07-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–361（361 aa） Fragment：UNP residues 1-361	Mutation：N33A,Y34A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1 M Bis-Tris, 30%(w/v) polyethylene glycol 3350, 4%(v/v) acetonitrile	Resolution 2.00 Å R-free 0.241
5CRV Crystal structure of the Bro domain of HD-PTP in a complex with the core region of STAM2 Deposited 2015-07-23	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–361（361 aa） Fragment：UNP residues 1-361	Mutation：N33A,Y34A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1 M Bis-Tris, 30%(w/v) polyethylene glycol 3350, 4%(v/v) acetonitrile	Resolution 2.00 Å R-free 0.241
5LM2 Crystal Structure of HD-PTP phosphatase Deposited 2016-07-28	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 362–713（352 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Bis-Tris pH 6.0, 0.1-0.2 M Na-Formate and 13-15% PEG3350	Resolution 2.54 Å R-free 0.271
5LM2 Crystal Structure of HD-PTP phosphatase Deposited 2016-07-28	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 362–713（352 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Bis-Tris pH 6.0, 0.1-0.2 M Na-Formate and 13-15% PEG3350	Resolution 2.54 Å R-free 0.271
5MJY Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (SARA complex structure) Deposited 2016-12-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–361（361 aa） Chain B 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.1 M MMT buffer pH 9.0, 25% PEG1500	Resolution 2.25 Å R-free 0.235
5MJY Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (SARA complex structure) Deposited 2016-12-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–361（361 aa） Chain D 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.1 M MMT buffer pH 9.0, 25% PEG1500	Resolution 2.25 Å R-free 0.235
5MJZ Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Apo structure) Deposited 2016-12-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；Apo- HD-PTPBro1 crystals were obtained in 0.2M L-Na-Glutamate, 0.2M Alanine, 0.2M Glycine, 0.2M Lysine HCl, 0.2M Serine, 0.1 M Imidazole; MES monohydrate at pH 6.5 and 30% Ethylene glycol, PEG8K.	Resolution 1.87 Å R-free 0.216
5MJZ Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Apo structure) Deposited 2016-12-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；Apo- HD-PTPBro1 crystals were obtained in 0.2M L-Na-Glutamate, 0.2M Alanine, 0.2M Glycine, 0.2M Lysine HCl, 0.2M Serine, 0.1 M Imidazole; MES monohydrate at pH 6.5 and 30% Ethylene glycol, PEG8K.	Resolution 1.87 Å R-free 0.216
5MK0 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Endofin peptide complex) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Ammonium tartrate dibasic, 20% PEG3350 and 0.1 M MMT buffer pH 9.0, 25% PEG1500	Resolution 1.76 Å R-free 0.193
5MK0 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Endofin peptide complex) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Ammonium tartrate dibasic, 20% PEG3350 and 0.1 M MMT buffer pH 9.0, 25% PEG1500	Resolution 1.76 Å R-free 0.193
5MK1 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (CHMP4A peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.1 M Tris pH 7.8, 5% (poly-glutamic acid low molecular weight polymer) 20% PEG3350	Resolution 2.50 Å R-free 0.226
5MK1 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (CHMP4A peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.1 M Tris pH 7.8, 5% (poly-glutamic acid low molecular weight polymer) 20% PEG3350	Resolution 2.50 Å R-free 0.226
5MK1 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (CHMP4A peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.1 M Tris pH 7.8, 5% (poly-glutamic acid low molecular weight polymer) 20% PEG3350	Resolution 2.50 Å R-free 0.226
5MK1 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (CHMP4A peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.1 M Tris pH 7.8, 5% (poly-glutamic acid low molecular weight polymer) 20% PEG3350	Resolution 2.50 Å R-free 0.226
5MK2 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (CHMP4B peptide complex structure) Deposited 2016-12-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.2 M CaCl2, 0.1 M MES pH 6.0, 20% PEG 6K	Resolution 1.70 Å R-free 0.203
5MK2 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (CHMP4B peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.2 M CaCl2, 0.1 M MES pH 6.0, 20% PEG 6K	Resolution 1.70 Å R-free 0.203
5MK3 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro 1 domain (CHMP4C peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium thiocyanate, 0.1 M Bis-Tris propane pH 6.5, 20% PEG 3350	Resolution 2.00 Å R-free 0.235
5MK3 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro 1 domain (CHMP4C peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium thiocyanate, 0.1 M Bis-Tris propane pH 6.5, 20% PEG 3350	Resolution 2.00 Å R-free 0.235
5MK3 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro 1 domain (CHMP4C peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium thiocyanate, 0.1 M Bis-Tris propane pH 6.5, 20% PEG 3350	Resolution 2.00 Å R-free 0.235
5MK3 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro 1 domain (CHMP4C peptide complex structure) Deposited 2016-12-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium thiocyanate, 0.1 M Bis-Tris propane pH 6.5, 20% PEG 3350	Resolution 2.00 Å R-free 0.235

10 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PTN23_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–352； UniProt 362–713

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5lm1
Deposition date deposition_date	2016-07-28
Structure title title	Crystal Structure of HD-PTP phosphatase in complex with UBAP1
Keywords keywords	coiled coil, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.43 Å
Radius of gyration Rg (electron density) rg_electron	43.30 Å
Forward intensity I(0) i0	24373600.00
Molecular weight molecular_weight	38559.0 kDa
Excluded volume excluded_volume	48015 Å³
Envelope volume envelope_volume	74347 Å³
Hydration-shell volume shell_volume	17486 Å³
Envelope diameter envelope_diameter	160.0 Å
Shell Rg shell_rg	37.73 Å
Envelope Rg envelope_rg	43.10 Å
Shape Rg shape_rg	43.35 Å
Total Rg total_rg	42.77 Å
Total atoms total_atoms	2705
Residues n_residues	349
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

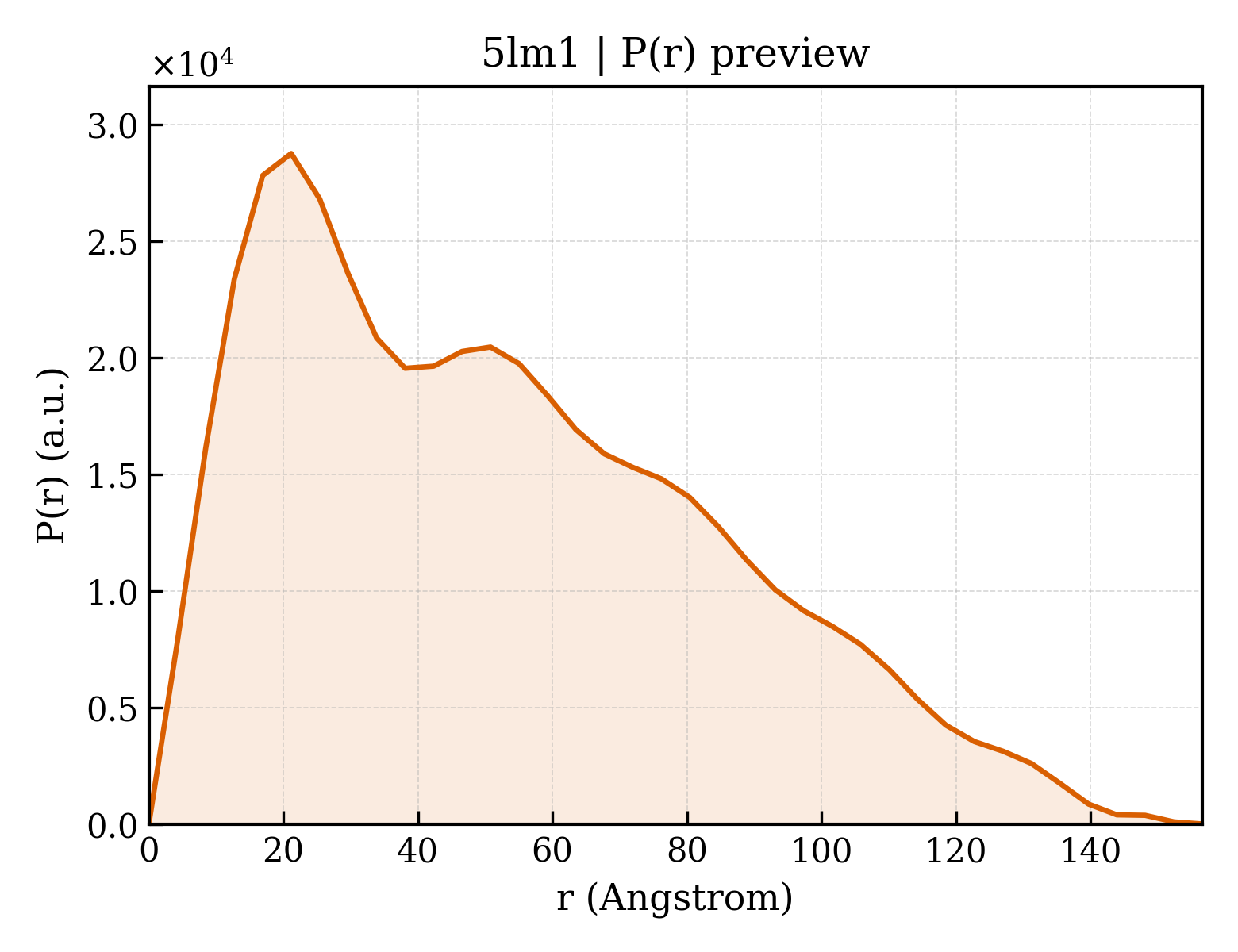

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	156.6 Å
Rg (real space) rg_real	43.34 Å
Rg uncertainty (real space) rg_real_error	2.54 Å
I(0) (real space) i0_real	2.4370e+07
I(0) uncertainty (real space) i0_real_error	5.1240e+05
Rg (reciprocal space) rg_reciprocal	42.44 Å
I(0) (reciprocal space) i0_reciprocal	24350000.0000
Solution quality estimate total_estimate	0.6035
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.2 Å
Skewness Skewness skewness	0.569
Kurtosis Kurtosis kurtosis	-0.509
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	732500.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.095; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.045; Smooth: 0.514

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein phosphatase non-receptor type 23
Molecular weight formula_weight	40162.6 kDa
EC 编号 ec_number	3.1.3.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2742

PMAAHEASSLYSEEKAKLLREMMAKIEDKNEVLDQFMDSMQLDPETVDNLDAYSHIPPQLMEKCAALSVRPDTVRNLVQSMQVLSGVFTDVEASLKDIRDLLEEDELLEQKFQEAVGQAGAISITSKAELAEVRREWAKYMEVHEKASFTNSELHRAMNLHVGNLRLLSGPLDQVRAALPTPALSPEDKAVLQNLKRILAKVQEMRDQRVSLEQQLRELIQKDDITASLVTTDHSEMKKLFEEQLKKYDQLKVYLEQNLAAQDRVLCALTEANVQYAAVRRVLSDLDQKWNSTLQTLVASYEAYEDLMKKSQEGRDFYADLESKVAALLERTQSTCQAREAARQQLLDRELK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	UBAP-1
Molecular weight formula_weight	2227.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SNIKSLSFPKLDSDDSNQKT

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	31

▶

8. Citations (1)

▶

Unit-cell length a length_a	48.930 Å
Unit-cell length b length_b	93.270 Å
Unit-cell length c length_c	102.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.550 Å
Low-resolution limit resolution_low	44.820 Å
R factor r_factor	0.2151
R_work r_work	0.2130
R_free r_free	0.2539

fit	/app/data/saxs_computation/lm/5lm1/5lm1.fit
pddf	/app/data/pr_computation/lm/5lm1/5lm1.pr.out
profile	/app/data/saxs_computation/lm/5lm1/5lm1.dat
