SAXSdb — 5mk0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein phosphatase non-receptor type 23

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Zinc finger FYVE domain-containing protein 16 × 1 （Q7Z3T8） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Zinc finger FYVE domain-containing protein 16 × 1 （Q7Z3T8） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PTN23_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–361； UniProt 1–361 Author chain C； PDBConstruct 1–361； UniProt 1–361

Zinc finger FYVE domain-containing protein 16

OrganismNot specified

UniProt Q7Z3T8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Tyrosine-protein phosphatase non-receptor type 23 × 1 （Q9H3S7） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Tyrosine-protein phosphatase non-receptor type 23 × 1 （Q9H3S7） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZFY16_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–22； UniProt 1–22 Author chain D； PDBConstruct 1–22； UniProt 1–22

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5mk0
Deposition date deposition_date	2016-12-02
Structure title title	Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Endofin peptide complex)
Keywords keywords	ESCRT-III Endofin, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5mk0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5mk0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

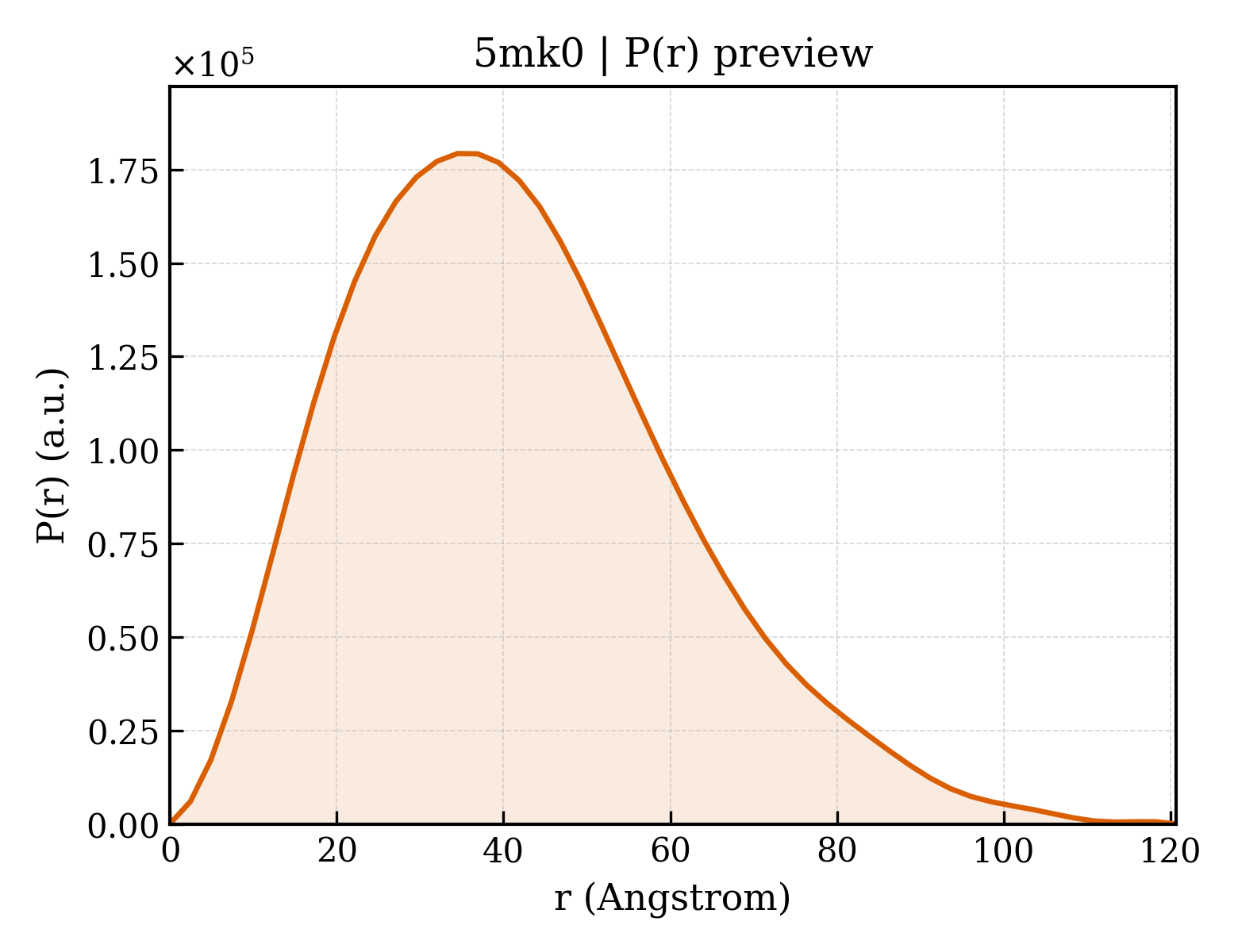

5mk0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.42 Å
Rg (electron density)	25.12 Å
Total Rg	25.53 Å
Atom count	3020
Residues	381
Excluded volume	54077 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5mk0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5mk0__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein phosphatase non-receptor type 23
Molecular weight formula_weight	40719.9 kDa
EC 编号 ec_number	3.1.3.48
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6521

MEAVPRMPMIWLDLKEAGDFHFQPAVKKFVLKNYGENPEAYNEELKKLELLRQNAVRVPRDFEGCSVLRKYLGQLHYLQSRVPMGSGQEAAVPVTWTEIFSGKSVAHEDIKYEQACILYNLGALHSMLGAMDKRVSEEGMKVSCTHFQCAAGAFAYLREHFPQAYSVDMSRQILTLNVNLMLGQAQECLLEKSMLDNRKSFLVARISAQVVDYYKEACRALENPDTASLLGRIQKDWKKLVQMKIYYFAAVAHLHMGKQAEEQQKFGERVAYFQSALDKLNEAIKLAKGQPDTVQDALRFTMDVIGGKYNSAKKDNDFIYHEAVPALDTLQPVKGAPLVKPLPVNPTDPAVTGPDIFAKLV

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Zinc finger FYVE domain-containing protein 16
Molecular weight formula_weight	2566.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MDSYFKAAVSDLDKLLDDFEQN

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	504

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5mk0A00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	280 — alix/aip1 like domains

Domain ID domain_id	5mk0C00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	280 — alix/aip1 like domains

▶

Unit-cell length a length_a	43.751 Å
Unit-cell length b length_b	64.690 Å
Unit-cell length c length_c	70.621 Å
Unit-cell angle α angle_alpha	101.39 °
Unit-cell angle β angle_beta	97.16 °
Unit-cell angle γ angle_gamma	102.21 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.765 Å
Low-resolution limit resolution_low	41.190 Å
R factor r_factor	0.1611
R_work r_work	0.1601
R_free r_free	0.1929

Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Endofin peptide complex)
