SAXSdb — 3t7l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Zinc finger FYVE domain-containing protein 16

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 733–820	Fragment：FYVE domain (UNP residues 733-820)	ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；20% PEG 3350, 0.2 M NaNO3, 10% Ethylene glycol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K	Resolution 1.09 Å R-free 0.154

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3T7L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5MK0 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Endofin peptide complex) Deposited 2016-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–22（22 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Ammonium tartrate dibasic, 20% PEG3350 and 0.1 M MMT buffer pH 9.0, 25% PEG1500	Resolution 1.76 Å R-free 0.193
5MK0 Crystal structure of the His Domain Protein Tyrosine Phosphatase (HD-PTP/PTPN23) Bro1 domain (Endofin peptide complex) Deposited 2016-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–22（22 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Ammonium tartrate dibasic, 20% PEG3350 and 0.1 M MMT buffer pH 9.0, 25% PEG1500	Resolution 1.76 Å R-free 0.193

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ZFY16_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–90； UniProt 733–820

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3t7l
Deposition date deposition_date	2011-07-30
Structure title title	Crystal structure of the FYVE domain of endofin (ZFYVE16) at 1.1A resolution
Keywords keywords	structural genomics consortium, SGC, zinc finger, LIPID BINDING PROTEIN, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.07 Å
Radius of gyration Rg (electron density) rg_electron	12.26 Å
Forward intensity I(0) i0	1838930.00
Molecular weight molecular_weight	8596.0 kDa
Excluded volume excluded_volume	10491 Å³
Envelope volume envelope_volume	12008 Å³
Hydration-shell volume shell_volume	8693 Å³
Envelope diameter envelope_diameter	43.1 Å
Shell Rg shell_rg	17.49 Å
Envelope Rg envelope_rg	12.79 Å
Shape Rg shape_rg	12.33 Å
Total Rg total_rg	13.31 Å
Total atoms total_atoms	587
Residues n_residues	74
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.0 Å
Rg (real space) rg_real	13.08 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	1.8390e+06
I(0) uncertainty (real space) i0_real_error	1.9000e+04
Rg (reciprocal space) rg_reciprocal	13.08 Å
I(0) (reciprocal space) i0_reciprocal	1839000.0000
Solution quality estimate total_estimate	0.7851
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	14.3 Å
Skewness Skewness skewness	0.386
Kurtosis Kurtosis kurtosis	-0.208
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	560500.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Zinc finger FYVE domain-containing protein 16
Molecular weight formula_weight	10244.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	745

SMEGLVLGQKQPTWVPDSEAPNCMNCQVKFTFTKRRHHCRACGKVFCGVCCNRKCKLQYLEKEARVCVVCYETISKAQAFERMMSPTGSN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	86

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3t7la_
Class class	g — Small proteins
Fold Fold fold	g.50 — FYVE/PHD zinc finger
Superfamily Superfamily superfamily	g.50.1 — FYVE/PHD zinc finger
Family Family family	g.50.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	3t7lA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.944 Å
Unit-cell length b length_b	42.944 Å
Unit-cell length c length_c	76.879 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.090 Å
Low-resolution limit resolution_low	22.010 Å
R factor r_factor	0.1424
R_work r_work	0.1418
R_free r_free	0.1542

fit	/app/data/saxs_computation/t7/3t7l/3t7l.fit
pddf	/app/data/pr_computation/t7/3t7l/3t7l.pr.out
profile	/app/data/saxs_computation/t7/3t7l/3t7l.dat

Crystal structure of the FYVE domain of endofin (ZFYVE16) at 1.1A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

Zinc finger FYVE domain-containing protein 16

State in the Current Structure

Other States of the Same Protein in the Database

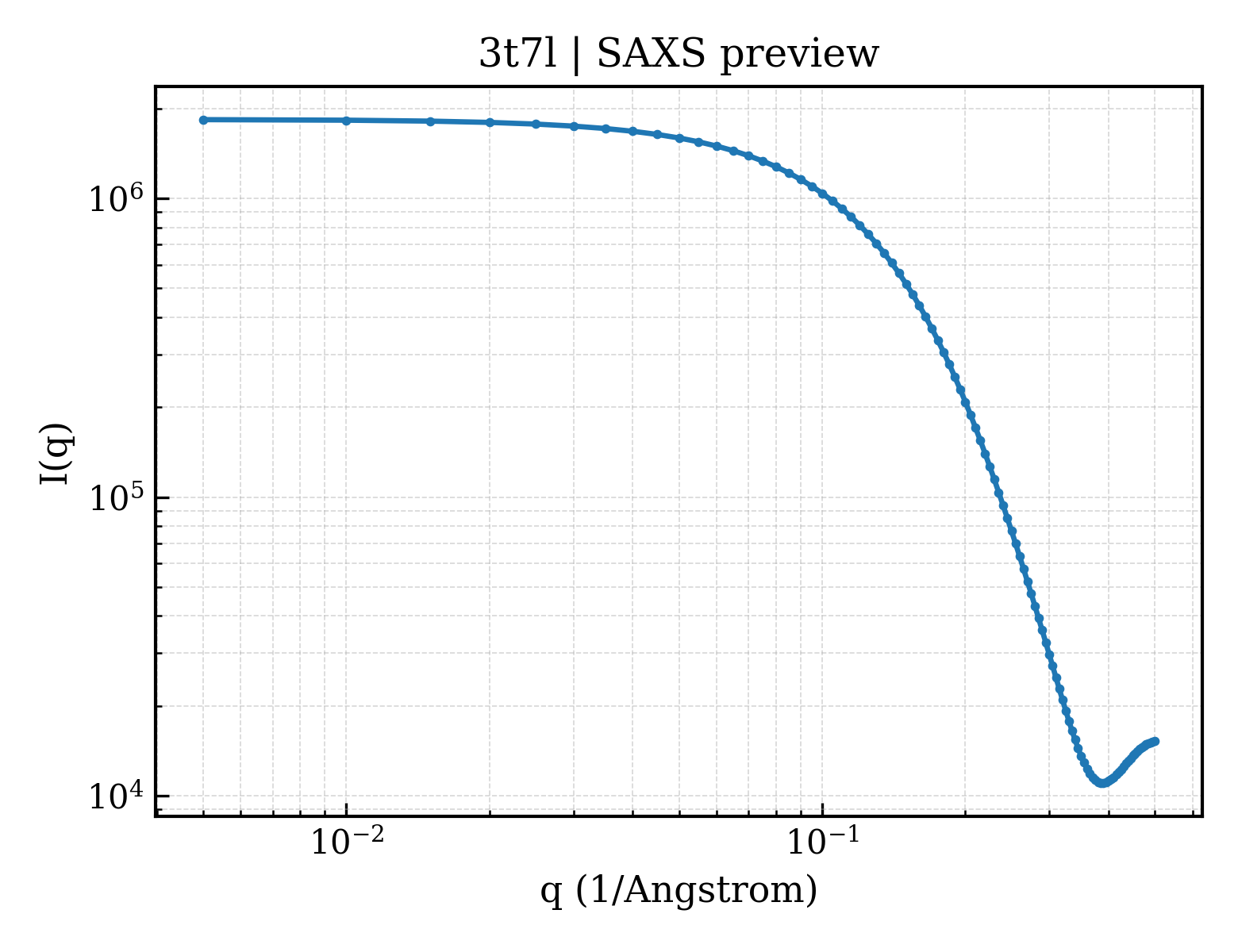

SAXS scattering curve SAXS Profile
