SAXSdb — 5lpn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein Rab-10

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Protein-methionine sulfoxide oxidase MICAL1 × 1 （Q8TDZ2） MAGNESIUM ION × 2 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAB10_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–177； UniProt 1–175 Author chain C； PDBConstruct 3–177； UniProt 1–175

Protein-methionine sulfoxide oxidase MICAL1

Homo sapiens

UniProt Q8TDZ2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Ras-related protein Rab-10 × 2 （P61026） MAGNESIUM ION × 2 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MICA1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–153； UniProt 918–1067

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5lpn
Deposition date deposition_date	2016-08-14
Structure title title	Structure of human Rab10 in complex with the bMERB domain of Mical-1
Keywords keywords	Mical-1, DUF3585, Mical, Rab effector, Rab10, oxidoreductase, endocytosis; ENDOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5lpn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5lpn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

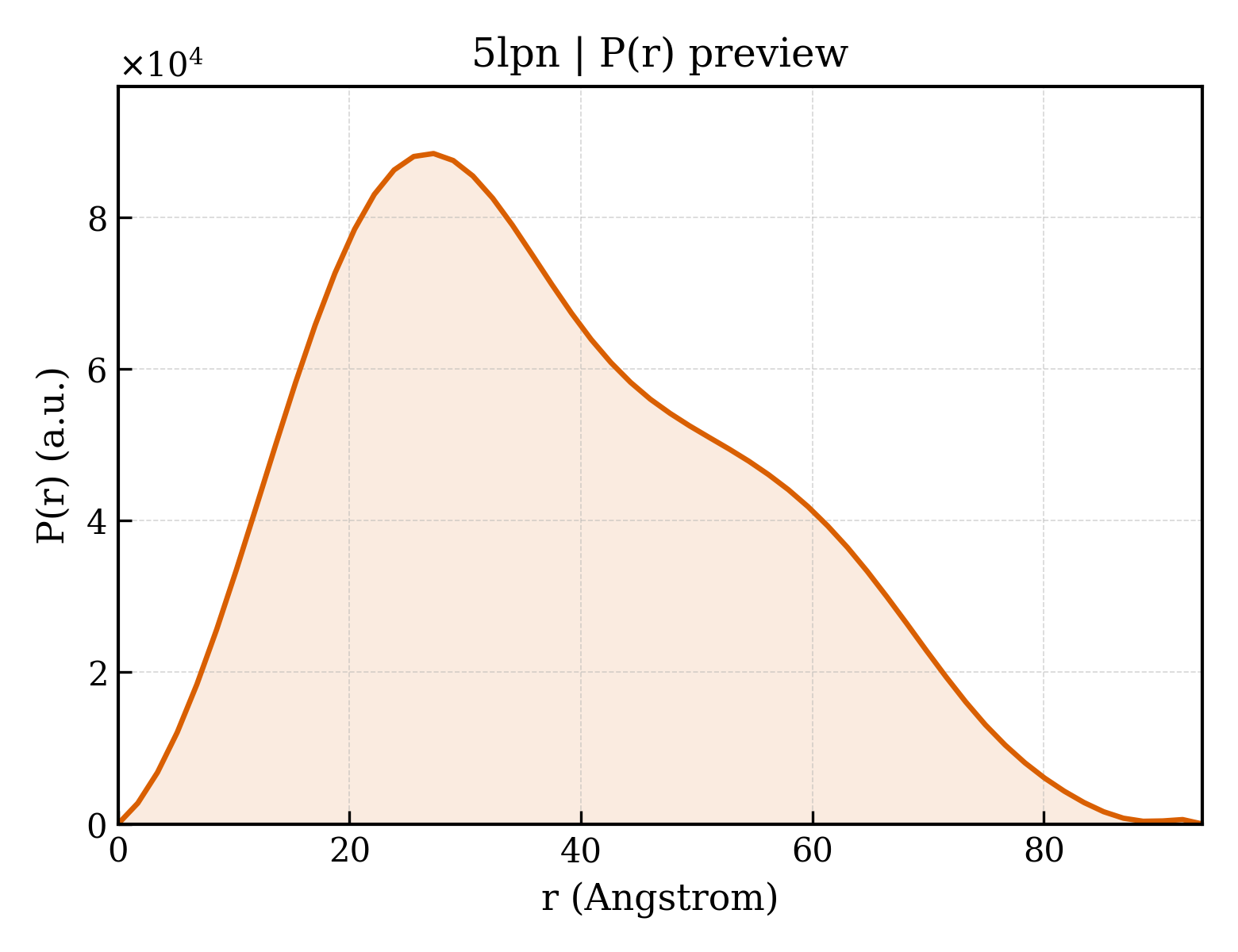

5lpn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.87 Å
Rg (electron density)	28.02 Å
Total Rg	28.69 Å
Atom count	3743
Residues	470
Excluded volume	66519 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5lpn__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ras-related protein Rab-10
Molecular weight formula_weight	20202.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	3747

GHMAKKTYDLLFKLLLIGDSGVGKTCVLFRFSDDAFNTTFISTIGIDFKIKTVELQGKKIKLQIWDTAGQERFHTITTSYYRGAMGIMLVYDITNGKSFENISKWLRNIDEHANEDVERMLLGNKCDMDDKRVVPKGKGEQIAREHGIRFFETSAKANINIEKAFLTLAEDILRKTP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Protein-methionine sulfoxide oxidase MICAL1
Molecular weight formula_weight	17852.3 kDa
EC 编号 ec_number	1.14.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GHMKEEEMKRFCKAQTIQRRLNEIEAALRELEAEGVKLELALRRQSSSPEQQKKLWVGQLLQLVDKKNSLVAEEAELMITVQELNLEEKQWQLDQELRGYMNREENLKTAADRQAEDQVLRKLVDLVNQRDALIRFQEERRLSELALGTGAQG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5lpna_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.0 — automated matches

Domain ID domain_id	d5lpnc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	5lpnA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	5lpnC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	58.390 Å
Unit-cell length b length_b	59.000 Å
Unit-cell length c length_c	198.180 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	44.004 Å
R factor r_factor	0.2462
R_work r_work	0.2440
R_free r_free	0.2866
