Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Polyubiquitin-C × 1 （P0CG48） | Consistent with protein count |
| UniProt name | OTUL_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 3–273； UniProt 80–350 |
OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Ubiquitin thioesterase otulin × 1 （Q96BN8） | Consistent with protein count |
| UniProt name | UBC_HUMAN |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–146； UniProt 1–146 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 5oe7 |
| Deposition date deposition_date | 2017-07-07 |
| Structure title title | Structure of OTULIN bound to the Met1-linked diubiquitin activity probe |
| Keywords keywords | deubiquitinase complex OTU, HYDROLASE; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

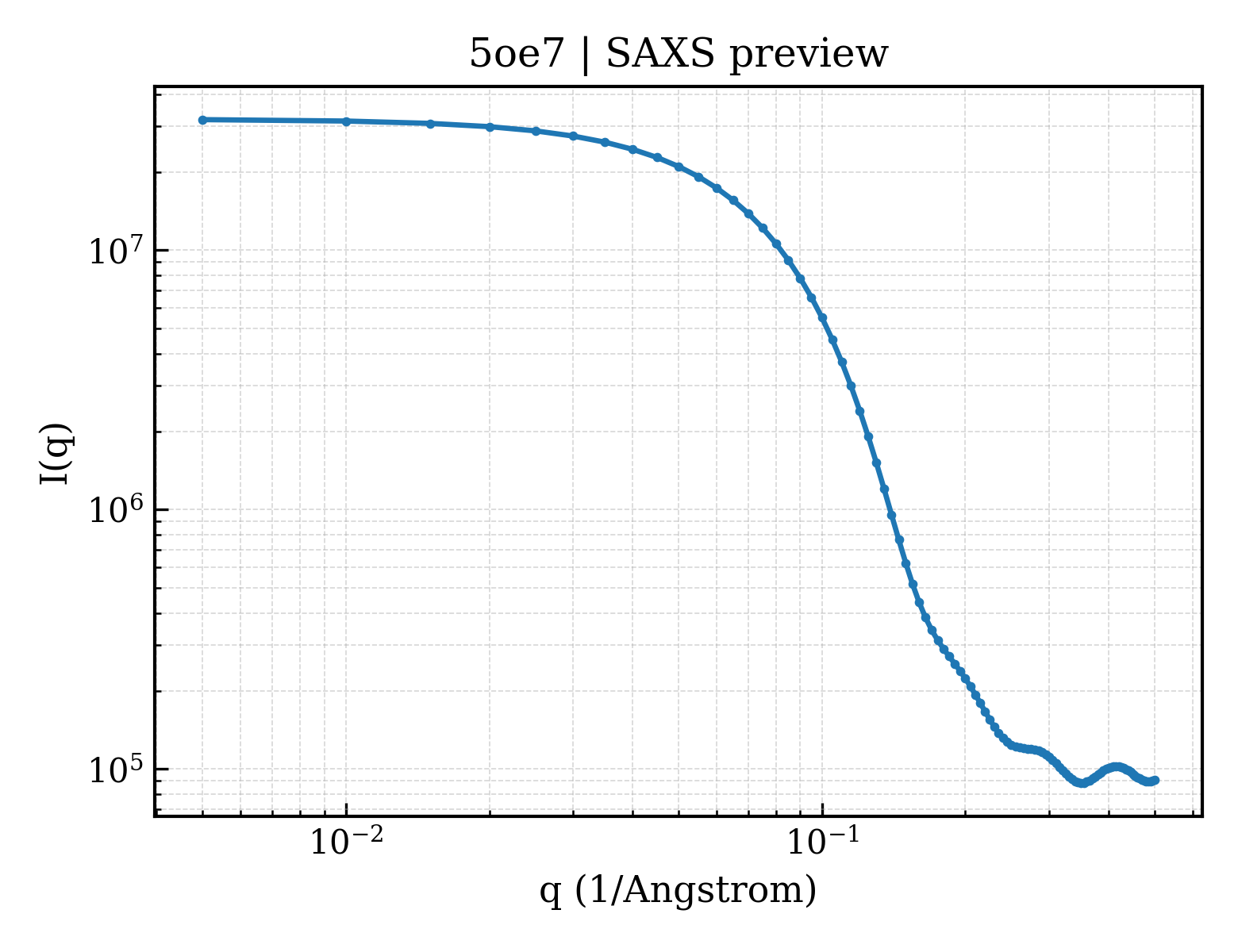

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 22.39 Å |
| Rg (electron density) | 21.25 Å |
| Total Rg | 22.16 Å |
| Atom count | 3077 |
| Residues | 411 |
| Excluded volume | 54645 ų |
| Maximum q | 0.500 Å⁻¹ |
