5tkd

CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH 6-[(3,5-DIMETHYLPHE NYL)AMINO]-8- (METHYLAMINO)IMIDAZO[1,2-B]PYRIDAZINE-3-CARBO XAMIDE

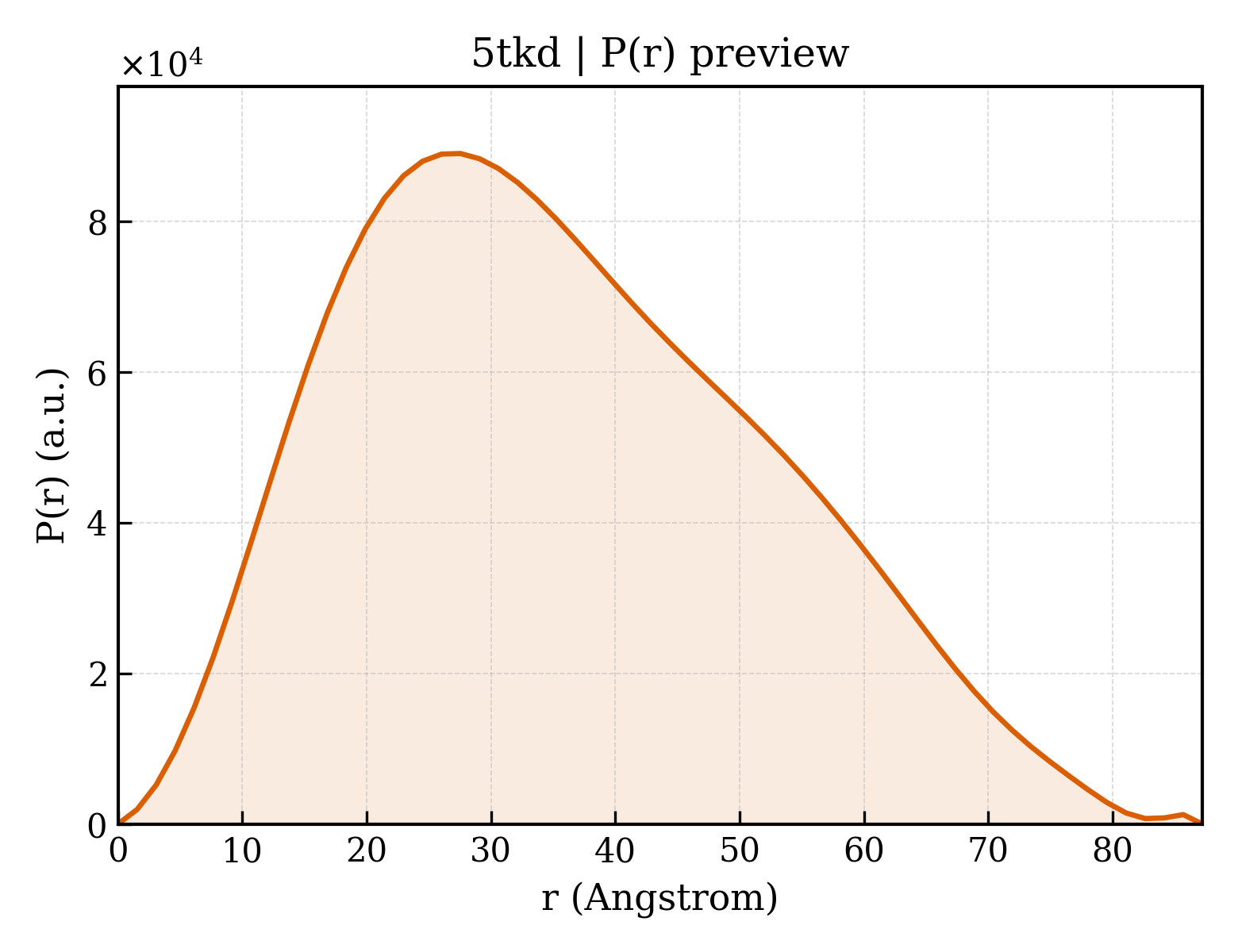

Method: X-RAY DIFFRACTION Dmax: 87.2 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Non-receptor tyrosine-protein kinase TYK2

Homo sapiens

UniProt P29597

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 575–869 Fragment：pseudo kinase domain (UNP residues 575-869) 7GL 6-[(3,5-dimethylphenyl)amino]-8-(methylamino)imidazo[1,2-b]pyridazine-3-carboxamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K Resolution 1.92 Å R-free 0.215
2 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain B； UniProt 575–869 Fragment：pseudo kinase domain (UNP residues 575-869) 7GL 6-[(3,5-dimethylphenyl)amino]-8-(methylamino)imidazo[1,2-b]pyridazine-3-carboxamide × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K Resolution 1.92 Å R-free 0.215
3 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 575–869 Chain B； UniProt 575–869 Fragment：pseudo kinase domain (UNP residues 575-869) 7GL 6-[(3,5-dimethylphenyl)amino]-8-(methylamino)imidazo[1,2-b]pyridazine-3-carboxamide × 2 SO4 SULFATE ION × 3 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.5；298 K Resolution 1.92 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5TKD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3LXN Structural and Thermodynamic Characterization of the TYK2 and JAK3 Kinase Domains in Complex with CP-690550 and CMP-6 Deposited 2010-02-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：Kinase Domain
Mutation：C936A, Q969A, E971A, K972A, C1142A Non-standard monomer：Yes (specific site not provided by mmCIF) MI1 3-{(3R,4R)-4-methyl-3-[methyl(7H-pyrrolo[2,3-d]pyrimidin-4-yl)amino]piperidin-1-yl}-3-oxopropanenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；10% Ethanol, 0.1 M Tris, 0.3 M magnesium chloride, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.286
3LXP Structural and Thermodynamic Characterization of the TYK2 and JAK3 Kinase Domains in Complex with CP-690550 and CMP-6 Deposited 2010-02-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：Kinase Domain
Mutation：C936A, Q969A, E971A, K972A, C1142A Non-standard monomer：Yes (specific site not provided by mmCIF) IZA 2-TERT-BUTYL-9-FLUORO-3,6-DIHYDRO-7H-BENZ[H]-IMIDAZ[4,5-F]ISOQUINOLINE-7-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；10% Ethanol, 0.1 M Tris, and 0.3 M magnesium chloride, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.65 Å R-free 0.229
3NYX Non-phosphorylated TYK2 JH1 domain with Quinoline-Thiadiazole-Thiophene Inhibitor Deposited 2010-07-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：kinase domain JH1
Mutation：Asp1023Asn TZ1 N-{5-[(7-chloroquinolin-4-yl)sulfanyl]-1,3,4-thiadiazol-2-yl}thiophene-2-carboxamide × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 0；293 K；PEG3350, sodium acetate, pH 0.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.50 Å R-free 0.275
3NZ0 Non-phosphorylated TYK2 kinase with CMP6 Deposited 2010-07-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：Kinase domain JH1
Mutation：Asp1023Asn IZA 2-TERT-BUTYL-9-FLUORO-3,6-DIHYDRO-7H-BENZ[H]-IMIDAZ[4,5-F]ISOQUINOLINE-7-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 0；293 K；KSCN, PEG3350, hexafluoro-2-propanol, pH 0.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.00 Å R-free 0.253
3ZON Human TYK2 pseudokinase domain bound to a kinase inhibitor Deposited 2013-02-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 541–873（333 aa） Fragment：PSEUDOKINASE DOMAIN, RESIDUES 541-873
Not recorded IK1 5-PHENYL-2-UREIDOTHIOPHENE-3-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.1M MES PH 6.5, 12%(W/V) PEG 20000
Resolution 2.15 Å R-free 0.268
4GFO TYK2 kinase (JH1 domain) with 2,6-DICHLORO-N-(2-OXO-2,5-DIHYDROPYRIDIN-4-YL)BENZAMIDE Deposited 2012-08-03 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 884–1176（293 aa） Fragment：JH1 domain, UNP residues 884-1176
Mutation：D1023N SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 1 0X2 2,6-dichloro-N-(2-oxo-2,5-dihydropyridin-4-yl)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；300 K；2 M ammonium sulfate, pH 5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 2.30 Å R-free 0.287
4GIH Tyk2 (JH1) in complex with 2,6-DICHLORO-N-{2-[(CYCLOPROPYLCARBONYL)AMINO]PYRIDIN-4-YL}BENZAMIDE Deposited 2012-08-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：Kinase domain, UNP residues 885-1176
Mutation：C936A, Q969A, E971A, K972A, D1023N, C1142A 0X5 2,6-dichloro-N-{2-[(cyclopropylcarbonyl)amino]pyridin-4-yl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20-25%(w/v) PEG3350 and 0.2M Mg sulfate, 0.1M MES pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.00 Å R-free 0.217
4GII Tyk2 (JH1) in complex with 2,6-dichloro-4-cyano-N-{2-[(cyclopropylcarbonyl)amino]pyridin-4-yl}benzamide Deposited 2012-08-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：Kinase domain, UNP residues 885-1176
Mutation：C936A,Q969A,E971A,K972A,D1023N,C1142A 0X6 2,6-dichloro-4-cyano-N-{2-[(cyclopropylcarbonyl)amino]pyridin-4-yl}benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20-25%(w/v) PEG3350 and 0.2M Mg sulfate, 0.1M MES pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.31 Å R-free 0.252
4GJ2 Tyk2 (JH1) in complex with 2,6-dichloro-N-[2-({[(1R,2R)-2-fluorocyclopropyl]carbonyl}amino)pyridin-4-yl]benzamide Deposited 2012-08-09 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：Kinase domain, UNP residues 696-1022
Mutation：C936A,Q969A,E971A,K972A,D1023N,C1142A 0XH 2,6-dichloro-N-[2-({[(1R,2R)-2-fluorocyclopropyl]carbonyl}amino)pyridin-4-yl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20-25%(w/v) PEG3350 and 0.2M Mg sulfate, 0.1M MES pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.40 Å R-free 0.237
4GJ3 Tyk2 (JH1) in complex with 2,6-dichloro-4-cyano-N-[2-({[(1R,2R)-2-fluorocyclopropyl]carbonyl}amino)pyridin-4-yl]benzamide Deposited 2012-08-09 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：Kinase domain, UNP residues 885-1176
Mutation：C936A,Q969A,E971A,K972A,D1023N,C1142A 0XP 2,6-dichloro-4-cyano-N-[2-({[(1R,2R)-2-fluorocyclopropyl]carbonyl}amino)pyridin-4-yl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20-25%(w/v) PEG3350 and 0.2M Mg sulfate, 0.1M MES pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.50 Å R-free 0.260
4GVJ Tyk2 (JH1) in complex with adenosine di-phosphate Deposited 2012-08-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 885–1176（292 aa） Fragment：Kinase domain, UNP residues 885-1176
Mutation：C936A, Q969A, E971A, K972A, C1142A ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；291 K；20-30% w/v PEG 3350, 0.2M Mg sulfate, 0.1M MES , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.03 Å R-free 0.231
4OLI The pseudokinase/kinase protein from JAK-family member TYK2 Deposited 2014-01-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 566–1187（622 aa）
Mutation：D1023N 2TT 2-chloro-N-{2-[(cyclopropylcarbonyl)amino]pyridin-4-yl}benzamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；291 K；15% PEG monomethylether 2000, HEPES pH 7.4 0.1 M, 1mM TCEP, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.80 Å R-free 0.257
4PO6 Crystal structure of the human TYK2 FERM and SH2 domains with an IFNAR1 intracellular peptide Deposited 2014-02-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–583（561 aa） Fragment：unp residues 23-583
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；293 K；0.1 M Tris HCl pH 7.0, 0.2 M MgCl2, and 8-12% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.99 Å R-free 0.234
4PY1 Crystal structure of Tyk2 in complex with compound 15, 6-((2,5-dimethoxyphenyl)thio)-3-(1-methyl-1H-pyrazol-4-yl)-[1,2,4]triazolo[4,3-b]pyridazine Deposited 2014-03-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa）
Mutation：C936A, Q969A, E971A, K972A, C1142A Non-standard monomer：Yes (specific site not provided by mmCIF) 2YK 6-[(2,5-dimethoxyphenyl)sulfanyl]-3-(1-methyl-1H-pyrazol-4-yl)[1,2,4]triazolo[4,3-b]pyridazine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.1 M Bis-tris pH 5.5, 250 mM NaCl, 10 mM TCEP, 33-40% PEG-3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.16 Å R-free 0.236
4WOV CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH BMS-066 AKA 2-METHOXY-N-({6-[3-METHYL-7-(METHYLAMINO)-3,5,8,10-TETRAAZATRICYCLO[7.3.0.0, 6]DODECA-1(9),2(6),4,7,11-PENTAEN-11-YL]PYRIDIN-2-YL}METHY L)ACETAMIDE Deposited 2014-10-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa） Fragment：PSEUDO KINASE DOMAIN (UNP residues 575-869)
Not recorded 3SM 2-methoxy-N-({6-[1-methyl-4-(methylamino)-1,6-dihydroimidazo[4,5-d]pyrrolo[2,3-b]pyridin-7-yl]pyridin-2-yl}methyl)acetamide × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；30% PEG5000 (methyl ether), 200 mM ammonium sulfate and 100 mM sodium cacodylate buffer, pH 6.5
Resolution 1.80 Å R-free 0.214
4WOV CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH BMS-066 AKA 2-METHOXY-N-({6-[3-METHYL-7-(METHYLAMINO)-3,5,8,10-TETRAAZATRICYCLO[7.3.0.0, 6]DODECA-1(9),2(6),4,7,11-PENTAEN-11-YL]PYRIDIN-2-YL}METHY L)ACETAMIDE Deposited 2014-10-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa） Fragment：PSEUDO KINASE DOMAIN (UNP residues 575-869)
Not recorded 3SM 2-methoxy-N-({6-[1-methyl-4-(methylamino)-1,6-dihydroimidazo[4,5-d]pyrrolo[2,3-b]pyridin-7-yl]pyridin-2-yl}methyl)acetamide × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；30% PEG5000 (methyl ether), 200 mM ammonium sulfate and 100 mM sodium cacodylate buffer, pH 6.5
Resolution 1.80 Å R-free 0.214
4WOV CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH BMS-066 AKA 2-METHOXY-N-({6-[3-METHYL-7-(METHYLAMINO)-3,5,8,10-TETRAAZATRICYCLO[7.3.0.0, 6]DODECA-1(9),2(6),4,7,11-PENTAEN-11-YL]PYRIDIN-2-YL}METHY L)ACETAMIDE Deposited 2014-10-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：PSEUDO KINASE DOMAIN (UNP residues 575-869)
Chain B 575–869（295 aa） Fragment：PSEUDO KINASE DOMAIN (UNP residues 575-869)
Not recorded 3SM 2-methoxy-N-({6-[1-methyl-4-(methylamino)-1,6-dihydroimidazo[4,5-d]pyrrolo[2,3-b]pyridin-7-yl]pyridin-2-yl}methyl)acetamide × 2 SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；30% PEG5000 (methyl ether), 200 mM ammonium sulfate and 100 mM sodium cacodylate buffer, pH 6.5
Resolution 1.80 Å R-free 0.214
5C01 Crystal Structure of kinase Deposited 2015-06-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 556–871（316 aa） Fragment：pseudokinase domain
Not recorded UNL UNKNOWN LIGAND × 1 EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18-22% PEG 4000, 0.1 M Tris, pH 8.5, 200 mM CaCl2
Resolution 2.15 Å R-free 0.240
5C01 Crystal Structure of kinase Deposited 2015-06-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 556–871（316 aa） Fragment：pseudokinase domain
Not recorded UNL UNKNOWN LIGAND × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18-22% PEG 4000, 0.1 M Tris, pH 8.5, 200 mM CaCl2
Resolution 2.15 Å R-free 0.240
5C03 Crystal Structure of kinase Deposited 2015-06-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 556–871（316 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18-22% PEG 4000, 0.1 M Tris, pH 8.5, 200 mM CaCl2
Resolution 1.90 Å R-free 0.218
5C03 Crystal Structure of kinase Deposited 2015-06-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 556–871（316 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；18-22% PEG 4000, 0.1 M Tris, pH 8.5, 200 mM CaCl2
Resolution 1.90 Å R-free 0.218
5F1Z Structure of TYK2 with inhibitor 16: 3-azanyl-5-[(2~{S})-3-methylbutan-2-yl]-7-[1-methyl-5-(2-oxidanylpropan-2-yl)pyrazol-3-yl]-1~{H}-pyrazolo[4,3-c]pyridin-4-one Deposited 2015-12-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 884–1176（293 aa）
Not recorded 5U3 3-azanyl-5-[(2~{S})-3-methylbutan-2-yl]-7-[1-methyl-5-(2-oxidanylpropan-2-yl)pyrazol-3-yl]-1~{H}-pyrazolo[4,3-c]pyridin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；15% PEG 5000 MME, and 100 mM Sodium Citrate (pH 6.0)
Resolution 2.65 Å R-free 0.310
5F20 Structure of TYK2 with inhibitor 4: 3-azanyl-5-(2-methylphenyl)-7-(1-methylpyrazol-3-yl)-1~{H}-pyrazolo[4,3-c]pyridin-4-one Deposited 2015-12-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 884–1176（293 aa）
Not recorded 5U4 3-azanyl-5-(2-methylphenyl)-7-(1-methylpyrazol-3-yl)-1~{H}-pyrazolo[4,3-c]pyridin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；15% PEG 5000 MME, and 100 mM Sodium Citrate (pH 6.0)
Resolution 2.91 Å R-free 0.288
5WAL Identification of an imidazopyridine scaffold to generate potent and selective TYK2 inhibitors that demonstrate activity in an in vivo psoriasis model Deposited 2017-06-26 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 884–1176（293 aa）
Mutation：C936A, Q969A, E971A, K972A, S1016A, C1142A, D1023N 9ZS N-[2-(2,6-dichlorophenyl)-1H-imidazo[4,5-c]pyridin-4-yl]cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20-25%(w/v) PEG3350 and 0.2M Mg sulfate, 0.1M MES pH6.5
Resolution 2.45 Å R-free 0.243
6AAM Crystal structure of TYK2 in complex with peficitinib Deposited 2018-07-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa）
Mutation：D1023N, I1114L,K972A,E971A,Q969A,C936A,C1142A 9T6 4-[[(1S,3R)-5-oxidanyl-2-adamantyl]amino]-1H-pyrrolo[2,3-b]pyridine-5-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M Bis-Tris pH7.5, 0.2M sodium acetate, 10% glycerol, 20% PEG3350
Resolution 1.98 Å R-free 0.238
6DBK Tyk2 with compound 8 Deposited 2018-05-03 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) G5D 4-({4-[(1S,4S)-5-(cyanoacetyl)-2,5-diazabicyclo[2.2.1]heptan-2-yl]pyrimidin-2-yl}amino)-N-ethylbenzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.00 Å R-free 0.249
6DBM Tyk2 with compound 23 Deposited 2018-05-03 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) G4J [(1S)-2,2-difluorocyclopropyl][(1R,5S)-3-{2-[(1-methyl-1H-pyrazol-4-yl)amino]pyrimidin-4-yl}-3,8-diazabicyclo[3.2.1]octan-8-yl]methanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.37 Å R-free 0.264
6NSL CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound-6c AKA 6-((1-(4-CYANOPHENY L)-2-OXO-1,2-DIHYDRO-3-PYRIDINYL)AMINO)-N-CYCLOPROPYL-8-(M ETHYLAMINO)IMIDAZO[1,2-B]PYRIDAZINE-3-CARBOXAMIDE Deposited 2019-01-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa） Fragment：residues 575-869
Not recorded KZJ 6-{[1-(4-cyanophenyl)-2-oxo-1,2-dihydropyridin-3-yl]amino}-N-cyclopropyl-8-(methylamino)imidazo[1,2-b]pyridazine-3-carboxamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；200 mM ammonium sulfate, and 100 mM sodium cacodylate buffer, pH 6.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.15 Å R-free 0.213
6NSL CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound-6c AKA 6-((1-(4-CYANOPHENY L)-2-OXO-1,2-DIHYDRO-3-PYRIDINYL)AMINO)-N-CYCLOPROPYL-8-(M ETHYLAMINO)IMIDAZO[1,2-B]PYRIDAZINE-3-CARBOXAMIDE Deposited 2019-01-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa） Fragment：residues 575-869
Not recorded KZJ 6-{[1-(4-cyanophenyl)-2-oxo-1,2-dihydropyridin-3-yl]amino}-N-cyclopropyl-8-(methylamino)imidazo[1,2-b]pyridazine-3-carboxamide × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；200 mM ammonium sulfate, and 100 mM sodium cacodylate buffer, pH 6.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.15 Å R-free 0.213
6NZE CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_5 AKA 4-[(2-CARBAMOYLPHEN YL)AMINO]-6-[(5-FLUOROPYRIDIN-2-YL)AMINO]-N-METHYLPYRIDINE -3-CARBOXAMIDE Deposited 2019-02-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Chain B 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded L8Y 4-[(2-carbamoylphenyl)amino]-6-[(5-fluoropyridin-2-yl)amino]-N-methylpyridine-3-carboxamide × 2 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM HEPES buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 1.96 Å R-free 0.227
6NZF CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_5 AKA 4-[(2-CARBAMOYLPHEN YL)AMINO]-6-[(5-FLUOROPYRIDIN-2-YL)AMINO]-N-METHYLPYRIDINE -3-CARBOXAMIDE Deposited 2019-02-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Chain B 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded L91 6-[(5-fluoropyridin-2-yl)amino]-N-methyl-4-{[2-(methylsulfonyl)phenyl]amino}pyridine-3-carboxamide × 2 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM HEPES buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.39 Å R-free 0.231
6NZH CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_40 AKA 6-cyclopropaneamido-4-[(2-methanesulfonylphenyl)amino]-N-methylpyridine-3-carboxamide Deposited 2019-02-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa）
Chain B 575–869（295 aa）
Not recorded L9A 6-[(cyclopropanecarbonyl)amino]-N-methyl-4-{[2-(methylsulfonyl)phenyl]amino}pyridine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM HEPES buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.73 Å R-free 0.215
6NZP CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH COMPOUND-11 AKA 6-CYCLOPROPANEAMIDO-4-{[2-METHOXY-3-(1-METHYL-1H-1,2,4-TRI AZOL-3-YL)PHENYL]AMINO}-N-(?H?)METHYLPYRIDAZINE-3-CARBOXAMIDE Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Chain B 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded LB7 6-[(cyclopropanecarbonyl)amino]-4-{[2-methoxy-3-(1-methyl-1H-1,2,4-triazol-3-yl)phenyl]amino}-N-methylpyridazine-3-carboxamide × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM Cacodylate buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.35 Å R-free 0.238
6NZP CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH COMPOUND-11 AKA 6-CYCLOPROPANEAMIDO-4-{[2-METHOXY-3-(1-METHYL-1H-1,2,4-TRI AZOL-3-YL)PHENYL]AMINO}-N-(?H?)METHYLPYRIDAZINE-3-CARBOXAMIDE Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded LB7 6-[(cyclopropanecarbonyl)amino]-4-{[2-methoxy-3-(1-methyl-1H-1,2,4-triazol-3-yl)phenyl]amino}-N-methylpyridazine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM Cacodylate buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.35 Å R-free 0.238
6NZP CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH COMPOUND-11 AKA 6-CYCLOPROPANEAMIDO-4-{[2-METHOXY-3-(1-METHYL-1H-1,2,4-TRI AZOL-3-YL)PHENYL]AMINO}-N-(?H?)METHYLPYRIDAZINE-3-CARBOXAMIDE Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded LB7 6-[(cyclopropanecarbonyl)amino]-4-{[2-methoxy-3-(1-methyl-1H-1,2,4-triazol-3-yl)phenyl]amino}-N-methylpyridazine-3-carboxamide × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM Cacodylate buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.35 Å R-free 0.238
6NZQ CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_29 AKA 6-[(5-FLUORO-4-METH YLPYRIDIN-2-YL)AMINO]-4-({2-METHOXY-3-[(PYRIDIN-2-YLMETHYL )CARBAMOYL]PHENYL}AMINO)-N-METHYLPYRIDINE-3-CARBOXAMIDE Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Chain B 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded LB4 6-[(5-fluoro-4-methylpyridin-2-yl)amino]-4-[(2-methoxy-3-{[(pyridin-2-yl)methyl]carbamoyl}phenyl)amino]-N-methylpyridine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；200 mM ammonium sulfate, and 100 mM Sodium Cacodylate, pH 6.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.11 Å R-free 0.237
6NZQ CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_29 AKA 6-[(5-FLUORO-4-METH YLPYRIDIN-2-YL)AMINO]-4-({2-METHOXY-3-[(PYRIDIN-2-YLMETHYL )CARBAMOYL]PHENYL}AMINO)-N-METHYLPYRIDINE-3-CARBOXAMIDE Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded LB4 6-[(5-fluoro-4-methylpyridin-2-yl)amino]-4-[(2-methoxy-3-{[(pyridin-2-yl)methyl]carbamoyl}phenyl)amino]-N-methylpyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；200 mM ammonium sulfate, and 100 mM Sodium Cacodylate, pH 6.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.11 Å R-free 0.237
6NZQ CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_29 AKA 6-[(5-FLUORO-4-METH YLPYRIDIN-2-YL)AMINO]-4-({2-METHOXY-3-[(PYRIDIN-2-YLMETHYL )CARBAMOYL]PHENYL}AMINO)-N-METHYLPYRIDINE-3-CARBOXAMIDE Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa） Fragment：Pseudo kinase domain, residues 575-869
Not recorded LB4 6-[(5-fluoro-4-methylpyridin-2-yl)amino]-4-[(2-methoxy-3-{[(pyridin-2-yl)methyl]carbamoyl}phenyl)amino]-N-methylpyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；200 mM ammonium sulfate, and 100 mM Sodium Cacodylate, pH 6.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.11 Å R-free 0.237
6NZR CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH Compound_12 AKA 4-[(2-methanesulfonylphenyl)amino]-N-(H3)methyl-6-[(pyridin-2- yl)amino]pyridazine-3-carboxamide Deposited 2019-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：PSEUDO KINASE DOMAIN, residues 575-869
Chain B 575–869（295 aa） Fragment：PSEUDO KINASE DOMAIN, residues 575-869
Not recorded LAJ N-methyl-4-{[2-(methylsulfonyl)phenyl]amino}-6-[(pyridin-2-yl)amino]pyridazine-3-carboxamide × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；200 mM ammonium sulfate, and 100 mM Sodium Cacodylate, pH 6.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.56 Å R-free 0.229
6OVA Crystal Structure of TYK2 with novel pyrrolidinone inhibitor Deposited 2019-05-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 884–1176（293 aa） Fragment：residues 884-1176
Not recorded N9G 6-({4-[(3S)-3-cyano-3-cyclopropyl-2-oxopyrrolidin-1-yl]pyridin-2-yl}amino)-N,N-dimethylpyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；15% PEG 5000 MME, and 100 mM Sodium Citrate (pH 6.0)
Resolution 2.50 Å R-free 0.251
6VNS Crystal structure of TYK2 kinase with compound 13 Deposited 2020-01-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) R5D (1R,2R)-2-cyano-N-[(1S,5R)-3-(5-fluoro-2-{[1-(2-hydroxyethyl)-1H-pyrazol-4-yl]amino}pyrimidin-4-yl)-3-azabicyclo[3.1.0]hexan-1-yl]cyclopropane-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.09 Å R-free 0.231
6VNV Crystal structure of TYK2 kinase with compound 14 Deposited 2020-01-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) R4Y (1S,2S)-2-cyano-N-[(1S,5R)-3-(5-fluoro-2-{[1-(2-hydroxyethyl)-1H-pyrazol-4-yl]amino}pyrimidin-4-yl)-3-azabicyclo[3.1.0]hexan-1-yl]cyclopropane-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.15 Å R-free 0.238
6VNX Crystal structure of TYK2 kinase with compound 19 Deposited 2020-01-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) R4V (1S)-2,2-difluoro-N-[(1S,5R,6R)-3-{5-fluoro-2-[(1-methyl-1H-pyrazol-4-yl)amino]pyrimidin-4-yl}-6-methyl-3-azabicyclo[3.1.0]hexan-1-yl]cyclopropane-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.18 Å R-free 0.238
6VNY Crystal structure of TYK2 kinase with compound 10 Deposited 2020-01-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) R4S N-[(1S,5R)-3-(5-fluoro-2-{[1-(2-hydroxyethyl)-1H-pyrazol-4-yl]amino}pyrimidin-4-yl)-3-azabicyclo[3.1.0]hexan-1-yl]cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.30 Å R-free 0.229
6X8F Crystal structure of TYK2 with Compound 11 Deposited 2020-06-01 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) UWP [3-{4-[6-(1-methyl-1H-pyrazol-4-yl)pyrazolo[1,5-a]pyrazin-4-yl]-1H-pyrazol-1-yl}-1-(2,2,2-trifluoroethyl)azetidin-3-yl]acetonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.15 Å R-free 0.255
6X8F Crystal structure of TYK2 with Compound 11 Deposited 2020-06-01 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) UWP [3-{4-[6-(1-methyl-1H-pyrazol-4-yl)pyrazolo[1,5-a]pyrazin-4-yl]-1H-pyrazol-1-yl}-1-(2,2,2-trifluoroethyl)azetidin-3-yl]acetonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.15 Å R-free 0.255
6X8G Crystal structure of TYK2 with Compound 22 Deposited 2020-06-01 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 888–1182（295 aa） Fragment：kinase domain
Mutation：C936A, C1142A, Q969A, E971A, K972A Non-standard monomer：Yes (specific site not provided by mmCIF) UWM trans-3-(cyanomethyl)-3-{4-[6-(1-methyl-1H-pyrazol-4-yl)pyrazolo[1,5-a]pyrazin-4-yl]-1H-pyrazol-1-yl}cyclobutane-1-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；298 K；0.1 M bis-tris pH 5.5, 0.25 M NaCl, 10 mM TCEP, 27-33% PEG-3350
Resolution 2.21 Å R-free 0.244
7AX4 Human TYK2 pseudokinase domain (575-869) in complex with 5-(4-Fluoro-phenyl)-2-ureido-thiophene-3-carboxylic acid amide. Deposited 2020-11-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa）
Not recorded NM7 2-(carbamoylamino)-5-(4-fluorophenyl)thiophene-3-carboxamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；25.5% w/v PEG 4000, 0.21 M calcium chloride, 0.10 M Tris pH 8.5
Resolution 2.12 Å R-free 0.229
7AX4 Human TYK2 pseudokinase domain (575-869) in complex with 5-(4-Fluoro-phenyl)-2-ureido-thiophene-3-carboxylic acid amide. Deposited 2020-11-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa）
Not recorded NM7 2-(carbamoylamino)-5-(4-fluorophenyl)thiophene-3-carboxamide × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；25.5% w/v PEG 4000, 0.21 M calcium chloride, 0.10 M Tris pH 8.5
Resolution 2.12 Å R-free 0.229
7K7O CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH COMPOUND-12 AKA:6-[(cyclopropanecarbonyl)amino]-4-{[2-methoxy-3-(pyrimidin-2-yl)phenyl]amino}-N-methylpyridazine-3-carboxamide Deposited 2020-09-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：TYK2-JH2 DOMAIN
Chain B 575–869（295 aa） Fragment：TYK2-JH2 DOMAIN
Not recorded VZJ 6-[(cyclopropanecarbonyl)amino]-4-{[2-methoxy-3-(pyrimidin-2-yl)phenyl]amino}-N-methylpyridazine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM Cacodylate buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.82 Å R-free 0.252
7K7Q CRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH COMPOUND-12 AKA:6-[(cyclopropanecarbonyl)amino]-4-({3-[6-(dimethylcarbamoyl)pyridazin-3-yl]-2-methoxyphenyl}amino)-N-methylpyridazine-3-carboxamide Deposited 2020-09-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 575–869（295 aa） Fragment：TYK2-JH2 DOMAIN
Chain B 575–869（295 aa） Fragment：TYK2-JH2 DOMAIN
Not recorded VZG 6-[(cyclopropanecarbonyl)amino]-4-({3-[6-(dimethylcarbamoyl)pyridazin-3-yl]-2-methoxyphenyl}amino)-N-methylpyridazine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM ammonium sulfate, and 100 mM Cacodylate buffer, pH 7.5, 30%(W/V) PEG 5000 (Methyl Ether)
Resolution 2.27 Å R-free 0.215
7UYR Crystal structure of TYK2 kinase domain in complex with compound 12 Deposited 2022-05-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 889–1177（289 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) OVI 2-(4-{[2-(2,6-difluorophenyl)-5-oxo-5H-pyrrolo[3,4-d]pyrimidin-4-yl]amino}phenyl)-N-ethylacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；Crystals of human TYK2 in complex with the ligand were prepared according to established protocols
Resolution 2.15 Å R-free 0.259
7UYS Crystal structure of TYK2 kinase domain in complex with compound 16 Deposited 2022-05-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 889–1177（289 aa） Fragment：KINASE DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) OVC 2-(2,6-difluorophenyl)-4-(4-methoxyanilino)-5H-pyrrolo[3,4-d]pyrimidin-5-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；Crystals of human TYK2 in complex with the ligand were prepared according to established protocols
Resolution 2.15 Å R-free 0.272
7UYT Crystal structure of TYK2 kinase domain in complex with compound 25 Deposited 2022-05-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 889–1177（289 aa） Fragment：KINASE DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) OV5 6-{[(2M)-2-(2-chloro-6-fluorophenyl)-5-oxo-5H-pyrrolo[3,4-b]pyridin-4-yl]amino}-N-ethylpyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；Crystals of human TYK2 in complex with the ligand were prepared according to established protocols
Resolution 2.14 Å R-free 0.293
7UYU Crystal structure of TYK2 kinase domain in complex with compound 30 Deposited 2022-05-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 889–1177（289 aa） Fragment：KINASE DOMAIN
Non-standard monomer：Yes (specific site not provided by mmCIF) OV0 2-(2,6-difluorophenyl)-4-[4-(pyrrolidine-1-carbonyl)anilino]-5H-pyrrolo[3,4-b]pyridin-5-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；Crystals of human TYK2 in complex with the ligand were prepared according to established protocols
Resolution 2.05 Å R-free 0.257
8EXN Crystal structure of PTP1B D181A/Q262A phosphatase domain with TYK2 activation loop phosphopeptide Deposited 2022-10-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1048–1062（15 aa） Fragment：residues 1048-1062 of TYK2
Not recorded PO4 PHOSPHATE ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281.15 K；0.2 M Calcium Acetate, 12.5% PEG 4K, 0.05 M MES (pH 6.5)
Resolution 2.15 Å R-free 0.241
8EYC Crystal structure of PTP1B D181A/Q262A/C215A phosphatase domain with TYK2 activation loop phosphopeptide Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1048–1062（15 aa） Fragment：residues 1048-1062 of TYK2
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281.15 K；14% PEG 8K, 0.20 M Magnesium Acetate, 0.1 M MES (pH 6.5)
Resolution 2.99 Å R-free 0.254
8S98 Crystal structure of the TYK2 pseudokinase domain in complex with compound 8 Deposited 2023-03-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZRU (8S)-N-cyclopropyl-5-[(2-methoxypyridin-3-yl)amino]-7-(methylamino)pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimised using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
Resolution 1.87 Å R-free 0.274
8S98 Crystal structure of the TYK2 pseudokinase domain in complex with compound 8 Deposited 2023-03-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZRU (8S)-N-cyclopropyl-5-[(2-methoxypyridin-3-yl)amino]-7-(methylamino)pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimised using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
Resolution 1.87 Å R-free 0.274
8S98 Crystal structure of the TYK2 pseudokinase domain in complex with compound 8 Deposited 2023-03-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 575–869（295 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZRU (8S)-N-cyclopropyl-5-[(2-methoxypyridin-3-yl)amino]-7-(methylamino)pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimised using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
Resolution 1.87 Å R-free 0.274
8S99 Crystal structure of the TYK2 pseudokinase domain in complex with compound 11 Deposited 2023-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa）
Not recorded ZS3 (8S)-N-[(1R,2S)-2-fluorocyclopropyl]-5-{[(1M,2'M)-3'-fluoro-2-oxo-2H-[1,2'-bipyridin]-3-yl]amino}-7-(methylamino)pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimized using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
Resolution 1.71 Å R-free 0.225
8S99 Crystal structure of the TYK2 pseudokinase domain in complex with compound 11 Deposited 2023-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa）
Not recorded ZS3 (8S)-N-[(1R,2S)-2-fluorocyclopropyl]-5-{[(1M,2'M)-3'-fluoro-2-oxo-2H-[1,2'-bipyridin]-3-yl]amino}-7-(methylamino)pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimized using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
Resolution 1.71 Å R-free 0.225
8S99 Crystal structure of the TYK2 pseudokinase domain in complex with compound 11 Deposited 2023-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 575–869（295 aa）
Not recorded ZS3 (8S)-N-[(1R,2S)-2-fluorocyclopropyl]-5-{[(1M,2'M)-3'-fluoro-2-oxo-2H-[1,2'-bipyridin]-3-yl]amino}-7-(methylamino)pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimized using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
Resolution 1.71 Å R-free 0.225
8S9A Crystal structure of the TYK2 pseudokinase domain in complex with TAK-279 Deposited 2023-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 575–869（295 aa）
Not recorded ZSB (8S)-N-[(1R,2R)-2-methoxycyclobutyl]-7-(methylamino)-5-{[(1P,2'P)-2-oxo-2H-[1,2'-bipyridin]-3-yl]amino}pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 ACT ACETATE ION × 3 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimized using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations
Resolution 1.83 Å R-free 0.224
8S9A Crystal structure of the TYK2 pseudokinase domain in complex with TAK-279 Deposited 2023-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 575–869（295 aa）
Not recorded ZSB (8S)-N-[(1R,2R)-2-methoxycyclobutyl]-7-(methylamino)-5-{[(1P,2'P)-2-oxo-2H-[1,2'-bipyridin]-3-yl]amino}pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 ACT ACETATE ION × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimized using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations
Resolution 1.83 Å R-free 0.224
8S9A Crystal structure of the TYK2 pseudokinase domain in complex with TAK-279 Deposited 2023-03-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 575–869（295 aa）
Not recorded ZSB (8S)-N-[(1R,2R)-2-methoxycyclobutyl]-7-(methylamino)-5-{[(1P,2'P)-2-oxo-2H-[1,2'-bipyridin]-3-yl]amino}pyrazolo[1,5-a]pyrimidine-3-carboxamide × 1 ACT ACETATE ION × 3 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；298 K；The purified protein was used in crystallization trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallization conditions identified using literature data. Conditions initially obtained have been optimized using standard strategies, systematically varying parameters critically influencing crystallization, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations
Resolution 1.83 Å R-free 0.224
8TB5 TYK2 JH2 bound to Compound7 Deposited 2023-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 566–870（305 aa）
Not recorded ACT ACETATE ION × 1 ZOQ N-{(3P)-3-[3-(dimethylsulfamoyl)phenyl]-1H-pyrrolo[2,3-c]pyridin-5-yl}cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% w/v PEG4,000, 200mM Sodium Acetate, 100mM Tris-HCl pH8.5
Resolution 2.32 Å R-free 0.243
8TB5 TYK2 JH2 bound to Compound7 Deposited 2023-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 566–870（305 aa）
Not recorded ACT ACETATE ION × 1 ZOQ N-{(3P)-3-[3-(dimethylsulfamoyl)phenyl]-1H-pyrrolo[2,3-c]pyridin-5-yl}cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% w/v PEG4,000, 200mM Sodium Acetate, 100mM Tris-HCl pH8.5
Resolution 2.32 Å R-free 0.243
8TB6 TYK2 JH2 bound to Compound14 Deposited 2023-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 566–870（305 aa）
Not recorded ZOI N-[(3M)-3-{6-[(3R)-3-methoxyoxolan-3-yl]pyridin-2-yl}-1-methyl-1H-pyrrolo[2,3-c]pyridin-5-yl]urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；30% w/v PEG4,000, 200mM Sodium Acetate, 100mM Tris-HCl pH8.5
Resolution 1.96 Å R-free 0.236
8TB6 TYK2 JH2 bound to Compound14 Deposited 2023-06-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 566–870（305 aa）
Not recorded ZOI N-[(3M)-3-{6-[(3R)-3-methoxyoxolan-3-yl]pyridin-2-yl}-1-methyl-1H-pyrrolo[2,3-c]pyridin-5-yl]urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；30% w/v PEG4,000, 200mM Sodium Acetate, 100mM Tris-HCl pH8.5
Resolution 1.96 Å R-free 0.236

51 other PDB entries and 70 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TYK2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 4–298； UniProt 575–869 Author chain B； PDBConstruct 4–298； UniProt 575–869

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 5tkd

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 5tkd
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5tkd
Deposition date deposition_date2016-10-06
Structure title titleCRYSTAL STRUCTURE OF TYROSINE KINASE 2 JH2 (PSEUDO KINASE DOMAIN) COMPLEXED WITH 6-[(3,5-DIMETHYLPHE NYL)AMINO]-8- (METHYLAMINO)IMIDAZO[1,2-B]PYRIDAZINE-3-CARBO XAMIDE
Keywords keywordsKINASE, TYK2, PSEUDOKINASE, TRANSFERASE; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier27.70 Å
Radius of gyration Rg (electron density) rg_electron26.96 Å
Forward intensity I(0) i048077900.00
Molecular weight molecular_weight54132.0 kDa
Excluded volume excluded_volume67849 ų
Envelope volume envelope_volume83782 ų
Hydration-shell volume shell_volume26539 ų
Envelope diameter envelope_diameter90.8 Å
Shell Rg shell_rg33.54 Å
Envelope Rg envelope_rg26.87 Å
Shape Rg shape_rg26.96 Å
Total Rg total_rg27.69 Å
Total atoms total_atoms3850
Residues n_residues495
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax87.2 Å
Rg (real space) rg_real27.80 Å
Rg uncertainty (real space) rg_real_error0.70 Å
I(0) (real space) i0_real4.8080e+07
I(0) uncertainty (real space) i0_real_error7.4470e+05
Rg (reciprocal space) rg_reciprocal27.77 Å
I(0) (reciprocal space) i0_reciprocal48080000.0000
Solution quality estimate total_estimate0.6972
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary27.5 Å
Skewness Skewness skewness0.369
Kurtosis Kurtosis kurtosis-0.556
Angular range angular_range— – 0.2850 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha14270000.0000
Real-space data points n_real_points58
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 0.177; Positv: 1.000; Valcen: 0.945; Smooth: 0.804
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd5tkda_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamilyd.144.1 — Protein kinase-like (PK-like)
Family Family familyd.144.1.0 — automated matches
Domain ID domain_idd5tkdb_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamilyd.144.1 — Protein kinase-like (PK-like)
Family Family familyd.144.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id5tkdA01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily20 — Phosphorylase Kinase; domain 1
Domain ID domain_id5tkdA02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily10 — Transferase(Phosphotransferase) domain 1
Domain ID domain_id5tkdB01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily20 — Phosphorylase Kinase; domain 1
Domain ID domain_id5tkdB02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily10 — Transferase(Phosphotransferase) domain 1
▶

8. Citations (1)

▶

9. Files and Curves (10)
