5uhd

Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 4nt RNA in complex with Rifampin

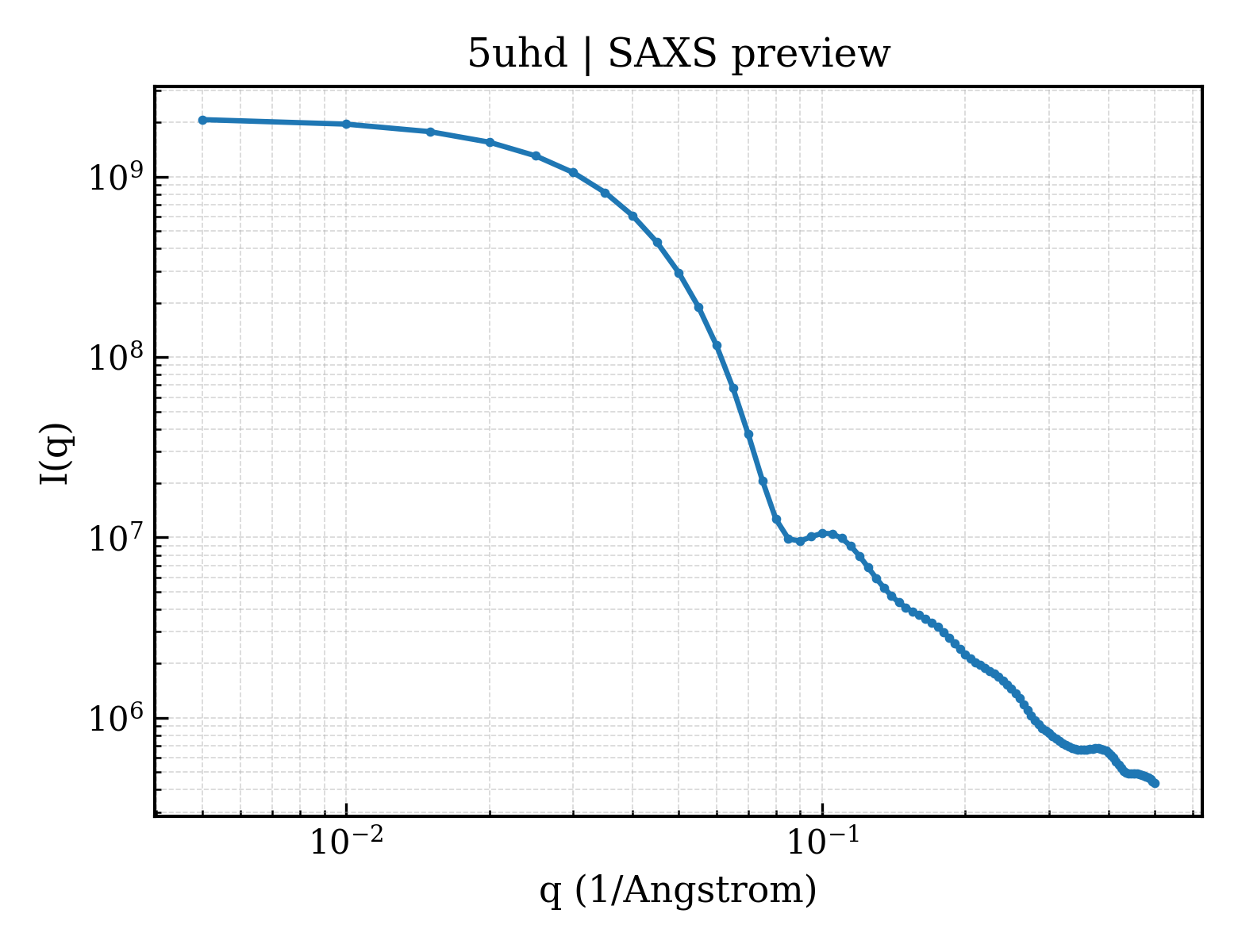

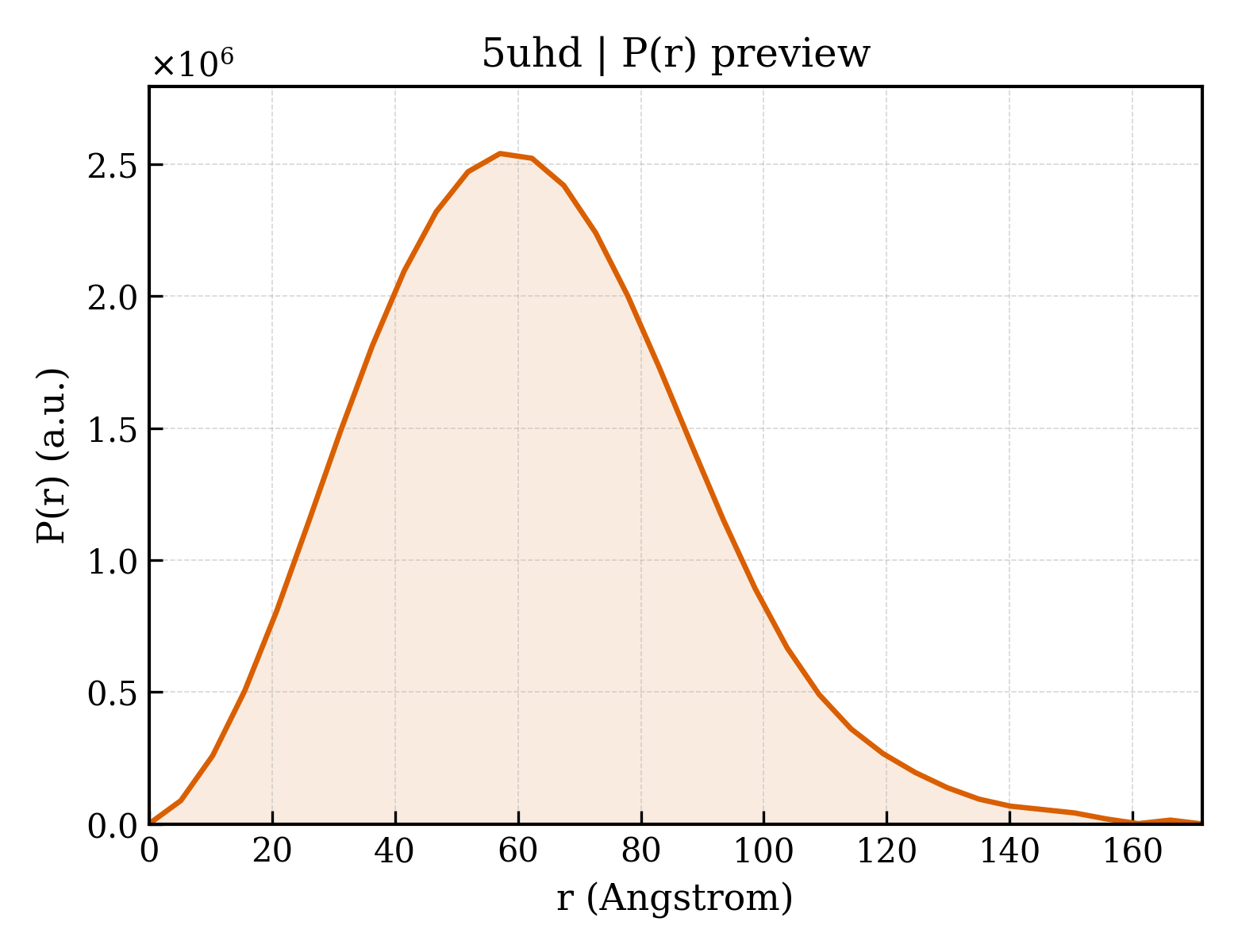

Method: X-RAY DIFFRACTION Dmax: 171.3 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)

UniProt P9WGZ1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 6 DNA 2 PDB declaration: octameric（8） Consistent with all polymer counts Chain A； UniProt 1–347 Chain B； UniProt 1–347 Not recorded DNA-directed RNA polymerase subunit beta × 1 （P9WGY9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P9WGY7） DNA-directed RNA polymerase subunit omega × 1 （P9WGY5） RNA polymerase sigma factor SigA × 1 （P9WGI1） ;DNA (5'-D(*TP*AP*TP*AP*AP*TP*GP*GP*GP*AP*GP*CP*TP*GP*TP*CP*AP*CP*GP*GP*AP*TP*G)-3') ; × 1 ;DNA (5'-D(*CP*AP*TP*CP*CP*GP*TP*GP*AP*GP*TP*CP*GP*AP*GP*G)-3') ; × 1 RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350 Resolution 4.01 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5UHD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UH5 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3 nt of RNA Deposited 2017-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；400 ul 50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.75 Å R-free 0.248
5UH6 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2ntRNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.84 Å R-free 0.264
5UH8 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 4nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.18 Å R-free 0.257
5UH9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.40 Å R-free 0.332
5UHA Crystal structure of Mycobacterium tuberculosis transcription initiation complex Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.91 Å R-free 0.279
5UHB Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with Rifampin Deposited 2017-01-11 Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.29 Å R-free 0.267
5UHC Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3nt RNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；50 mM Tris-HCl, pH 8.5, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.80 Å R-free 0.267
5UHE Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.04 Å R-free 0.259
5UHF Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-IX336 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88D N-(2-methylphenyl)-Nalpha-(selenophene-2-carbonyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；295 K；50 mM Tris-HCl, pH 8.4, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.34 Å R-free 0.267
5UHG Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 and Rifampin Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.97 Å R-free 0.260
5ZX2 Mycobacterium tuberculosis RNA polymerase transcription initiation complex with ECF sigma factor sigma H and 7nt RNA Deposited 2018-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；2% Tacsimate pH 5.0, 0.1 M Sodium citrate pH5.6, 16 % PEG3350
Resolution 2.80 Å R-free 0.255
5ZX3 Mycobacterium tuberculosis RNA polymerase holoenzyme with ECF sigma factor sigma H Deposited 2018-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；0.2 M NaAc, 0.1 M sodium citrate pH5.5, 10% PEG4000
Resolution 2.75 Å R-free 0.258
6DV9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 4nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.232
6DVB Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 5nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.7, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.241
6DVC Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 6nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.0, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.30 Å R-free 0.235
6DVD Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) with 6 nt spacer and bromine labelled in position "-11 Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.2, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.90 Å R-free 0.246
6DVE Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF selenomethionine-labelled sigma factor L) with 6 nt spacer Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.81 Å R-free 0.248
6FBV Single particle cryo em structure of Mycobacterium tuberculosis RNA polymerase in complex with Fidaxomicin Deposited 2017-12-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 FI8 Fidaxomicin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；3.5 microliter 1 microM Mtb RNAP-Lpm and 50 microMolar Lpm in 20 mM Tris-HCl, pH 8.0, 75 mM NaCl, 5 mM MgCl2, 5 mM dithiothreitol, and 0.1% n-octyl-beta-D-glucopyranoside
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å R-free 0.331
6JCX Mycobacterium tuberculosis transcription initiation complex with ECF sigma factor sigma H and 6nt RNA Deposited 2019-01-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08M Magnesium acetate, 0.05M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.90 Å R-free 0.256
6JCY Mycobacterium tuberculosis RNA polymerase transcription initiation open complex with a chimeric ECF sigma factor sigH/E Deposited 2019-01-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.2M sodium acetate, 0.1M sodium citrate pH 5.5, 10% PEG4000
Resolution 3.11 Å R-free 0.238
6KON Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 5 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 10% PEG 400
Resolution 3.00 Å R-free 0.271
6KOO Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 7 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.80 Å R-free 0.248
6KOP Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 9 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.008 M magnesium acetate, 0.05 M sodium cacodylate pH6.5, 14% PEG 400
Resolution 3.30 Å R-free 0.255
6KOQ Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 10 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M magnesium acetate, 0.05 M sodium cacodylated pH 6.5, 15% PEG 400
Resolution 3.35 Å R-free 0.260
7PP4 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme comprising sigma factor SigB Deposited 2021-09-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain a 1–347（347 aa）
Chain b 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å
7Q4U Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme octamer comprising sigma factor SigB Deposited 2021-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain A 1–347（347 aa）
Chain AA 1–347（347 aa）
Chain B 1–347（347 aa）
Chain FA 1–347（347 aa）
Chain G 1–347（347 aa）
Chain GA 1–347（347 aa）
Chain H 1–347（347 aa）
Chain LA 1–347（347 aa）
Chain M 1–347（347 aa）
Chain MA 1–347（347 aa）
Chain N 1–347（347 aa）
Chain RA 1–347（347 aa）
Chain S 1–347（347 aa）
Chain SA 1–347（347 aa）
Chain T 1–347（347 aa）
Chain Z 1–347（347 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
7Q59 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme dimer comprising sigma factor SigB Deposited 2021-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Chain a 1–347（347 aa）
Chain b 1–347（347 aa）
Not recorded ZN ZINC ION × 4 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.36 Å
7Z8Q Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase core Deposited 2022-03-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain a 1–347（347 aa）
Chain b 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.08 Å
8EHQ Mycobacterium tuberculosis paused transcription complex with Bacillus subtilis NusG Deposited 2022-09-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.00 Å
8EJ3 M. tuberculosis RNAP pause escaped complex with Bacillus subtilis NusG and GMPCPP Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.13 Å
8EOE Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_LG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8EOF Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_PG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EOS M. tuberculosis RNAP elongation complex with NusG and CMPCPP Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded 2TM 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]methyl}phosphoryl]cytidine × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.10 Å
8EOT M. tuberculosis RNAP elongation complex with NusG Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EXY M. tuberculosis RNAP paused complex with B. subtilis NusG and GMPCPP Deposited 2022-10-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8HIH Cryo-EM structure of Mycobacterium tuberculosis transcription initiation complex with transcription factor GlnR Deposited 2022-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Chain G 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
9FJP Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain a 1–347（347 aa）
Chain b 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9FJR Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B docked conformation Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain a 1–347（347 aa）
Chain b 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9FJS Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B undocked conformation Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain a 1–347（347 aa）
Chain b 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.48 Å
9JI2 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with unphosphated PhoP Deposited 2024-09-11 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
9JI3 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9JI4 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9JI5 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules Deposited 2024-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Chain I 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9KET Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules(composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9KEU Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9KEV Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 15-meric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9M98 Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9M9D Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9M9E Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9MRQ Mycobacterium tuberculosis RNA polymerase elongation complex bound to inhibitor N-aroyl-N-aryl-phenylalanine amide (AAP)-SO2 Deposited 2025-01-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: octameric
Chain A 1–347（347 aa）
Chain B 1–347（347 aa）
Not recorded A1BNV N-[2-(1,1-dioxo-1lambda~6~-thiomorpholin-4-yl)phenyl]-Nalpha-(2-fluorobenzoyl)-D-phenylalaninamide × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å

50 other PDB entries and 50 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RPOA_MYCTU
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–347； UniProt 1–347 Author chain B； PDBConstruct 1–347； UniProt 1–347

DNA-directed RNA polymerase subunit beta

Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)

UniProt P9WGY9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 6 DNA 2 PDB declaration: octameric（8） Consistent with all polymer counts Chain C； UniProt 1–1178 Not recorded DNA-directed RNA polymerase subunit alpha × 2 （P9WGZ1） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P9WGY7） DNA-directed RNA polymerase subunit omega × 1 （P9WGY5） RNA polymerase sigma factor SigA × 1 （P9WGI1） ;DNA (5'-D(*TP*AP*TP*AP*AP*TP*GP*GP*GP*AP*GP*CP*TP*GP*TP*CP*AP*CP*GP*GP*AP*TP*G)-3') ; × 1 ;DNA (5'-D(*CP*AP*TP*CP*CP*GP*TP*GP*AP*GP*TP*CP*GP*AP*GP*G)-3') ; × 1 RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350 Resolution 4.01 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5UHD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UH5 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3 nt of RNA Deposited 2017-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；400 ul 50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.75 Å R-free 0.248
5UH6 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2ntRNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.84 Å R-free 0.264
5UH8 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 4nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.18 Å R-free 0.257
5UH9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.40 Å R-free 0.332
5UHA Crystal structure of Mycobacterium tuberculosis transcription initiation complex Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.91 Å R-free 0.279
5UHB Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with Rifampin Deposited 2017-01-11 Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.29 Å R-free 0.267
5UHC Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3nt RNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；50 mM Tris-HCl, pH 8.5, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.80 Å R-free 0.267
5UHE Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.04 Å R-free 0.259
5UHF Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-IX336 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88D N-(2-methylphenyl)-Nalpha-(selenophene-2-carbonyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；295 K；50 mM Tris-HCl, pH 8.4, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.34 Å R-free 0.267
5UHG Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 and Rifampin Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.97 Å R-free 0.260
5ZX2 Mycobacterium tuberculosis RNA polymerase transcription initiation complex with ECF sigma factor sigma H and 7nt RNA Deposited 2018-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；2% Tacsimate pH 5.0, 0.1 M Sodium citrate pH5.6, 16 % PEG3350
Resolution 2.80 Å R-free 0.255
5ZX3 Mycobacterium tuberculosis RNA polymerase holoenzyme with ECF sigma factor sigma H Deposited 2018-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；0.2 M NaAc, 0.1 M sodium citrate pH5.5, 10% PEG4000
Resolution 2.75 Å R-free 0.258
6DV9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 4nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.232
6DVB Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 5nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.7, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.241
6DVC Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 6nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.0, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.30 Å R-free 0.235
6DVD Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) with 6 nt spacer and bromine labelled in position "-11 Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.2, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.90 Å R-free 0.246
6DVE Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF selenomethionine-labelled sigma factor L) with 6 nt spacer Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.81 Å R-free 0.248
6FBV Single particle cryo em structure of Mycobacterium tuberculosis RNA polymerase in complex with Fidaxomicin Deposited 2017-12-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 FI8 Fidaxomicin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；3.5 microliter 1 microM Mtb RNAP-Lpm and 50 microMolar Lpm in 20 mM Tris-HCl, pH 8.0, 75 mM NaCl, 5 mM MgCl2, 5 mM dithiothreitol, and 0.1% n-octyl-beta-D-glucopyranoside
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å R-free 0.331
6JCX Mycobacterium tuberculosis transcription initiation complex with ECF sigma factor sigma H and 6nt RNA Deposited 2019-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08M Magnesium acetate, 0.05M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.90 Å R-free 0.256
6JCY Mycobacterium tuberculosis RNA polymerase transcription initiation open complex with a chimeric ECF sigma factor sigH/E Deposited 2019-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.2M sodium acetate, 0.1M sodium citrate pH 5.5, 10% PEG4000
Resolution 3.11 Å R-free 0.238
6KON Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 5 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 10% PEG 400
Resolution 3.00 Å R-free 0.271
6KOO Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 7 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.80 Å R-free 0.248
6KOP Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 9 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.008 M magnesium acetate, 0.05 M sodium cacodylate pH6.5, 14% PEG 400
Resolution 3.30 Å R-free 0.255
6KOQ Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 10 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 7–1178（1172 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M magnesium acetate, 0.05 M sodium cacodylated pH 6.5, 15% PEG 400
Resolution 3.35 Å R-free 0.260
7PP4 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme comprising sigma factor SigB Deposited 2021-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain c 6–1178（1173 aa）
Mutation：L2E3G4C5 -> V ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å
7Q4U Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme octamer comprising sigma factor SigB Deposited 2021-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain BA 6–1178（1173 aa）
Chain C 6–1178（1173 aa）
Chain HA 6–1178（1173 aa）
Chain I 6–1178（1173 aa）
Chain NA 6–1178（1173 aa）
Chain O 6–1178（1173 aa）
Chain TA 6–1178（1173 aa）
Chain V 6–1178（1173 aa）
Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V ZN ZINC ION × 16 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
7Q59 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme dimer comprising sigma factor SigB Deposited 2021-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain C 6–1178（1173 aa）
Chain c 6–1178（1173 aa）
Mutation：L2E3G4C5 -> V Mutation：L2E3G4C5 -> V ZN ZINC ION × 4 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.36 Å
7Z8Q Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase core Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain c 6–1178（1173 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.08 Å
8CWR Complex structure of WhiB3 and the SigmaAr4-RNAP Beta flap tip chimera in space group R3 Deposited 2022-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 815–829（15 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 3 SO4 SULFATE ION × 6 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3 NI NICKEL (II) ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；10-20 mM NiCl2, 0.8-1.0 M Li2SO4
Resolution 1.50 Å R-free 0.212
8CWT Complex structure of WhiB3 and the SigmaAr4-RNAP Beta flap tip chimera in space group P43212 Deposited 2022-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 815–829（15 aa）
Chain D 815–829（15 aa）
Chain F 815–829（15 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 3 SO4 SULFATE ION × 25 NI NICKEL (II) ION × 7 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10-20 mM NiCl2, 0.8-1.0 M Li2SO4
Resolution 1.35 Å R-free 0.174
8D5V WhiB6 bound to the SigmaAr4-RNAP Beta flap tip chimera Deposited 2022-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 815–829（15 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M Na Citrate pH 5.5, 20% PEG3000
Resolution 1.80 Å R-free 0.231
8D5V WhiB6 bound to the SigmaAr4-RNAP Beta flap tip chimera Deposited 2022-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 815–829（15 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M Na Citrate pH 5.5, 20% PEG3000
Resolution 1.80 Å R-free 0.231
8EHQ Mycobacterium tuberculosis paused transcription complex with Bacillus subtilis NusG Deposited 2022-09-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.00 Å
8EJ3 M. tuberculosis RNAP pause escaped complex with Bacillus subtilis NusG and GMPCPP Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.13 Å
8EOE Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_LG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8EOF Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_PG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EOS M. tuberculosis RNAP elongation complex with NusG and CMPCPP Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded 2TM 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]methyl}phosphoryl]cytidine × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.10 Å
8EOT M. tuberculosis RNAP elongation complex with NusG Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EXY M. tuberculosis RNAP paused complex with B. subtilis NusG and GMPCPP Deposited 2022-10-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8HIH Cryo-EM structure of Mycobacterium tuberculosis transcription initiation complex with transcription factor GlnR Deposited 2022-11-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
9FJP Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain c 6–1178（1173 aa）
Mutation：L2E3G4C5I6 -> V ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9FJR Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B docked conformation Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain c 6–1178（1173 aa）
Mutation：L2E3G4C5I6 -> V ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9FJS Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B undocked conformation Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain c 6–1178（1173 aa）
Mutation：L2E3G4C5I6 -> V ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.48 Å
9JI2 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with unphosphated PhoP Deposited 2024-09-11 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
9JI3 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9JI4 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9JI5 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9KET Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules(composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9KEU Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9KEV Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 15-meric
Chain C 1–1178（1178 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9M98 Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain C 7–1178（1172 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9M9D Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9M9E Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain C 1–1178（1178 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9MRQ Mycobacterium tuberculosis RNA polymerase elongation complex bound to inhibitor N-aroyl-N-aryl-phenylalanine amide (AAP)-SO2 Deposited 2025-01-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: octameric
Chain C 1–1178（1178 aa）
Not recorded A1BNV N-[2-(1,1-dioxo-1lambda~6~-thiomorpholin-4-yl)phenyl]-Nalpha-(2-fluorobenzoyl)-D-phenylalaninamide × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å

53 other PDB entries and 54 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RPOB_MYCTU
Isoform —
PDB entities 2
Chains and sequence ranges Author chain C； PDBConstruct 1–1178； UniProt 1–1178

;DNA-directed RNA polymerase subunit beta' ;

Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)

UniProt P9WGY7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 6 DNA 2 PDB declaration: octameric（8） Consistent with all polymer counts Chain D； UniProt 1–1316 Not recorded DNA-directed RNA polymerase subunit alpha × 2 （P9WGZ1） DNA-directed RNA polymerase subunit beta × 1 （P9WGY9） DNA-directed RNA polymerase subunit omega × 1 （P9WGY5） RNA polymerase sigma factor SigA × 1 （P9WGI1） ;DNA (5'-D(*TP*AP*TP*AP*AP*TP*GP*GP*GP*AP*GP*CP*TP*GP*TP*CP*AP*CP*GP*GP*AP*TP*G)-3') ; × 1 ;DNA (5'-D(*CP*AP*TP*CP*CP*GP*TP*GP*AP*GP*TP*CP*GP*AP*GP*G)-3') ; × 1 RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350 Resolution 4.01 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5UHD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UH5 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3 nt of RNA Deposited 2017-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；400 ul 50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.75 Å R-free 0.248
5UH6 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2ntRNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.84 Å R-free 0.264
5UH7 Crystal structure of beta'MtbSI of Mycobacterium tuberculosis RNA polymerase Deposited 2017-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 124–271（148 aa）
Chain B 124–271（148 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, and 22% PEG1000
Resolution 2.20 Å R-free 0.246
5UH9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.40 Å R-free 0.332
5UHA Crystal structure of Mycobacterium tuberculosis transcription initiation complex Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.91 Å R-free 0.279
5UHB Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with Rifampin Deposited 2017-01-11 Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.29 Å R-free 0.267
5UHC Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3nt RNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；50 mM Tris-HCl, pH 8.5, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.80 Å R-free 0.267
5UHE Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.04 Å R-free 0.259
5UHF Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-IX336 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88D N-(2-methylphenyl)-Nalpha-(selenophene-2-carbonyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；295 K；50 mM Tris-HCl, pH 8.4, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.34 Å R-free 0.267
5UHG Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 and Rifampin Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.97 Å R-free 0.260
5ZX2 Mycobacterium tuberculosis RNA polymerase transcription initiation complex with ECF sigma factor sigma H and 7nt RNA Deposited 2018-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；2% Tacsimate pH 5.0, 0.1 M Sodium citrate pH5.6, 16 % PEG3350
Resolution 2.80 Å R-free 0.255
5ZX3 Mycobacterium tuberculosis RNA polymerase holoenzyme with ECF sigma factor sigma H Deposited 2018-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；0.2 M NaAc, 0.1 M sodium citrate pH5.5, 10% PEG4000
Resolution 2.75 Å R-free 0.258
6DV9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 4nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.232
6DVB Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 5nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.7, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.241
6DVC Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 6nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.0, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.30 Å R-free 0.235
6DVD Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) with 6 nt spacer and bromine labelled in position "-11 Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.2, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.90 Å R-free 0.246
6DVE Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF selenomethionine-labelled sigma factor L) with 6 nt spacer Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.81 Å R-free 0.248
6FBV Single particle cryo em structure of Mycobacterium tuberculosis RNA polymerase in complex with Fidaxomicin Deposited 2017-12-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 FI8 Fidaxomicin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；3.5 microliter 1 microM Mtb RNAP-Lpm and 50 microMolar Lpm in 20 mM Tris-HCl, pH 8.0, 75 mM NaCl, 5 mM MgCl2, 5 mM dithiothreitol, and 0.1% n-octyl-beta-D-glucopyranoside
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å R-free 0.331
6JCX Mycobacterium tuberculosis transcription initiation complex with ECF sigma factor sigma H and 6nt RNA Deposited 2019-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08M Magnesium acetate, 0.05M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.90 Å R-free 0.256
6JCY Mycobacterium tuberculosis RNA polymerase transcription initiation open complex with a chimeric ECF sigma factor sigH/E Deposited 2019-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.2M sodium acetate, 0.1M sodium citrate pH 5.5, 10% PEG4000
Resolution 3.11 Å R-free 0.238
6KON Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 5 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 10% PEG 400
Resolution 3.00 Å R-free 0.271
6KOO Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 7 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.80 Å R-free 0.248
6KOP Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 9 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.008 M magnesium acetate, 0.05 M sodium cacodylate pH6.5, 14% PEG 400
Resolution 3.30 Å R-free 0.255
6KOQ Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 10 nt Deposited 2019-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 2–1316（1315 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M magnesium acetate, 0.05 M sodium cacodylated pH 6.5, 15% PEG 400
Resolution 3.35 Å R-free 0.260
7PP4 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme comprising sigma factor SigB Deposited 2021-09-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain d 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å
7Q4U Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme octamer comprising sigma factor SigB Deposited 2021-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain CA 4–1316（1313 aa）
Chain D 4–1316（1313 aa）
Chain IA 4–1316（1313 aa）
Chain J 4–1316（1313 aa）
Chain OA 4–1316（1313 aa）
Chain P 4–1316（1313 aa）
Chain UA 4–1316（1313 aa）
Chain W 4–1316（1313 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
7Q59 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme dimer comprising sigma factor SigB Deposited 2021-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain D 4–1316（1313 aa）
Chain d 4–1316（1313 aa）
Not recorded ZN ZINC ION × 4 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.36 Å
7Z8Q Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase core Deposited 2022-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain d 4–1316（1313 aa）
Mutation：contains C-terminal 6xHis-tag ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.08 Å
7ZF2 Protomeric substructure from an octameric assembly of M. tuberculosis RNA polymerase in complex with sigma-b initiation factor Deposited 2022-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 4–1316（1313 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.86 Å
8EHQ Mycobacterium tuberculosis paused transcription complex with Bacillus subtilis NusG Deposited 2022-09-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.00 Å
8EJ3 M. tuberculosis RNAP pause escaped complex with Bacillus subtilis NusG and GMPCPP Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.13 Å
8EOE Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_LG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8EOF Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_PG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EOS M. tuberculosis RNAP elongation complex with NusG and CMPCPP Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded 2TM 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]methyl}phosphoryl]cytidine × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.10 Å
8EOT M. tuberculosis RNAP elongation complex with NusG Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EXY M. tuberculosis RNAP paused complex with B. subtilis NusG and GMPCPP Deposited 2022-10-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8HIH Cryo-EM structure of Mycobacterium tuberculosis transcription initiation complex with transcription factor GlnR Deposited 2022-11-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
9FJP Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo Deposited 2024-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain d 4–1316（1313 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9FJR Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B docked conformation Deposited 2024-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain d 4–1316（1313 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9FJS Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B undocked conformation Deposited 2024-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain d 4–1316（1313 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.48 Å
9JI2 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with unphosphated PhoP Deposited 2024-09-11 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
9JI3 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9JI4 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9JI5 Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9KET Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules(composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9KEU Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9KEV Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 15-meric
Chain D 1–1316（1316 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9M98 Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain D 2–1316（1315 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9M9D Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9M9E Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain D 1–1316（1316 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9MRQ Mycobacterium tuberculosis RNA polymerase elongation complex bound to inhibitor N-aroyl-N-aryl-phenylalanine amide (AAP)-SO2 Deposited 2025-01-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: octameric
Chain D 1–1316（1316 aa）
Not recorded A1BNV N-[2-(1,1-dioxo-1lambda~6~-thiomorpholin-4-yl)phenyl]-Nalpha-(2-fluorobenzoyl)-D-phenylalaninamide × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å

51 other PDB entries and 51 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RPOC_MYCTU
Isoform —
PDB entities 3
Chains and sequence ranges Author chain D； PDBConstruct 1–1316； UniProt 1–1316

DNA-directed RNA polymerase subunit omega

Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)

UniProt P9WGY5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 6 DNA 2 PDB declaration: octameric（8） Consistent with all polymer counts Chain E； UniProt 1–110 Not recorded DNA-directed RNA polymerase subunit alpha × 2 （P9WGZ1） DNA-directed RNA polymerase subunit beta × 1 （P9WGY9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P9WGY7） RNA polymerase sigma factor SigA × 1 （P9WGI1） ;DNA (5'-D(*TP*AP*TP*AP*AP*TP*GP*GP*GP*AP*GP*CP*TP*GP*TP*CP*AP*CP*GP*GP*AP*TP*G)-3') ; × 1 ;DNA (5'-D(*CP*AP*TP*CP*CP*GP*TP*GP*AP*GP*TP*CP*GP*AP*GP*G)-3') ; × 1 RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350 Resolution 4.01 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5UHD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UH5 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3 nt of RNA Deposited 2017-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；400 ul 50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.75 Å R-free 0.248
5UH6 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2ntRNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.84 Å R-free 0.264
5UH8 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 4nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.18 Å R-free 0.257
5UH9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.40 Å R-free 0.332
5UHA Crystal structure of Mycobacterium tuberculosis transcription initiation complex Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.91 Å R-free 0.279
5UHB Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with Rifampin Deposited 2017-01-11 Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.29 Å R-free 0.267
5UHC Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3nt RNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；50 mM Tris-HCl, pH 8.5, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.80 Å R-free 0.267
5UHE Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.04 Å R-free 0.259
5UHF Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-IX336 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88D N-(2-methylphenyl)-Nalpha-(selenophene-2-carbonyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；295 K；50 mM Tris-HCl, pH 8.4, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.34 Å R-free 0.267
5UHG Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 and Rifampin Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.97 Å R-free 0.260
5ZX2 Mycobacterium tuberculosis RNA polymerase transcription initiation complex with ECF sigma factor sigma H and 7nt RNA Deposited 2018-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；2% Tacsimate pH 5.0, 0.1 M Sodium citrate pH5.6, 16 % PEG3350
Resolution 2.80 Å R-free 0.255
5ZX3 Mycobacterium tuberculosis RNA polymerase holoenzyme with ECF sigma factor sigma H Deposited 2018-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；0.2 M NaAc, 0.1 M sodium citrate pH5.5, 10% PEG4000
Resolution 2.75 Å R-free 0.258
6DV9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 4nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.232
6DVB Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 5nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.7, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.80 Å R-free 0.241
6DVC Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) containing 5nt RNA with 6nt spacer Deposited 2018-06-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.0, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.30 Å R-free 0.235
6DVD Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF sigma factor L) with 6 nt spacer and bromine labelled in position "-11 Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；295 K；100 mM sodium citrate tribasic dihydrate, pH 6.2, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.90 Å R-free 0.246
6DVE Crystal structure of Mycobacterium tuberculosis transcription initiation complex(ECF selenomethionine-labelled sigma factor L) with 6 nt spacer Deposited 2018-06-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；100 mM sodium citrate tribasic dihydrate, pH 5.5, 200 mM sodium acetate, and 10% PEG4000
Resolution 3.81 Å R-free 0.248
6FBV Single particle cryo em structure of Mycobacterium tuberculosis RNA polymerase in complex with Fidaxomicin Deposited 2017-12-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 FI8 Fidaxomicin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；3.5 microliter 1 microM Mtb RNAP-Lpm and 50 microMolar Lpm in 20 mM Tris-HCl, pH 8.0, 75 mM NaCl, 5 mM MgCl2, 5 mM dithiothreitol, and 0.1% n-octyl-beta-D-glucopyranoside
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å R-free 0.331
6JCX Mycobacterium tuberculosis transcription initiation complex with ECF sigma factor sigma H and 6nt RNA Deposited 2019-01-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08M Magnesium acetate, 0.05M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.90 Å R-free 0.256
6JCY Mycobacterium tuberculosis RNA polymerase transcription initiation open complex with a chimeric ECF sigma factor sigH/E Deposited 2019-01-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.2M sodium acetate, 0.1M sodium citrate pH 5.5, 10% PEG4000
Resolution 3.11 Å R-free 0.238
6KON Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 5 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 10% PEG 400
Resolution 3.00 Å R-free 0.271
6KOO Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 7 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M Magnesium acetate, 0.05 M sodium cacodylate pH 6.5, 15% PEG 400
Resolution 2.80 Å R-free 0.248
6KOP Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 9 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.008 M magnesium acetate, 0.05 M sodium cacodylate pH6.5, 14% PEG 400
Resolution 3.30 Å R-free 0.255
6KOQ Mycobacterium tuberculosis initial transcription complex comprising sigma H and 5'-OH RNA of 10 nt Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.08 M magnesium acetate, 0.05 M sodium cacodylated pH 6.5, 15% PEG 400
Resolution 3.35 Å R-free 0.260
7PP4 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme comprising sigma factor SigB Deposited 2021-09-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain e 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å
7Q4U Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme octamer comprising sigma factor SigB Deposited 2021-11-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain DA 1–110（110 aa）
Chain E 1–110（110 aa）
Chain JA 1–110（110 aa）
Chain K 1–110（110 aa）
Chain PA 1–110（110 aa）
Chain Q 1–110（110 aa）
Chain VA 1–110（110 aa）
Chain X 1–110（110 aa）
Not recorded ZN ZINC ION × 16 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.39 Å
7Q59 Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase holoenzyme dimer comprising sigma factor SigB Deposited 2021-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 1–110（110 aa）
Chain e 1–110（110 aa）
Not recorded ZN ZINC ION × 4 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.36 Å
7Z8Q Cryo-EM structure of Mycobacterium tuberculosis RNA polymerase core Deposited 2022-03-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain e 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.08 Å
8EHQ Mycobacterium tuberculosis paused transcription complex with Bacillus subtilis NusG Deposited 2022-09-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.00 Å
8EJ3 M. tuberculosis RNAP pause escaped complex with Bacillus subtilis NusG and GMPCPP Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.13 Å
8EOE Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_LG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8EOF Mycobacterium tuberculosis transcription elongation complex with Bacillus subtilis NusG (EC_PG) Deposited 2022-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EOS M. tuberculosis RNAP elongation complex with NusG and CMPCPP Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded 2TM 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]methyl}phosphoryl]cytidine × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.10 Å
8EOT M. tuberculosis RNAP elongation complex with NusG Deposited 2022-10-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.30 Å
8EXY M. tuberculosis RNAP paused complex with B. subtilis NusG and GMPCPP Deposited 2022-10-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 G2P PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 4-5 seconds before plunging in liquid ethane
Resolution 3.20 Å
8HIH Cryo-EM structure of Mycobacterium tuberculosis transcription initiation complex with transcription factor GlnR Deposited 2022-11-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
9FJP Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain e 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9FJR Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B docked conformation Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain e 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9FJS Cryo-EM structure of Mycobacterium tuberculosis sigma-B RNA polymerase bound to -10 promoter element ssDNA oligo - sigma-B undocked conformation Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain e 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；8 mM CHAPSO added before vitrificaion
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.48 Å
9KET Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules(composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9KEU Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9KEV Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 15-meric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9M98 Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain E 2–110（109 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9M9D Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9M9E Structural Basis of Pausing During Transcription Initiation in Mycobacterium tuberculosis Deposited 2025-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain E 1–110（110 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9MRQ Mycobacterium tuberculosis RNA polymerase elongation complex bound to inhibitor N-aroyl-N-aryl-phenylalanine amide (AAP)-SO2 Deposited 2025-01-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: octameric
Chain E 1–110（110 aa）
Not recorded A1BNV N-[2-(1,1-dioxo-1lambda~6~-thiomorpholin-4-yl)phenyl]-Nalpha-(2-fluorobenzoyl)-D-phenylalaninamide × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å

46 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RPOZ_MYCTU
Isoform —
PDB entities 4
Chains and sequence ranges Author chain E； PDBConstruct 1–110； UniProt 1–110

RNA polymerase sigma factor SigA

Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)

UniProt P9WGI1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 6 DNA 2 PDB declaration: octameric（8） Consistent with all polymer counts Chain F； UniProt 1–528 Not recorded DNA-directed RNA polymerase subunit alpha × 2 （P9WGZ1） DNA-directed RNA polymerase subunit beta × 1 （P9WGY9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P9WGY7） DNA-directed RNA polymerase subunit omega × 1 （P9WGY5） ;DNA (5'-D(*TP*AP*TP*AP*AP*TP*GP*GP*GP*AP*GP*CP*TP*GP*TP*CP*AP*CP*GP*GP*AP*TP*G)-3') ; × 1 ;DNA (5'-D(*CP*AP*TP*CP*CP*GP*TP*GP*AP*GP*TP*CP*GP*AP*GP*G)-3') ; × 1 RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350 Resolution 4.01 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5UHD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UH5 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3 nt of RNA Deposited 2017-01-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；400 ul 50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.75 Å R-free 0.248
5UH6 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2ntRNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain F 1–528（528 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.84 Å R-free 0.264
5UH8 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 4nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.18 Å R-free 0.257
5UH9 Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 2nt RNA Deposited 2017-01-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.40 Å R-free 0.332
5UHA Crystal structure of Mycobacterium tuberculosis transcription initiation complex Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.91 Å R-free 0.279
5UHB Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with Rifampin Deposited 2017-01-11 Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain F 1–528（528 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.29 Å R-free 0.267
5UHC Crystal structure of Mycobacterium tuberculosis transcription initiation complex containing 3nt RNA in complex with Rifampin Deposited 2017-01-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain F 1–528（528 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；50 mM Tris-HCl, pH 8.5, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.80 Å R-free 0.267
5UHE Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；295 K；50 mM Tris-HCl, pH 8.3, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.04 Å R-free 0.259
5UHF Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-IX336 Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88D N-(2-methylphenyl)-Nalpha-(selenophene-2-carbonyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；295 K；50 mM Tris-HCl, pH 8.4, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 4.34 Å R-free 0.267
5UHG Crystal structure of Mycobacterium tuberculosis transcription initiation complex in complex with D-AAP1 and Rifampin Deposited 2017-01-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain F 1–528（528 aa）
Not recorded RFP RIFAMPICIN × 1 ZN ZINC ION × 2 MG MAGNESIUM ION × 1 88G Nalpha-(benzenecarbonyl)-N-(2-methylphenyl)-D-phenylalaninamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；295 K；50 mM Tris-HCl, pH 8.2, 200 mM KCl, 50 mM MgCl2, and 10% PEG3350
Resolution 3.97 Å R-free 0.260
6FBV Single particle cryo em structure of Mycobacterium tuberculosis RNA polymerase in complex with Fidaxomicin Deposited 2017-12-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 FI8 Fidaxomicin × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；3.5 microliter 1 microM Mtb RNAP-Lpm and 50 microMolar Lpm in 20 mM Tris-HCl, pH 8.0, 75 mM NaCl, 5 mM MgCl2, 5 mM dithiothreitol, and 0.1% n-octyl-beta-D-glucopyranoside
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å R-free 0.331
6ONO Complex structure of WhiB1 and region 4 of SigA in C2221 space group Deposited 2019-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 417–528（112 aa） Fragment：region 4 (UNP residues 417-528)
Non-standard monomer：Yes (specific site not provided by mmCIF) SF4 IRON/SULFUR CLUSTER × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350
Resolution 1.85 Å R-free 0.237
6ONO Complex structure of WhiB1 and region 4 of SigA in C2221 space group Deposited 2019-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 417–528（112 aa） Fragment：region 4 (UNP residues 417-528)
Non-standard monomer：Yes (specific site not provided by mmCIF) SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350
Resolution 1.85 Å R-free 0.237
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 417–528（112 aa） Fragment：region 4 (UNP residues 417-528)
Non-standard monomer：Yes (specific site not provided by mmCIF) SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350
Resolution 1.85 Å R-free 0.235
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 417–528（112 aa） Fragment：region 4 (UNP residues 417-528)
Non-standard monomer：Yes (specific site not provided by mmCIF) SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350
Resolution 1.85 Å R-free 0.235
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 417–528（112 aa） Fragment：region 4 (UNP residues 417-528)
Non-standard monomer：Yes (specific site not provided by mmCIF) SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350
Resolution 1.85 Å R-free 0.235
6ONU Complex structure of WhiB1 and region 4 of SigA in P21 space group. Deposited 2019-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 417–528（112 aa） Fragment：region 4 (UNP residues 417-528)
Non-standard monomer：Yes (specific site not provided by mmCIF) SF4 IRON/SULFUR CLUSTER × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；100 mM Bis-Tris, pH 5.5, 200 mM magnesium chloride, 25% PEG3350
Resolution 1.85 Å R-free 0.235
8CWR Complex structure of WhiB3 and the SigmaAr4-RNAP Beta flap tip chimera in space group R3 Deposited 2022-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 446–528（83 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 3 SO4 SULFATE ION × 6 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3 NI NICKEL (II) ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；10-20 mM NiCl2, 0.8-1.0 M Li2SO4
Resolution 1.50 Å R-free 0.212
8CWT Complex structure of WhiB3 and the SigmaAr4-RNAP Beta flap tip chimera in space group P43212 Deposited 2022-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 446–528（83 aa）
Chain D 446–528（83 aa）
Chain F 446–528（83 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 3 SO4 SULFATE ION × 25 NI NICKEL (II) ION × 7 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10-20 mM NiCl2, 0.8-1.0 M Li2SO4
Resolution 1.35 Å R-free 0.174
8D5V WhiB6 bound to the SigmaAr4-RNAP Beta flap tip chimera Deposited 2022-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 446–528（83 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M Na Citrate pH 5.5, 20% PEG3000
Resolution 1.80 Å R-free 0.231
8D5V WhiB6 bound to the SigmaAr4-RNAP Beta flap tip chimera Deposited 2022-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 446–528（83 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291 K；0.1 M Na Citrate pH 5.5, 20% PEG3000
Resolution 1.80 Å R-free 0.231
8HIH Cryo-EM structure of Mycobacterium tuberculosis transcription initiation complex with transcription factor GlnR Deposited 2022-11-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
9KET Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with two PhoP molecules(composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9KEU Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with four PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9KEV Cryo-EM structure of Mycobacterium tuberculosis transcription activation complex with six PhoP molecules (composite map) Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 15-meric
Chain F 1–528（528 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å

20 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SIGA_MYCTU
Isoform —
PDB entities 5
Chains and sequence ranges Author chain F； PDBConstruct 1–528； UniProt 1–528

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 5uhd

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 5uhd
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5uhd
Deposition date deposition_date2017-01-11
Structure title titleCrystal structure of Mycobacterium tuberculosis transcription initiation complex containing 4nt RNA in complex with Rifampin
Keywords keywordsRNA polymerase complex, transcription, DNA, RNA, TRANSCRIPTION-DNA-RNA complex; TRANSCRIPTION/DNA/RNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier47.96 Å
Radius of gyration Rg (electron density) rg_electron47.57 Å
Forward intensity I(0) i02108740000.00
Molecular weight molecular_weight370750.0 kDa
Excluded volume excluded_volume459790 ų
Envelope volume envelope_volume652480 ų
Hydration-shell volume shell_volume109200 ų
Envelope diameter envelope_diameter185.7 Å
Shell Rg shell_rg55.16 Å
Envelope Rg envelope_rg47.78 Å
Shape Rg shape_rg47.58 Å
Total Rg total_rg47.79 Å
Total atoms total_atoms26022
Residues n_residues3280
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax171.3 Å
Rg (real space) rg_real47.88 Å
Rg uncertainty (real space) rg_real_error1.53 Å
I(0) (real space) i0_real2.1090e+09
I(0) uncertainty (real space) i0_real_error3.7740e+07
Rg (reciprocal space) rg_reciprocal47.96 Å
I(0) (reciprocal space) i0_reciprocal2109000000.0000
Solution quality estimate total_estimate0.6044
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary57.1 Å
Skewness Skewness skewness0.419
Kurtosis Kurtosis kurtosis0.104
Angular range angular_range— – 0.1650 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha534800000.0000
Real-space data points n_real_points34
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.641; Stabil: 1.000; Sysdev: 0.006; Positv: 1.000; Valcen: 0.992; Smooth: 0.920
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (10)

▶

8. Citations (1)

▶

9. Files and Curves (10)
