SAXSdb — 5v5i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-directed RNA polymerase L

Crimean-Congo hemorrhagic fever virus (strain Nigeria/IbAr10200/1970)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–169	Non-standard monomer：Yes (specific site not provided by mmCIF)	Ubiquitin variant CC.1 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；30% (w/v) PEG6000, 1.0M lithium chloride and 0.1M sodium acetate	Resolution 2.20 Å R-free 0.273
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–169	Non-standard monomer：Yes (specific site not provided by mmCIF)	Ubiquitin variant CC.1 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；30% (w/v) PEG6000, 1.0M lithium chloride and 0.1M sodium acetate	Resolution 2.20 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5V5I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3PHU OTU Domain of Crimean Congo Hemorrhagic Fever Virus Deposited 2010-11-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–217（217 aa） Fragment：UNP residues 1-217	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.9M NaFormate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.231
3PHU OTU Domain of Crimean Congo Hemorrhagic Fever Virus Deposited 2010-11-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–217（217 aa） Fragment：UNP residues 1-217	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.9M NaFormate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.231
3PHW OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with Ubiquitin Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–183（183 aa） Fragment：UNP residues 1-183	Not recorded	NEH ETHANAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.27 M sodium phosphate dihydrogen, 1.53 M di-potassium phosphate hydrogen, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.278
3PHW OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with Ubiquitin Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–183（183 aa） Fragment：UNP residues 1-183	Not recorded	NEH ETHANAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.27 M sodium phosphate dihydrogen, 1.53 M di-potassium phosphate hydrogen, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.278
3PHW OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with Ubiquitin Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–183（183 aa） Fragment：UNP residues 1-183	Not recorded	NEH ETHANAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.27 M sodium phosphate dihydrogen, 1.53 M di-potassium phosphate hydrogen, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.278
3PHW OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with Ubiquitin Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–183（183 aa） Fragment：UNP residues 1-183	Not recorded	NEH ETHANAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.27 M sodium phosphate dihydrogen, 1.53 M di-potassium phosphate hydrogen, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.278
3PHX OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with ISG15 Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–183（183 aa） Fragment：UNP residues 1-183	Not recorded	ZN ZINC ION × 12 ACY ACETIC ACID × 2 NEH ETHANAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG8K, 0.2M zinc acetate, 0.1M MES sodium salt, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.192
3PHX OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with ISG15 Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–183（183 aa） Fragment：UNP residues 1-183	Not recorded	ZN ZINC ION × 12 ACY ACETIC ACID × 2 NEH ETHANAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG8K, 0.2M zinc acetate, 0.1M MES sodium salt, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.192
3PRM Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–170（170 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-26% PEG 8000, 0.1 M Na cacodylate, 0.2 M Mg acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.267
3PRM Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–170（170 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-26% PEG 8000, 0.1 M Na cacodylate, 0.2 M Mg acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.267
3PRP Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–170（170 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-28% PEG 8000, 100 mM Na cacodylate pH 6.5, 100-250 mM Mg acetate, and 2% n-Octyl- -D-glucoside, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.212
3PRP Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–170（170 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-28% PEG 8000, 100 mM Na cacodylate pH 6.5, 100-250 mM Mg acetate, and 2% n-Octyl- -D-glucoside, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.212
3ZNH Crimean Congo Hemorrhagic Fever Virus OTU domain in complex with ubiquitin-propargyl. Deposited 2013-02-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–183（183 aa） Fragment：OTU DOMAIN, RESIDUES 1-183	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；20-30% PEG 8000, 100 MM NA CACODYLATE PH 6.5, 100 MM MG ACETATE, AND 2% N-OCTYL-BETA-D-GLUCOSIDE.	Resolution 2.30 Å R-free 0.275
5V5G OTU protease of Crimean Congo Hemorrhagic Fever Virus bound to ubiquitin variant CC.4 Deposited 2017-03-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–183（183 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；25% (w/v) PEG3350, 0.1 M Tris pH 7.0, 0.2 M sodium chloride and Silver Bullet formulation #G1 (0.16% (w/v) each of 5-Sulfosalicylic acid dehydrate, dodecanedioic acid, hippuric acid, mellitic acid, oxalacetic acid, suberic acid and 0.02 M HEPES sodium pH 6.8)	Resolution 2.10 Å R-free 0.229
5V5G OTU protease of Crimean Congo Hemorrhagic Fever Virus bound to ubiquitin variant CC.4 Deposited 2017-03-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–183（183 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；25% (w/v) PEG3350, 0.1 M Tris pH 7.0, 0.2 M sodium chloride and Silver Bullet formulation #G1 (0.16% (w/v) each of 5-Sulfosalicylic acid dehydrate, dodecanedioic acid, hippuric acid, mellitic acid, oxalacetic acid, suberic acid and 0.02 M HEPES sodium pH 6.8)	Resolution 2.10 Å R-free 0.229
5V5H OTU protease of Crimean Congo Hemorrhagic Fever Virus bound to ubiquitin variant CC.2 Deposited 2017-03-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–169（169 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1 ZN ZINC ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；30% (w/v) PEG 4000, 0.2 M CaCl2 and 0.1 M HEPES pH 7.5	Resolution 1.50 Å R-free 0.178
9XD4 Crimean-Congo hemorrhagic fever virus RNA polymerase Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–3945（3945 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å
9XD5 Crimean-Congo hemorrhagic fever virus RNA polymerase in complex with the 5' vRNA Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–3945（3945 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.72 Å
9XD6 Crimean-Congo hemorrhagic fever virus RNA polymerase in complex with the 3' vRNA Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–3945（3945 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.74 Å
9XE6 Crimean-Congo hemorrhagic fever virus RNA polymerase containing a 10-bp RNA product and incorporated 2FC Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: hexameric	Chain A 1–3945（3945 aa）	Not recorded	2KH 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine × 1 MN MANGANESE (II) ION × 4 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9XE7 Crimean-Congo hemorrhagic fever virus RNA polymerase containing a 10-bp RNA product and incorporated cytidine Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: hexameric	Chain A 1–3945（3945 aa）	Not recorded	2KH 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine × 1 MN MANGANESE (II) ION × 4 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
9XE9 Crimean-Congo hemorrhagic fever virus RNA polymerase containing a 15-bp RNA product Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: hexameric	Chain A 1–3945（3945 aa）	Not recorded	MN MANGANESE (II) ION × 4 2KH 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.81 Å
9XEC Crimean-Congo hemorrhagic fever virus RNA polymerase containing a 9-bp RNA product Deposited 2025-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: hexameric	Chain A 1–3945（3945 aa）	Not recorded	MN MANGANESE (II) ION × 4 2KH 5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.98 Å
9YBM 2.62A cryo-EM structure of RNA-directed RNA polymerase L of Crimean-Congo hemorrhagic fever virus (Apo state) Deposited 2025-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–3945（3945 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.62 Å
9YBN 2.53A cryo-EM structure of RNA-directed RNA polymerase L of Crimean-Congo hemorrhagic fever virus (RNA bound) Deposited 2025-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–3945（3945 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.53 Å

17 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	L_CCHFI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–174； UniProt 1–169 Author chain C； PDBConstruct 6–174； UniProt 1–169

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5v5i
Deposition date deposition_date	2017-03-14
Structure title title	OTU protease of Crimean Congo Hemorrhagic Fever Virus bound to ubiquitin variant CC.1
Keywords keywords	Ovarian Tumor Domain protease, deubiquitinase, ubiquitin variant, hydrolase, transferase; hydrolase, transferase
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.27 Å
Radius of gyration Rg (electron density) rg_electron	26.31 Å
Forward intensity I(0) i0	45346600.00
Molecular weight molecular_weight	53046.0 kDa
Excluded volume excluded_volume	66644 Å³
Envelope volume envelope_volume	80509 Å³
Hydration-shell volume shell_volume	26100 Å³
Envelope diameter envelope_diameter	85.8 Å
Shell Rg shell_rg	32.80 Å
Envelope Rg envelope_rg	25.94 Å
Shape Rg shape_rg	26.29 Å
Total Rg total_rg	27.09 Å
Total atoms total_atoms	7396
Residues n_residues	471
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

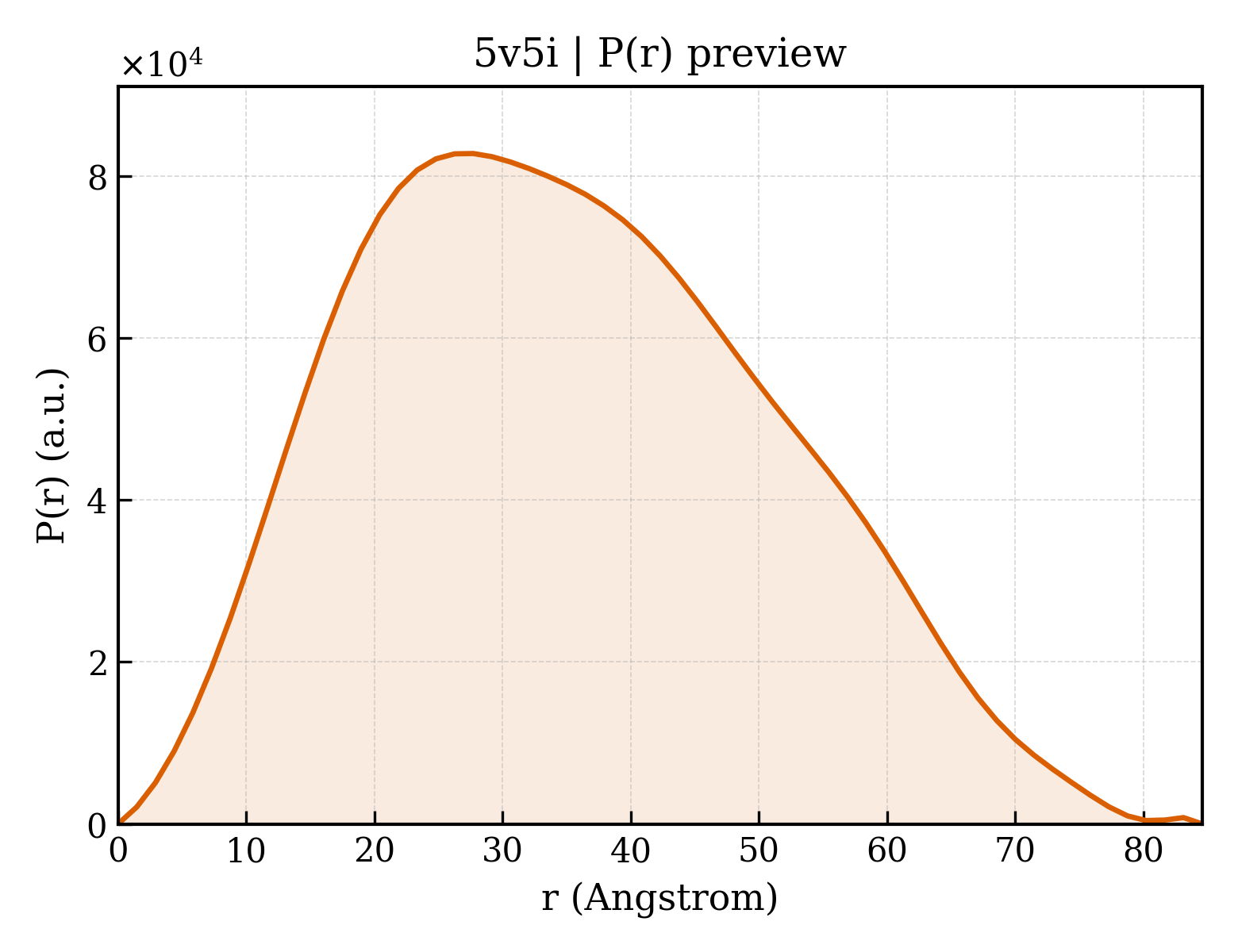

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.6 Å
Rg (real space) rg_real	27.28 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	4.5350e+07
I(0) uncertainty (real space) i0_real_error	6.4890e+05
Rg (reciprocal space) rg_reciprocal	27.28 Å
I(0) (reciprocal space) i0_reciprocal	45350000.0000
Solution quality estimate total_estimate	0.9032
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.7 Å
Skewness Skewness skewness	0.280
Kurtosis Kurtosis kurtosis	-0.602
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12560000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.871

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RNA-directed RNA polymerase L
Molecular weight formula_weight	19754.1 kDa
EC 编号 ec_number	3.4.19.12,2.7.7.48
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	7538

GPLGSMDFLRSLDWTQVIAGQYVSNPRFNISDYFEIVRQPGDGNCFYHSIAELTMPNKTDHSYHYIKRLTESAARKYYQEEPEARLVGLSLEDYLKRMLSDNEWGSTLEASMLAKEMGITIIIWTVAASDEVEAGIKFGDGDVFTAVNLLHSGQTHFDALRILPQFETDTREAL

来源 Source

来源生物 organism	Crimean-Congo hemorrhagic fever virus (strain Nigeria/IbAr10200/1970)
通用名 common_name	CCHFV
NCBI Class编号 ncbi_taxonomy_id	652961
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Ubiquitin variant CC.1
Molecular weight formula_weight	12060.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAHHHHHHVTSLYKKAGSTDYKDDDDKMQIFVKTLKGHVITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFALQQLEDGRTLSDYNIQKESNLHLVLRLGGGRR

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli BL21

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5v5iA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	5v5iC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	80 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.167 Å
Unit-cell length b length_b	83.222 Å
Unit-cell length c length_c	150.886 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.201 Å
Low-resolution limit resolution_low	40.167 Å
R factor r_factor	0.2259
R_work r_work	0.2220
R_free r_free	0.2727

fit	/app/data/saxs_computation/v5/5v5i/5v5i.fit
pddf	/app/data/pr_computation/v5/5v5i/5v5i.pr.out
profile	/app/data/saxs_computation/v5/5v5i/5v5i.dat

OTU protease of Crimean Congo Hemorrhagic Fever Virus bound to ubiquitin variant CC.1
