SAXSdb — 5xln

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic translation initiation factor 4E type 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 45–234	Fragment：UNP residues 45-234	Threonine--tRNA ligase, cytoplasmic × 1 （P26639）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.5；295 K；20% PEG 8000, 0.1 M CHES (pH 9.5)	Resolution 1.90 Å R-free 0.196

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XLN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JGB Structure of human eIF4E homologous protein 4EHP with m7GTP Deposited 2007-02-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 45–234（190 aa） Fragment：RESIDUES 45-234	Not recorded	MGT 7N-METHYL-8-HYDROGUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；20% PEG-3000, 0.1M SODIUM CITRATE PH 5.5 WITH 1MM M7GTP IN THE DROP	Resolution 1.70 Å R-free 0.242
2JGC Structure of the human eIF4E homologous protein, 4EHP without ligand bound Deposited 2007-02-12	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 45–234（190 aa） Fragment：RESIDUES 45-234	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；20% PEG-3000, 0.1M SODIUM CITRATE PH 5.5	Resolution 2.40 Å R-free 0.249
5NVK Crystal structure of the human 4EHP-GIGYF1 complex Deposited 2017-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 52–234（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；20% PEG 3350 0.2 M KCl	Resolution 2.90 Å R-free 0.254
5NVK Crystal structure of the human 4EHP-GIGYF1 complex Deposited 2017-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 52–234（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；20% PEG 3350 0.2 M KCl	Resolution 2.90 Å R-free 0.254
5NVK Crystal structure of the human 4EHP-GIGYF1 complex Deposited 2017-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 52–234（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；20% PEG 3350 0.2 M KCl	Resolution 2.90 Å R-free 0.254
5NVK Crystal structure of the human 4EHP-GIGYF1 complex Deposited 2017-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 52–234（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；20% PEG 3350 0.2 M KCl	Resolution 2.90 Å R-free 0.254
5NVL Crystal structure of the human 4EHP-GIGYF2 complex Deposited 2017-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 52–234（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium citrate pH 5.0 0.1 M magnesium chloride 12% PEG 4000	Resolution 2.30 Å R-free 0.242
5NVL Crystal structure of the human 4EHP-GIGYF2 complex Deposited 2017-05-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 52–234（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium citrate pH 5.0 0.1 M magnesium chloride 12% PEG 4000	Resolution 2.30 Å R-free 0.242
5NVM Crystal structure of the human 4EHP-GIGYF2 complex lacking the auxiliary sequences Deposited 2017-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 52–234（183 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium acetate pH 4.6 0.6 M diammonium phosphate	Resolution 2.00 Å R-free 0.233
5NVM Crystal structure of the human 4EHP-GIGYF2 complex lacking the auxiliary sequences Deposited 2017-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 52–234（183 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium acetate pH 4.6 0.6 M diammonium phosphate	Resolution 2.00 Å R-free 0.233
5NVN Crystal structure of the human 4EHP-4E-BP1 complex Deposited 2017-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 52–234（183 aa）	Not recorded	FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M sodium acetate pH 4.6 1.7 M sodium formate	Resolution 1.90 Å R-free 0.251
5NVN Crystal structure of the human 4EHP-4E-BP1 complex Deposited 2017-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 52–234（183 aa）	Not recorded	FMT FORMIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M sodium acetate pH 4.6 1.7 M sodium formate	Resolution 1.90 Å R-free 0.251

6 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IF4E2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–190； UniProt 45–234

Threonine--tRNA ligase, cytoplasmic

Homo sapiens

UniProt P26639

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 30–74	Fragment：UNP residues 30-74	Eukaryotic translation initiation factor 4E type 2 × 1 （O60573）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.5；295 K；20% PEG 8000, 0.1 M CHES (pH 9.5)	Resolution 1.90 Å R-free 0.196

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XLN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WWT Solution structure of the TGS domain from human threonyl-tRNA synthetase Deposited 2005-01-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 67–141（75 aa） Fragment：TGS domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.20mM TGS domain U-15N,13C; 20mM d-tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O \| 90% H2O/10% D2O	Resolution not provided
4HWT Crystal structure of human Threonyl-tRNA synthetase bound to a novel inhibitor Deposited 2012-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 321–723（403 aa） Fragment：UNP residues 321-723 Chain B 321–723（403 aa） Fragment：UNP residues 321-723	Not recorded	ZN ZINC ION × 2 1B2 N-{[3-(2H-indazol-5-yl)phenyl]sulfonyl}-L-threoninamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；298 K；PEG 3350, sodium citrate, pH 7.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.257
4P3N Structural Basis for Full-Spectrum Inhibition of Threonyl-tRNA Synthetase by Borrelidin 1 Deposited 2014-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 322–723（402 aa） Fragment：UNP residues 322-723 Chain B 322–723（402 aa） Fragment：UNP residues 322-723	Not recorded	2CR (1R,2R)-2-[(2S,4E,6E,8R,9S,11R,13S,15S,16S)-7-cyano-8,16-dihydroxy-9,11,13,15-tetramethyl-18-oxooxacyclooctadeca-4,6-dien-2-yl]cyclopentanecarboxylic acid × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Calcium Acetate, PEG4000, Sodium Acetate	Resolution 2.60 Å R-free 0.255
4P3N Structural Basis for Full-Spectrum Inhibition of Threonyl-tRNA Synthetase by Borrelidin 1 Deposited 2014-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 322–723（402 aa） Fragment：UNP residues 322-723 Chain D 322–723（402 aa） Fragment：UNP residues 322-723	Not recorded	2CR (1R,2R)-2-[(2S,4E,6E,8R,9S,11R,13S,15S,16S)-7-cyano-8,16-dihydroxy-9,11,13,15-tetramethyl-18-oxooxacyclooctadeca-4,6-dien-2-yl]cyclopentanecarboxylic acid × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；Calcium Acetate, PEG4000, Sodium Acetate	Resolution 2.60 Å R-free 0.255
4TTV Crystal structure of human ThrRS complexing with a bioengineered macrolide BC194 Deposited 2014-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 322–723（402 aa） Fragment：UNP residues 322-723 Chain B 322–723（402 aa） Fragment：UNP residues 322-723	Not recorded	BC9 (1R,2R)-2-[(2S,6E,8R,9S,11R,13S,15S,16S)-7-cyano-8,16-dihydroxy-9,11,13,15-tetramethyl-18-oxooxacyclooctadec-6-en-2-yl]cyclobutanecarboxylic acid × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；Tris, PEG8000	Resolution 2.80 Å R-free 0.288
4TTV Crystal structure of human ThrRS complexing with a bioengineered macrolide BC194 Deposited 2014-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 322–723（402 aa） Fragment：UNP residues 322-723 Chain D 322–723（402 aa） Fragment：UNP residues 322-723	Not recorded	BC9 (1R,2R)-2-[(2S,6E,8R,9S,11R,13S,15S,16S)-7-cyano-8,16-dihydroxy-9,11,13,15-tetramethyl-18-oxooxacyclooctadec-6-en-2-yl]cyclobutanecarboxylic acid × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；Tris, PEG8000	Resolution 2.80 Å R-free 0.288

4 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYTC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–45； UniProt 30–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5xln
Deposition date deposition_date	2017-05-11
Structure title title	Crystal structure of the TRS_UNE-T and 4EHP complex
Keywords keywords	TRS, 4EHP, Complex, RNA BINDING PROTEIN-LIGASE complex; RNA BINDING PROTEIN/LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.74 Å
Radius of gyration Rg (electron density) rg_electron	16.44 Å
Forward intensity I(0) i0	9121530.00
Molecular weight molecular_weight	22338.0 kDa
Excluded volume excluded_volume	28003 Å³
Envelope volume envelope_volume	32912 Å³
Hydration-shell volume shell_volume	16566 Å³
Envelope diameter envelope_diameter	59.3 Å
Shell Rg shell_rg	22.73 Å
Envelope Rg envelope_rg	17.07 Å
Shape Rg shape_rg	16.42 Å
Total Rg total_rg	17.56 Å
Total atoms total_atoms	1577
Residues n_residues	191
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

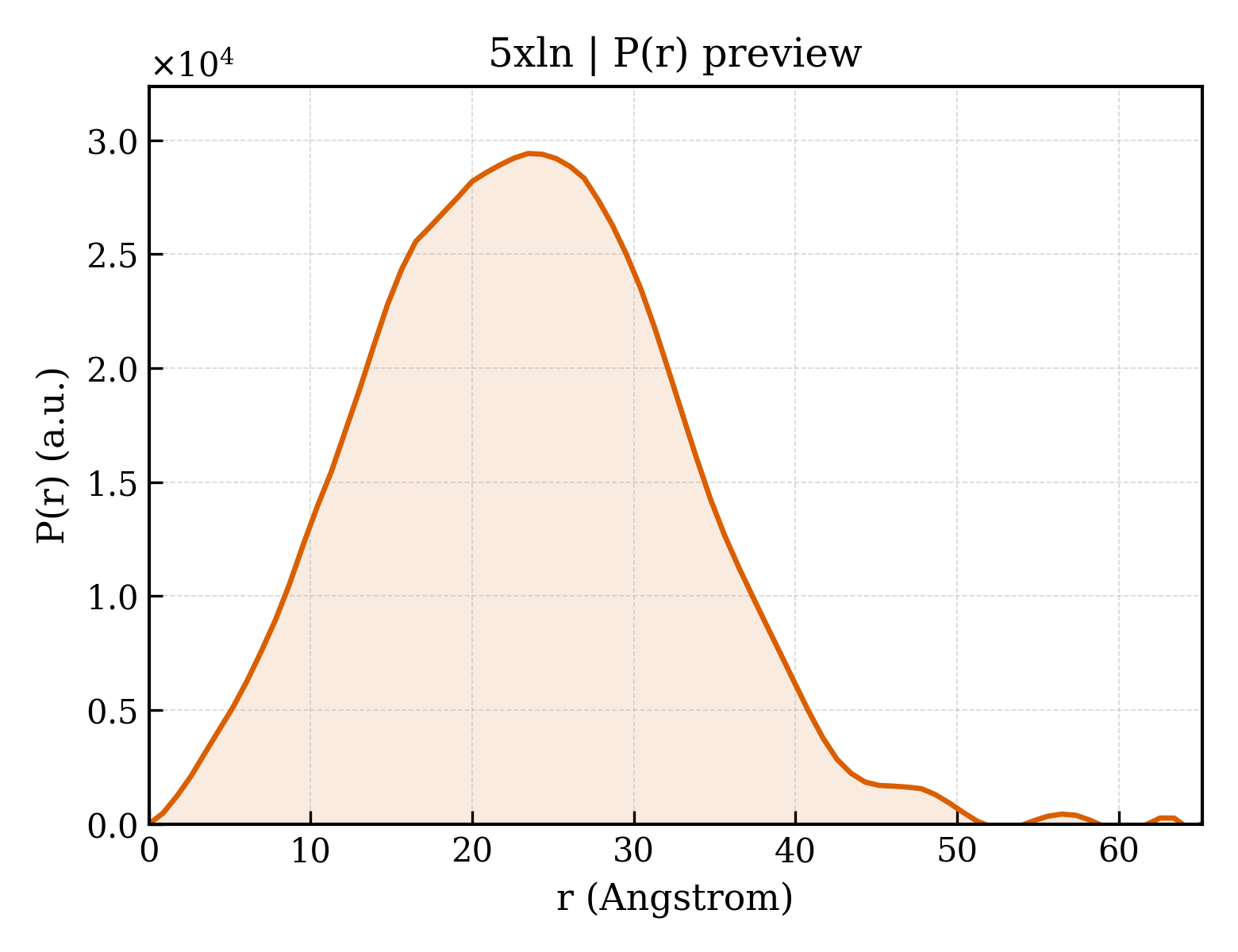

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	65.2 Å
Rg (real space) rg_real	17.62 Å
Rg uncertainty (real space) rg_real_error	0.54 Å
I(0) (real space) i0_real	9.1220e+06
I(0) uncertainty (real space) i0_real_error	1.1790e+05
Rg (reciprocal space) rg_reciprocal	17.64 Å
I(0) (reciprocal space) i0_reciprocal	9122000.0000
Solution quality estimate total_estimate	0.7348
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	23.5 Å
Skewness Skewness skewness	0.168
Kurtosis Kurtosis kurtosis	-0.263
Angular range angular_range	— – 0.4500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2539000.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.537; Stabil: 0.990; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Eukaryotic translation initiation factor 4E type 2
Molecular weight formula_weight	21963.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1754

KAVVPGPAEHPLQYNYTFWYSRRTPGRPTSSQSYEQNIKQIGTFASVEQFWRFYSHMVRPGDLTGHSDFHLFKEGIKPMWEDDANKNGGKWIIRLRKGLASRCWENLILAMLGEQFMVGEEICGAVVSVRFQEDIISIWNKTASDQATTARIRDTLRRVLNLPPNTIMEYKTHTDSIKMPGRLGPQRLLF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Threonine--tRNA ligase, cytoplasmic
Molecular weight formula_weight	5087.7 kDa
EC 编号 ec_number	6.1.1.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GGKKKNKEGSGDGGRAELNPWPEYIYTRLEMYNILKAEHDSILAE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	177

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d5xlna_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.86 — eIF4e-like
Superfamily Superfamily superfamily	d.86.1 — eIF4e-like
Family Family family	d.86.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	5xlnA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	760 — RNA Cap, Translation Initiation Factor Eif4e
Homologous superfamily homologous superfamily	10 — RNA Cap, Translation Initiation Factor Eif4e

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.369 Å
Unit-cell length b length_b	60.569 Å
Unit-cell length c length_c	85.237 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	25.815 Å
R factor r_factor	0.1628
R_work r_work	0.1610
R_free r_free	0.1964

fit	/app/data/saxs_computation/xl/5xln/5xln.fit
pddf	/app/data/pr_computation/xl/5xln/5xln.pr.out
profile	/app/data/saxs_computation/xl/5xln/5xln.dat
