SAXSdb — 5ytk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NAD-dependent protein deacetylase sirtuin-3, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	AceCS2-KLeu × 4 ZINC ION × 6 LEUCINE × 6 LYSINE × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIR3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–274； UniProt 121–394 Author chain B； PDBConstruct 1–274； UniProt 121–394 Author chain C； PDBConstruct 1–274； UniProt 121–394 Author chain D； PDBConstruct 1–274； UniProt 121–394 Author chain E； PDBConstruct 1–274； UniProt 121–394 Author chain F； PDBConstruct 1–274； UniProt 121–394

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5ytk
Deposition date deposition_date	2017-11-18
Structure title title	Crystal structure of SIRT3 bound to a leucylated AceCS2
Keywords keywords	DNA-dependent deacetylase sirtuin-3, leucylated AceCS2, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5ytk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5ytk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

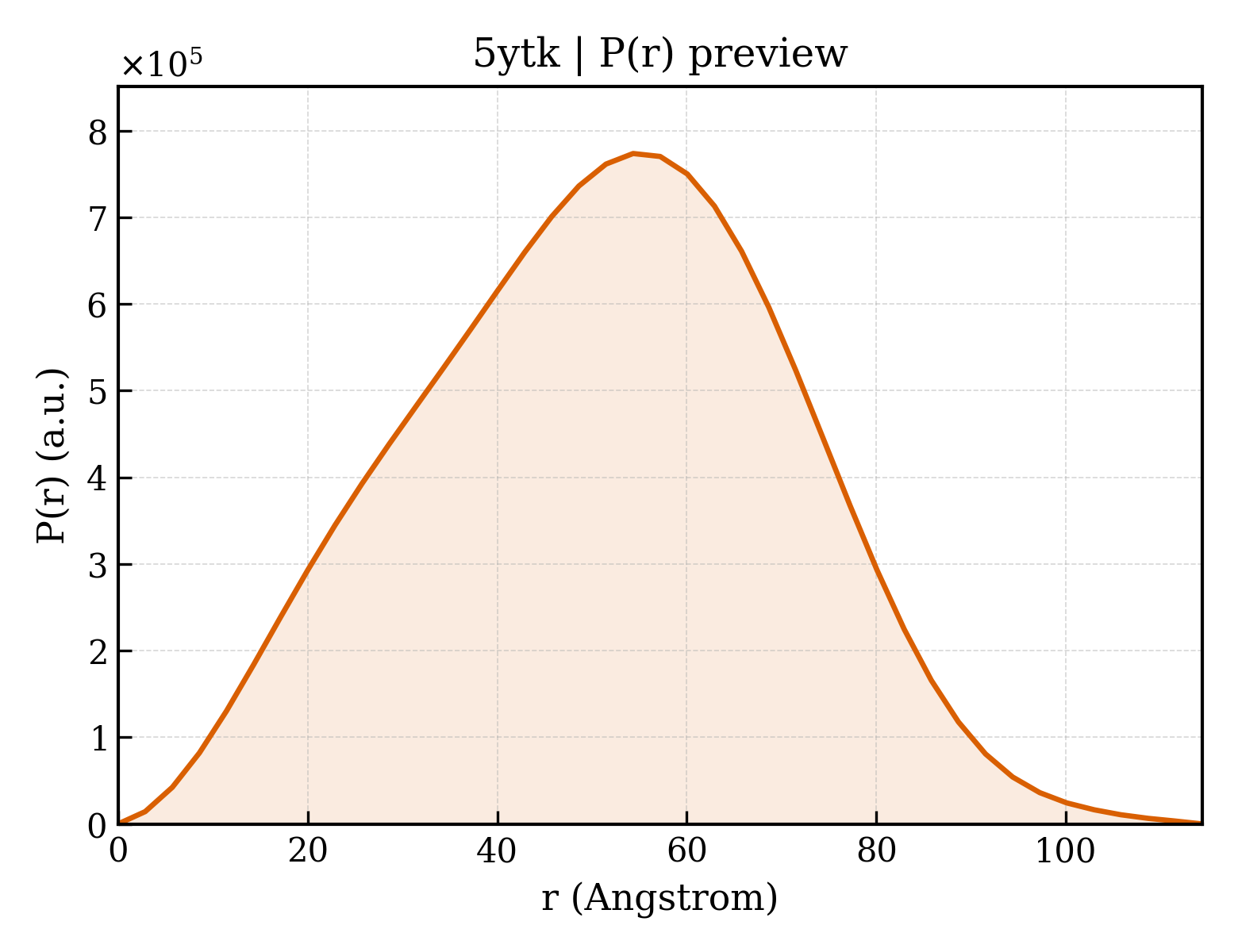

5ytk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.07 Å
Rg (electron density)	37.68 Å
Total Rg	38.34 Å
Atom count	13183
Residues	1672
Excluded volume	237070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5ytk__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NAD-dependent protein deacetylase sirtuin-3, mitochondrial
Molecular weight formula_weight	30495.2 kDa
EC 编号 ec_number	3.5.1.-
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	13332

GKLSLQDVAELIRARACQRVVVMVGAGISTPSGIPDFRSPGSGLYSNLQQYDLPYPEAIFELPFFFHNPKPFFTLAKELYPGNYKPNVTHYFLRLLHDKGLLLRLYTQNIDGLERVSGIPASKLVEAHGTFASATCTVCQRPFPGEDIRADVMADRVPRCPVCTGVVKPDIVFFGEPLPQRFLLHVVDFPMADLLLILGTSLEVEPFASLTEAVRSSVPRLLINRDLVGPLAWHPRSRDVAQLGDVVHGVESLVELLGWTEEMRDLVQRETGKL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	AceCS2-KLeu
Molecular weight formula_weight	937.1 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,J,K,L

TRSGKVMR

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	LEUCINE
Molecular weight formula_weight	131.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	LYSINE
Molecular weight formula_weight	147.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	102

▼

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	5ytkA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	5ytkA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

Domain ID domain_id	5ytkB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	5ytkB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

Domain ID domain_id	5ytkC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	5ytkC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

Domain ID domain_id	5ytkD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	5ytkD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

Domain ID domain_id	5ytkE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	5ytkE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

Domain ID domain_id	5ytkF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	5ytkF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

▶

Unit-cell length a length_a	108.906 Å
Unit-cell length b length_b	108.906 Å
Unit-cell length c length_c	340.564 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	38.800 Å
R factor r_factor	0.2020
R_work r_work	0.2010
R_free r_free	0.2370
