1. Protein Identity and Related Structures Protein Identity & Related Structures

;5'-AMP-activated protein kinase catalytic subunit alpha-2 ;

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 2–552	Non-standard monomer：Yes (specific site not provided by mmCIF)	;5'-AMP-activated protein kinase subunit beta-2 ; × 1 （O43741） ;5'-AMP-activated protein kinase subunit gamma-1 ; × 1 （P54619） Cycloheptakis-(1-4)-(alpha-D-glucopyranose) × 1 STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；6-8% PEG 3350, 0.1 M MgCl2, 0.001% cocamidopropyl betaine and 0.1 M imidazole	Resolution 3.80 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6B2E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2H6D Protein Kinase Domain of the Human 5'-AMP-activated protein kinase catalytic subunit alpha-2 (AMPK alpha-2 chain) Deposited 2006-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–279（274 aa） Fragment：KINASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；18.6% PEG 4000, 0.1M AmSO4, 0.1M Tris-HCl pH 8.5, 15%v/v isopropanol,5mM ATP/MgCl, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.85 Å R-free 0.227
2LTU Solution Structure of autoinhibitory domain of human AMP-activated protein kinase catalytic subunit Deposited 2012-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 282–339（58 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 0.2 mM [U-100% 13C; U-100% 15N] AID protein, 50 mM sodium phosphate, 10 % [U-100% 2H] D2O, 90 % H2O, 1 mM EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YZA Crystal structure of kinase domain of Human 5'-AMP-activated protein kinase alpha-2 subunit mutant (T172D) Deposited 2007-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–279（274 aa） Fragment：kinase domain	Mutation：T172D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；0.1M Tris-HCl pH8.9, 16% PEG4000, 15% isopropanol, 0.1M Ammonium sulfate, Protein solution: 5mM AMPPNP, 5mM Magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.02 Å R-free 0.308
3AQV Human AMP-activated protein kinase alpha 2 subunit kinase domain (T172D) complexed with compound C Deposited 2010-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–279（274 aa） Fragment：kinase domain	Mutation：T172D	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；0.1M Bis-Tris (pH 6.5), 1.5M ammonium sulfate, 0.1M NaCl, 0.5mM Compound C, 5mM MgCl2, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.08 Å R-free 0.281
4CFE Structure of full length human AMPK in complex with a small molecule activator, a benzimidazole derivative (991) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–552（552 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.02 Å R-free 0.253
4CFE Structure of full length human AMPK in complex with a small molecule activator, a benzimidazole derivative (991) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–552（552 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.02 Å R-free 0.253
4CFF Structure of full length human AMPK in complex with a small molecule activator, a thienopyridone derivative (A-769662) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–552（552 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.92 Å R-free 0.264
4CFF Structure of full length human AMPK in complex with a small molecule activator, a thienopyridone derivative (A-769662) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–552（552 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.92 Å R-free 0.264
4ZHX Novel binding site for allosteric activation of AMPK Deposited 2015-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–552（551 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 C2Z 5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.243
4ZHX Novel binding site for allosteric activation of AMPK Deposited 2015-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–552（551 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.243
5EZV X-ray crystal structure of AMP-activated protein kinase alpha-2/alpha-1 RIM chimaera (alpha-2(1-347)/alpha-1(349-401)/alpha-2(397-end) beta-1 gamma-1) co-crystallized with C2 (5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid) Deposited 2015-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–347（346 aa） Chain A 397–552（156 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 C2Z 5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.245
5EZV X-ray crystal structure of AMP-activated protein kinase alpha-2/alpha-1 RIM chimaera (alpha-2(1-347)/alpha-1(349-401)/alpha-2(397-end) beta-1 gamma-1) co-crystallized with C2 (5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid) Deposited 2015-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–347（346 aa） Chain C 397–552（156 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 C2Z 5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.245
5ISO STRUCTURE OF FULL LENGTH HUMAN AMPK (NON-PHOSPHORYLATED AT T-LOOP) IN COMPLEX WITH A SMALL MOLECULE ACTIVATOR, A BENZIMIDAZOLE DERIVATIVE (991) Deposited 2016-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–552（552 aa）	Not recorded	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；12% PEG3350, 300 mM Guanidine in 100mM PIPES buffer at pH 7.2.	Resolution 2.63 Å R-free 0.230
5ISO STRUCTURE OF FULL LENGTH HUMAN AMPK (NON-PHOSPHORYLATED AT T-LOOP) IN COMPLEX WITH A SMALL MOLECULE ACTIVATOR, A BENZIMIDAZOLE DERIVATIVE (991) Deposited 2016-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–552（552 aa）	Not recorded	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；12% PEG3350, 300 mM Guanidine in 100mM PIPES buffer at pH 7.2.	Resolution 2.63 Å R-free 0.230
6B1U Structure of full-length human AMPK (a2b1g1) in complex with a small molecule activator SC4 Deposited 2017-09-19	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–552（551 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8% PEG 3350, 0.1 M MgCl2, 1.0% glucose, 0.001% cocamidopropyl betaine and 0.1 M imidazole.	Resolution 2.77 Å R-free 0.226
6B1U Structure of full-length human AMPK (a2b1g1) in complex with a small molecule activator SC4 Deposited 2017-09-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–552（551 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 IMD IMIDAZOLE × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8% PEG 3350, 0.1 M MgCl2, 1.0% glucose, 0.001% cocamidopropyl betaine and 0.1 M imidazole.	Resolution 2.77 Å R-free 0.226
6BX6 AMP-Activated protein kinase (AMPK) inhibition by SBI-0206965: alpha 2 kinase domain bound to SBI-0206965 Deposited 2017-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–279（274 aa）	Mutation：T172D	EDJ 2-({5-bromo-2-[(3,4,5-trimethoxyphenyl)amino]pyrimidin-4-yl}oxy)-N-methylbenzene-1-carboximidic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；293 K；9-14 % ethanol, 5 mM magnesium chloride, 3-7 mM manganese chloride, 10 mM TCEP and 0.1 M Tris, pH 9.5.	Resolution 2.90 Å R-free 0.280
7MYJ Structure of full length human AMPK (a2b1g1) in complex with a small molecule activator MSG011 Deposited 2021-05-21	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–552（551 aa）	Mutation：D271G Non-standard monomer：Yes (specific site not provided by mmCIF)	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 ZQV 5-({5-[(4'R)-4'-acetamido-2',3',4',5'-tetrahydro[1,1'-biphenyl]-4-yl]-6-chloro-1H-imidazo[4,5-b]pyridin-2-yl}oxy)-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277.15 K；8-10% PEG3350, 1% glucose, 0.1 M magnesium chloride, 0.1 M imidazole, 0.0005-0.003% CAPB	Resolution 2.95 Å R-free 0.243
7MYJ Structure of full length human AMPK (a2b1g1) in complex with a small molecule activator MSG011 Deposited 2021-05-21	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–552（551 aa）	Mutation：D271G Non-standard monomer：Yes (specific site not provided by mmCIF)	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 ZQV 5-({5-[(4'R)-4'-acetamido-2',3',4',5'-tetrahydro[1,1'-biphenyl]-4-yl]-6-chloro-1H-imidazo[4,5-b]pyridin-2-yl}oxy)-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277.15 K；8-10% PEG3350, 1% glucose, 0.1 M magnesium chloride, 0.1 M imidazole, 0.0005-0.003% CAPB	Resolution 2.95 Å R-free 0.243
8BIK Crystal structure of human AMPK heterotrimer in complex with allosteric activator C455 Deposited 2022-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–552（552 aa）	Not recorded	STU STAUROSPORINE × 1 QTN (3~{R},3~{a}~{R},6~{R},6~{a}~{R})-6-[[6-chloranyl-5-[4-[4-[[dimethyl(oxidanyl)-$l^{4}-sulfanyl]amino]phenyl]phenyl]-3~{H}-imidazo[4,5-b]pyridin-2-yl]oxy]-2,3,3~{a},5,6,6~{a}-hexahydrofuro[3,2-b]furan-3-ol × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；293 K；AMPK a2b1g1 (5 mg/ml: 38 uM) was combined with AMP (4-fold excess), staurosporine (1.2-fold excess) and activator 455 (3-fold excess): and crystallised at 20 C by mixing 2 ul of the protein solution with 1 ul of 8 % PEG3350, 0.3 M guanidine hydrochloride, 0.1 M PIPES buffer pH 7.2.	Resolution 2.50 Å R-free 0.215
8BIK Crystal structure of human AMPK heterotrimer in complex with allosteric activator C455 Deposited 2022-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–552（552 aa）	Not recorded	STU STAUROSPORINE × 1 QTN (3~{R},3~{a}~{R},6~{R},6~{a}~{R})-6-[[6-chloranyl-5-[4-[4-[[dimethyl(oxidanyl)-$l^{4}-sulfanyl]amino]phenyl]phenyl]-3~{H}-imidazo[4,5-b]pyridin-2-yl]oxy]-2,3,3~{a},5,6,6~{a}-hexahydrofuro[3,2-b]furan-3-ol × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；293 K；AMPK a2b1g1 (5 mg/ml: 38 uM) was combined with AMP (4-fold excess), staurosporine (1.2-fold excess) and activator 455 (3-fold excess): and crystallised at 20 C by mixing 2 ul of the protein solution with 1 ul of 8 % PEG3350, 0.3 M guanidine hydrochloride, 0.1 M PIPES buffer pH 7.2.	Resolution 2.50 Å R-free 0.215
9IC2 Structure of AMPK-alpha2-kinase domain bound to BAY-3827 Deposited 2025-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–280（275 aa）	Not recorded	A1I1Y ~{N}-[5-(3,5-dicyano-1,2,6-trimethyl-4~{H}-pyridin-4-yl)-6-fluoranyl-7-methyl-1~{H}-indazol-3-yl]-2-ethyl-benzamide × 1 MG MAGNESIUM ION × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；0.1M Ammonium sulfate, 0.3 Sodium formate, 0.1M Sodium cacodylate pH 6.5, 3% Gamma-PGA, 3% PEG 20000	Resolution 2.50 Å R-free 0.235

14 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AAPK2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 15–565； UniProt 2–552

;5'-AMP-activated protein kinase subunit beta-2 ;

Homo sapiens

UniProt O43741

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–272	Non-standard monomer：Yes (specific site not provided by mmCIF)	;5'-AMP-activated protein kinase catalytic subunit alpha-2 ; × 1 （P54646） ;5'-AMP-activated protein kinase subunit gamma-1 ; × 1 （P54619） Cycloheptakis-(1-4)-(alpha-D-glucopyranose) × 1 STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；6-8% PEG 3350, 0.1 M MgCl2, 0.001% cocamidopropyl betaine and 0.1 M imidazole	Resolution 3.80 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6B2E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2F15 Glycogen-Binding Domain Of The Amp-Activated Protein Kinase beta2 Subunit Deposited 2005-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 69–163（95 aa） Fragment：Glycogen-Binding Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；27% MPD, 0.1 M Hepes, pH 7.5, 0.2 M Ammonium Sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.00 Å R-free 0.296
2V8Q Crystal structure of the regulatory fragment of mammalian AMPK in complexes with AMP Deposited 2007-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å R-free 0.237
2V92 Crystal structure of the regulatory fragment of mammalian AMPK in complexes with ATP-AMP Deposited 2007-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.259
2V9J Crystal structure of the regulatory fragment of mammalian AMPK in complexes with Mg.ATP-AMP Deposited 2007-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.53 Å R-free 0.266
2Y8L Structure of the regulatory fragment of mammalian aMPK in complex with two ADP Deposited 2011-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.253
2Y8Q Structure of the regulatory fragment of mammalian AMPK in complex with one ADP Deposited 2011-02-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.275
2YA3 STRUCTURE OF THE REGULATORY FRAGMENT OF MAMMALIAN AMPK IN COMPLEX WITH COUMARIN ADP Deposited 2011-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	J7V 3'-(7-diethylaminocoumarin-3-carbonylamino)-3'-deoxy-ADP × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.51 Å R-free 0.263
4CFH Structure of an active form of mammalian AMPK Deposited 2013-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 187–272（86 aa） Fragment：RESIDUES 187-272	Not recorded	STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 8% ISOPROPANOL AND 5% MPD AS PRECIPITANT IN 0.1M TRIS AT PH 7.5 AT 18 DEGREES.	Resolution 3.24 Å R-free 0.268
4EAI Co-crystal structure of an AMPK core with AMP Deposited 2012-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 189–272（84 aa） Fragment：UNP residues 189-272	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.26；298 K；MES, 16% IPP, 1% 1,4-butanediol, pH 6.26, VAPOR DIFFUSION, HANGING DROP, temperature 298 K	Resolution 2.29 Å R-free 0.252
4EAJ Co-crystal of AMPK core with AMP soaked with ATP Deposited 2012-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 189–272（84 aa） Fragment：UNP residues 189-272	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.26；298 K；MES pH 6.26, 16% IPP, 1% 1,4-butanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298 K	Resolution 2.61 Å R-free 0.258
4RER Crystal structure of the phosphorylated human alpha1 beta2 gamma1 holo-AMPK complex bound to AMP and cyclodextrin Deposited 2014-09-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 76–272（197 aa） Fragment：Human AMPK beta2 subunit [A76-I272]	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；12% PEG 4000,0.1 M HEPES, pH7.8, 10% 2-propanol (v/v) and 0.19 mM 7-cyclohexyl-1-heptyl-D-maltoside, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 4.05 Å R-free 0.260
4REW Crystal structure of the non-phosphorylated human alpha1 beta2 gamma1 holo-AMPK complex Deposited 2014-09-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 76–272（197 aa） Fragment：Human AMPK beta2 subunit [A76-I272]	Not recorded	STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；293 K；0.1 M N-acetamido-iminodiacetic acid, pH 6.8, 9% 2-methyl-2,4-pentanediol, and 11.5 mM C-HEGA, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 4.58 Å R-free 0.259
7JHG Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Dorsomorphin (Compound C) and Fab-nanobody Deposited 2020-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 75–272（198 aa）	Not recorded	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
7JHH Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Fab and nanobody Deposited 2020-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 75–272（198 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
7JIJ ATP-bound AMP-activated protein kinase Deposited 2020-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 76–272（197 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M tri-lithium citrate,10% w/v PEG3350, pH7.5,0.01 M barium chloride	Resolution 5.50 Å R-free 0.323
7M74 ATP-bound AMP-activated protein kinase Deposited 2021-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 76–272（197 aa）	Not recorded	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.93 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AAKB2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–272； UniProt 1–272

;5'-AMP-activated protein kinase subunit gamma-1 ;

Homo sapiens

UniProt P54619

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 2–331	Not recorded	;5'-AMP-activated protein kinase catalytic subunit alpha-2 ; × 1 （P54646） ;5'-AMP-activated protein kinase subunit beta-2 ; × 1 （O43741） Cycloheptakis-(1-4)-(alpha-D-glucopyranose) × 1 STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；6-8% PEG 3350, 0.1 M MgCl2, 0.001% cocamidopropyl betaine and 0.1 M imidazole	Resolution 3.80 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6B2E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2UV4 Crystal Structure of a CBS domain pair from the regulatory gamma1 subunit of human AMPK in complex with AMP Deposited 2007-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 182–325（144 aa） Fragment：CBS 3 AND 4 FRAGMENT, RESIDUES 182-325	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.00	Resolution 1.33 Å R-free 0.207
2UV5 Crystal Structure of a CBS domain pair from the regulatory gamma1 subunit of human AMPK in complex with AMP Deposited 2007-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 182–325（144 aa） Fragment：CBS 3 AND 4 FRAGMENT, RESIDUES 182-325	Not recorded	AMZ AMINOIMIDAZOLE 4-CARBOXAMIDE RIBONUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.00	Resolution 1.69 Å R-free 0.227
2UV6 Crystal Structure of a CBS domain pair from the regulatory gamma1 subunit of human AMPK in complex with AMP Deposited 2007-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 182–325（144 aa） Fragment：CBS 3 AND 4 FRAGMENT, RESIDUES 182-325	Mutation：YES	AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.00	Resolution 2.00 Å R-free 0.247
2UV7 Crystal Structure of a CBS domain pair from the regulatory gamma1 subunit of human AMPK in complex with AMP Deposited 2007-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 182–325（144 aa） Fragment：CBS 3 AND 4 FRAGMENT, RESIDUES 182-325	Mutation：YES	AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.230
4CFE Structure of full length human AMPK in complex with a small molecule activator, a benzimidazole derivative (991) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.02 Å R-free 0.253
4CFE Structure of full length human AMPK in complex with a small molecule activator, a benzimidazole derivative (991) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.02 Å R-free 0.253
4CFF Structure of full length human AMPK in complex with a small molecule activator, a thienopyridone derivative (A-769662) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.92 Å R-free 0.264
4CFF Structure of full length human AMPK in complex with a small molecule activator, a thienopyridone derivative (A-769662) Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；CRYSTALS WERE GROWN BY THE HANGING DROP METHOD WITH RESERVOIR SOLUTION CONTAINING 13% PEG3350, 0.1M MGCL2, 1% GLUCOSE, 0.15% CAPB IN 0.1M IMIDAZOLE AT PH 6.2.	Resolution 3.92 Å R-free 0.264
4RER Crystal structure of the phosphorylated human alpha1 beta2 gamma1 holo-AMPK complex bound to AMP and cyclodextrin Deposited 2014-09-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 24–327（304 aa） Fragment：Human AMPK gamma1 subunit [S24-G327]	Not recorded	STU STAUROSPORINE × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；12% PEG 4000,0.1 M HEPES, pH7.8, 10% 2-propanol (v/v) and 0.19 mM 7-cyclohexyl-1-heptyl-D-maltoside, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 4.05 Å R-free 0.260
4REW Crystal structure of the non-phosphorylated human alpha1 beta2 gamma1 holo-AMPK complex Deposited 2014-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 24–327（304 aa） Fragment：Human AMPK gamma1 subunit [S24-G327]	Not recorded	STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；293 K；0.1 M N-acetamido-iminodiacetic acid, pH 6.8, 9% 2-methyl-2,4-pentanediol, and 11.5 mM C-HEGA, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 4.58 Å R-free 0.259
4ZHX Novel binding site for allosteric activation of AMPK Deposited 2015-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 2–331（330 aa）	Not recorded	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 C2Z 5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.243
4ZHX Novel binding site for allosteric activation of AMPK Deposited 2015-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 2–331（330 aa）	Not recorded	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.243
5EZV X-ray crystal structure of AMP-activated protein kinase alpha-2/alpha-1 RIM chimaera (alpha-2(1-347)/alpha-1(349-401)/alpha-2(397-end) beta-1 gamma-1) co-crystallized with C2 (5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid) Deposited 2015-11-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 2–331（330 aa）	Not recorded	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 C2Z 5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.245
5EZV X-ray crystal structure of AMP-activated protein kinase alpha-2/alpha-1 RIM chimaera (alpha-2(1-347)/alpha-1(349-401)/alpha-2(397-end) beta-1 gamma-1) co-crystallized with C2 (5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid) Deposited 2015-11-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 2–331（330 aa）	Not recorded	STU STAUROSPORINE × 1 C1V 3-[4-(2-hydroxyphenyl)phenyl]-4-oxidanyl-6-oxidanylidene-7H-thieno[2,3-b]pyridine-5-carbonitrile × 1 C2Z 5-(5-hydroxyl-isoxazol-3-yl)-furan-2-phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8 % PEG 3350, 0.1 M MgCl2, 1.0 % glucose, 0.001 % cocamidopropyl betaine, 0.1 M imidazole	Resolution 2.99 Å R-free 0.245
5ISO STRUCTURE OF FULL LENGTH HUMAN AMPK (NON-PHOSPHORYLATED AT T-LOOP) IN COMPLEX WITH A SMALL MOLECULE ACTIVATOR, A BENZIMIDAZOLE DERIVATIVE (991) Deposited 2016-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；12% PEG3350, 300 mM Guanidine in 100mM PIPES buffer at pH 7.2.	Resolution 2.63 Å R-free 0.230
5ISO STRUCTURE OF FULL LENGTH HUMAN AMPK (NON-PHOSPHORYLATED AT T-LOOP) IN COMPLEX WITH A SMALL MOLECULE ACTIVATOR, A BENZIMIDAZOLE DERIVATIVE (991) Deposited 2016-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 992 5-[[6-chloranyl-5-(1-methylindol-5-yl)-1H-benzimidazol-2-yl]oxy]-2-methyl-benzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；12% PEG3350, 300 mM Guanidine in 100mM PIPES buffer at pH 7.2.	Resolution 2.63 Å R-free 0.230
6B1U Structure of full-length human AMPK (a2b1g1) in complex with a small molecule activator SC4 Deposited 2017-09-19	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 2–331（330 aa）	Not recorded	STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8% PEG 3350, 0.1 M MgCl2, 1.0% glucose, 0.001% cocamidopropyl betaine and 0.1 M imidazole.	Resolution 2.77 Å R-free 0.226
6B1U Structure of full-length human AMPK (a2b1g1) in complex with a small molecule activator SC4 Deposited 2017-09-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 2–331（330 aa）	Not recorded	STU STAUROSPORINE × 1 CG7 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid × 1 IMD IMIDAZOLE × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；8% PEG 3350, 0.1 M MgCl2, 1.0% glucose, 0.001% cocamidopropyl betaine and 0.1 M imidazole.	Resolution 2.77 Å R-free 0.226
6C9F AMP-activated protein kinase bound to pharmacological activator R734 Deposited 2018-01-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–331（331 aa）	Not recorded	R34 5-{[6-chloro-5-(1-methyl-1H-indol-5-yl)-1H-benzimidazol-2-yl]oxy}-N-hydroxy-2-methylbenzamide × 1 STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M tri-sodium acetate pH 5.6, 0.2 M ammonium acetate, 15% w/v PEG 4000	Resolution 2.92 Å R-free 0.245
6C9G AMP-activated protein kinase bound to pharmacological activator R739 Deposited 2018-01-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–331（331 aa）	Not recorded	R93 5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-benzimidazol-2-yl]oxy}-N-hydroxy-2-methylbenzamide × 1 STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M tri-sodium acetate pH 5.6, 0.2 M ammonium acetate, 15% w/v PEG 4000	Resolution 2.70 Å R-free 0.240
6C9H non-phosphorylated AMP-activated protein kinase bound to pharmacological activator R734 Deposited 2018-01-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–331（331 aa）	Not recorded	R34 5-{[6-chloro-5-(1-methyl-1H-indol-5-yl)-1H-benzimidazol-2-yl]oxy}-N-hydroxy-2-methylbenzamide × 1 STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M magnesium formate	Resolution 2.65 Å R-free 0.242
6C9J AMP-activated protein kinase bound to pharmacological activator R734 Deposited 2018-01-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–325（325 aa）	Not recorded	R34 5-{[6-chloro-5-(1-methyl-1H-indol-5-yl)-1H-benzimidazol-2-yl]oxy}-N-hydroxy-2-methylbenzamide × 1 STU STAUROSPORINE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M tri-ammonium citrate pH7, 12% w/v PEG 3350	Resolution 3.05 Å R-free 0.225
7JHG Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Dorsomorphin (Compound C) and Fab-nanobody Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 24–327（304 aa）	Not recorded	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
7JHH Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Fab and nanobody Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 24–327（304 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
7JIJ ATP-bound AMP-activated protein kinase Deposited 2020-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 24–327（304 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M tri-lithium citrate,10% w/v PEG3350, pH7.5,0.01 M barium chloride	Resolution 5.50 Å R-free 0.323
7M74 ATP-bound AMP-activated protein kinase Deposited 2021-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 24–327（304 aa）	Not recorded	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.93 Å
7MYJ Structure of full length human AMPK (a2b1g1) in complex with a small molecule activator MSG011 Deposited 2021-05-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 2–331（330 aa）	Not recorded	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 ZQV 5-({5-[(4'R)-4'-acetamido-2',3',4',5'-tetrahydro[1,1'-biphenyl]-4-yl]-6-chloro-1H-imidazo[4,5-b]pyridin-2-yl}oxy)-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277.15 K；8-10% PEG3350, 1% glucose, 0.1 M magnesium chloride, 0.1 M imidazole, 0.0005-0.003% CAPB	Resolution 2.95 Å R-free 0.243
7MYJ Structure of full length human AMPK (a2b1g1) in complex with a small molecule activator MSG011 Deposited 2021-05-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 2–331（330 aa）	Not recorded	4O7 (5S,6R,7R,9R,13cR,14R,16aS)-6-methoxy-5-methyl-7-(methylamino)-6,7,8,9,14,15,16,16a-octahydro-5H,13cH-5,9-epoxy-4b,9a,1 5-triazadibenzo[b,h]cyclonona[1,2,3,4-jkl]cyclopenta[e]-as-indacen-14-ol × 1 ZQV 5-({5-[(4'R)-4'-acetamido-2',3',4',5'-tetrahydro[1,1'-biphenyl]-4-yl]-6-chloro-1H-imidazo[4,5-b]pyridin-2-yl}oxy)-2-methylbenzoic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277.15 K；8-10% PEG3350, 1% glucose, 0.1 M magnesium chloride, 0.1 M imidazole, 0.0005-0.003% CAPB	Resolution 2.95 Å R-free 0.243
8BIK Crystal structure of human AMPK heterotrimer in complex with allosteric activator C455 Deposited 2022-11-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 QTN (3~{R},3~{a}~{R},6~{R},6~{a}~{R})-6-[[6-chloranyl-5-[4-[4-[[dimethyl(oxidanyl)-$l^{4}-sulfanyl]amino]phenyl]phenyl]-3~{H}-imidazo[4,5-b]pyridin-2-yl]oxy]-2,3,3~{a},5,6,6~{a}-hexahydrofuro[3,2-b]furan-3-ol × 1 AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；293 K；AMPK a2b1g1 (5 mg/ml: 38 uM) was combined with AMP (4-fold excess), staurosporine (1.2-fold excess) and activator 455 (3-fold excess): and crystallised at 20 C by mixing 2 ul of the protein solution with 1 ul of 8 % PEG3350, 0.3 M guanidine hydrochloride, 0.1 M PIPES buffer pH 7.2.	Resolution 2.50 Å R-free 0.215
8BIK Crystal structure of human AMPK heterotrimer in complex with allosteric activator C455 Deposited 2022-11-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–331（331 aa）	Not recorded	STU STAUROSPORINE × 1 QTN (3~{R},3~{a}~{R},6~{R},6~{a}~{R})-6-[[6-chloranyl-5-[4-[4-[[dimethyl(oxidanyl)-$l^{4}-sulfanyl]amino]phenyl]phenyl]-3~{H}-imidazo[4,5-b]pyridin-2-yl]oxy]-2,3,3~{a},5,6,6~{a}-hexahydrofuro[3,2-b]furan-3-ol × 1 AMP ADENOSINE MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.2；293 K；AMPK a2b1g1 (5 mg/ml: 38 uM) was combined with AMP (4-fold excess), staurosporine (1.2-fold excess) and activator 455 (3-fold excess): and crystallised at 20 C by mixing 2 ul of the protein solution with 1 ul of 8 % PEG3350, 0.3 M guanidine hydrochloride, 0.1 M PIPES buffer pH 7.2.	Resolution 2.50 Å R-free 0.215

22 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AAKG1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 7–336； UniProt 2–331

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6b2e
Deposition date deposition_date	2017-09-19
Structure title title	Structure of full length human AMPK (a2b2g1) in complex with a small molecule activator SC4.
Keywords keywords	Phosphorylated, Active, Heterotrimer, Kinase., TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.86 Å
Radius of gyration Rg (electron density) rg_electron	34.43 Å
Forward intensity I(0) i0	143845000.00
Molecular weight molecular_weight	95117.0 kDa
Excluded volume excluded_volume	118520 Å³
Envelope volume envelope_volume	166440 Å³
Hydration-shell volume shell_volume	41855 Å³
Envelope diameter envelope_diameter	131.3 Å
Shell Rg shell_rg	39.37 Å
Envelope Rg envelope_rg	34.09 Å
Shape Rg shape_rg	34.45 Å
Total Rg total_rg	34.77 Å
Total atoms total_atoms	6720
Residues n_residues	929
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

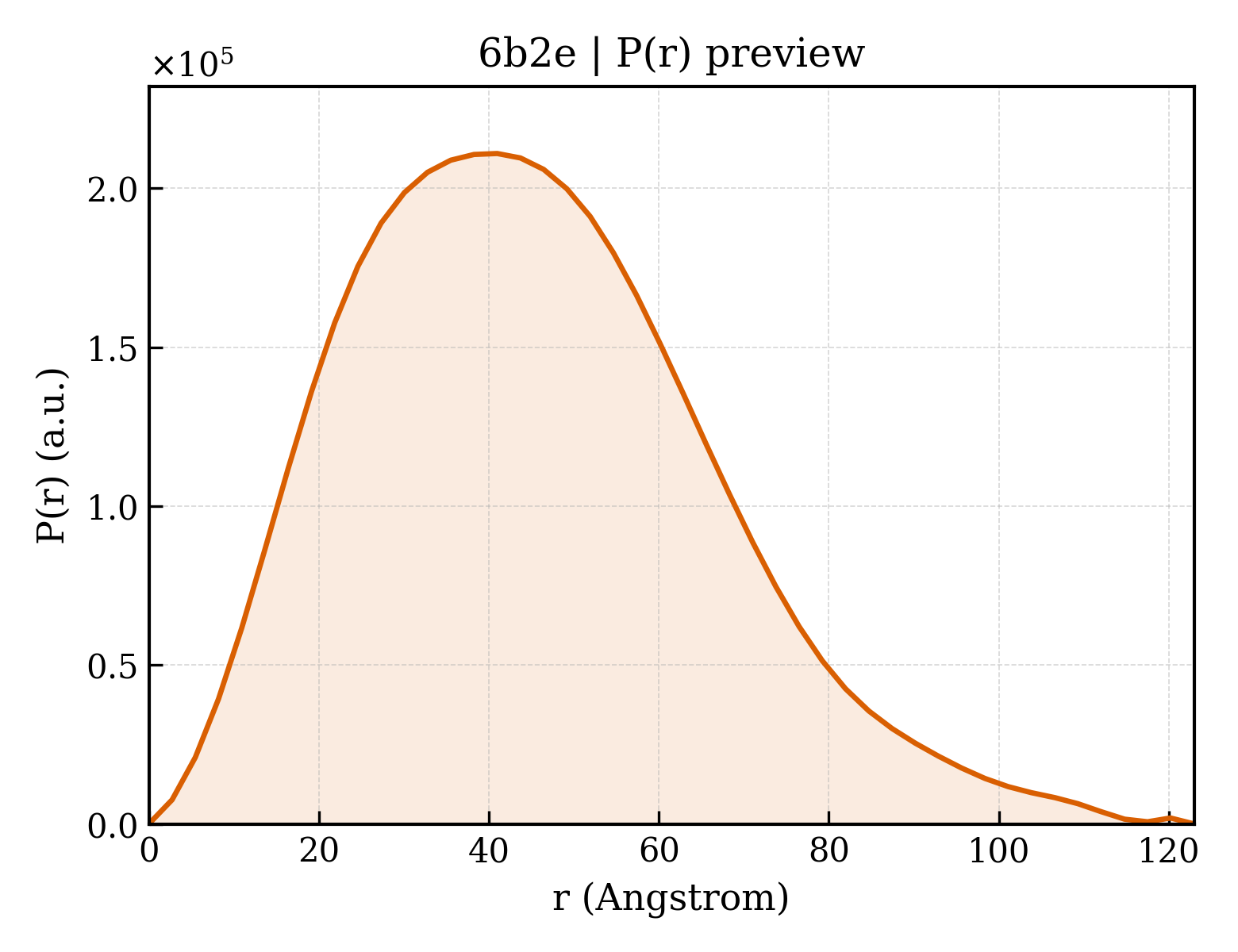

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	123.0 Å
Rg (real space) rg_real	35.00 Å
Rg uncertainty (real space) rg_real_error	1.27 Å
I(0) (real space) i0_real	1.4380e+08
I(0) uncertainty (real space) i0_real_error	2.6070e+06
Rg (reciprocal space) rg_reciprocal	34.92 Å
I(0) (reciprocal space) i0_reciprocal	143800000.0000
Solution quality estimate total_estimate	0.8527
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.0 Å
Skewness Skewness skewness	0.495
Kurtosis Kurtosis kurtosis	-0.009
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	44910000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.828

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	;5'-AMP-activated protein kinase catalytic subunit alpha-2 ;
Molecular weight formula_weight	63918.1 kDa
EC 编号 ec_number	2.7.11.1,2.7.11.27,2.7.11.31
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6720

MGSSHHHHHHSQDPAEKQKHDGRVKIGHYVLGDTLGVGTFGKVKIGEHQLTGHKVAVKILNRQKIRSLDVVGKIKREIQNLKLFRHPHIIKLYQVISTPTDFFMVMEYVSGGELFDYICKHGRVEEMEARRLFQQILSAVDYCHRHMVVHRDLKPENVLLDAHMNAKIADFGLSNMMSDGEFLRTSCGSPNYAAPEVISGRLYAGPEVDIWSCGVILYALLCGTLPFDDEHVPTLFKKIRGGVFYIPEYLNRSVATLLMHMLQVDPLKRATIKDIREHEWFKQGLPSYLFPEDPSYDANVIDDEAVKEVCEKFECTESEVMNSLYSGDPQDQLAVAYHLIIDNRRIMNQASEFYLASSPPSGSFMDDSAMHIPPGLKPHPERMPPLIADSPKARCPLDALNTTKPKSLAVKKAKWHLGIRSQSKPYDIMAEVYRAMKQLDFEWKVVNAYHLRVRRKNPVTGNYVKMSLQLYLVDNRSYLLDFKSIDDEVVEQRSGSSTPQRSCSAAGLHRPRSSFDSTTAESHSLSGSLTGSLTGSTLSSVSPRLGSHTMDFFEMCASLITTLAR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;5'-AMP-activated protein kinase subunit beta-2 ;
Molecular weight formula_weight	30422.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGNTTSDRVSGERHGAKAARSEGAGGHAPGKEHKIMVGSTDDPSVFSLPDSKLPGDKEFVSWQQDLEDSVKPTQQARPTVIRWSEGGKEVFISGSFNNWSTKIPLIKSHNDFVAILDLPEGEHQYKFFVDGQWVHDPSEPVVTSQLGTINNLIHVKKSDFEVFDALKLDSMESSETSCRDLSSSPPGPYGQEMYAFRSEERFKSPPILPPHLLQVILNKDTNISCDPALLPEPNHVMLNHLYALSIKDSVMVLSATHRYKKKYVTTLLYKPI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	;5'-AMP-activated protein kinase subunit gamma-1 ;
Molecular weight formula_weight	38225.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MADLNWETVISSDSSPAVENEHPQETPESNNSVYTSFMKSHRCYDLIPTSSKLVVFDTSLQVKKAFFALVTNGVRAAPLWDSKKQSFVGMLTITDFINILHRYYKSALVQIYELEEHKIETWREVYLQDSFKPLVCISPNASLFDAVSSLIRNKIHRLPVIDPESGNTLYILTHKRILKFLKLFITEFPKPEFMSKSLEELQIGTYANIAMVRTTTPVYVALGIFVQHRVSALPVVDEKGRVVDIYSKFDVINLAAEKTYNNLDVSVTKALQHRSHYFEGVLKCYLHETLETIINRLVEAEVHRLVVVDENDVVKGIVSLSDILQALVLTGGEKKP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 branched

Description description	Cycloheptakis-(1-4)-(alpha-D-glucopyranose)
Molecular weight formula_weight	1153.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	STAUROSPORINE
Molecular weight formula_weight	466.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	;5-{[6-chloro-5-(2'-hydroxy[1,1'-biphenyl]-4-yl)-1H-imidazo[4,5-b]pyridin-2-yl]oxy}-2-methylbenzoic acid ;
Molecular weight formula_weight	471.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6b2eA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	113.936 Å
Unit-cell length b length_b	118.848 Å
Unit-cell length c length_c	138.096 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	48.150 Å
R factor r_factor	0.2460
R_work r_work	0.2440
R_free r_free	0.2770

fit	/app/data/saxs_computation/b2/6b2e/6b2e.fit
pddf	/app/data/pr_computation/b2/6b2e/6b2e.pr.out
profile	/app/data/saxs_computation/b2/6b2e/6b2e.dat

Structure of full length human AMPK (a2b2g1) in complex with a small molecule activator SC4.

1. Protein Identity and Related Structures Protein Identity & Related Structures

;5'-AMP-activated protein kinase catalytic subunit alpha-2 ;

State in the Current Structure

Other States of the Same Protein in the Database

;5'-AMP-activated protein kinase subunit beta-2 ;

State in the Current Structure

Other States of the Same Protein in the Database

;5'-AMP-activated protein kinase subunit gamma-1 ;

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
