6baj

Cryo-EM structure of lipid bilayer in the native cell membrane nanoparticles of AcrB

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Multidrug efflux pump subunit AcrB

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	PHOSPHATIDYLETHANOLAMINE × 31 DODECANE × 11 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1049； UniProt 1–1049 Author chain B； PDBConstruct 1–1049； UniProt 1–1049 Author chain C； PDBConstruct 1–1049； UniProt 1–1049

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6baj
Deposition date deposition_date	2017-10-13
Structure title title	Cryo-EM structure of lipid bilayer in the native cell membrane nanoparticles of AcrB
Keywords keywords	;lipid bilayer, native cell membrane nanoparticles system, Resistance-Nodulation-Cell Division (RND) family, phospholipid, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6baj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

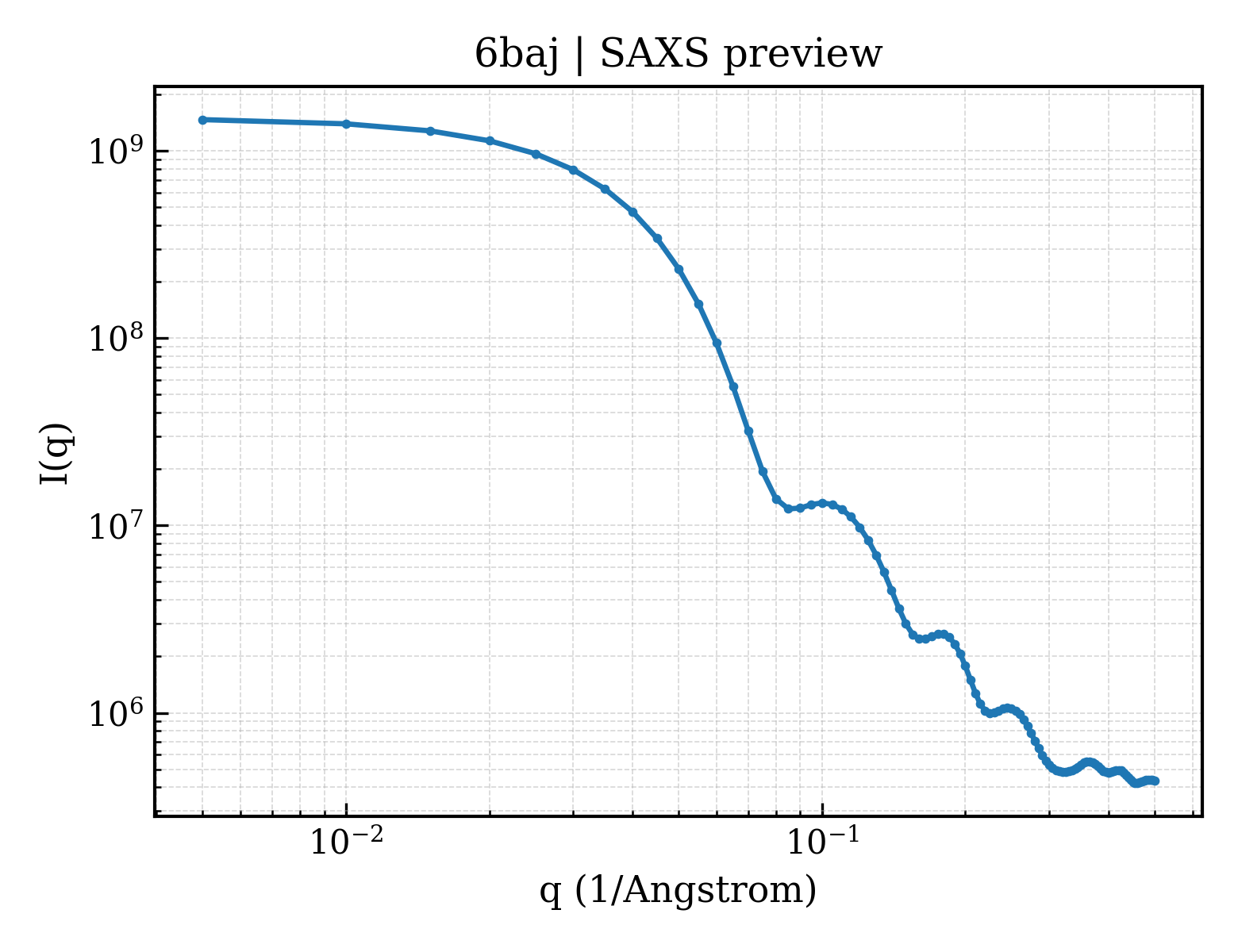

6baj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

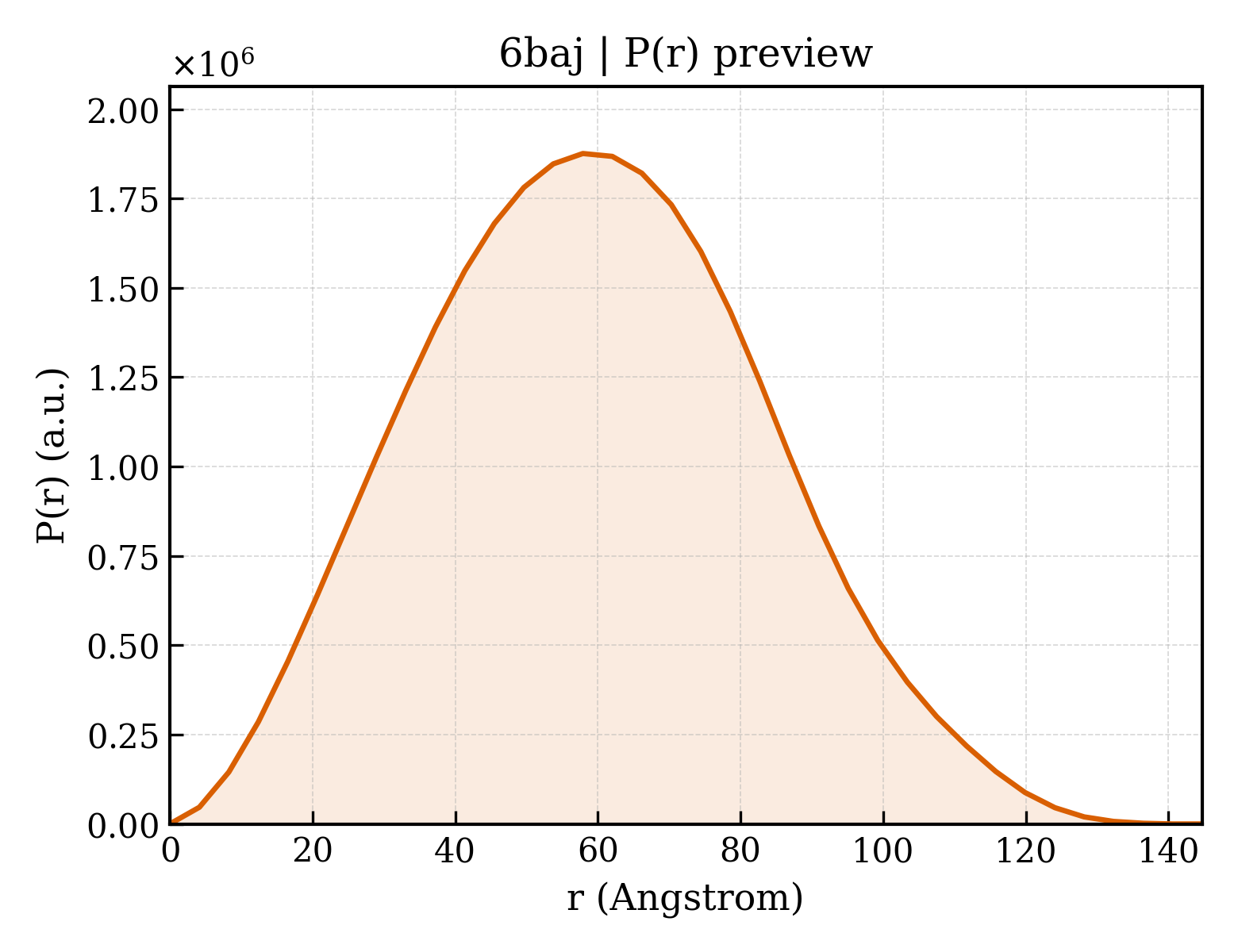

6baj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.54 Å
Rg (electron density)	44.75 Å
Total Rg	45.02 Å
Atom count	24317
Residues	3042
Excluded volume	444480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6baj__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Multidrug efflux pump subunit AcrB
Molecular weight formula_weight	114736.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,A
Atom count atom_count	24318

MPNFFIDRPIFAWVIAIIIMLAGGLAILKLPVAQYPTIAPPAVTISASYPGADAKTVQDTVTQVIEQNMNGIDNLMYMSSNSDSTGTVQITLTFESGTDADIAQVQVQNKLQLAMPLLPQEVQQQGVSVEKSSSSFLMVVGVINTDGTMTQEDISDYVAANMKDAISRTSGVGDVQLFGSQYAMRIWMNPNELNKFQLTPVDVITAIKAQNAQVAAGQLGGTPPVKGQQLNASIIAQTRLTSTEEFGKILLKVNQDGSRVLLRDVAKIELGGENYDIIAEFNGQPASGLGIKLATGANALDTAAAIRAELAKMEPFFPSGLKIVYPYDTTPFVKISIHEVVKTLVEAIILVFLVMYLFLQNFRATLIPTIAVPVVLLGTFAVLAAFGFSINTLTMFGMVLAIGLLVDDAIVVVENVERVMAEEGLPPKEATRKSMGQIQGALVGIAMVLSAVFVPMAFFGGSTGAIYRQFSITIVSAMALSVLVALILTPALCATMLKPIAKGDHGEGKKGFFGWFNRMFEKSTHHYTDSVGGILRSTGRYLVLYLIIVVGMAYLFVRLPSSFLPDEDQGVFMTMVQLPAGATQERTQKVLNEVTHYYLTKEKNNVESVFAVNGFGFAGRGQNTGIAFVSLKDWADRPGEENKVEAITMRATRAFSQIKDAMVFAFNLPAIVELGTATGFDFELIDQAGLGHEKLTQARNQLLAEAAKHPDMLTSVRPNGLEDTPQFKIDIDQEKAQALGVSINDINTTLGAAWGGSYVNDFIDRGRVKKVYVMSEAKYRMLPDDIGDWYVRAADGQMVPFSAFSSSRWEYGSPRLERYNGLPSMEILGQAAPGKSTGEAMELMEQLASKLPTGVGYDWTGMSYQERLSGNQAPSLYAISLIVVFLCLAALYESWSIPFSVMLVVPLGVIGALLAATFRGLTNDVYFQVGLLTTIGLSAKNAILIVEFAKDLMDKEGKGLIEATLDAVRMRLRPILMTSLAFILGVMPLVISTGAGSGAQNAVGTGVMGGMVTATVLAIFFVPVFFVVVRRRFSRKNEDIEHSHTVDHHLEHHHHHH

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATIDYLETHANOLAMINE
Molecular weight formula_weight	734.0 kDa
Source method src_method	syn
Copy count entity_count	31

Entity 3 Entity 3 non-polymer

Description description	DODECANE
Molecular weight formula_weight	170.3 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 24 domains

CATH v4.4 (24 domains)

Domain ID domain_id	6bajA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	6bajA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1320 — Multidrug efflux transporter AcrB pore domain like

Domain ID domain_id	6bajA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6bajA05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	6bajA06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajA07
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1440 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajA08
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6bajB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	6bajB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1320 — Multidrug efflux transporter AcrB pore domain like

Domain ID domain_id	6bajB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6bajB05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	6bajB06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajB07
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1440 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajB08
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6bajC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	6bajC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1320 — Multidrug efflux transporter AcrB pore domain like

Domain ID domain_id	6bajC04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6bajC05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	6bajC06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajC07
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1440 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6bajC08
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	57395
