SAXSdb — 4c48

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACRIFLAVINE RESISTANCE PROTEIN B

ESCHERICHIA COLI K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	DARPIN × 3 UNCHARACTERIZED MEMBRANE PROTEIN YBHT × 3 （P0AAW9） DODECYL-BETA-D-MALTOSIDE × 27 NICKEL (II) ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1047； UniProt 1–1047

UNCHARACTERIZED MEMBRANE PROTEIN YBHT

Escherichia coli str. K-12 substr. W3110

UniProt P0AAW9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	ACRIFLAVINE RESISTANCE PROTEIN B × 3 （P31224） DARPIN × 3 DODECYL-BETA-D-MALTOSIDE × 27 NICKEL (II) ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YBHT_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–49； UniProt 1–49

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4c48
Deposition date deposition_date	2013-09-02
Structure title title	Crystal structure of AcrB-AcrZ complex
Keywords keywords	TRANSPORT PROTEIN, DRUG EFFLUX, TRANSMEMBRANE PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4c48__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4c48__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

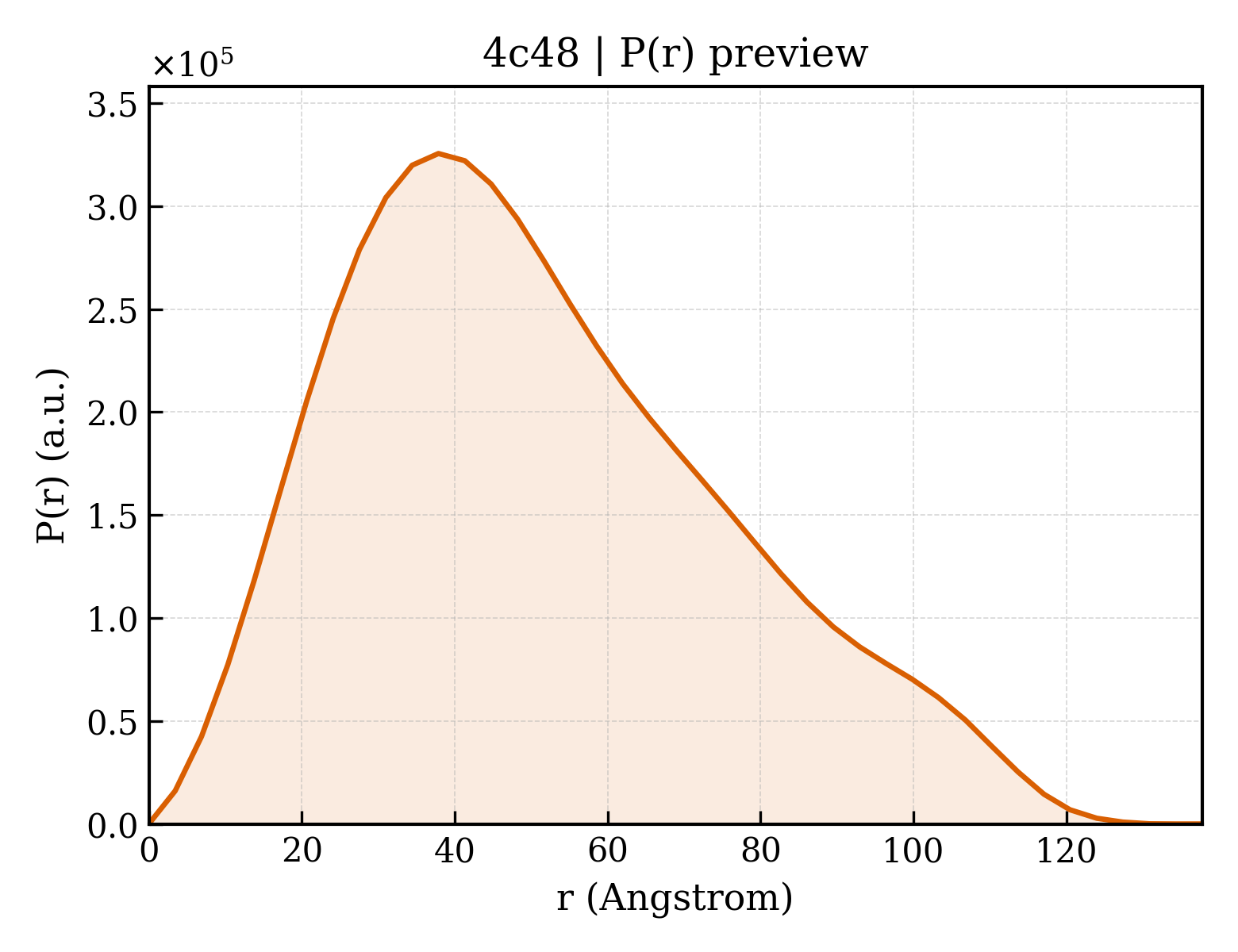

4c48__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.09 Å
Rg (electron density)	48.38 Å
Total Rg	48.62 Å
Atom count	28065
Residues	3690
Excluded volume	508040 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4c48__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	ACRIFLAVINE RESISTANCE PROTEIN B
Molecular weight formula_weight	113388.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9390

MPNFFIDRPIFAWVIAIIIMLAGGLAILKLPVAQYPTIAPPAVTISASYPGADAKTVQDTVTQVIEQNMNGIDNLMYMSSNSDSTGTVQITLTFESGTDADIAQVQVQNKLQLAMPLLPQEVQQQGVSVEKSSSSFLMVVGVINTDGTMTQEDISDYVAANMKDAISRTSGVGDVQLFGSQYAMRIWMNPNELNKFQLTPVDVITAIKAQNAQVAAGQLGGTPPVKGQQLNASIIAQTRLTSTEEFGKILLKVNQDGSRVLLRDVAKIELGGENYDIIAEFNGQPASGLGIKLATGANALDTAAAIRAELAKMEPFFPSGLKIVYPYDTTPFVKISIHEVVKTLVEAIILVFLVMYLFLQNFRATLIPTIAVPVVLLGTFAVLAAFGFSINTLTMFGMVLAIGLLVDDAIVVVENVERVMAEEGLPPKEATRKSMGQIQGALVGIAMVLSAVFVPMAFFGGSTGAIYRQFSITIVSAMALSVLVALILTPALCATMLKPIAKGDHGEGKKGFFGWFNRMFEKSTHHYTDSVGGILRSTGRYLVLYLIIVVGMAYLFVRLPSSFLPDEDQGVFMTMVQLPAGATQERTQKVLNEVTHYYLTKEKNNVESVFAVNGFGFAGRGQNTGIAFVSLKDWADRPGEENKVEAITMRATRAFSQIKDAMVFAFNLPAIVELGTATGFDFELIDQAGLGHEKLTQARNQLLAEAAKHPDMLTSVRPNGLEDTPQFKIDIDQEKAQALGVSINDINTTLGAAWGGSYVNDFIDRGRVKKVYVMSEAKYRMLPDDIGDWYVRAADGQMVPFSAFSSSRWEYGSPRLERYNGLPSMEILGQAAPGKSTGEAMELMEQLASKLPTGVGYDWTGMSYQERLSGNQAPSLYAISLIVVFLCLAALYESWSIPFSVMLVVPLGVIGALLAATFRGLTNDVYFQVGLLTTIGLSAKNAILIVEFAKDLMDKEGKGLIEATLDAVRMRLRPILMTSLAFILGVMPLVISTGAGSGAQNAVGTGVMGGMVTATVLAIFFVPVFFVVVRRRFSRKNEDIEHSHTVD

Source Source

Source organism organism	ESCHERICHIA COLI K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 2 Entity 2 polymer

Description description	DARPIN
Molecular weight formula_weight	18317.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRGSHHHHHHGSDLGKKLLEAARAGRDDEVRILMANGADVNAADVVGWTPLHLAAYWGHLEIVEVLLKNGADVNAYDTLGSTPLHLAAHFGHLEIVEVLLKNGADVNAKDDNGITPLHLAANRGHLEIVEVLLKYGADVNAQDKFGKTAFDISINNGNEDLAEILQKLN

Source Source

Source organism organism	SYNTHETIC CONSTRUCT
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 3 Entity 3 polymer

Description description	UNCHARACTERIZED MEMBRANE PROTEIN YBHT
Molecular weight formula_weight	5304.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MLELLKSLVFAVIMVPVVMAIILGLIYGLGEVFNIFSGVGKKDQPGQNH

Source Source

Source organism organism	Escherichia coli str. K-12 substr. W3110
NCBI taxonomy ID ncbi_taxonomy_id	316407
Host organism host_organism	ESCHERICHIA COLI K-12

Entity 4 Entity 4 non-polymer

Description description	DODECYL-BETA-D-MALTOSIDE
Molecular weight formula_weight	510.6 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 5 Entity 5 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	35

▼

6. Fold Classification (SCOP + CATH) 10 domains

CATH v4.4 (10 domains)

Domain ID domain_id	4c48A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	4c48A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	4c48A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1320 — Multidrug efflux transporter AcrB pore domain like

Domain ID domain_id	4c48A04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	4c48A05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1640 — Multidrug efflux transporter AcrB transmembrane fold
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB transmembrane domain

Domain ID domain_id	4c48A06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	4c48A07
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1440 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	4c48A08
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	4c48B00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

Domain ID domain_id	4c48C00
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2480 —

▶

Unit-cell length a length_a	145.010 Å
Unit-cell length b length_b	145.010 Å
Unit-cell length c length_c	538.340 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	29.670 Å
R factor r_factor	0.2834
R_work r_work	0.2814
R_free r_free	0.3220

Crystal structure of AcrB-AcrZ complex
