SAXSdb — 9tg4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein TolC

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Multidrug efflux pump subunit AcrA × 6 （P0AE06） Multidrug efflux pump subunit AcrB × 3 （P31224） Multidrug efflux pump accessory protein AcrZ × 3 （P0AAW9） Uncharacterized lipoprotein YbjP × 3 （P75818） CHLORIDE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOLC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–472； UniProt 23–493 Author chain B； PDBConstruct 2–472； UniProt 23–493 Author chain C； PDBConstruct 2–472； UniProt 23–493

Multidrug efflux pump subunit AcrA

Escherichia coli

UniProt P0AE06

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Outer membrane protein TolC × 3 （P02930） Multidrug efflux pump subunit AcrB × 3 （P31224） Multidrug efflux pump accessory protein AcrZ × 3 （P0AAW9） Uncharacterized lipoprotein YbjP × 3 （P75818） CHLORIDE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRA_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–397； UniProt 1–397 Author chain E； PDBConstruct 1–397； UniProt 1–397 Author chain F； PDBConstruct 1–397； UniProt 1–397 Author chain G； PDBConstruct 1–397； UniProt 1–397 Author chain H； PDBConstruct 1–397； UniProt 1–397 Author chain I； PDBConstruct 1–397； UniProt 1–397

Multidrug efflux pump subunit AcrB

Escherichia coli

UniProt P31224

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Outer membrane protein TolC × 3 （P02930） Multidrug efflux pump subunit AcrA × 6 （P0AE06） Multidrug efflux pump accessory protein AcrZ × 3 （P0AAW9） Uncharacterized lipoprotein YbjP × 3 （P75818） CHLORIDE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRB_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain J； PDBConstruct 1–1049； UniProt 1–1049 Author chain K； PDBConstruct 1–1049； UniProt 1–1049 Author chain L； PDBConstruct 1–1049； UniProt 1–1049

Multidrug efflux pump accessory protein AcrZ

Escherichia coli

UniProt P0AAW9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Outer membrane protein TolC × 3 （P02930） Multidrug efflux pump subunit AcrA × 6 （P0AE06） Multidrug efflux pump subunit AcrB × 3 （P31224） Uncharacterized lipoprotein YbjP × 3 （P75818） CHLORIDE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRZ_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–49； UniProt 1–49 Author chain N； PDBConstruct 1–49； UniProt 1–49 Author chain O； PDBConstruct 1–49； UniProt 1–49

Uncharacterized lipoprotein YbjP

Escherichia coli

UniProt P75818

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Outer membrane protein TolC × 3 （P02930） Multidrug efflux pump subunit AcrA × 6 （P0AE06） Multidrug efflux pump subunit AcrB × 3 （P31224） Multidrug efflux pump accessory protein AcrZ × 3 （P0AAW9） CHLORIDE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YBJP_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain P； PDBConstruct 2–145； UniProt 28–171 Author chain Q； PDBConstruct 2–145； UniProt 28–171 Author chain R； PDBConstruct 2–145； UniProt 28–171

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9tg4
Deposition date deposition_date	2025-11-28
Structure title title	Structure of the YbjP lipoprotein bound to the AcrABZ-TolC efflux pump
Keywords keywords	;Multi-drug efflux pump, RND transporter, MacAB-TolC, AcrABZ-TolC, type I secretion, lipoprotein, membrane protein assembly, MEMBRANE PROTEIN, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9tg4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9tg4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

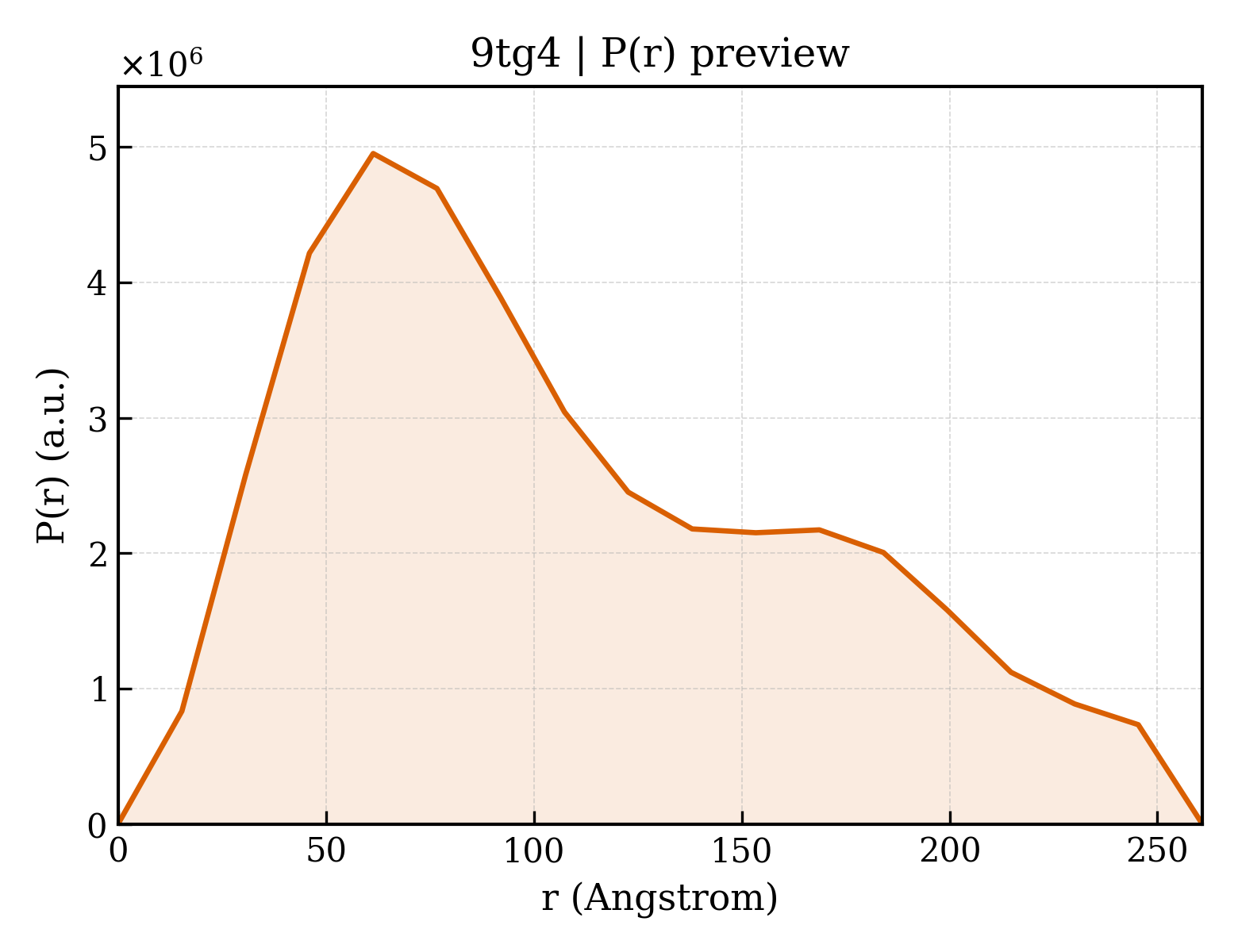

9tg4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	92.42 Å
Rg (electron density)	94.81 Å
Total Rg	94.38 Å
Atom count	53653
Residues	7048
Excluded volume	958850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9tg4__assembly_1__model_1`	18-meric （18）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Outer membrane protein TolC
Molecular weight formula_weight	52623.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	53653

MENLMQVYQQARLSNPELRKSAADRDAAFEKINEARSPLLPQLGLGADYTYSNGYRDANGINSNATSASLQLTQSIFDMSKWRALTLQEKAAGIQDVTYQTDQQTLILNTATAYFNVLNAIDVLSYTQAQKEAIYRQLDQTTQRFNVGLVAITDVQNARAQYDTVLANEVTARNNLDNAVEQLRQITGNYYPELAALNVENFKTDKPQPVNALLKEAEKRNLSLLQARLSQDLAREQIRQAQDGHLPTLDLTASTGISDTSYSGSKTRGAAGTQYDDSNMGQNKVGLSFSLPIYQGGMVNSQVKQAQYNFVGASEQLESAHRSVVQTVRSSFNNINASISSINAYKQAVVSAQSSLDAMEAGYSVGTRTIVDVLDATTTLYNAKQELANARYNYLINQLNIKSALGTLNEQDLLALNNALSKPVSTNPENVAPQTPEQNAIADGYAPDSPAPVVQQTSARTTTSNGHNPFRNDYKDDDDK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Multidrug efflux pump subunit AcrA
Molecular weight formula_weight	42237.5 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,G,H,I

MNKNRGFTPLAVVLMLSGSLALTGCDDKQAQQGGQQMPAVGVVTVKTEPLQITTELPGRTSAYRIAEVRPQVSGIILKRNFKEGSDIEAGVSLYQIDPATYQATYDSAKGDLAKAQAAANIAQLTVNRYQKLLGTQYISKQEYDQALADAQQANAAVTAAKAAVETARINLAYTKVTSPISGRIGKSNVTEGALVQNGQATALATVQQLDPIYVDVTQSSNDFLRLKQELANGTLKQENGKAKVSLITSDGIKFPQDGTLEFSDVTVDQTTGSITLRAIFPNPDHTLLPGMFVRARLEEGLNPNAILVPQQGVTRTPRGDATVLVVGADDKVETRPIVASQAIGDKWLVTEGLKAGDRVVISGLQKVRPGVQVKAQEVTADNNQQAASGAQPEQSKS

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Multidrug efflux pump subunit AcrB
Molecular weight formula_weight	113665.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,K,L

MPNFFIDRPIFAWVIAIIIMLAGGLAILKLPVAQYPTIAPPAVTISASYPGADAKTVQDTVTQVIEQNMNGIDNLMYMSSNSDSTGTVQITLTFESGTDADIAQVQVQNKLQLAMPLLPQEVQQQGVSVEKSSSSFLMVVGVINTDGTMTQEDISDYVAANMKDAISRTSGVGDVQLFGSQYAMRIWMNPNELNKFQLTPVDVITAIKAQNAQVAAGQLGGTPPVKGQQLNASIIAQTRLTSTEEFGKILLKVNQDGSRVLLRDVAKIELGGENYDIIAEFNGQPASGLGIKLATGANALDTAAAIRAELAKMEPFFPSGLKIVYPYDTTPFVKISIHEVVKTLVEAIILVFLVMYLFLQNFRATLIPTIAVPVVLLGTFAVLAAFGFSINTLTMFGMVLAIGLLVDDAIVVVENVERVMAEEGLPPKEATRKSMGQIQGALVGIAMVLSAVFVPMAFFGGSTGAIYRQFSITIVSAMALSVLVALILTPALCATMLKPIAKGDHGEGKKGFFGWFNRMFEKSTHHYTDSVGGILRSTGRYLVLYLIIVVGMAYLFVRLPSSFLPDEDQGVFMTMVQLPAGATQERTQKVLNEVTHYYLTKEKNNVESVFAVNGFGFAGRGQNTGIAFVSLKDWADRPGEENKVEAITMRATRAFSQIKDAMVFAFNLPAIVELGTATGFDFELIDQAGLGHEKLTQARNQLLAEAAKHPDMLTSVRPNGLEDTPQFKIDIDQEKAQALGVSINDINTTLGAAWGGSYVNDFIDRGRVKKVYVMSEAKYRMLPDDIGDWYVRAADGQMVPFSAFSSSRWEYGSPRLERYNGLPSMEILGQAAPGKSTGEAMELMEQLASKLPTGVGYDWTGMSYQERLSGNQAPSLYAISLIVVFLCLAALYESWSIPFSVMLVVPLGVIGALLAATFRGLTNDVYFQVGLLTTIGLSAKNAILIVEFAKDLMDKEGKGLIEATLDAVRMRLRPILMTSLAFILGVMPLVISTGAGSGAQNAVGTGVMGGMVTATVLAIFFVPVFFVVVRRRFSRKNEDIEHSHTVDHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Multidrug efflux pump accessory protein AcrZ
Molecular weight formula_weight	5304.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O

MLELLKSLVFAVIMVPVVMAIILGLIYGLGEVFNIFSGVGKKDQPGQNH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Uncharacterized lipoprotein YbjP
Molecular weight formula_weight	18122.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q,R

MDNGTRSGPCVEGGPDNVAQQFYDYRILHRSNDITALRPYLSDKLATLLSDASRDNNHRELLTNDPFSSRTTLPDSAHVASASTIPNRDARNIPLRVDLKQGDQGWQDEVLMIQEGQCWVIDDVRYLGGSVHATAGTLRQSIENRENLYFQSLEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.170 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.17 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	97441

Structure of the YbjP lipoprotein bound to the AcrABZ-TolC efflux pump
