SAXSdb — 6wxi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein TolC

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–493 Chain B； UniProt 1–493 Chain C； UniProt 1–493	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.84 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WXI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EK9 2.1A X-RAY STRUCTURE OF TOLC: AN INTEGRAL OUTER MEMBRANE PROTEIN AND EFFLUX PUMP COMPONENT FROM ESCHERICHIA COLI Deposited 2000-03-07	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 25–452（428 aa） Chain B 25–452（428 aa） Chain C 25–452（428 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；PEG 2000 MME, PEG 400, Sodium Chloride, Magnesium Chloride, dodecyl glucopyrsanoside, hexyl glucopyranoside, heptyl gluocopyranoside, octyl glucopyranoside, 1,2,3-heptanetriol, Tris, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.257
1TQQ Structure of TolC in complex with hexamminecobalt Deposited 2004-06-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 25–495（471 aa） Chain B 25–495（471 aa） Chain C 25–495（471 aa）	Not recorded	NCO COBALT HEXAMMINE(III) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；0.6% detergent mixture of n-dodecyl-beta-D glucopyranoside, n-hexyl-beta-D glucopyranoside, n-heptyl-beta-D glucopyranoside and n-octyl-beta-D glucopyranoside, 1.5% 1,2,3-heptanetriol, 7% polyethylene glycol 2000 monomethyl ether, 10% polyethylene glycol 400, 10mM NaCl, 20mM MgCl2, 20mM Tris, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.75 Å R-free 0.305
2VDD Crystal Structure of the Open State of TolC Outer Membrane Component of Mutlidrug Efflux Pumps Deposited 2007-10-04	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–450（450 aa） Fragment：RESIDUES 1-450 Chain B 1–450（450 aa） Fragment：RESIDUES 1-450 Chain C 1–450（450 aa） Fragment：RESIDUES 1-450	Mutation：YES Mutation：YES Mutation：YES	CL CHLORIDE ION × 3 K POTASSIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN WAS CRYSTALLISED FROM 0.1M HEPES 7.5, 5% ISOPROPANOL, 10% PEG4000	Resolution 3.30 Å R-free 0.295
2VDE Crystal Structure of the Open State of TolC Outer Membrane Component of Mutlidrug Efflux Pumps Deposited 2007-10-04	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–450（450 aa） Fragment：RESIDUES 1-450 Chain B 1–450（450 aa） Fragment：RESIDUES 1-450 Chain C 1–450（450 aa） Fragment：RESIDUES 1-450	Mutation：YES Mutation：YES Mutation：YES	CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 10.5；PROTEIN WAS CRYSTALLIZED FROM 0.1M CAPS PH10.5, 30% PEG400	Resolution 3.20 Å R-free 0.315
2WMZ Structure of a mutated TolC Deposited 2009-07-03	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 23–450（428 aa） Fragment：MATURE PROTEIN WITH 43 C-TERMINAL RESIDUES REMOVED, RESIDUES 23-450 Chain B 23–450（428 aa） Fragment：MATURE PROTEIN WITH 43 C-TERMINAL RESIDUES REMOVED, RESIDUES 23-450 Chain C 23–450（428 aa） Fragment：MATURE PROTEIN WITH 43 C-TERMINAL RESIDUES REMOVED, RESIDUES 23-450	Mutation：YES Mutation：YES Mutation：YES	CL CHLORIDE ION × 3 PGE TRIETHYLENE GLYCOL × 5 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；50 MM TRIS PH 8.2, 50 MM NACL, 14% PEG2000, 0.075% N-DODECYL-BETA-D-MALTOSIDE, 0.3% N-OCTYL BETA-D-GLUCOPYRANOSIDE	Resolution 2.90 Å R-free 0.301
2XMN High resolution snapshots of defined TolC open states present an iris- like movement of periplasmic entrance helices Deposited 2010-07-28	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 23–450（428 aa） Fragment：RESIDUES 23-450 Chain B 23–450（428 aa） Fragment：RESIDUES 23-450 Chain C 23–450（428 aa） Fragment：RESIDUES 23-450	Mutation：YES Mutation：YES Mutation：YES	CL CHLORIDE ION × 3 LMT DODECYL-BETA-D-MALTOSIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；PH 7.4	Resolution 2.85 Å R-free 0.309
5NG5 multi-drug efflux; membrane transport; RND superfamily; Drug resistance Deposited 2017-03-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain C 1–493（493 aa） Chain F 1–493（493 aa） Chain I 1–493（493 aa）	Not recorded	5QF 6-[2-(3,4-dimethoxyphenyl)ethylsulfanyl]-8-[4-(2-methoxyethyl)piperazin-1-yl]-3,3-dimethyl-1,4-dihydropyrano[3,4-c]pyridine-5-carbonitrile × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；a 3ul aliquot at a concentration of 2 mg per ml was applied onto glow-discharged holey carbon grid (Quantifoil Au R1.21.3, 300 mesh)	Resolution 6.50 Å
5NIK Structure of the MacAB-TolC ABC-type tripartite multidrug efflux pump Deposited 2017-03-24	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 23–493（471 aa） Chain B 23–493（471 aa） Chain C 23–493（471 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
5NIL Structure of the MacAB-TolC ABC-type tripartite multidrug efflux pump-MacB section Deposited 2017-03-24	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 23–493（471 aa） Chain B 23–493（471 aa） Chain C 23–493（471 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
5O66 Asymmetric AcrABZ-TolC Deposited 2017-06-05	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–493（493 aa） Chain B 1–493（493 aa） Chain C 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.90 Å
5V5S multi-drug efflux; membrane transport; RND superfamily; Drug resistance Deposited 2017-03-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 23–464（442 aa） Chain B 23–464（442 aa） Chain C 23–464（442 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；a 3ul aliquot at a concentration of 2 mg per ml was applied onto glow-discharged holey carbon grid (Quantifoil Au R1.21.3, 300 mesh)	Resolution 6.50 Å
6WXH Colicin E1 fragment in nanodisc-embedded TolC Deposited 2020-05-10	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–493（493 aa） Chain B 1–493（493 aa） Chain C 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8ZAL EmrAB-TolC MFS-type tripartite multidrug efflux pump EA Deposited 2024-04-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 23–450（428 aa） Chain H 23–450（428 aa） Chain I 23–450（428 aa）	Mutation：V169L Mutation：V169L Mutation：V169L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
8ZAR EmrAB-TolC MFS-type tripartite multidrug efflux pump FA Deposited 2024-04-25	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–493（493 aa） Chain H 1–493（493 aa） Chain I 1–493（493 aa）	Mutation：V191L Mutation：V191L Mutation：V191L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å
9QGY Structure of the YbjP lipoprotein bound to the MacAB-TolC tripartite efflux pump Deposited 2025-03-14	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric	Chain A 23–493（471 aa） Chain B 23–493（471 aa） Chain C 23–493（471 aa）	Not recorded	CL CHLORIDE ION × 3 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.48 Å
9TG4 Structure of the YbjP lipoprotein bound to the AcrABZ-TolC efflux pump Deposited 2025-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric	Chain A 23–493（471 aa） Chain B 23–493（471 aa） Chain C 23–493（471 aa）	Not recorded	CL CHLORIDE ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
9V52 Structure of TolC and YbjP closed state complex Deposited 2025-05-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C1 1–493（493 aa） Chain C2 1–493（493 aa） Chain C3 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.56 Å
9V53 Structure of TolC, YbjP, and AcrABZ complex Deposited 2025-05-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain C1 1–493（493 aa） Chain C2 1–493（493 aa） Chain C3 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.39 Å
9V55 Structure of TolC, YbjP, and AcrA complex Deposited 2025-05-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain C1 1–493（493 aa） Chain C2 1–493（493 aa） Chain C3 1–493（493 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.26 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOLC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–493； UniProt 1–493 Author chain B； PDBConstruct 1–493； UniProt 1–493 Author chain C； PDBConstruct 1–493； UniProt 1–493

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6wxi
Deposition date deposition_date	2020-05-10
Structure title title	Colicin E1 fragment in nanodisc-embedded TolC
Keywords keywords	antibiotic efflux, bacteriocin, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.18 Å
Radius of gyration Rg (electron density) rg_electron	41.10 Å
Forward intensity I(0) i0	328988000.00
Molecular weight molecular_weight	140790.0 kDa
Excluded volume excluded_volume	174080 Å³
Envelope volume envelope_volume	264260 Å³
Hydration-shell volume shell_volume	58230 Å³
Envelope diameter envelope_diameter	148.8 Å
Shell Rg shell_rg	43.09 Å
Envelope Rg envelope_rg	40.08 Å
Shape Rg shape_rg	41.11 Å
Total Rg total_rg	41.22 Å
Total atoms total_atoms	9912
Residues n_residues	1284
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	139.2 Å
Rg (real space) rg_real	41.51 Å
Rg uncertainty (real space) rg_real_error	1.45 Å
I(0) (real space) i0_real	3.2900e+08
I(0) uncertainty (real space) i0_real_error	6.3330e+06
Rg (reciprocal space) rg_reciprocal	41.18 Å
I(0) (reciprocal space) i0_reciprocal	328900000.0000
Solution quality estimate total_estimate	0.7898
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	44.0 Å
Skewness Skewness skewness	0.676
Kurtosis Kurtosis kurtosis	0.101
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	35280000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.623; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.398

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d6wxia_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.5 — Outer membrane efflux proteins (OEP)
Superfamily Superfamily superfamily	f.5.1 — Outer membrane efflux proteins (OEP)
Family Family family	f.5.1.1 — Outer membrane efflux proteins (OEP)

Domain ID domain_id	d6wxib_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.5 — Outer membrane efflux proteins (OEP)
Superfamily Superfamily superfamily	f.5.1 — Outer membrane efflux proteins (OEP)
Family Family family	f.5.1.1 — Outer membrane efflux proteins (OEP)

Domain ID domain_id	d6wxic_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.5 — Outer membrane efflux proteins (OEP)
Superfamily Superfamily superfamily	f.5.1 — Outer membrane efflux proteins (OEP)
Family Family family	f.5.1.1 — Outer membrane efflux proteins (OEP)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.84 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	196158

Description description	Outer membrane protein TolC
Molecular weight formula_weight	53783.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	9912

Colicin E1 fragment in nanodisc-embedded TolC

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein TolC

State in the Current Structure

Other States of the Same Protein in the Database

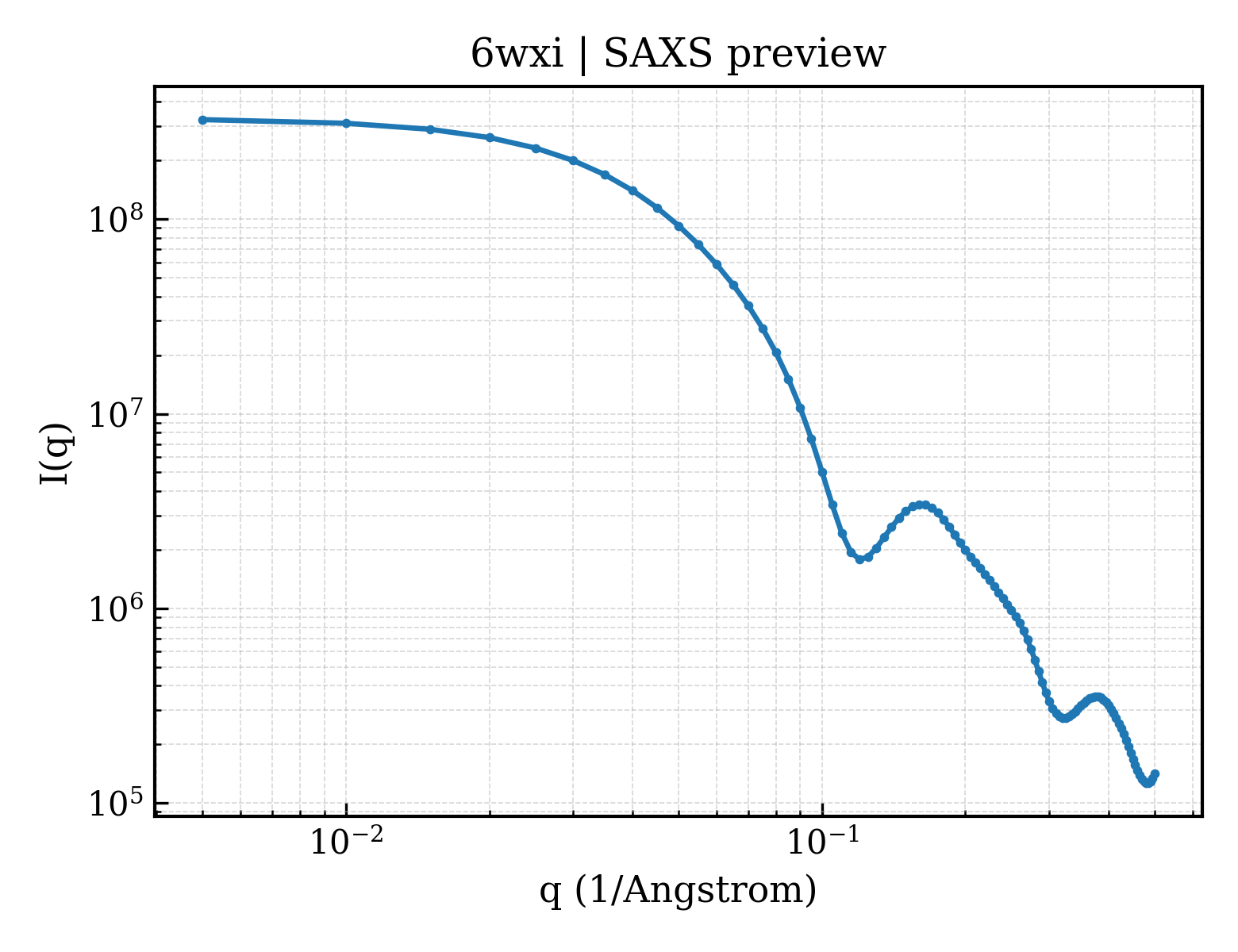

SAXS scattering curve SAXS Profile

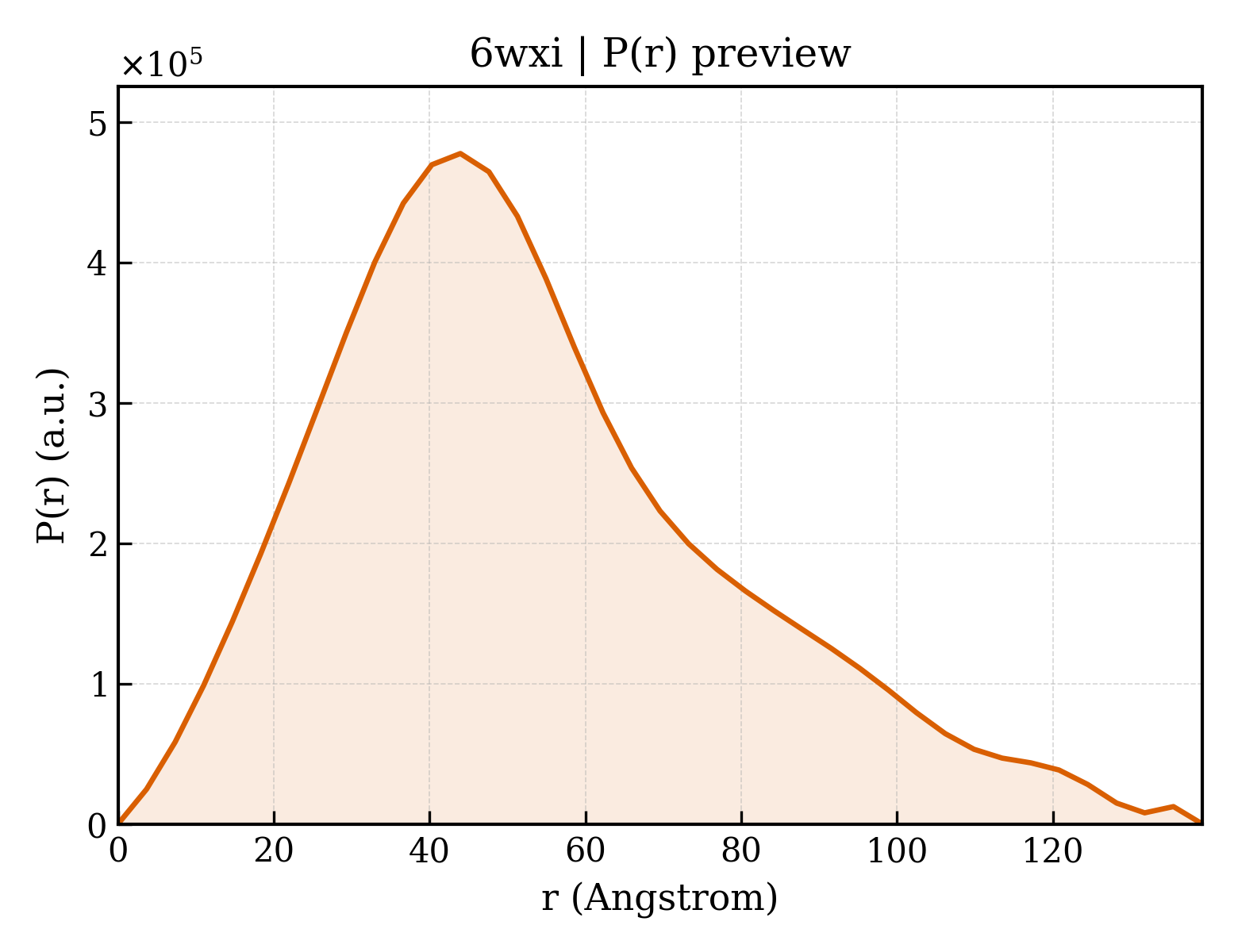

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Escherichia coli (strain K12)
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

fit	/app/data/saxs_computation/wx/6wxi/6wxi.fit
pddf	/app/data/pr_computation/wx/6wxi/6wxi.pr.out
profile	/app/data/saxs_computation/wx/6wxi/6wxi.dat
