2f1m

Conformational flexibility in the multidrug efflux system protein AcrA

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acriflavine resistance protein A

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–269； UniProt 45–312 Author chain B； PDBConstruct 2–269； UniProt 45–312 Author chain C； PDBConstruct 2–269； UniProt 45–312 Author chain D； PDBConstruct 2–269； UniProt 45–312

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2f1m
Deposition date deposition_date	2005-11-14
Structure title title	Conformational flexibility in the multidrug efflux system protein AcrA
Keywords keywords	helical hairpin, lipoyl domain, beta barrel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2f1m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2f1m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

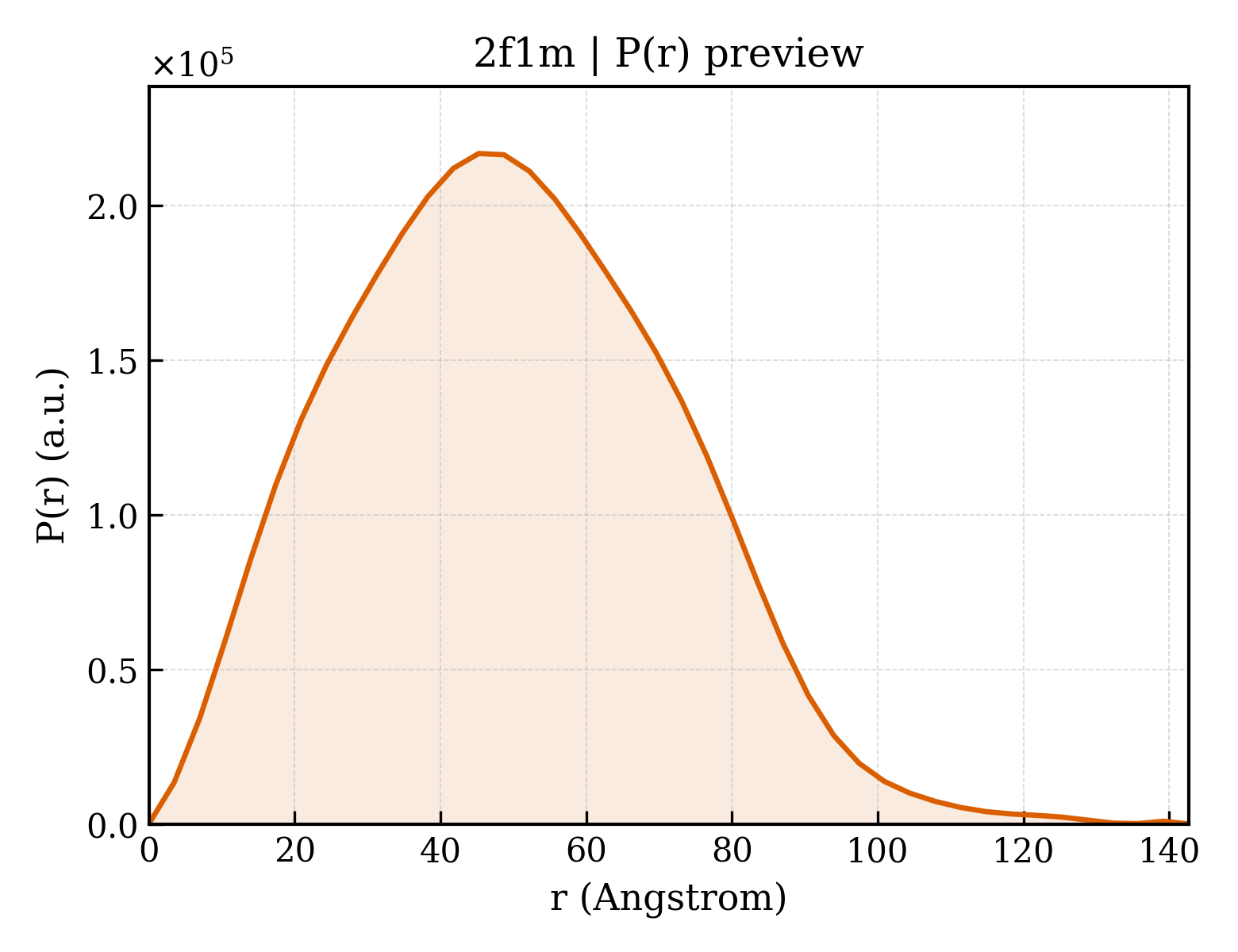

2f1m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.76 Å
Rg (electron density)	32.97 Å
Total Rg	33.25 Å
Atom count	3408
Residues	445
Excluded volume	60627 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2f1m__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2f1m__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2f1ma_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.46 — HlyD-like secretion proteins
Superfamily Superfamily superfamily	f.46.1 — HlyD-like secretion proteins
Family Family family	f.46.1.0 — automated matches

Domain ID domain_id	d2f1mb_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.46 — HlyD-like secretion proteins
Superfamily Superfamily superfamily	f.46.1 — HlyD-like secretion proteins
Family Family family	f.46.1.0 — automated matches

Domain ID domain_id	d2f1mc_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.46 — HlyD-like secretion proteins
Superfamily Superfamily superfamily	f.46.1 — HlyD-like secretion proteins
Family Family family	f.46.1.0 — automated matches

Domain ID domain_id	d2f1md_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.46 — HlyD-like secretion proteins
Superfamily Superfamily superfamily	f.46.1 — HlyD-like secretion proteins
Family Family family	f.46.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2f1mA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	170 — Efflux pump adaptor protein, beta barrel domain

Domain ID domain_id	2f1mA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2f1mA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	470 — Helix hairpin bin

Domain ID domain_id	2f1mB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	170 — Efflux pump adaptor protein, beta barrel domain

Domain ID domain_id	2f1mB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2f1mB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	470 — Helix hairpin bin

Domain ID domain_id	2f1mC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	170 — Efflux pump adaptor protein, beta barrel domain

Domain ID domain_id	2f1mC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2f1mC03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	470 — Helix hairpin bin

Domain ID domain_id	2f1mD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	170 — Efflux pump adaptor protein, beta barrel domain

Domain ID domain_id	2f1mD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	2f1mD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	470 — Helix hairpin bin

▶

Unit-cell length a length_a	88.788 Å
Unit-cell length b length_b	100.031 Å
Unit-cell length c length_c	332.586 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.710 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2390
R_work r_work	0.2370
R_free r_free	0.2750

Description description	Acriflavine resistance protein A
Molecular weight formula_weight	30355.2 kDa
Mutation mutation	F223M, L224M, L287M, L288M
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7000

Conformational flexibility in the multidrug efflux system protein AcrA

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acriflavine resistance protein A

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2f1m__assembly_1__model_1

2f1m__assembly_1__model_1 | I(q)

2f1m__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	36
