SAXSdb — 6sgr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Multidrug efflux pump subunit AcrB

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	DARPin × 2 Multidrug efflux pump accessory protein AcrZ × 3 （P0AAW9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1049； UniProt 1–1049 Author chain B； PDBConstruct 1–1049； UniProt 1–1049 Author chain C； PDBConstruct 1–1049； UniProt 1–1049

Multidrug efflux pump accessory protein AcrZ

Escherichia coli K-12

UniProt P0AAW9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Multidrug efflux pump subunit AcrB × 3 （P31224） DARPin × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACRZ_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–49； UniProt 1–49 Author chain G； PDBConstruct 1–49； UniProt 1–49 Author chain H； PDBConstruct 1–49； UniProt 1–49

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6sgr
Deposition date deposition_date	2019-08-05
Structure title title	Cryo-EM structure of Escherichia coli AcrBZ and DARPin in Saposin A-nanodisc with cardiolipin
Keywords keywords	RND transporter, efflux pump, drug transport, antibiotic resistance, lipid nanodisc, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6sgr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

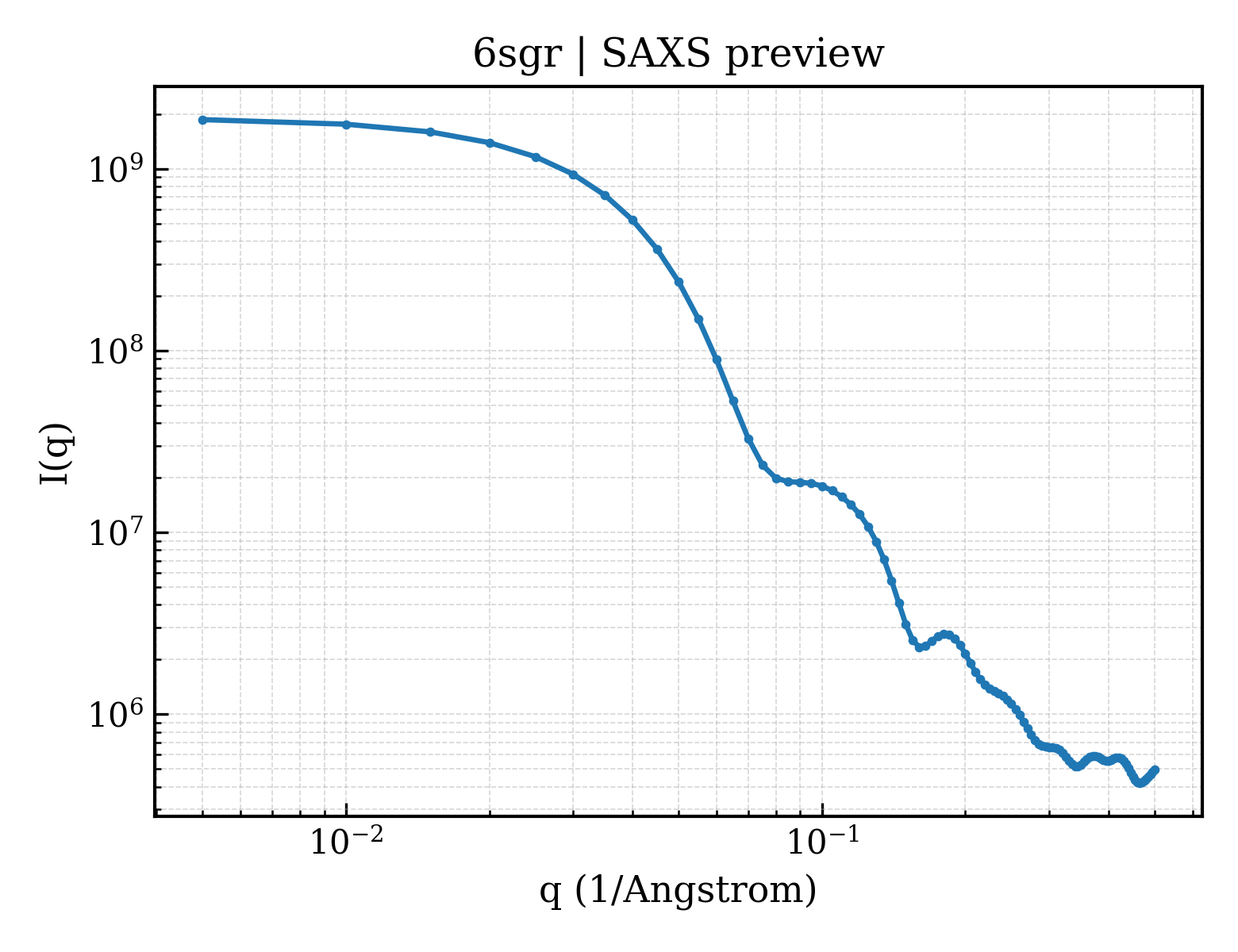

6sgr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6sgr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.24 Å
Rg (electron density)	47.67 Å
Total Rg	47.91 Å
Atom count	54142
Residues	3528
Excluded volume	484380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6sgr__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Multidrug efflux pump subunit AcrB
Molecular weight formula_weight	113665.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	54142

MPNFFIDRPIFAWVIAIIIMLAGGLAILKLPVAQYPTIAPPAVTISASYPGADAKTVQDTVTQVIEQNMNGIDNLMYMSSNSDSTGTVQITLTFESGTDADIAQVQVQNKLQLAMPLLPQEVQQQGVSVEKSSSSFLMVVGVINTDGTMTQEDISDYVAANMKDAISRTSGVGDVQLFGSQYAMRIWMNPNELNKFQLTPVDVITAIKAQNAQVAAGQLGGTPPVKGQQLNASIIAQTRLTSTEEFGKILLKVNQDGSRVLLRDVAKIELGGENYDIIAEFNGQPASGLGIKLATGANALDTAAAIRAELAKMEPFFPSGLKIVYPYDTTPFVKISIHEVVKTLVEAIILVFLVMYLFLQNFRATLIPTIAVPVVLLGTFAVLAAFGFSINTLTMFGMVLAIGLLVDDAIVVVENVERVMAEEGLPPKEATRKSMGQIQGALVGIAMVLSAVFVPMAFFGGSTGAIYRQFSITIVSAMALSVLVALILTPALCATMLKPIAKGDHGEGKKGFFGWFNRMFEKSTHHYTDSVGGILRSTGRYLVLYLIIVVGMAYLFVRLPSSFLPDEDQGVFMTMVQLPAGATQERTQKVLNEVTHYYLTKEKNNVESVFAVNGFGFAGRGQNTGIAFVSLKDWADRPGEENKVEAITMRATRAFSQIKDAMVFAFNLPAIVELGTATGFDFELIDQAGLGHEKLTQARNQLLAEAAKHPDMLTSVRPNGLEDTPQFKIDIDQEKAQALGVSINDINTTLGAAWGGSYVNDFIDRGRVKKVYVMSEAKYRMLPDDIGDWYVRAADGQMVPFSAFSSSRWEYGSPRLERYNGLPSMEILGQAAPGKSTGEAMELMEQLASKLPTGVGYDWTGMSYQERLSGNQAPSLYAISLIVVFLCLAALYESWSIPFSVMLVVPLGVIGALLAATFRGLTNDVYFQVGLLTTIGLSAKNAILIVEFAKDLMDKEGKGLIEATLDAVRMRLRPILMTSLAFILGVMPLVISTGAGSGAQNAVGTGVMGGMVTATVLAIFFVPVFFVVVRRRFSRKNEDIEHSHTVDHH

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli str. K-12 substr. MG1655

Entity 2 Entity 2 polymer

Description description	DARPin
Molecular weight formula_weight	18317.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

MRGSHHHHHHGSDLGKKLLEAARAGRDDEVRILMANGADVNAADVVGWTPLHLAAYWGHLEIVEVLLKNGADVNAYDTLGSTPLHLAAHFGHLEIVEVLLKNGADVNAKDDNGITPLHLAANRGHLEIVEVLLKYGADVNAQDKFGKTAFDISINNGNEDLAEILQKLN

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli str. K-12 substr. MG1655

Entity 3 Entity 3 polymer

Description description	Multidrug efflux pump accessory protein AcrZ
Molecular weight formula_weight	5304.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H

MLELLKSLVFAVIMVPVVMAIILGLIYGLGEVFNIFSGVGKKDQPGQNH

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli str. K-12 substr. MG1655

▼

6. Fold Classification (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

Domain ID domain_id	6sgrA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6sgrA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6sgrB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6sgrB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1430 — Multidrug efflux transporter AcrB pore domain

Domain ID domain_id	6sgrB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6sgrC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6sgrC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2090 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains
Homologous superfamily homologous superfamily	10 — Multidrug efflux transporter AcrB TolC docking domain; DN and DC subdomains

Domain ID domain_id	6sgrD00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

Domain ID domain_id	6sgrE00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.17 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	95775
