SAXSdb — 6bnm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphatidylinositol 3,4,5-trisphosphate-dependent Rac exchanger 2 protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 219–377	Not recorded	CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.1 M Sodium Acetate pH 5, 3.325 M Sodium Chloride	Resolution 1.90 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	PREX2_HUMAN
Isoform	Q70Z35-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–162； UniProt 219–377

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6bnm
Deposition date deposition_date	2017-11-17
Structure title title	Crystal Structure of the P-Rex2 PH domain
Keywords keywords	pleckstrin homology domain, beta sandwich, phosphatidylinositol-binding, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.30 Å
Radius of gyration Rg (electron density) rg_electron	15.02 Å
Forward intensity I(0) i0	5372770.00
Molecular weight molecular_weight	16272.0 kDa
Excluded volume excluded_volume	20169 Å³
Envelope volume envelope_volume	23210 Å³
Hydration-shell volume shell_volume	13261 Å³
Envelope diameter envelope_diameter	53.4 Å
Shell Rg shell_rg	20.55 Å
Envelope Rg envelope_rg	15.32 Å
Shape Rg shape_rg	15.03 Å
Total Rg total_rg	16.03 Å
Total atoms total_atoms	1139
Residues n_residues	137
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.4 Å
Rg (real space) rg_real	16.21 Å
Rg uncertainty (real space) rg_real_error	0.40 Å
I(0) (real space) i0_real	5.3730e+06
I(0) uncertainty (real space) i0_real_error	6.6860e+04
Rg (reciprocal space) rg_reciprocal	16.22 Å
I(0) (reciprocal space) i0_reciprocal	5373000.0000
Solution quality estimate total_estimate	0.8692
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.192
Kurtosis Kurtosis kurtosis	-0.264
Angular range angular_range	— – 0.4900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	942900.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.767; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Phosphatidylinositol 3,4,5-trisphosphate-dependent Rac exchanger 2 protein
Molecular weight formula_weight	19066.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1213

GEFEKLEVLEEWQSHIEGWEGSNITDTCTEMLMCGVLLKISSGNIQERVFFLFDNLLVYCKRKHRRLKNSKASTDGHRYLFRGRINTEVMEVENVDDGTADFHSSGHIVVNGWKIHNTAKNKWFVCMAKTPEEKHEWFEAILKERERRKGLKLGMEQDTWVM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	74

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6bnma1
Class class	b — All beta proteins
Fold Fold fold	b.55 — PH domain-like barrel
Superfamily Superfamily superfamily	b.55.1 — PH domain-like
Family Family family	b.55.1.0 — automated matches

Domain ID domain_id	d6bnma2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	6bnmA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

8. Citations (1)

▶

Unit-cell length a length_a	60.105 Å
Unit-cell length b length_b	60.105 Å
Unit-cell length c length_c	86.238 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	52.050 Å
R factor r_factor	0.1928
R_work r_work	0.1908
R_free r_free	0.2316

fit	/app/data/saxs_computation/bn/6bnm/6bnm.fit
pddf	/app/data/pr_computation/bn/6bnm/6bnm.pr.out
profile	/app/data/saxs_computation/bn/6bnm/6bnm.dat

Crystal Structure of the P-Rex2 PH domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphatidylinositol 3,4,5-trisphosphate-dependent Rac exchanger 2 protein

State in the Current Structure

Other States of the Same Protein in the Database

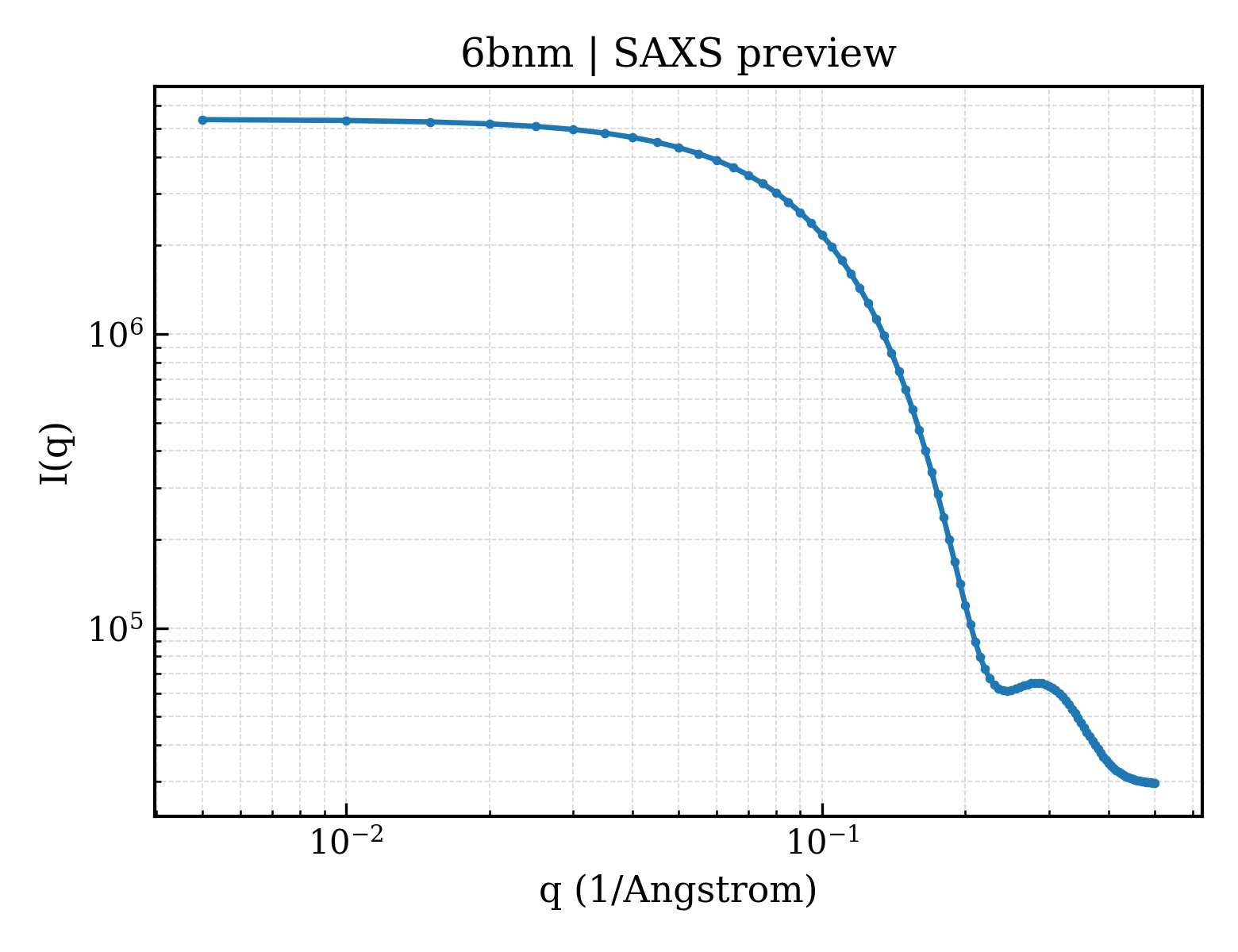

SAXS scattering curve SAXS Profile
