SAXSdb — 6boz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

N-lysine methyltransferase KMT5A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 232–393 Chain B； UniProt 232–393	Fragment：human SETD8 catalytic domain (232-393) Mutation：C343S	EDO 1,2-ETHANEDIOL × 1 E1J N-(3-{[7-(2-aminoethoxy)-6-methoxy-2-(pyrrolidin-1-yl)quinazolin-4-yl]amino}propyl)prop-2-enamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7；290 K；20% (w/v) PEG 6,000, 0.2 M MgCl, 0.1 M HEPES (pH 7.0)	Resolution 2.40 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6BOZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ZKK Crystal structure of hSET8 in ternary complex with H4 peptide (16-24) and AdoHcy Deposited 2005-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 231–393（163 aa） Fragment：sequence database residues 231-393 Chain B 231–393（163 aa） Fragment：sequence database residues 231-393 Chain C 231–393（163 aa） Fragment：sequence database residues 231-393 Chain D 231–393（163 aa） Fragment：sequence database residues 231-393	Not recorded	SAH S-ADENOSYL-L-HOMOCYSTEINE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；pentaerythritol ethoxylate, ammonium sulfate, Bis-Tris, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.45 Å R-free 0.199
3F9W Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.206
3F9W Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.206
3F9W Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.206
3F9W Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.206
3F9X Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20me2 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.25 Å R-free 0.207
3F9X Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20me2 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.25 Å R-free 0.207
3F9X Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20me2 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.25 Å R-free 0.207
3F9X Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20me2 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.25 Å R-free 0.207
3F9Y Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20me1 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.50 Å R-free 0.220
3F9Y Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y334F / H4-Lys20me1 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y334F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.50 Å R-free 0.220
3F9Z Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y245F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y245F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.257
3F9Z Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y245F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y245F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.257
3F9Z Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y245F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y245F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.257
3F9Z Structural Insights into Lysine Multiple Methylation by SET Domain Methyltransferases, SET8-Y245F / H4-Lys20 / AdoHcy Deposited 2008-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 232–393（162 aa） Fragment：SET domain: UNP residues 232-393	Mutation：Y245F	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；25% Pentaerythritol ethoxylate, 50mM Ammonium sulfate, 50mM Bis-tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.257
4IJ8 Crystal structure of the complex of SETD8 with SAM Deposited 2012-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 232–393（162 aa） Chain B 232–393（162 aa）	Mutation：C343S Mutation：C343S	SAM S-ADENOSYLMETHIONINE × 2 UNX UNKNOWN LIGAND × 22	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；1.2 M sodium citrate, 0.1 M HEPES, 10-fold excess SAM, pH 7.5, VAPOR DIFFUSION, temperature 291K	Resolution 2.00 Å R-free 0.199
5HQ2 Structural model of Set8 histone H4 Lys20 methyltransferase bound to nucleosome core particle Deposited 2016-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: hexadecameric	Chain M 153–352（200 aa）	Mutation：H347F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 5.5；277 K；25 mM sodium acetate pH 5.5, 40 mM sodium citrate,1 mM DTT, 6% PEG2000-MME	Resolution 4.50 Å R-free 0.397
5T5G human SETD8 in complex with MS2177 Deposited 2016-08-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 234–380（147 aa） Fragment：UNP residues 234-380	Mutation：C343S	UNX UNKNOWN LIGAND × 12 75P 7-(2-aminoethoxy)-6-methoxy-2-(pyrrolidin-1-yl)-N-[5-(pyrrolidin-1-yl)pentyl]quinazolin-4-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；30% PEG-2000-MME, 0.1 M postassium thiocyanate, 0.1 M Bis-Tris	Resolution 2.10 Å R-free 0.227
5TEG Crystal structure of hSETD8 in complex with histone H4K20 norleucine mutant peptide and S-Adenosylmethionine Deposited 2016-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 234–393（160 aa） Fragment：unp residues 234-393	Mutation：C302S	SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；290 K；33% (v/v) Pentaerythritol ethoxylate, 50 mM ammonium sulfate, 50 mM Bis-Tris pH 6.5	Resolution 1.30 Å R-free 0.210
5TEG Crystal structure of hSETD8 in complex with histone H4K20 norleucine mutant peptide and S-Adenosylmethionine Deposited 2016-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 234–393（160 aa） Fragment：unp residues 234-393	Mutation：C302S	SAM S-ADENOSYLMETHIONINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；290 K；33% (v/v) Pentaerythritol ethoxylate, 50 mM ammonium sulfate, 50 mM Bis-Tris pH 6.5	Resolution 1.30 Å R-free 0.210
5TH7 Complex of SETD8 with MS453 Deposited 2016-09-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 234–380（147 aa） Fragment：UNP residues 234-380 Chain B 234–380（147 aa） Fragment：UNP residues 234-380	Mutation：C302S Mutation：C302S	7BY N-(3-{[6,7-dimethoxy-2-(pyrrolidin-1-yl)quinazolin-4-yl]amino}propyl)propanamide × 2 UNX UNKNOWN LIGAND × 21 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；291 K；20% PEG-3350, 0.2 M ammonium fluoride, 0.1 M sodium cacodylate	Resolution 1.95 Å R-free 0.237
5V2N Crystal Structure of APO Human SETD8 Deposited 2017-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 231–393（163 aa） Fragment：UNP residues 231-393	Not recorded	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEGMME 550, 5% ethylene glycol, and 100 mM TRIS (pH 8.2-8.8)	Resolution 2.00 Å R-free 0.250
5W1Y SETD8 in complex with a covalent inhibitor Deposited 2017-06-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 232–393（162 aa） Chain B 232–393（162 aa）	Mutation：C343S Mutation：C343S	9SV 2-(4-methylpiperazin-1-yl)-3-(phenylsulfanyl)naphthalene-1,4-dione × 2 UNX UNKNOWN LIGAND × 36	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；0.2 M sodium fluoride, 20% PEG-3350	Resolution 1.70 Å R-free 0.237
7D1Z Cryo-EM structure of SET8-nucleosome complex Deposited 2020-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain K 1–352（352 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
7D20 Cryo-EM structure of SET8-CENP-A-nucleosome complex Deposited 2020-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain K 1–352（352 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7XPX Cryo-EM structure of the histone methyltransferase SET8 bound to H4K20Ecx-nucleosome Deposited 2022-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain K 194–393（200 aa）	Not recorded	SAM S-ADENOSYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9CR7 Structure of human SETD8 in complex with covalent inhibitor AM2928 Deposited 2024-07-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 232–380（149 aa） Chain B 232–380（149 aa）	Not recorded	E1J N-(3-{[7-(2-aminoethoxy)-6-methoxy-2-(pyrrolidin-1-yl)quinazolin-4-yl]amino}propyl)prop-2-enamide × 1 H81 N-(3-{[7-(2-aminoethoxy)-6-methoxy-2-(pyrrolidin-1-yl)quinazolin-4-yl]amino}propyl)prop-2-ynamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；290 K；20% PEG 3350 and 0.2 M Lithium Nitrate	Resolution 2.05 Å R-free 0.233

16 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KMT5A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 28–189； UniProt 232–393 Author chain B； PDBConstruct 28–189； UniProt 232–393

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6boz
Deposition date deposition_date	2017-11-21
Structure title title	Structure of human SETD8 in complex with covalent inhibitor MS4138
Keywords keywords	protein-small molecule inhibitor complex, TRANSFERASE-TRANSFERASE inhibitor complex; TRANSFERASE/TRANSFERASE inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.28 Å
Radius of gyration Rg (electron density) rg_electron	20.48 Å
Forward intensity I(0) i0	18300400.00
Molecular weight molecular_weight	31631.0 kDa
Excluded volume excluded_volume	39336 Å³
Envelope volume envelope_volume	47586 Å³
Hydration-shell volume shell_volume	19931 Å³
Envelope diameter envelope_diameter	71.0 Å
Shell Rg shell_rg	26.26 Å
Envelope Rg envelope_rg	20.83 Å
Shape Rg shape_rg	20.46 Å
Total Rg total_rg	21.37 Å
Total atoms total_atoms	2225
Residues n_residues	273
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

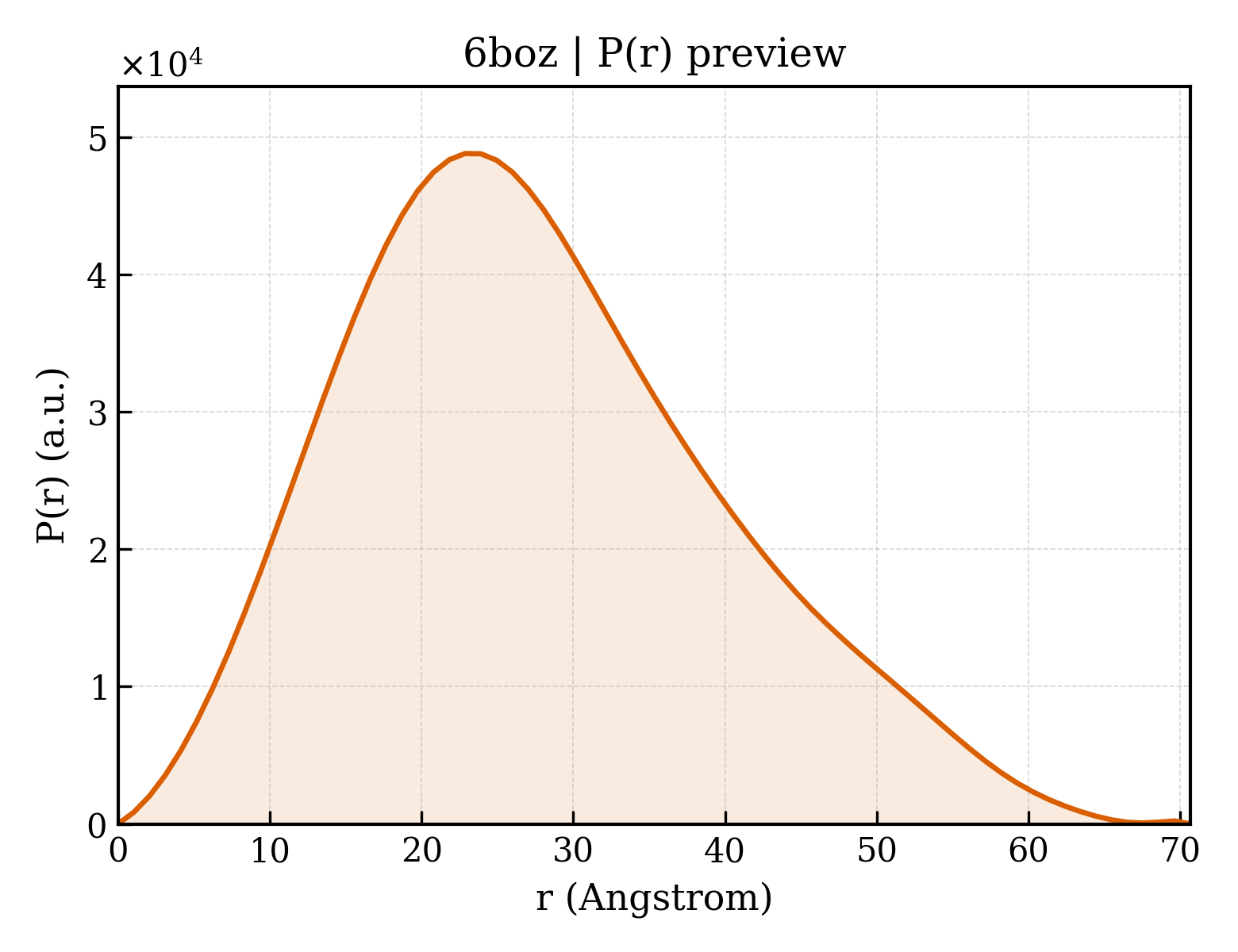

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.7 Å
Rg (real space) rg_real	21.32 Å
Rg uncertainty (real space) rg_real_error	0.50 Å
I(0) (real space) i0_real	1.8300e+07
I(0) uncertainty (real space) i0_real_error	2.4030e+05
Rg (reciprocal space) rg_reciprocal	21.31 Å
I(0) (reciprocal space) i0_reciprocal	18300000.0000
Solution quality estimate total_estimate	0.8737
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.9 Å
Skewness Skewness skewness	0.439
Kurtosis Kurtosis kurtosis	-0.266
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5649000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.967

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	N-lysine methyltransferase KMT5A
Molecular weight formula_weight	21748.4 kDa
EC 编号 ec_number	2.1.1.-,2.1.1.43
Mutation mutation	C343S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2299

MSYYHHHHHHDYDIPTTENLYFQGAMGSRKSKAELQSEERKRIDELIESGKEEGMKIDLIDGKGRGVIATKQFSRGDFVVEYHGDLIEITDAKKREALYAQDPSTGCYMYYFQYLSKTYCVDATRETNRLGRLINHSKSGNCQTKLHDIDGVPHLILIASRDIAAGEELLYDYGDRSKASIEAHPWLKH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	N-(3-{[7-(2-aminoethoxy)-6-methoxy-2-(pyrrolidin-1-yl)quinazolin-4-yl]amino}propyl)prop-2-enamide
Molecular weight formula_weight	414.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	74

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	6bozA00
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	270 — Beta-clip-like
Homologous superfamily homologous superfamily	10 — SET domain

Domain ID domain_id	6bozB00
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	270 — Beta-clip-like
Homologous superfamily homologous superfamily	10 — SET domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	31.560 Å
Unit-cell length b length_b	68.060 Å
Unit-cell length c length_c	125.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	62.950 Å
R factor r_factor	0.1820
R_work r_work	0.1787
R_free r_free	0.2419

fit	/app/data/saxs_computation/bo/6boz/6boz.fit
pddf	/app/data/pr_computation/bo/6boz/6boz.pr.out
profile	/app/data/saxs_computation/bo/6boz/6boz.dat
