SAXSdb — 6c40

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chemotaxis protein CheY

Thermotoga maritima MSB8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2–119 Chain D； UniProt 2–119	Mutation：E41PyTyr, D54K Non-standard monomer：Yes (specific site not provided by mmCIF)	CU COPPER (II) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；HEPES pH 7, ammonium sulfate, PEG 4000	Resolution 2.70 Å R-free 0.295

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6C40	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1TMY CHEY FROM THERMOTOGA MARITIMA (APO-I) Deposited 1997-05-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PROTEIN WAS CRYSTALLIZED FROM 0.1M TRIS BUFFER (PH 8.5) AND 1.8M AMMONIUM PHOSPHATE	Resolution 1.90 Å
1U0S Chemotaxis kinase CheA P2 domain in complex with response regulator CheY from the thermophile thermotoga maritima Deposited 2004-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Y 2–119（118 aa） Fragment：response regulatory domain, CheY response regulator	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；25-30% PEG 12K, 0.1M Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.90 Å R-free 0.253
2LLE Computational design of an eight-stranded (beta/alpha)-barrel from fragments of different folds Deposited 2011-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–11（11 aa） Chain A 34–103（70 aa）	Mutation：R4I, D78G, I95L, L201A,V213G Mutation：R4I, D78G, I95L, L201A,V213G	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；313 K；Ionic strength (raw mmCIF value) 350；Pressure ambient NMR sample composition 0.5 mM [U-100% 15N] CheYHisF-sfr_RM, 50 mM potassium phosphate, 300 mM potassium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] CheYHisF-sfr_RM, 50 mM potassium phosphate, 300 mM potassium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2TMY CHEY FROM THERMOTOGA MARITIMA (APO-II) Deposited 1997-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.2M AMMONIUM SULFATE, 0.1M ACETATE BUFFER (PH 4.6), 30% PEG 4000, 15MM MGCL2	Resolution 2.30 Å
3TMY CHEY FROM THERMOTOGA MARITIMA (MN-III) Deposited 1997-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2M AMMONIUM SULFATE, 0.1M HEPES BUFFER (PH 7.0), 25% PEG 4000, 15MM MANGANESE CHLORIDE	Resolution 2.20 Å
3TMY CHEY FROM THERMOTOGA MARITIMA (MN-III) Deposited 1997-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–120（120 aa）	Not recorded	MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2M AMMONIUM SULFATE, 0.1M HEPES BUFFER (PH 7.0), 25% PEG 4000, 15MM MANGANESE CHLORIDE	Resolution 2.20 Å
4IGA The crystal structure of an activated Thermotoga maritima CheY with N-terminal region of FliM Deposited 2012-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；30% (w/v) PEG 4000, 0.1M TRIS pH 8.5, 0.2M sodium acetate, 0.2M lithium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.73 Å R-free 0.276
4QYW Structure of phosphono-CheY from T.maritima Deposited 2014-07-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–120（119 aa）	Mutation：D54(CYQ), C81A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100mM acetate, pH 5.5, 350 uM Sc(ClO4)3, 0.02% azide, 150 mM sodium malonate, 19% PeEG 6000., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.268
4TMY CHEY FROM THERMOTOGA MARITIMA (MG-IV) Deposited 1997-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–120（120 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2M AMMONIUM SULFATE, 0.1M HEPES BUFFER (PH 7.0), 25% PEG 4000, 15MM MAGNESIUM CHLORIDE	Resolution 2.80 Å
4TMY CHEY FROM THERMOTOGA MARITIMA (MG-IV) Deposited 1997-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2M AMMONIUM SULFATE, 0.1M HEPES BUFFER (PH 7.0), 25% PEG 4000, 15MM MAGNESIUM CHLORIDE	Resolution 2.80 Å
8Q52 A PBP-like protein built from fragments of different folds Deposited 2023-08-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–105（101 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% PEG 4000, 0.1M Tris.HCl, 0.3M Li sulfate	Resolution 2.15 Å R-free 0.253

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHEY_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–118； UniProt 2–119 Author chain D； PDBConstruct 1–118； UniProt 2–119

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6c40
Deposition date deposition_date	2018-01-11
Structure title title	CheY41PyTyrD54K from Thermotoga maritima
Keywords keywords	CheY, Chemotaxis, PyTyr, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.13 Å
Radius of gyration Rg (electron density) rg_electron	20.78 Å
Forward intensity I(0) i0	22058000.00
Molecular weight molecular_weight	24089.0 kDa
Excluded volume excluded_volume	23155 Å³
Envelope volume envelope_volume	38865 Å³
Hydration-shell volume shell_volume	16087 Å³
Envelope diameter envelope_diameter	69.8 Å
Shell Rg shell_rg	26.46 Å
Envelope Rg envelope_rg	20.81 Å
Shape Rg shape_rg	20.85 Å
Total Rg total_rg	21.23 Å
Total atoms total_atoms	1788
Residues n_residues	234
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

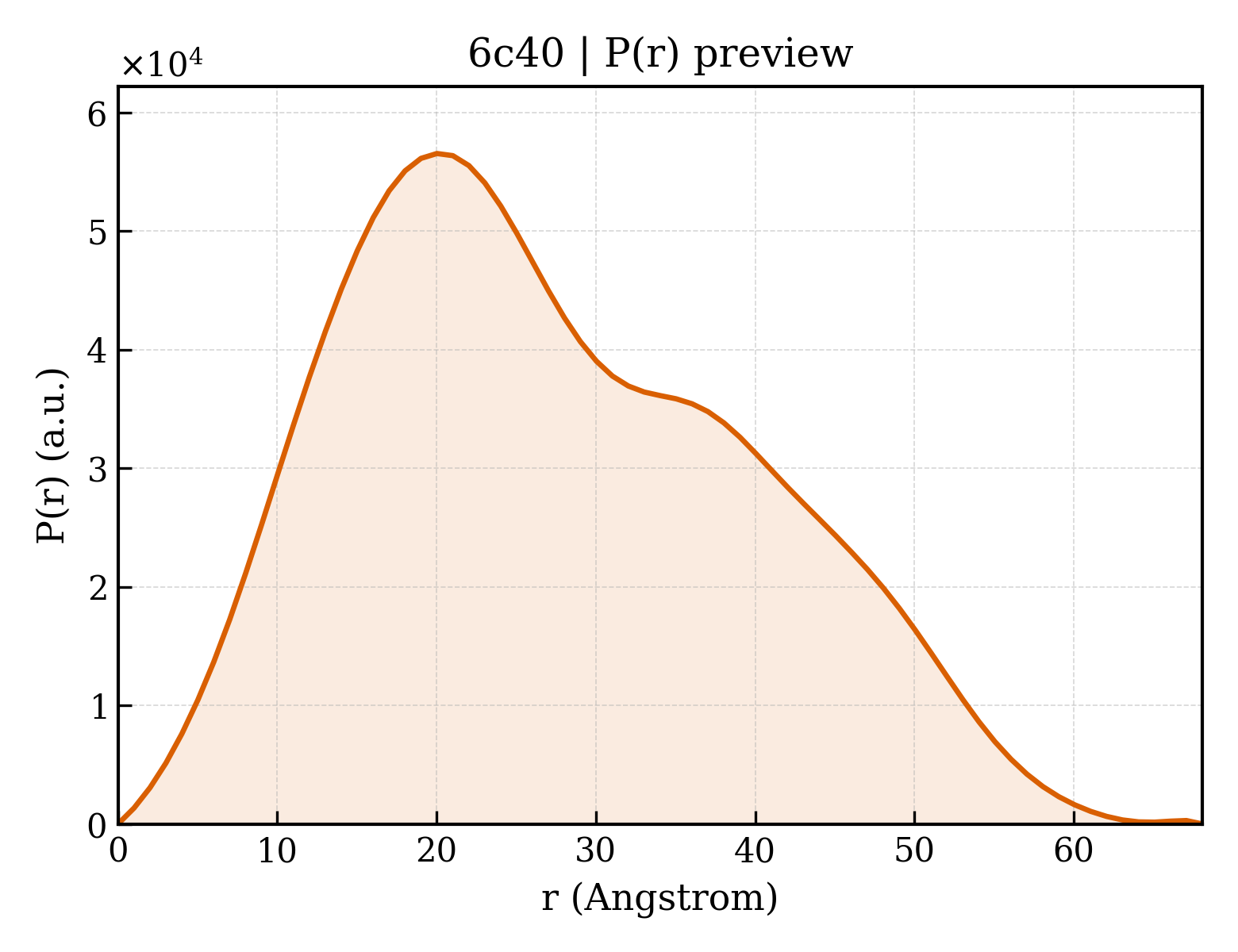

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	68.1 Å
Rg (real space) rg_real	21.20 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	2.2060e+07
I(0) uncertainty (real space) i0_real_error	3.1850e+05
Rg (reciprocal space) rg_reciprocal	21.19 Å
I(0) (reciprocal space) i0_reciprocal	22060000.0000
Solution quality estimate total_estimate	0.8698
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.0 Å
Skewness Skewness skewness	0.359
Kurtosis Kurtosis kurtosis	-0.645
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8293000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.887; Smooth: 0.982

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Chemotaxis protein CheY
Molecular weight formula_weight	13088.6 kDa
Mutation mutation	E41PyTyr, D54K
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D
Atom count atom_count	1796

GKRVLIVDDAAFMRMMLKDIITKAGYEVAGEATNGREAVYKYKELKPDIVTMKITMPEMNGIDAIKEIMKIDPNAKIIVCSAMGQQAMVIEAIKAGAKDFIVKPFQPSRVVEALNKVS

来源 Source

来源生物 organism	Thermotoga maritima MSB8
NCBI Class编号 ncbi_taxonomy_id	243274
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6c40b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

Domain ID domain_id	d6c40d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

▶

8. Citations (1)

▶

Unit-cell length a length_a	33.634 Å
Unit-cell length b length_b	34.816 Å
Unit-cell length c length_c	58.547 Å
Unit-cell angle α angle_alpha	98.80 °
Unit-cell angle β angle_beta	104.42 °
Unit-cell angle γ angle_gamma	100.33 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	33.507 Å
R factor r_factor	0.2250
R_work r_work	0.2171
R_free r_free	0.2955

fit	/app/data/saxs_computation/c4/6c40/6c40.fit
pddf	/app/data/pr_computation/c4/6c40/6c40.pr.out
profile	/app/data/saxs_computation/c4/6c40/6c40.dat

CheY41PyTyrD54K from Thermotoga maritima
