SAXSdb — 6cw2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone acetyltransferase GCN5

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 67–317	Not recorded	Transcriptional adapter 2 × 1 （A0A250W8G8） ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：MICROBATCH；pH 8.5；294 K；10 mM Tris-Cl pH 8.5, 200 mM Li2SO4, 25% w/v PEG3350	Resolution 2.67 Å R-free 0.284
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 67–317	Not recorded	Transcriptional adapter 2 × 1 （A0A250W8G8） antibody heavy chain × 1 antibody light chain × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：MICROBATCH；pH 8.5；294 K；10 mM Tris-Cl pH 8.5, 200 mM Li2SO4, 25% w/v PEG3350	Resolution 2.67 Å R-free 0.284

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6CW2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1E6I Bromodomain from GCN5 complexed with acetylated H4 peptide Deposited 2000-08-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 319–439（121 aa） Fragment：BROMODOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；2.2M AMMONIUM SULPHATE, 20% V/V GLYCEROL, 4MM DITHIOTHREITOL, 100 MM HEPES PH 7.5, 125MM NACL 5:1 PEPTIDE:PROTEIN	Resolution 1.87 Å R-free 0.209
1YGH HAT DOMAIN OF GCN5 FROM SACCHAROMYCES CEREVISIAE Deposited 1999-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 99–262（164 aa） Fragment：HISTONE ACETYLTRANSFERASE DOMAIN	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；400 MM AMMONIUM SULFATE, 20% - 25% PEG 8000, pH 6.0	Resolution 1.90 Å R-free 0.236
1YGH HAT DOMAIN OF GCN5 FROM SACCHAROMYCES CEREVISIAE Deposited 1999-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 99–262（164 aa） Fragment：HISTONE ACETYLTRANSFERASE DOMAIN	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；400 MM AMMONIUM SULFATE, 20% - 25% PEG 8000, pH 6.0	Resolution 1.90 Å R-free 0.236
6CW3 Crystal structure of a yeast SAGA transcriptional coactivator Ada2/Gcn5 HAT subcomplex, crystal form 2 Deposited 2018-03-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 67–317（251 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7；294 K；100 mM succinic acid pH 7.0, 15% w/v PEG3350	Resolution 1.98 Å R-free 0.227
6CW3 Crystal structure of a yeast SAGA transcriptional coactivator Ada2/Gcn5 HAT subcomplex, crystal form 2 Deposited 2018-03-29	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 67–317（251 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7；294 K；100 mM succinic acid pH 7.0, 15% w/v PEG3350	Resolution 1.98 Å R-free 0.227

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GCN5_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–251； UniProt 67–317

Transcriptional adapter 2

Saccharomyces cerevisiae

UniProt A0A250W8G8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–120	Not recorded	Histone acetyltransferase GCN5 × 1 （Q03330） ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：MICROBATCH；pH 8.5；294 K；10 mM Tris-Cl pH 8.5, 200 mM Li2SO4, 25% w/v PEG3350	Resolution 2.67 Å R-free 0.284
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–120	Not recorded	Histone acetyltransferase GCN5 × 1 （Q03330） antibody heavy chain × 1 antibody light chain × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：MICROBATCH；pH 8.5；294 K；10 mM Tris-Cl pH 8.5, 200 mM Li2SO4, 25% w/v PEG3350	Resolution 2.67 Å R-free 0.284

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	A0A250W8G8_YEASX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–120； UniProt 1–120

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6cw2
Deposition date deposition_date	2018-03-29
Structure title title	Crystal structure of a yeast SAGA transcriptional coactivator Ada2/Gcn5 HAT subcomplex, crystal form 1
Keywords keywords	Ada2/Gcn5 structure, GENE REGULATION; GENE REGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.96 Å
Radius of gyration Rg (electron density) rg_electron	33.70 Å
Forward intensity I(0) i0	111418000.00
Molecular weight molecular_weight	83789.0 kDa
Excluded volume excluded_volume	104550 Å³
Envelope volume envelope_volume	136470 Å³
Hydration-shell volume shell_volume	36381 Å³
Envelope diameter envelope_diameter	132.1 Å
Shell Rg shell_rg	37.34 Å
Envelope Rg envelope_rg	34.16 Å
Shape Rg shape_rg	33.64 Å
Total Rg total_rg	34.21 Å
Total atoms total_atoms	5897
Residues n_residues	772
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

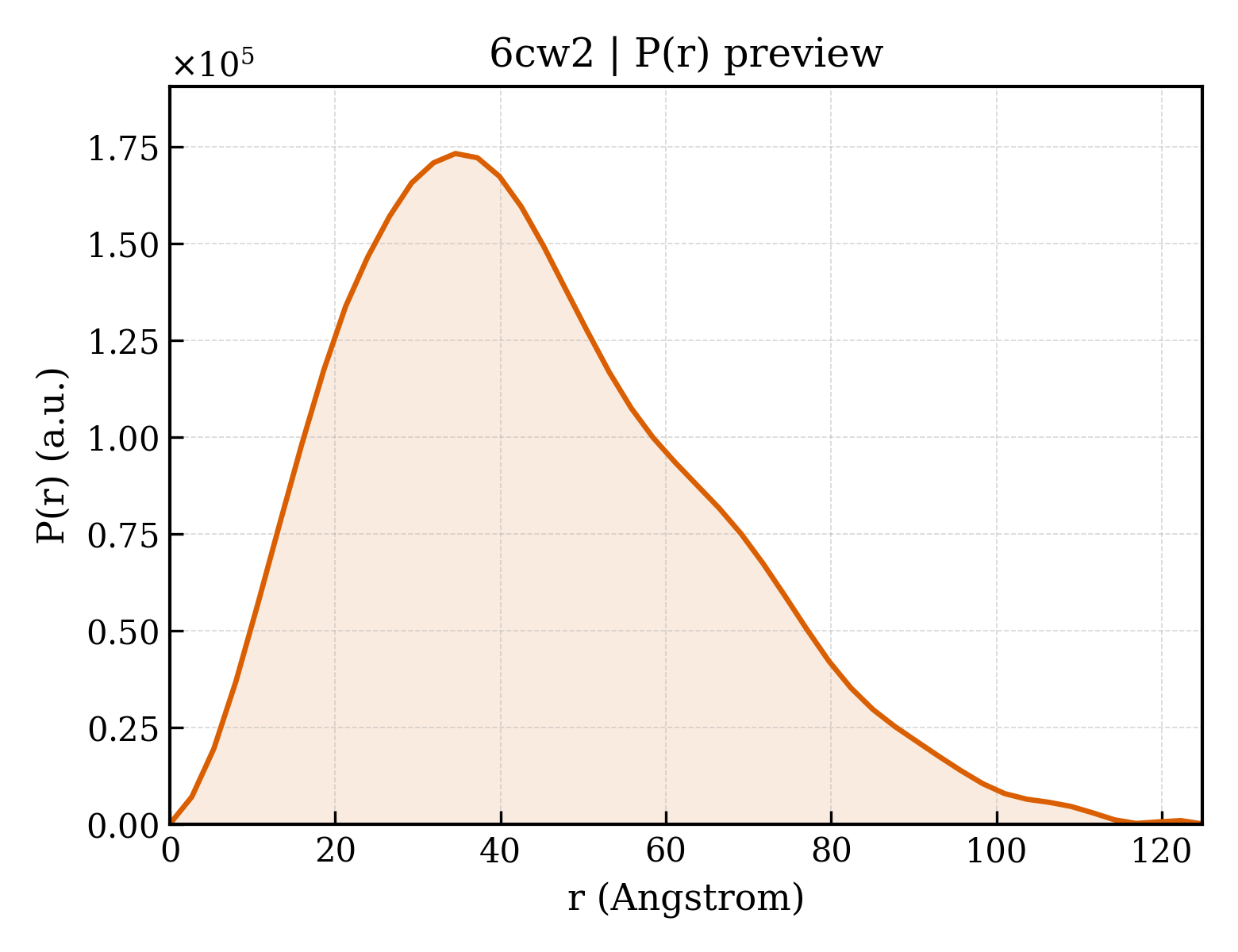

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	124.9 Å
Rg (real space) rg_real	34.21 Å
Rg uncertainty (real space) rg_real_error	1.70 Å
I(0) (real space) i0_real	1.1140e+08
I(0) uncertainty (real space) i0_real_error	1.6990e+06
Rg (reciprocal space) rg_reciprocal	34.06 Å
I(0) (reciprocal space) i0_reciprocal	111400000.0000
Solution quality estimate total_estimate	0.8105
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.5 Å
Skewness Skewness skewness	0.562
Kurtosis Kurtosis kurtosis	-0.109
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12160000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.646; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.639; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone acetyltransferase GCN5
Molecular weight formula_weight	29081.8 kDa
EC 编号 ec_number	2.3.1.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	5948

VTDVEKGIVKFEFDGVEYTFKERPSVVEENEGKIEFRVVNNDNTKENMMVLTGLKNIFQKQLPKMPKEYIARLVYDRSHLSMAVIRKPLTVVGGITYRPFDKREFAEIVFCAISSTEQVRGYGAHLMNHLKDYVRNTSNIKYFLTYADNYAIGYFKKQGFTKEITLDKSIWMGYIKDYEGGTLMQCSMLPRIRYLDAGKILLLQEAALRRKIRTISKSHIVRPGLEQFKDLNNIKPIDPMTIPGLKEAGWT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Transcriptional adapter 2
Molecular weight formula_weight	13804.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSNKFHCDVCSADCTNRVRVSCAICPEYDLCVPCFSQGSYTGKHRPYHDYRIIETNSYPILCPDWGADEELQLIKGAQTLGLGNWQDIADHIGSRGKEEVKEHYLKYYLESKYYPIPDIT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	antibody heavy chain
Molecular weight formula_weight	24548.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

EVQLVESGGGLVQPGGSLRLSCAASGFNVSYSSIHWVRQAPGKGLEWVASIYPYYGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARNWYWFGGHFGYYMMPWAMDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	antibody light chain
Molecular weight formula_weight	23403.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQSSWYPVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d6cw2a_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6cw2b1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6cw2b2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	6cw2A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6cw2B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6cw2B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6cw2D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

▶

8. Citations (1)

▶

Unit-cell length a length_a	191.816 Å
Unit-cell length b length_b	191.816 Å
Unit-cell length c length_c	92.674 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.670 Å
Low-resolution limit resolution_low	95.908 Å
R factor r_factor	0.2517
R_work r_work	0.2501
R_free r_free	0.2838

fit	/app/data/saxs_computation/cw/6cw2/6cw2.fit
pddf	/app/data/pr_computation/cw/6cw2/6cw2.pr.out
profile	/app/data/saxs_computation/cw/6cw2/6cw2.dat
