1e6i
Bromodomain from GCN5 complexed with acetylated H4 peptide

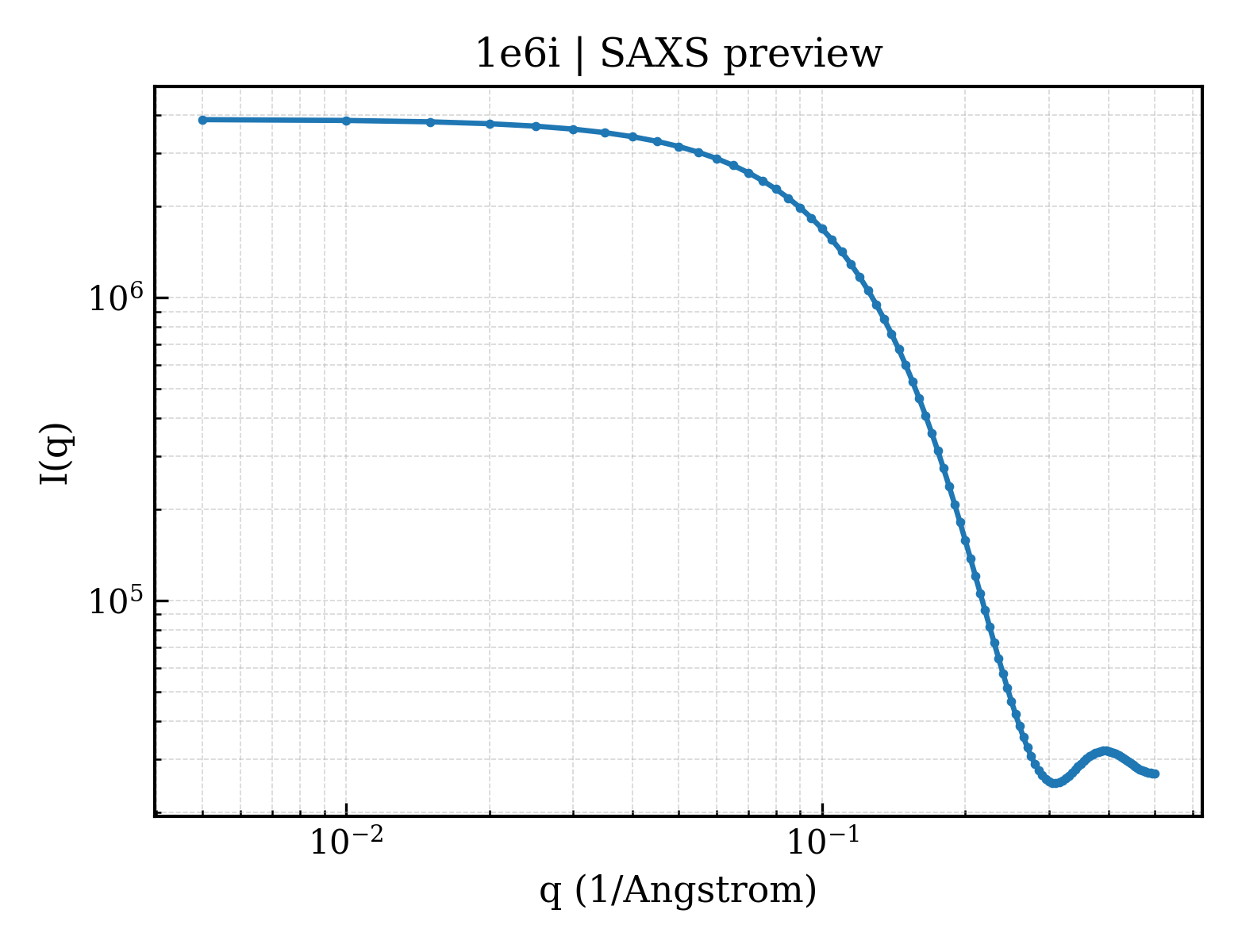

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e6i |
| deposition_date | 2000-08-18 |
| title | Bromodomain from GCN5 complexed with acetylated H4 peptide |
| keywords | GENE REGULATION, HISTONE BINDING, N-ACETYL LYSINE; GENE REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.74 Å |
| rg_electron | 14.45 Å |
| i0 | 3880810.00 |
| molecular_weight | 13896.0 kDa |
| excluded_volume | 17345 ų |
| envelope_volume | 19884 ų |
| shell_volume | 11896 ų |
| envelope_diameter | 51.3 Å |
| shell_rg | 19.97 Å |
| envelope_rg | 14.88 Å |
| shape_rg | 14.45 Å |
| total_rg | 15.60 Å |
| total_atoms | 981 |
| n_residues | 116 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.3 Å |
| rg_real | 15.70 Å |
| rg_real_error | 0.28 Å |
| i0_real | 3.8810e+06 |
| i0_real_error | 4.2180e+04 |
| rg_reciprocal | 15.71 Å |
| i0_reciprocal | 3881000.0000 |
| total_estimate | 0.8791 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.5 Å |
| skewness | 0.301 |
| kurtosis | -0.291 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 884400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.995 |
