SAXSdb — 3to6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone acetyltransferase ESA1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Histone H4 × 3 （P02309） CARBOXYMETHYL COENZYME *A × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ESA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 160–435

Histone H4

OrganismNot specified

UniProt P02309

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Histone acetyltransferase ESA1 × 3 （Q08649） CARBOXYMETHYL COENZYME *A × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–12； UniProt 12–23

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3to6
Deposition date deposition_date	2011-09-04
Structure title title	Crystal structure of yeast Esa1 HAT domain complexed with H4K16CoA bisubstrate inhibitor
Keywords keywords	acetyltransferase, autoacetylation, TRANSFERASE-TRANSFERASE INHIBITOR complex; TRANSFERASE/TRANSFERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3to6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3to6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

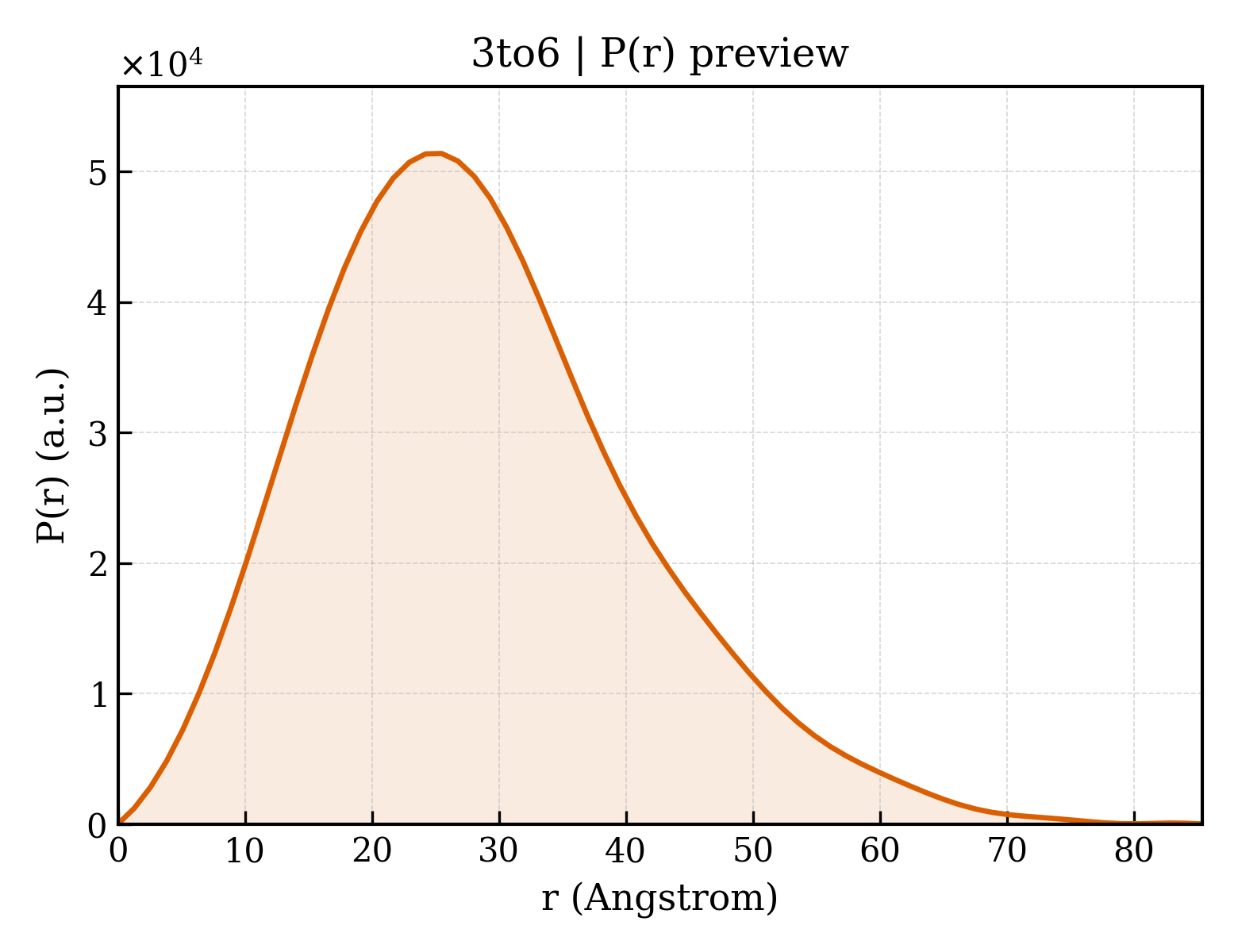

3to6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.29 Å
Rg (electron density)	30.29 Å
Total Rg	31.10 Å
Atom count	7191
Residues	828
Excluded volume	128540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3to6__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Histone acetyltransferase ESA1
Molecular weight formula_weight	33153.1 kDa
EC 编号 ec_number	2.3.1.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2652

EVARVRNLNRIIMGKYEIEPWYFSPYPIELTDEDFIYIDDFTLQYFGSKKQYERYRKKCTLRHPPGNEIYRDDYVSFFEIDGRKQRTWCRNLCLLSKLFLDHKTLYYDVDPFLFYCMTRRDELGHHLVGYFSKEKESADGYNVACILTLPQYQRMGYGKLLIEFSYELSKKENKVGSPEKPLSDLGLLSYRAYWSDTLITLLVEHQKEITIDEISSMTSMTTTDILHTAKTLNILRYYKGQHIIFLNEDILDRYNRLKAKKRRTIDPNRLIWKPPV

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	1326.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GKGGAKRHRKIL

Entity 3 Entity 3 non-polymer

Description description	CARBOXYMETHYL COENZYME *A
Molecular weight formula_weight	825.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	236

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3to6a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.1 — N-acetyl transferase, NAT

CATH v4.4 (3 domains)

Domain ID domain_id	3to6A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	60 — N-acetyl transferase-like

Domain ID domain_id	3to6A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	3to6A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	183.282 Å
Unit-cell length b length_b	183.282 Å
Unit-cell length c length_c	183.282 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	I 41 3 2
Space-group number int_tables_number	214
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	33.463 Å
R factor r_factor	0.1908
R_work r_work	0.1886
R_free r_free	0.2323
