SAXSdb — 3to7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone acetyltransferase ESA1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	COENZYME A × 1 CACODYLIC ACID × 1 GLYCEROL × 2 SULFATE ION × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	COENZYME A × 3 CACODYLIC ACID × 3 GLYCEROL × 6 SULFATE ION × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ESA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 160–435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3to7
Deposition date deposition_date	2011-09-04
Structure title title	Crystal structure of yeast Esa1 HAT domain bound to coenzyme A with active site lysine acetylated
Keywords keywords	MYST family, histone acetyltransferase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3to7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3to7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

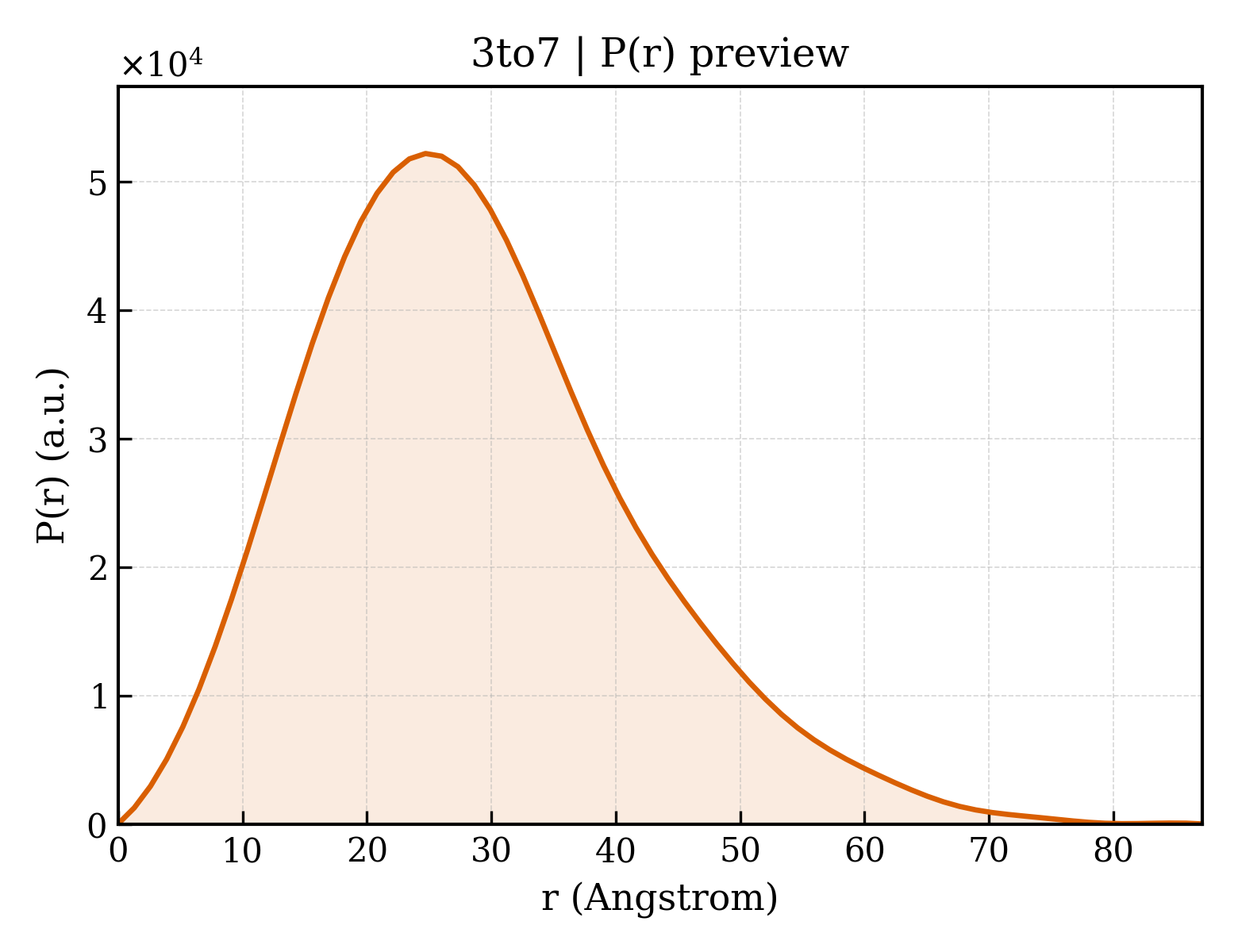

3to7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.00 Å
Rg (electron density)	21.20 Å
Total Rg	22.08 Å
Atom count	2405
Residues	275
Excluded volume	42998 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3to7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3to7__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone acetyltransferase ESA1
Molecular weight formula_weight	33153.1 kDa
EC 编号 ec_number	2.3.1.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2605

EVARVRNLNRIIMGKYEIEPWYFSPYPIELTDEDFIYIDDFTLQYFGSKKQYERYRKKCTLRHPPGNEIYRDDYVSFFEIDGRKQRTWCRNLCLLSKLFLDHKTLYYDVDPFLFYCMTRRDELGHHLVGYFSKEKESADGYNVACILTLPQYQRMGYGKLLIEFSYELSKKENKVGSPEKPLSDLGLLSYRAYWSDTLITLLVEHQKEITIDEISSMTSMTTTDILHTAKTLNILRYYKGQHIIFLNEDILDRYNRLKAKKRRTIDPNRLIWKPPV

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CACODYLIC ACID
Molecular weight formula_weight	138.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	193

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3to7a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.1 — N-acetyl transferase, NAT

CATH v4.4 (3 domains)

Domain ID domain_id	3to7A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	60 — N-acetyl transferase-like

Domain ID domain_id	3to7A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	3to7A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	183.040 Å
Unit-cell length b length_b	183.040 Å
Unit-cell length c length_c	183.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	I 41 3 2
Space-group number int_tables_number	214
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.507 Å
R factor r_factor	0.1992
R_work r_work	0.1978
R_free r_free	0.2260
