SAXSdb — 1szc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NAD-dependent deacetylase HST2

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Histone H4 peptide × 1 （P02309） ZINC ION × 1 CHLORIDE ION × 1 CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 GLYCEROL × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Histone H4 peptide × 2 （P02309） ZINC ION × 2 CHLORIDE ION × 2 CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 GLYCEROL × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HST2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–297； UniProt 1–294

Histone H4 peptide

OrganismNot specified

UniProt P02309

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	NAD-dependent deacetylase HST2 × 1 （P53686） ZINC ION × 1 CHLORIDE ION × 1 CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 GLYCEROL × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	NAD-dependent deacetylase HST2 × 2 （P53686） ZINC ION × 2 CHLORIDE ION × 2 CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 GLYCEROL × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–10； UniProt 12–21

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1szc
Deposition date deposition_date	2004-04-05
Structure title title	Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases
Keywords keywords	Sir2, Sirtuin, histone deacetylase, GENE REGULATION; GENE REGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1szc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

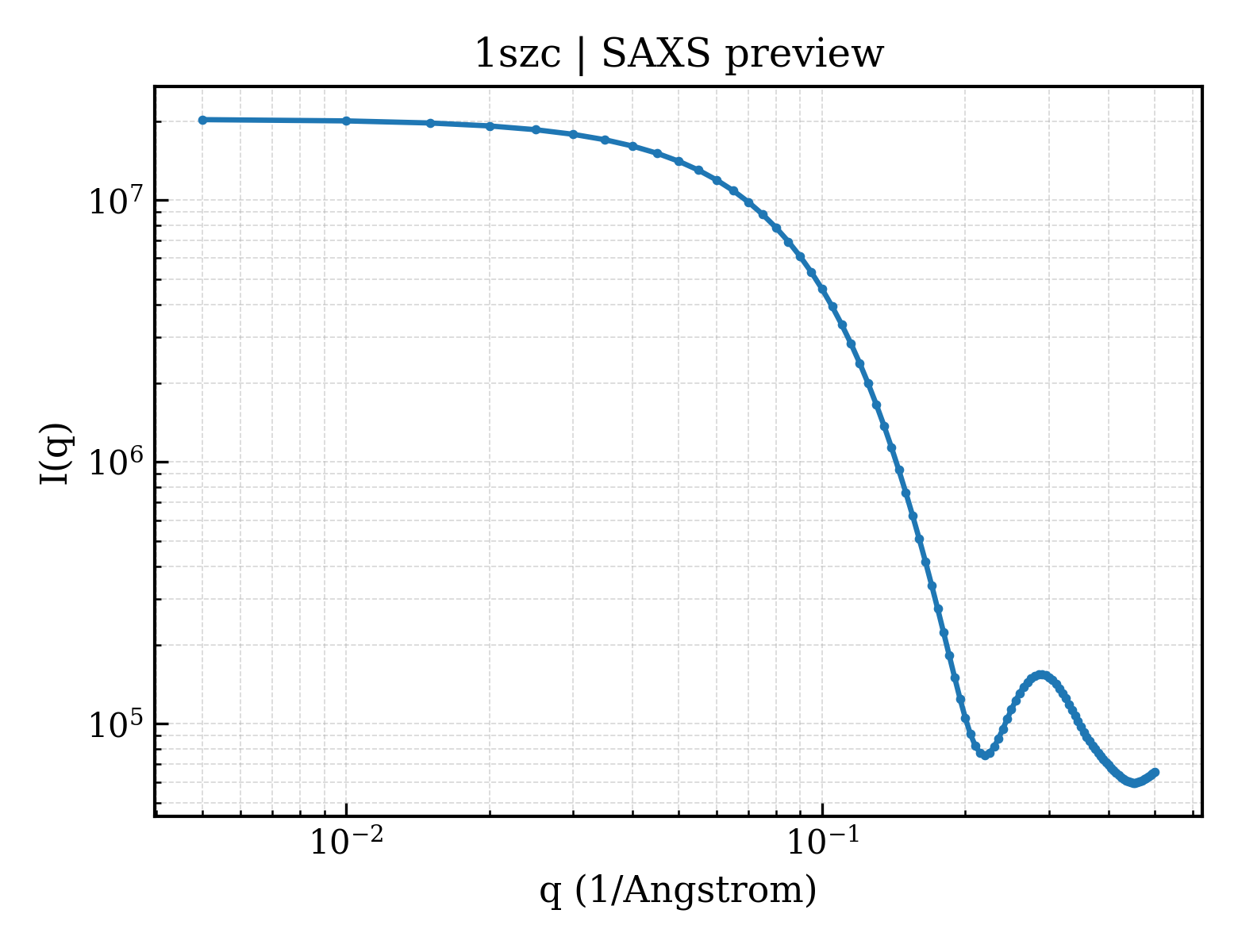

1szc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1szc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.05 Å
Rg (electron density)	19.99 Å
Total Rg	21.05 Å
Atom count	2447
Residues	298
Excluded volume	43812 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1szc__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1szc__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	NAD-dependent deacetylase HST2
Molecular weight formula_weight	33476.4 kDa
EC 编号 ec_number	3.5.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2740

MASMSVSTASTEMSVRKIAAHMKSNPNAKVIFMVGAGISTSCGIPDFRSPGTGLYHNLARLKLPYPEAVFDVDFFQSDPLPFYTLAKELYPGNFRPSKFHYLLKLFQDKDVLKRVYTQNIDTLERQAGVKDDLIIEAHGSFAHCHCIGCGKVYPPQVFKSKLAEHPIKDFVKCDVCGELVKPAIVFFGEDLPDSFSETWLNDSEWLREKITTSGKHPQQPLVIVVGTSLAVYPFASLPEEIPRKVKRVLCNLETVGDFKANKRPTDLIVHQYSDEFAEQLVEELGWQEDFEKILTAQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4 peptide
Molecular weight formula_weight	1197.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KGGAKRHRKI

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	662.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	293

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1szca1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.5 — Sir2 family of transcriptional regulators

Domain ID domain_id	d1szca2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1szcA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1szcA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

▶

Unit-cell length a length_a	105.267 Å
Unit-cell length b length_b	105.267 Å
Unit-cell length c length_c	66.609 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	26.890 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2390

Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases
