7k7g

nucleosome and Gal4 complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H4 × 2 （P02309） Histone H2A.1 × 2 （P04911） Histone H2B.1 × 2 （P02293） DNA (147-MER) × 1 DNA (147-MER) × 1 Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136

Histone H4

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P02309

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3 × 2 （P61830） Histone H2A.1 × 2 （P04911） Histone H2B.1 × 2 （P02293） DNA (147-MER) × 1 DNA (147-MER) × 1 Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Histone H2A.1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P04911

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3 × 2 （P61830） Histone H4 × 2 （P02309） Histone H2B.1 × 2 （P02293） DNA (147-MER) × 1 DNA (147-MER) × 1 Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–132； UniProt 1–132 Author chain G； PDBConstruct 1–132； UniProt 1–132

Histone H2B.1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P02293

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3 × 2 （P61830） Histone H4 × 2 （P02309） Histone H2A.1 × 2 （P04911） DNA (147-MER) × 1 DNA (147-MER) × 1 Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–131； UniProt 1–131 Author chain H； PDBConstruct 1–131； UniProt 1–131

Centromere DNA-binding protein complex CBF3 subunit B

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P40969

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3 × 2 （P61830） Histone H4 × 2 （P02309） Histone H2A.1 × 2 （P04911） Histone H2B.1 × 2 （P02293） DNA (147-MER) × 1 DNA (147-MER) × 1 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CBF3B_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain M； PDBConstruct 1–48； UniProt 1–48

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7k7g
Deposition date deposition_date	2020-09-22
Structure title title	nucleosome and Gal4 complex
Keywords keywords	DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7k7g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

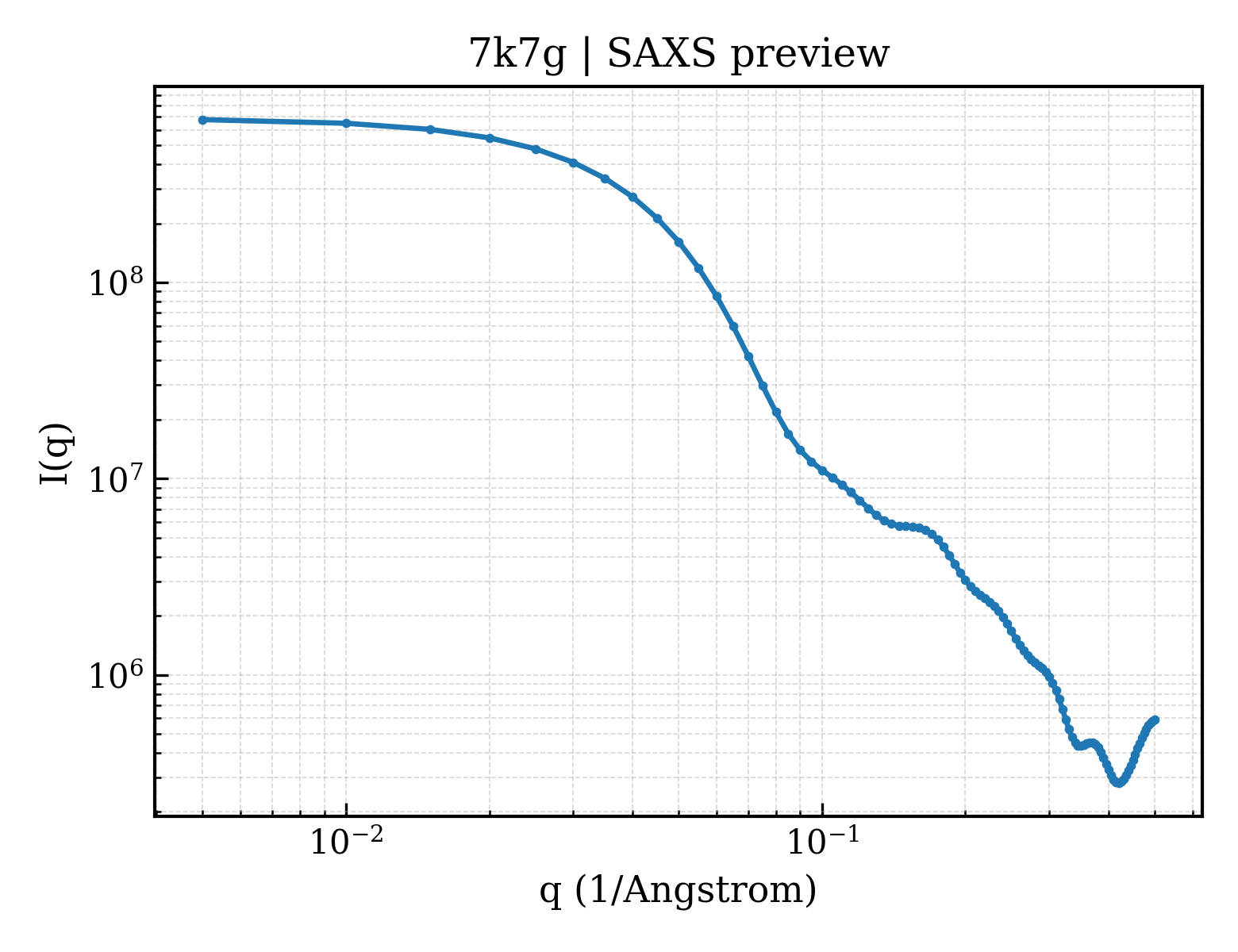

7k7g__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7k7g__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.32 Å
Rg (electron density)	38.64 Å
Total Rg	39.37 Å
Atom count	11098
Residues	1012
Excluded volume	181960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7k7g__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Histone H3
Molecular weight formula_weight	15391.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	11098

MARTKQTARKSTGGKAPRKQLASKAARKSAPSTGGVKKPHRYKPGTVALREIRRFQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAIGALQESVEAYLVSLFEDTNLAAIHAKRVTIQKKDIKLARRLRGERS

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia phage EcSzw-2

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11395.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKILRDNIQGITKPAIRRLARRGGVKRISGLIYEEVRAVLKSFLESVIRDSVTYTEHAKRKTVTSLDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia phage EcSzw-2

Entity 3 Entity 3 polymer

Description description	Histone H2A.1
Molecular weight formula_weight	14013.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MSGGKGGKAGSAAKASQSRSAKAGLTFPVGRVHRLLRRGNYAQRIGSGAPVYLTAVLEYLAAEILELAGNAARDNKKTRIIPRHLQLAIRNDDELNKLLGNVTIAQGGVLPNIHQNLLPKKSAKATKASQEL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia phage EcSzw-2

Entity 4 Entity 4 polymer

Description description	Histone H2B.1
Molecular weight formula_weight	14280.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MSAKAEKKPASKAPAEKKPAAKKTSTSTDGKKRSKARKETYSSYIYKVLKQTHPDTGISQKSMSILNSFVNDIFERIATEASKLAAYNKKSTISAREIQTAVRLILPGELAKHAVSEGTRAVTKYSSSTQA

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia phage EcSzw-2

Entity 5 Entity 5 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	45334.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAATATTAGTGTATTTGATTTCCGAAAGTTAAAAAAGAAATAGTAAGAAATCATCCGAT

Source Source

Source organism organism	Saccharomyces cerevisiae
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia phage EcSzw-2

Entity 6 Entity 6 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	45400.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCGGATGATTTCTTACTATTTCTTTTTTAACTTTCGGAAATCAAATACACTAATATTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCGAT

Source Source

Source organism organism	Saccharomyces cerevisiae
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia phage EcSzw-2

Entity 7 Entity 7 polymer

Description description	Centromere DNA-binding protein complex CBF3 subunit B
Molecular weight formula_weight	5605.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MFNRTTQLKSKHPCSVCTRRKVKCDRMIPCGNCRKRGQDSECMKSTKL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Saccharomyces cerevisiae

Entity 8 Entity 8 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	115666
