2rnw

The Structural Basis for Site-Specific Lysine-Acetylated Histone Recognition by the Bromodomains of the Human Transcriptional Co-Activators PCAf and CBP

Method: SOLUTION NMR D_max: 42.7 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone acetyltransferase PCAF

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 719–832	Fragment：UNP residues 719-832	Histone H3 × 1 （P61830）	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Pressure ambient NMR sample composition：0.5 mM [U-100% 13C; U-100% 15N] potassium phosphate, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2RNW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CM0 CRYSTAL STRUCTURE OF THE PCAF/COENZYME-A COMPLEX Deposited 1999-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 491–658（168 aa） Fragment：HISTONE ACETYLTRANSFERASE DOMAIN	Not recorded	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；5MG/ML OF P/CAF WITH 2 M EXCESS COFACTOR, 100MM TRIS, 1.5 M LITHIUM SULFATE, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.268
1CM0 CRYSTAL STRUCTURE OF THE PCAF/COENZYME-A COMPLEX Deposited 1999-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 491–658（168 aa） Fragment：HISTONE ACETYLTRANSFERASE DOMAIN	Not recorded	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；5MG/ML OF P/CAF WITH 2 M EXCESS COFACTOR, 100MM TRIS, 1.5 M LITHIUM SULFATE, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.268
1JM4 NMR Structure of P/CAF Bromodomain in Complex with HIV-1 Tat Peptide Deposited 2001-07-17	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 448–561（114 aa） Fragment：Bromodomain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 100 mM；Pressure Ambient NMR sample composition 0.5 mM Bromodomain (U-15N)/Tat Peptide; 100 mM Phosphate Buffer of pH 6.5, 5 mM Perdeuterated DTT and 0.5 mM EDTA \| 90% H2O/10% D2O NMR sample composition 0.5 mM Bromodomain (U-13C,15N)/Tat Peptide; 100 mM Phosphate Buffer of pH 6.5, 5 mM Perdeuterated DTT and 0.5 mM EDTA \| 99.5% D2O NMR sample composition 0.5 mM Bromodomain (U-13C,15N, 75%-2H)/Tat Peptide; 100 mM Phosphate Buffer of pH 6.5, 5 mM Perdeuterated DTT and 0.5 mM EDTA \| 90% H2O/10% D2O	Resolution not provided
1N72 Structure and Ligand of a Histone Acetyltransferase Bromodomain Deposited 2002-11-12	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 719–832（114 aa） Fragment：Bromodomain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 200；Pressure 1 NMR sample composition 1mM Bromodomain, 100mM Sodium phosphate, 5mM DTT-d10, 0.5mM EDTA, pH 6.5 \| 90% H2O/10% D2O	Resolution not provided
1WUG complex structure of PCAF bromodomain with small chemical ligand NP1 Deposited 2004-12-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 719–832（114 aa） Fragment：BROMODOMAIN	Not recorded	NP1 N-(3-AMINOPROPYL)-4-METHYL-2-NITROBENZENAMINE × 1	SOLUTION NMR NMR measurement conditions pH 6.5；303 K NMR sample composition 0.5mM sample in 100mM phosphate buffer containing 5mM perdeuterated DTT \| 10% D2O	Resolution not provided
1WUM Complex structure of PCAF bromodomain with small chemical ligand NP2 Deposited 2004-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 719–832（114 aa） Fragment：BROMODOMAIN	Not recorded	NP2 N-(3-AMINOPROPYL)-2-NITROBENZENAMINE × 1	SOLUTION NMR NMR measurement conditions pH 6.5；303 K NMR sample composition 0.5mM sample in 100mM phosphate buffer containing 5mM perdeuterated DTT \| 10% D2O	Resolution not provided
1ZS5 Structure-based evaluation of selective and non-selective small molecules that block HIV-1 TAT and PCAF association Deposited 2005-05-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 719–832（114 aa） Fragment：BROMODOMAIN	Not recorded	MIB (3E)-4-(1-METHYL-1H-INDOL-3-YL)BUT-3-EN-2-ONE × 1	SOLUTION NMR NMR measurement conditions pH 6.5；303 K NMR sample composition 0.5mM sample in 100mM phosphate buffer containing 5mM perdeuterated DTT, 10% D2O \| 10% D2O NMR sample composition 0.5mM sample in 100mM phosphate buffer containing 5mM perdeuterated DTT, 100% D2O \| 100% D2O	Resolution not provided
2RNX The Structural Basis for Site-Specific Lysine-Acetylated Histone Recognition by the Bromodomains of the HUman Transcriptional Co-Activators PCAF and CBP Deposited 2008-02-03	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 719–832（114 aa） Fragment：UNP residues 719-832	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] potassium phosphate, 100% D2O \| 100% D2O	Resolution not provided
3GG3 Crystal Structure of the Bromodomain of Human PCAF Deposited 2009-02-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：UNP residues 715-831	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；277 K；20% PEG10K, 4% Ethylene Glycol, 0.1M HEPES pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.25 Å R-free 0.245
3GG3 Crystal Structure of the Bromodomain of Human PCAF Deposited 2009-02-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：UNP residues 715-831	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；277 K；20% PEG10K, 4% Ethylene Glycol, 0.1M HEPES pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.25 Å R-free 0.245
4NSQ Crystal structure of PCAF Deposited 2013-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 493–658（166 aa） Fragment：UNP Residues 493-658 Chain D 493–658（166 aa） Fragment：UNP Residues 493-658	Not recorded	COA COENZYME A × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.4；298 K；0.2M Lithium Sulfate, 0.1M HEPES pH7.4, 1.2M Ammonium Sulfate and 10mM Trimethylamine HCl, VAPOR DIFFUSION, temperature 298K	Resolution 2.31 Å R-free 0.275
4NSQ Crystal structure of PCAF Deposited 2013-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 493–658（166 aa） Fragment：UNP Residues 493-658 Chain C 493–658（166 aa） Fragment：UNP Residues 493-658	Not recorded	COA COENZYME A × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.4；298 K；0.2M Lithium Sulfate, 0.1M HEPES pH7.4, 1.2M Ammonium Sulfate and 10mM Trimethylamine HCl, VAPOR DIFFUSION, temperature 298K	Resolution 2.31 Å R-free 0.275
5FDZ Crystal structure of human PCAF bromodomain in complex with compound BDOMB00091a (compound 14) Deposited 2015-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831 Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	5X0 ~{N}-methyl-2-(oxan-4-yloxy)-5-(2-oxidanylidene-2-phenylazanyl-ethoxy)benzamide × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.40 Å R-free 0.244
5FE0 Crystal structure of human PCAF bromodomain in complex with acetyllysine Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	ALY N(6)-ACETYLLYSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.30 Å R-free 0.246
5FE0 Crystal structure of human PCAF bromodomain in complex with acetyllysine Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	ALY N(6)-ACETYLLYSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.30 Å R-free 0.246
5FE1 Crystal structure of human PCAF bromodomain in complex with fragment BR004 (fragment 1) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	12Q 1-METHYLQUINOLIN-2(1H)-ONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.22 Å R-free 0.241
5FE1 Crystal structure of human PCAF bromodomain in complex with fragment BR004 (fragment 1) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	12Q 1-METHYLQUINOLIN-2(1H)-ONE × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.22 Å R-free 0.241
5FE2 Crystal structure of human PCAF bromodomain in complex with fragment BR013 (fragment 3) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	5WV 2-methyl-3~{H}-isoindol-1-one × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.25 Å R-free 0.237
5FE2 Crystal structure of human PCAF bromodomain in complex with fragment BR013 (fragment 3) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	5WV 2-methyl-3~{H}-isoindol-1-one × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.25 Å R-free 0.237
5FE3 Crystal structure of human PCAF bromodomain in complex with fragment MB360 (fragment 4) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 3 5WX 4-methoxy-1,2-benzoxazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.12 Å R-free 0.237
5FE3 Crystal structure of human PCAF bromodomain in complex with fragment MB360 (fragment 4) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 3 5WX 4-methoxy-1,2-benzoxazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.12 Å R-free 0.237
5FE4 Crystal structure of human PCAF bromodomain in complex with fragment MB364 (fragment 5) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 2 5WY 2,3-dihydro-1,4-benzodioxine-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.15 Å R-free 0.232
5FE4 Crystal structure of human PCAF bromodomain in complex with fragment MB364 (fragment 5) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 3 5WY 2,3-dihydro-1,4-benzodioxine-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.15 Å R-free 0.232
5FE5 Crystal structure of human PCAF bromodomain in complex with fragment MB093 (fragment 7) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 5 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.12 Å R-free 0.251
5FE5 Crystal structure of human PCAF bromodomain in complex with fragment MB093 (fragment 7) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 5 2QC 1-[4-(1,2,3-thiadiazol-4-yl)phenyl]methanamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.12 Å R-free 0.251
5FE6 Crystal structure of human PCAF bromodomain in complex with fragment ZB1916 (fragment 10) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 8 5WZ (4-azanylpiperidin-1-yl)-cyclopropyl-methanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 1.77 Å R-free 0.212
5FE6 Crystal structure of human PCAF bromodomain in complex with fragment ZB1916 (fragment 10) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP Residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 1.77 Å R-free 0.212
5FE7 Crystal structure of human PCAF bromodomain in complex with fragment ZB2216 (fragment 11) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 1 5WU 1-(2-hydroxyethyl)-3-methyl-6,7-dihydro-5~{H}-indazol-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.08 Å R-free 0.213
5FE7 Crystal structure of human PCAF bromodomain in complex with fragment ZB2216 (fragment 11) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.08 Å R-free 0.213
5FE8 Crystal structure of human PCAF bromodomain in complex with compound SL1126 (compound 12) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	5WT ~{N}-(1,4-dimethyl-2-oxidanylidene-quinolin-7-yl)ethanamide × 1 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.10 Å R-free 0.233
5FE8 Crystal structure of human PCAF bromodomain in complex with compound SL1126 (compound 12) Deposited 2015-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa） Fragment：PCAF bromodomain, UNP residues 715-831	Not recorded	EDO 1,2-ETHANEDIOL × 4 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.10 Å R-free 0.233
5FE9 Crystal structure of human PCAF bromodomain in complex with compound SL1122 (compound 13) Deposited 2015-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 715–831（117 aa） Fragment：UNP residues 715-831 Chain B 715–831（117 aa） Fragment：UNP residues 715-831	Not recorded	5WS ~{N}-(1,4-dimethyl-2-oxidanylidene-quinolin-7-yl)methanesulfonamide × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.35 Å R-free 0.258
5LVQ Crystal structure of human PCAF bromodomain in complex with compound-D (CPD-D), N-methyl-2-(tetrahydro-2H-pyran-4-yloxy)benzamide Deposited 2016-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 2LX N-methyl-2-(tetrahydro-2H-pyran-4-yloxy)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.05 Å R-free 0.218
5LVQ Crystal structure of human PCAF bromodomain in complex with compound-D (CPD-D), N-methyl-2-(tetrahydro-2H-pyran-4-yloxy)benzamide Deposited 2016-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.05 Å R-free 0.218
5LVR Crystal structure of human PCAF bromodomain in complex with compound-E (CPD-E) Deposited 2016-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 715–831（117 aa） Chain B 715–831（117 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 6 78Y 5-methyl-2-phenyl-1,2,3-triazole-4-carboxamide × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；21-35% PEG 3350, 0.1 M Bis-Tris pH 5.5-7.0 or 21-40% medium-molecular-weight PEG smears (MMW PEG smears) buffered either with 0.1 M Bis-Tris pH 6.0-7.5 or 0.1 M Tris pH 7.5-8.8	Resolution 2.05 Å R-free 0.204
5MKX 1.68A STRUCTURE PCAF BROMODOMAIN WITH 4-chloro-2-methyl-5-(methylamino)pyridazin-3(2H)-one Deposited 2016-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa）	Not recorded	82I 4-chloranyl-2-methyl-5-(methylamino)pyridazin-3-one × 1 SO4 SULFATE ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；Morpheus condition 37	Resolution 1.68 Å R-free 0.206
5MKX 1.68A STRUCTURE PCAF BROMODOMAIN WITH 4-chloro-2-methyl-5-(methylamino)pyridazin-3(2H)-one Deposited 2016-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa）	Not recorded	82I 4-chloranyl-2-methyl-5-(methylamino)pyridazin-3-one × 1 BU1 1,4-BUTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；Morpheus condition 37	Resolution 1.68 Å R-free 0.206
6J3O Crystal structure of the human PCAF bromodomain in complex with compound 12 Deposited 2019-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 715–831（117 aa）	Not recorded	B4L 3-methyl-2-[[(3~{R})-1-methylpiperidin-3-yl]amino]-5~{H}-pyrrolo[3,2-d]pyrimidin-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM HEPES pH 8.2, 26% PEG10000 (v/v), 4% glycol	Resolution 2.11 Å R-free 0.257
6J3O Crystal structure of the human PCAF bromodomain in complex with compound 12 Deposited 2019-01-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 715–831（117 aa）	Not recorded	B4L 3-methyl-2-[[(3~{R})-1-methylpiperidin-3-yl]amino]-5~{H}-pyrrolo[3,2-d]pyrimidin-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM HEPES pH 8.2, 26% PEG10000 (v/v), 4% glycol	Resolution 2.11 Å R-free 0.257

24 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PCAF_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–118； UniProt 719–832

Histone H3

Saccharomyces cerevisiae

UniProt P61830

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2–16	Fragment：UNP residues 2-16 Non-standard monomer：Yes (specific site not provided by mmCIF)	Histone acetyltransferase PCAF × 1 （Q92831）	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Pressure ambient NMR sample composition：0.5 mM [U-100% 13C; U-100% 15N] potassium phosphate, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2RNW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ID3 CRYSTAL STRUCTURE OF THE YEAST NUCLEOSOME CORE PARTICLE REVEALS FUNDAMENTAL DIFFERENCES IN INTER-NUCLEOSOME INTERACTIONS Deposited 2001-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–135（135 aa） Chain E 1–135（135 aa）	Not recorded	MN MANGANESE (II) ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；Manganese chloride, Potassium chloride, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 3.10 Å R-free 0.292
1QSN CRYSTAL STRUCTURE OF TETRAHYMENA GCN5 WITH BOUND COENZYME A AND HISTONE H3 PEPTIDE Deposited 1999-06-22	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 10–20（11 aa） Fragment：11 MER PEPTIDE (RESIDUES 9 - 19)	Not recorded	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；TRIS, AMMONIUM SULFATE, MANGANESE CHLORIDE, pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 298.00K	Resolution 2.20 Å R-free 0.266
2H2G The Structural Basis of Sirtuin substrate affinity Deposited 2006-05-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 113–123（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293.15 K；20% PEG, pH 9.6, VAPOR DIFFUSION, HANGING DROP, pH 7.5, temperature 293.15K	Resolution 1.63 Å R-free 0.226
2H2G The Structural Basis of Sirtuin substrate affinity Deposited 2006-05-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 113–123（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293.15 K；20% PEG, pH 9.6, VAPOR DIFFUSION, HANGING DROP, pH 7.5, temperature 293.15K	Resolution 1.63 Å R-free 0.226
2IDC Structure of the Histone H3-Asf1 Chaperone Interaction Deposited 2006-09-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 122–135（14 aa） Fragment：Asf1, residues 2-155 and H3, residues 121-134	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；Tris-HCl, Li2SO4, PEG 4000, glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.20 Å R-free 0.239
2JMJ NMR solution structure of the PHD domain from the yeast YNG1 protein in complex with H3(1-9)K4me3 peptide Deposited 2006-11-15	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 2–10（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 7.5；20 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 0.52 mM [U-15N] YNG1_PHD, 2.5 mM H3(1-9)K4me3, 2 mM DTT, 50 mM potassium chloride, 20 mM sodium phosphate, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.48 mM [U-13C; U-15N] YNG1_PHD, 2.5 mM H3(1-9)K4me3, 2 mM DTT, 50 mM potassium chloride, 20 mM sodium phosphate, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2RNX The Structural Basis for Site-Specific Lysine-Acetylated Histone Recognition by the Bromodomains of the HUman Transcriptional Co-Activators PCAF and CBP Deposited 2008-02-03	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 32–43（12 aa） Fragment：UNP residues 32-43	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] potassium phosphate, 100% D2O \| 100% D2O	Resolution not provided
3Q33 Structure of the Rtt109-AcCoA/Vps75 Complex and Implications for Chaperone-Mediated Histone Acetylation Deposited 2010-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–14（14 aa） Fragment：unp residues 1-14	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACO ACETYL COENZYME A × 2 EDO* 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；298 K；10.0% (v/v) PEG 8000 8% (v/v) ethylene glycol 100 mM Hepes, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 7.5	Resolution 2.80 Å R-free 0.255
4JJN Crystal structure of heterochromatin protein Sir3 in complex with a silenced yeast nucleosome Deposited 2013-03-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain A 2–136（135 aa） Chain E 2–136（135 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.05 M sodium cacodylate, 32% 2-methyl-2,4-pentanediol (MPD), pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.09 Å R-free 0.255
4KUD Crystal structure of N-terminal acetylated Sir3 BAH domain D205N mutant in complex with yeast nucleosome core particle Deposited 2013-05-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；289 K；16% PEG 400, 0.1M KCl, 0.01M CaCl2, 0.05M sodium citrate(pH4.8), VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.237
4PSX Crystal structure of histone acetyltransferase complex Deposited 2014-03-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Y 2–16（15 aa） Fragment：UNP residues 2-16	Not recorded	COA COENZYME A × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.2M potassium sodium tartrate, 20%(w/v) polyethylene glycol 3,350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.51 Å R-free 0.223
4PSX Crystal structure of histone acetyltransferase complex Deposited 2014-03-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 2–16（15 aa） Fragment：UNP residues 2-16	Not recorded	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.2M potassium sodium tartrate, 20%(w/v) polyethylene glycol 3,350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.51 Å R-free 0.223
5ZBA Crystal structure of Rtt109-Asf1-H3-H4-CoA complex Deposited 2018-02-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–136（136 aa）	Not recorded	COA COENZYME A × 1 IOD IODIDE ION × 37	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100mM sodium citrate, pH 5.0, 22% PEG 1500, 400mM sodium iodide	Resolution 3.50 Å R-free 0.294
5ZBB Crystal structure of Rtt109-Asf1-H3-H4 complex Deposited 2018-02-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–136（136 aa）	Not recorded	IOD IODIDE ION × 23 PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100mM sodium citrate, pH 5.0, 22% PEG 1500, 400mM sodium iodide	Resolution 3.60 Å R-free 0.264
6GEJ Chromatin remodeller-nucleosome complex at 3.6 A resolution. Deposited 2018-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6GEN Chromatin remodeller-nucleosome complex at 4.5 A resolution. Deposited 2018-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6J2P Crystal structure of Saccharomyces cerevisiae Spp1 in complex with H3K4me3 Deposited 2019-01-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 2–8（7 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M ammonium sulfate, 20% PEG3350, 0.1 M HEPES ph 7.5	Resolution 2.85 Å R-free 0.288
6J2P Crystal structure of Saccharomyces cerevisiae Spp1 in complex with H3K4me3 Deposited 2019-01-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 2–8（7 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M ammonium sulfate, 20% PEG3350, 0.1 M HEPES ph 7.5	Resolution 2.85 Å R-free 0.288
6J2P Crystal structure of Saccharomyces cerevisiae Spp1 in complex with H3K4me3 Deposited 2019-01-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 2–8（7 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M ammonium sulfate, 20% PEG3350, 0.1 M HEPES ph 7.5	Resolution 2.85 Å R-free 0.288
6J2P Crystal structure of Saccharomyces cerevisiae Spp1 in complex with H3K4me3 Deposited 2019-01-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 2–8（7 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M ammonium sulfate, 20% PEG3350, 0.1 M HEPES ph 7.5	Resolution 2.85 Å R-free 0.288
6KMJ Crystal structure of Sth1 bromodomain in complex with H3K14Ac Deposited 2019-07-31	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 7–22（16 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1% w/v tryptone, 1 mM sodium azide, 50 mM HEPES sodium pH 7.0, 20% w/v PEG 3350	Resolution 1.40 Å R-free 0.188
7E9C Cryo-EM structure of the 1:1 Orc1 BAH domain in complex with nucleosome Deposited 2021-03-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain A 1–134（134 aa） Chain E 1–134（134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7E9F Cryo-EM structure of the 2:1 Orc1 BAH domain in complex with nucleosome Deposited 2021-03-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain A 1–134（134 aa） Chain E 1–134（134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7F4A Crystal structure of Taf14 YEATS domain in complex with H3K9bz peptide Deposited 2021-06-18	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 6–14（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；48% PEG 600, 0.04M citric acid	Resolution 2.00 Å R-free 0.204
7F4E Crystal structure of Hst2 in complex with H3K9bz peptide Deposited 2021-06-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 6–15（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；25% (w/v) PEG 1500, 0.1M MMT/Sodium hydroxide	Resolution 1.78 Å R-free 0.216
7K7G nucleosome and Gal4 complex Deposited 2020-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7UQJ Cryo-EM structure of the S. cerevisiae chromatin remodeler Yta7 hexamer bound to ATPgS and histone H3 tail in state II Deposited 2022-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 1–25（25 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 MG MAGNESIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；Solution was made fresh and detergent was added to solve preference orientation issue. cryo-EM vitrification conditions Cryogen ETHANE；Blot 3S, blot forth 3	Resolution 3.00 Å
7XAY Crystal structure of Hat1-Hat2-Asf1-H3-H4 Deposited 2022-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 2–136（135 aa）	Not recorded	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；100 mM Bis-Tris propane, pH 6.5, 20% PEG-3350, and 200 mM sodium nitrate	Resolution 3.30 Å R-free 0.256
7Z0O Structure of transcription factor UAF in complex with TBP and 35S rRNA promoter DNA Deposited 2022-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–136（136 aa） Chain C 1–136（136 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8GHN Composite model of the yeast Hir Complex with Asf1/H3/H4 Deposited 2023-03-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: 15-meric	Chain M 1–136（136 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
8QKU SWR1-nucleosome complex in configuration 1 Deposited 2023-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8QKV SWR1-nucleosome complex in configuration 2 Deposited 2023-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
8QYV SWR1-hexasome complex Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 19-meric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Mutation：Q120M, K121P, K125Q Mutation：Q120M, K121P, K125Q	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8QZ0 SWR1-hexasome-dimer complex Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Mutation：Q120M, K121P, K125Q Mutation：Q120M, K121P, K125Q	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9CAU DeltaArp8 INO80 bound to S.c 0/40 nucleosome, Nucleosome Deposited 2024-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 4.18 Å
9CB7 DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, Ino80-Nucleosome Deposited 2024-06-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 4.04 Å
9FBW SWR1 lacking Swc5 subunit in complex with hexasome Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric	Chain A 1–136（136 aa） Chain B 1–136（136 aa）	Mutation：Q120M, K121P, K125Q Mutation：Q120M, K121P, K125Q	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å
9UUS The NuA3 histone acetyltransferase complex bound to acetyl-CoA and H3 tail Deposited 2025-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain H 2–22（21 aa）	Not recorded	ZN ZINC ION × 5 ACO ACETYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

37 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H3_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–15； UniProt 2–16

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

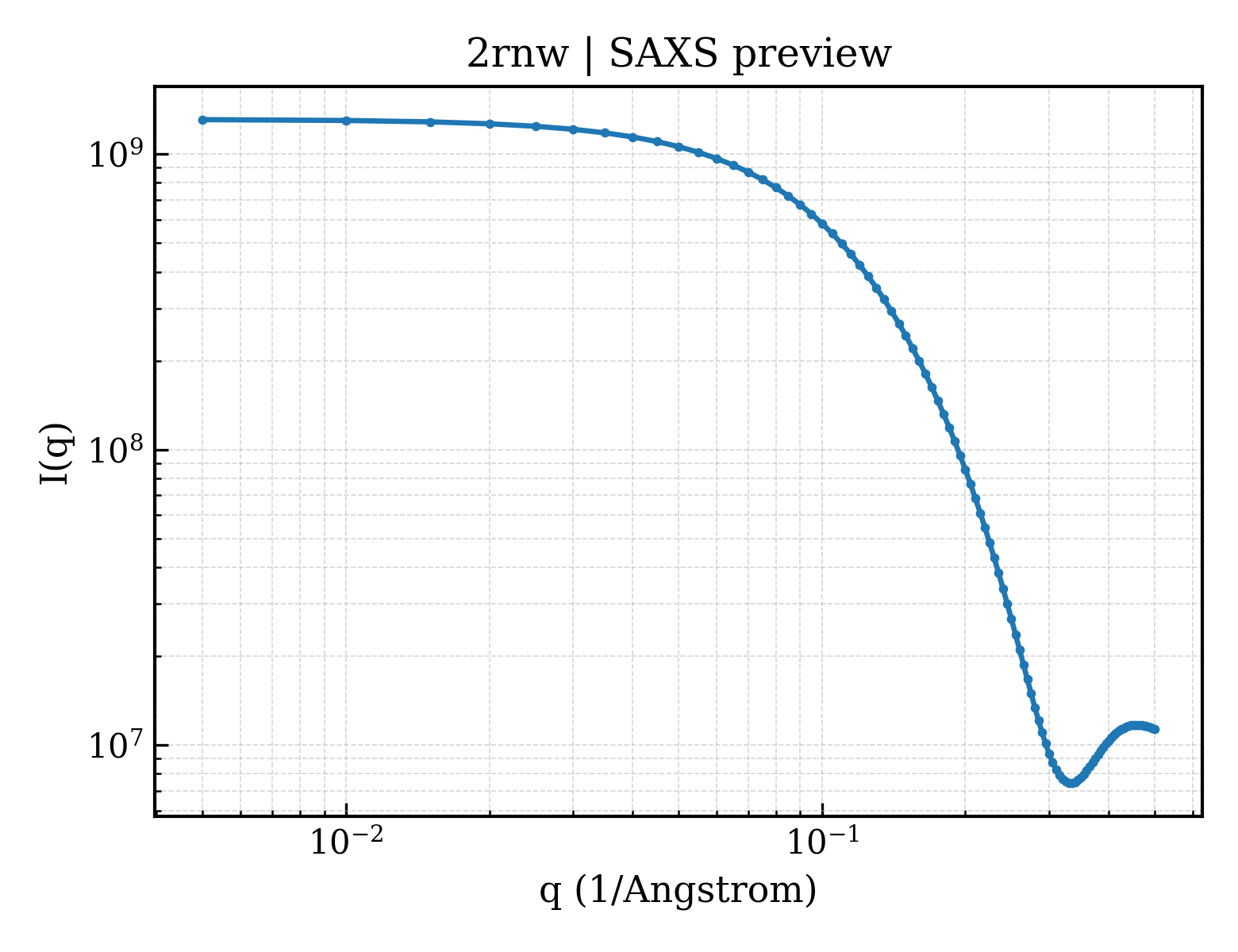

SAXS scattering curve SAXS Profile

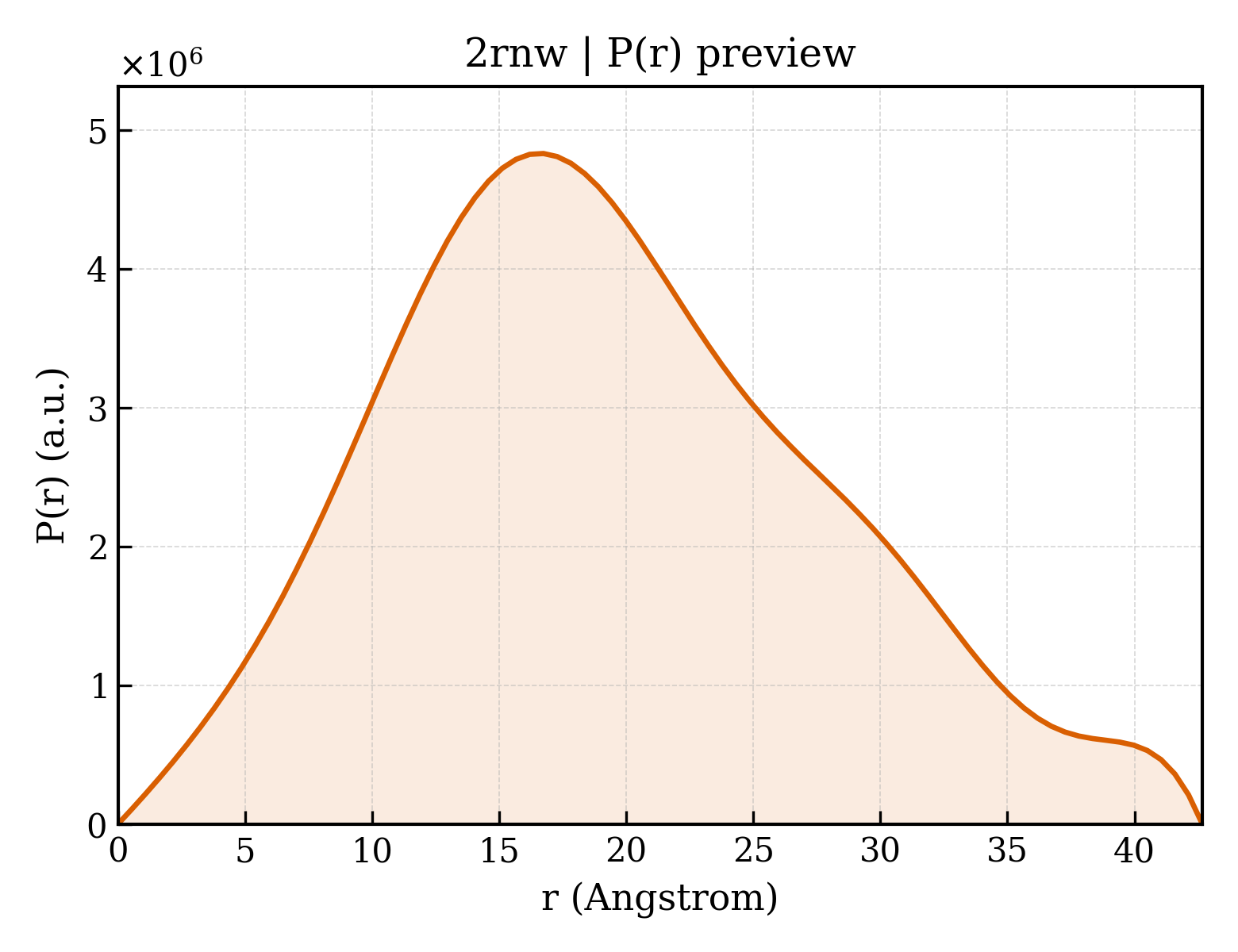

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2rnw
Deposition date deposition_date	2008-02-03
Structure title title	The Structural Basis for Site-Specific Lysine-Acetylated Histone Recognition by the Bromodomains of the Human Transcriptional Co-Activators PCAf and CBP
Keywords keywords	;bromodomain, histone, acetyltransferase, Acyltransferase, Cell cycle, Host-virus interaction, Nucleus, Polymorphism, Transcription, Transcription regulation, Acetylation, Chromosomal protein, DNA damage, DNA repair, DNA-binding, Methylation, Nucleosome core, Phosphoprotein, TRANSFERASE-NUCLEAR PROTEIN COMPLEX ;; TRANSFERASE/NUCLEAR PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.93 Å
Radius of gyration Rg (electron density) rg_electron	15.50 Å
Forward intensity I(0) i0	1311650000.00
Molecular weight molecular_weight	312860.0 kDa
Excluded volume excluded_volume	394000 Å³
Envelope volume envelope_volume	43933 Å³
Hydration-shell volume shell_volume	18252 Å³
Envelope diameter envelope_diameter	77.9 Å
Shell Rg shell_rg	27.25 Å
Envelope Rg envelope_rg	22.13 Å
Shape Rg shape_rg	15.46 Å
Total Rg total_rg	15.87 Å
Total atoms total_atoms	44220
Residues n_residues	2640
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	42.7 Å
Rg (real space) rg_real	14.90 Å
Rg uncertainty (real space) rg_real_error	0.07 Å
I(0) (real space) i0_real	1.2470e+09
I(0) uncertainty (real space) i0_real_error	1.0560e+07
Rg (reciprocal space) rg_reciprocal	16.08 Å
I(0) (reciprocal space) i0_reciprocal	1312000000.0000
Solution quality estimate total_estimate	0.6804
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	16.7 Å
Skewness Skewness skewness	0.352
Kurtosis Kurtosis kurtosis	-0.352
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	3.3390
Highest regularization parameter α highest_alpha	672200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.006; Oscil: 0.962; Stabil: 0.986; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Histone acetyltransferase PCAF
Molecular weight formula_weight	14052.2 kDa
EC 编号 ec_number	2.3.1.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	44220

GSHMSKEPRDPDQLYSTLKSILQQVKSHQSAWPFMEPVKRTEAPGYYEVIRFPMDLKTMSERLKNRYYVSKKLFMADLQRVFTNCKEYNPPESEYYKCANILEKFFFSKIKEAGLIDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H3
Molecular weight formula_weight	1606.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ARTKQTARKSTGGKA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2rnwa2
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.2 — Bromodomain
Family Family family	a.29.2.1 — Bromodomain

Domain ID domain_id	d2rnwa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2rnwA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/rn/2rnw/2rnw.fit
pddf	/app/data/pr_computation/rn/2rnw/2rnw.pr.out
profile	/app/data/saxs_computation/rn/2rnw/2rnw.dat

The Structural Basis for Site-Specific Lysine-Acetylated Histone Recognition by the Bromodomains of the Human Transcriptional Co-Activators PCAf and CBP

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone acetyltransferase PCAF

State in the Current Structure

Other States of the Same Protein in the Database

Histone H3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
