8ghn

Composite model of the yeast Hir Complex with Asf1/H3/H4

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein HIR1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR2 × 4 （P32480） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 4 （Q01448） Histone H3 × 1 （P61830） Histone H4 × 1 （P02309） Histone chaperone × 1 （A0A6L0YDQ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HIR1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–840； UniProt 1–840 Author chain G； PDBConstruct 1–840； UniProt 1–840

Protein HIR2

OrganismNot specified

UniProt P32480

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR1 × 2 （P32479） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 4 （Q01448） Histone H3 × 1 （P61830） Histone H4 × 1 （P02309） Histone chaperone × 1 （A0A6L0YDQ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HIR2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–875； UniProt 1–875 Author chain C； PDBConstruct 1–875； UniProt 1–875 Author chain H； PDBConstruct 1–875； UniProt 1–875 Author chain I； PDBConstruct 1–875； UniProt 1–875

Histone transcription regulator 3

OrganismNot specified

UniProt P47171

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR1 × 2 （P32479） Protein HIR2 × 4 （P32480） Histone promoter control protein 2 × 4 （Q01448） Histone H3 × 1 （P61830） Histone H4 × 1 （P02309） Histone chaperone × 1 （A0A6L0YDQ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HIR3_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–1648； UniProt 1–1648 Author chain J； PDBConstruct 1–1648； UniProt 1–1648

Histone promoter control protein 2

OrganismNot specified

UniProt Q01448

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR1 × 2 （P32479） Protein HIR2 × 4 （P32480） Histone transcription regulator 3 × 2 （P47171） Histone H3 × 1 （P61830） Histone H4 × 1 （P02309） Histone chaperone × 1 （A0A6L0YDQ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HPC2_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–625； UniProt 1–625 Author chain F； PDBConstruct 1–625； UniProt 1–625 Author chain K； PDBConstruct 1–625； UniProt 1–625 Author chain L； PDBConstruct 1–625； UniProt 1–625

Histone H3

Saccharomyces cerevisiae

UniProt P61830

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR1 × 2 （P32479） Protein HIR2 × 4 （P32480） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 4 （Q01448） Histone H4 × 1 （P02309） Histone chaperone × 1 （A0A6L0YDQ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H3_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain M； PDBConstruct 1–136； UniProt 1–136

Histone H4

Saccharomyces cerevisiae

UniProt P02309

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR1 × 2 （P32479） Protein HIR2 × 4 （P32480） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 4 （Q01448） Histone H3 × 1 （P61830） Histone chaperone × 1 （A0A6L0YDQ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain N； PDBConstruct 1–103； UniProt 1–103

Histone chaperone

Saccharomyces cerevisiae

UniProt A0A6L0YDQ7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Protein HIR1 × 2 （P32479） Protein HIR2 × 4 （P32480） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 4 （Q01448） Histone H3 × 1 （P61830） Histone H4 × 1 （P02309）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6L0YDQ7_YEASX
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain O； PDBConstruct 1–279； UniProt 1–279

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ghn
Deposition date deposition_date	2023-03-10
Structure title title	Composite model of the yeast Hir Complex with Asf1/H3/H4
Keywords keywords	Histone, Complex, Replication-Independent, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ghn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ghn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

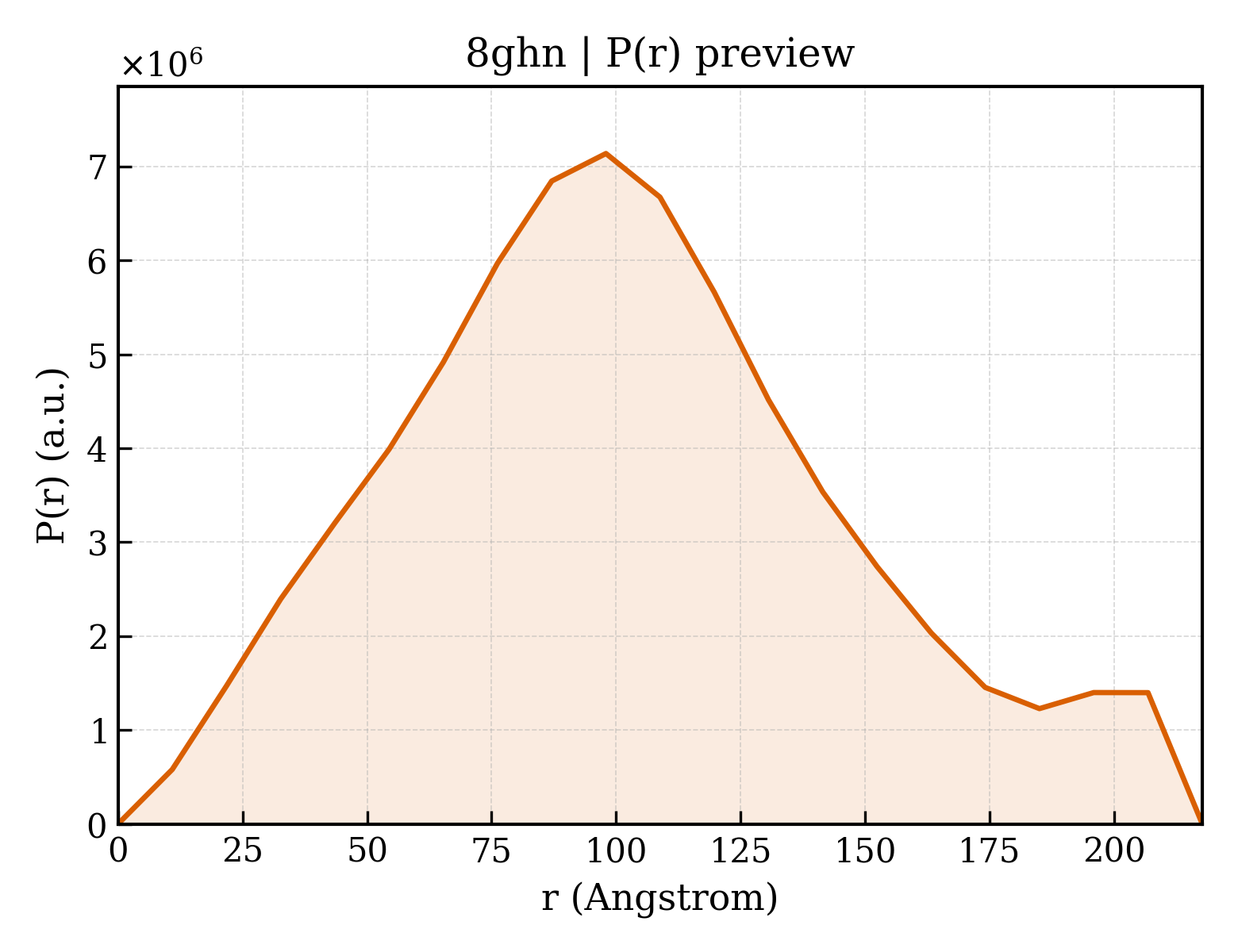

8ghn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	79.85 Å
Rg (electron density)	80.00 Å
Total Rg	79.85 Å
Atom count	59784
Residues	7401
Excluded volume	1072100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ghn__assembly_1__model_1`	15-meric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Protein HIR1
Molecular weight formula_weight	93983.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	59784

MKVVKFPWLAHREESRKYEIYTVDVSHDGKRLATGGLDGKIRIWSIDSILRCMELESLTPEIPLPQDLQMPLCSMSRHTGSITCVKFSPDGKYLASGSDDRILLIWALDEEQSSQPAFGSEHEREHWTVRKRLVAHDNDIQDICWAPDSSILVTVGLDRSVIVWNGSTFEKLKRFDVHQSLVKGVVFDPANKYFATTSDDRTMKIFRYHKTGDISFTIEHIITEPFKESPLTTYFRRPSWSPDGQHIAVPNATNGPVSSVAIVNRGTWDTNVSLIGHDAPTEVARFNPRLFERNAGVKQKKDDDPENALVGQNDDKVHHFDKNIDSVVATAGQDKSLAVWSTSRPRPILVAFDIANKSITDMSWNPDGSLLFVASLDSSITLFKFENNELGKPIPLEKNMEQLYRYGVDKDSLDFPESINQLLLEDQTKSFKHTKISTSKLGENHPTLATNSASNQKDNNDASVSRSEHINILIPKRKKDAILNKAVTLKSGKKRVAPTLISTSSSSPFSNGIKKPTLDSKRIENNVKSSTKTINSKNTLLNVPEGVEKKISISSFPLPRLGIHSLIMGTKERSAWKISNSELENDDADNAGGKGSDGTSNSIDDIAVLSEEENDFHRMTLNAKLTQEKIWSEEPTTRCLLQSDVIPDTDVVVLEGGSLDDIAVLEIRNGVERSIQFDSEALLDNPTRILGYQGGKRTIETFIPEVIICAIGSKDCKCWCLASANGSIYILSYNGQQRIPKICLGHKVIKMVTSSKYLLVLTERGLFFAWDLLDLKLVLRNVPILPILNGQPIHGNKVRINKVIKCFRLDGSSCDLLLEVGDPKNVYKWTKDLGCWSLYK

Entity 2 Entity 2 polymer

Description description	Protein HIR2
Molecular weight formula_weight	98553.6 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,H,I

MRLLKYPLDIHNEQVNALAALGPYIILAGSGGHVMAWRQQQLVDTAFDRVMIKDLKPEVSFQVDQDTTGDIFFITGDLETLYIGSEHRLWGYSGWLCRDTNNINSVEKMNSKLLFECKSPSTITDVKYDINLGILFVLLSNENKILLFRHKTFDKLSEITIDKASKPITGIIDPTGQTFTVMTSDRSILVYQINKTGTHKLINKLTQHVQMYPLHYRISMSPQADILPVINSVKGVPNNATSCTALLDRNNNYKVTKTLVTPSSNGCRVLVYSPAFYEKPNLKKGTSTRYNLIATSGSTDGTILVWNTKRMKPLFNALQVSSTAINDMSWSQDGFTLFAISNDATLYTFAFQEKDLGVALPQTEIKSLQEVNKKLPKLEEPLAEQIPKSFPENIKLEESASAAPIPNDIGRSAVGKKPTKKKTANNQTNGIKTIQSTSMEFNTPSYTVPRDLKRKPKEATPSNIAPGSKKQKKELQPIDFLDTGLLLPNTSFSRIRLATPKIRSTFKYSPINNPNLILDVKNGSGNEQRPTIVKLTSKVLDQDQVLFQDFIPKLITICTAGDTFWSFCSEDGSIYIYSDSGRKLMAPLVLGVSISFLEACGTYLLCLTSIGELYCWNIEQKKLAFPTNTIYPLLNPSLRYSDDILTRAENITLCSITKKGVPLVTLSNGDGYLFDKNMETWLLVSDGWWAYGSQYWDTTNTTGLSSSKANTDSFNGSESNINEIVSDIKNDNQSIINFLECKTNDELNRKGRIKNLQRFARTILMKEGFENMEEIVTLSHLENKILISIRLEEPEEFSKLMMVYCIRLSELGYMDRLNDVFQWLYDDLPISGTGSAFADKDFKRNLLKKILIACGDIRQVQRVTTRYAKEMNIIS

Entity 3 Entity 3 polymer

Description description	Histone transcription regulator 3
Molecular weight formula_weight	191915.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,J

MSMFNALNSNIEGEQYEAEEHSRELQIEQSFNILQDALIDLKNKDFEKSDSKFQELFQIDVVKPDRWGMYRNSSPTLDNLRYLCYRNRGMYYHLYLENNYERLNSQELVNCILKAVENLVESIQHSDADFAVTDLLARIFKSFNSVKLERLISEYEFTKQENLSLLLGRHRKFLLNDLTLMMNNYVELTNKLLVPNLSDNTIFERYHLEKYKDIKPEPLAFGPILSRISEMKKQDEEIMKKLDVFNVTLNEESWDEVAKALKNLLPSVKTSSLIGRNMDPYNEIEEPIEAVKFELSEAINNTPSLDRESERQEEEQDNESVRADDKSGNLAPSDIQTNEEARPNKRTDEHIDSTKPLQRSSKRFKEREQENSKELVMDVHKRFFGEFNTLLSYIHILPFCDFDTFASKFIIGSSDKQPEKFIPYTDLYECLKSWSSRYTDIFNQNDYLSSGSNENEELFQLNALLKSNAFDDKESFPRYLNDLDSDHIRSFISEVNAGNLHFHQVRLKLLFKLLGTYDEGNGRRLIIDYLWESQLLKIVLWFVFGIESNIFALINKNKRQCKYLALSIYELLVNHLGNIVEEITNKRIQGHKSADLKSQRNKVEKRIRSWHTLLEQIADEKDKELYVHFQWTHYCFLQYTCDIVDSRLSETLTSLENTIKDSDSSLDIAYPNYRHIPALNLNTVQSQKRKIRIIQNITVEDISEDTNSDTHSENHLETLEKVLLHILHPSTNHSNIDEEMVSFIFNSPFLLKIRLWGVLFSSYVKKSSIQDVQRIYFHVLDFMKGALTSPVYKESNPHGRHQMLLTVLTAIGYLSSQLTAILNSNRWESSDFVLEDYMFEKLLQTFFFFYTVLFYESSAVNDVSNKSFFKRASKSSGKMKDIMIDLATLILYYYDLQAKLRTPAEQGIETTELIWSLHTLFGHFHFCDASNGKFLDLAEKLLCQFINNDSFLQLKQILWCRYHYAIASDNFSPDLHDTKAVEMEKIHSLPLGTYLIKLQYQNKNPYLSSSKTTLKQIMDNIIEKIGDPSTLDNHIISRNSFLLNEYLSRPITADLLKHTFSGATSLYLTSPNDELQQGMTAGLFYVSSLQSLGLYKMRKKSMQARPSELDSIIRMLKNDIIYNTNRFESWILLGKCYSYIVEDDLIWTSDKITVPEKKDVIALTQRKAILCYLMAISIYYSKLDRTIDDKKIILEALDDLGSMLISGYYNPMNKLCFSWKSSAENTMRLSETGEVVMEKTKKITTISDFNIEQSIFLCFNRACSLSGDIKSQDDVFVLNWSSFYNLAKFFFKTDGGNNCKLVAKYITQGCQIAYESSPAKDPIIEPHYLLVNACYKWVKRGVIGVNEALTLLSKDNQFFQEQEEFWVNDEGLAWDYQEKFFFDKIIRLLRHLLSVDKKKWQHRPRYRIARILFDDLGDVNGALEEMDSLISAKSINKNLVNIWKPDFERPGKHFIYTYQYLVLYLDLLFAIKDFNTTGLVIKKLRRFGSGTVNVNELLERAINVYTQSAKIKLQLQDKSYVEQILPTLNYQEFLKISEQLNQVFDQGKYPEEISSGLKLAFQLKKGHSGIAFDSVCLGIYFEYLYFPLARQDQSLTDVNDENNPALPSSGSVTSKSTPDPTSKPSAIKKRVTKKEVFDRVRLLVDKIT

Entity 4 Entity 4 polymer

Description description	Histone promoter control protein 2
Molecular weight formula_weight	67877.4 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,K,L

MDQKAIVLDNSKSGSKQTKSSGKMQTQTDTNAEVLNTDNSIKKETGSDSEDLFNKFSNKKTNRKIPNIAEELAKNRNYVKGASPSPIIISGSSSTSPSGPSSSSTNPMGIPTNRFNKNTVELYQHSPSPVMTTNKTDTEEKRQNNRNMDNKNTPERGSSSFAAKQLKISSLLTISSNEDSKTLHINDTNGNKNSNAASNNIPSAYAELHTEGNSIESLIKPPSSPRNKSLTPKVILPTQNMDGTIAKDPHLGDNTPGILIAKTSSPVNLDVESTAQSLGKFNKSTNSLKAALTKAPAEKVSLKRSISSVTNSDSNISSSKKPTSEKAKKSSSASAILPKPTTTKTSKKAASNSSDSTRKKNASNKTTSAIKKESNAGSKLNTVKKENSSLSSIKATEKEKDKGGNSTEAKNSTSNVRKEPTAKSPKRLVAAPTVSPPKILQTAETKAKEPSILIDVPLYQADTNDYLDENGQVIFNLSTLIKEKYHPKSKELAQLKDSKRNLLMQLSDHSNGSLEKEKDEEGDVIELDDDEDMEEDEGEIDTETNTVTTTISPKKKSHPMKGKNLIGKYDVEDPFIDDSELLWEEQRAATKDGFFVYFGPLIEKGHYASLERANGTMKRGGVKNK

Entity 5 Entity 5 polymer

Description description	Histone H3
Molecular weight formula_weight	15391.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MARTKQTARKSTGGKAPRKQLASKAARKSAPSTGGVKKPHRYKPGTVALREIRRFQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAIGALQESVEAYLVSLFEDTNLAAIHAKRVTIQKKDIKLARRLRGERS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Histone H4
Molecular weight formula_weight	11395.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MSGRGKGGKGLGKGGAKRHRKILRDNIQGITKPAIRRLARRGGVKRISGLIYEEVRAVLKSFLESVIRDSVTYTEHAKRKTVTSLDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Histone chaperone
Molecular weight formula_weight	31629.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MSIVSLLGIKVLNNPAKFTDPYEFEITFECLESLKHDLEWKLTYVGSSRSLDHDQELDSILVGPVPVGVNKFVFSADPPSAELIPASELVSVTVILLSCSYDGREFVRVGYYVNNEYDEEELRENPPAKVQVDHIVRNILAEKPRVTRFNIVWDNENEGDLYPPEQPGVDDEEEEDDEEEDDDEDDEDDEDDDQEDGEGEAEEAAEEEEEEEEKTEDNETNLEEEEEDIENSDGDEEEGEEEVGSVDKNEDGNDKKRRKIEGGSTDIESTPKDAARSTN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.96 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	639629
