SAXSdb — 8ghm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein HIR1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Histone H3 × 1 （A0A6A5Q536） Histone H4 × 1 （A0A6A5Q1V3） Histone chaperone × 1 （A0A6L0YDQ7） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 2 （Q01448）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HIR1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–840； UniProt 1–840 Author chain G； PDBConstruct 1–840； UniProt 1–840

Histone H3

Saccharomyces cerevisiae

UniProt A0A6A5Q536

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Protein HIR1 × 2 （P32479） Histone H4 × 1 （A0A6A5Q1V3） Histone chaperone × 1 （A0A6L0YDQ7） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 2 （Q01448）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A5Q536_YEASX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain M； PDBConstruct 1–136； UniProt 1–136

Histone H4

Saccharomyces cerevisiae

UniProt A0A6A5Q1V3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Protein HIR1 × 2 （P32479） Histone H3 × 1 （A0A6A5Q536） Histone chaperone × 1 （A0A6L0YDQ7） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 2 （Q01448）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A5Q1V3_YEASX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain N； PDBConstruct 1–103； UniProt 1–103

Histone chaperone

Saccharomyces cerevisiae

UniProt A0A6L0YDQ7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Protein HIR1 × 2 （P32479） Histone H3 × 1 （A0A6A5Q536） Histone H4 × 1 （A0A6A5Q1V3） Histone transcription regulator 3 × 2 （P47171） Histone promoter control protein 2 × 2 （Q01448）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6L0YDQ7_YEASX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain O； PDBConstruct 1–279； UniProt 1–279

Histone transcription regulator 3

OrganismNot specified

UniProt P47171

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Protein HIR1 × 2 （P32479） Histone H3 × 1 （A0A6A5Q536） Histone H4 × 1 （A0A6A5Q1V3） Histone chaperone × 1 （A0A6L0YDQ7） Histone promoter control protein 2 × 2 （Q01448）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HIR3_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 1–1648； UniProt 1–1648 Author chain J； PDBConstruct 1–1648； UniProt 1–1648

Histone promoter control protein 2

OrganismNot specified

UniProt Q01448

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Protein HIR1 × 2 （P32479） Histone H3 × 1 （A0A6A5Q536） Histone H4 × 1 （A0A6A5Q1V3） Histone chaperone × 1 （A0A6L0YDQ7） Histone transcription regulator 3 × 2 （P47171）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HPC2_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–625； UniProt 1–625 Author chain L； PDBConstruct 1–625； UniProt 1–625

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ghm
Deposition date deposition_date	2023-03-10
Structure title title	Hir1 WD40 domains and Asf1/H3/H4
Keywords keywords	Histone, Complex, Replication-Independent, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ghm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ghm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

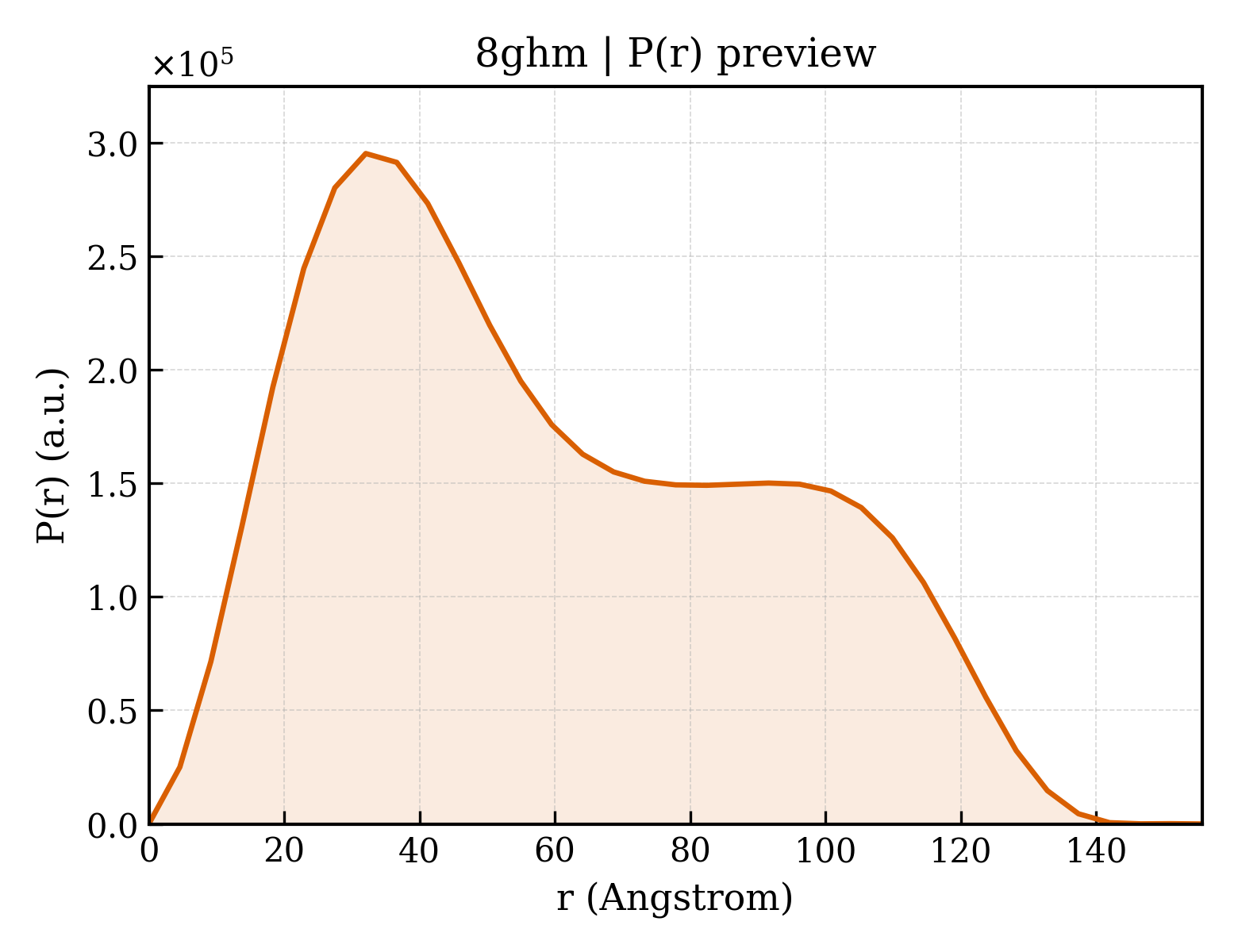

8ghm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.96 Å
Rg (electron density)	47.39 Å
Total Rg	47.40 Å
Atom count	9589
Residues	1198
Excluded volume	170880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ghm__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Protein HIR1
Molecular weight formula_weight	93983.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	9589

MKVVKFPWLAHREESRKYEIYTVDVSHDGKRLATGGLDGKIRIWSIDSILRCMELESLTPEIPLPQDLQMPLCSMSRHTGSITCVKFSPDGKYLASGSDDRILLIWALDEEQSSQPAFGSEHEREHWTVRKRLVAHDNDIQDICWAPDSSILVTVGLDRSVIVWNGSTFEKLKRFDVHQSLVKGVVFDPANKYFATTSDDRTMKIFRYHKTGDISFTIEHIITEPFKESPLTTYFRRPSWSPDGQHIAVPNATNGPVSSVAIVNRGTWDTNVSLIGHDAPTEVARFNPRLFERNAGVKQKKDDDPENALVGQNDDKVHHFDKNIDSVVATAGQDKSLAVWSTSRPRPILVAFDIANKSITDMSWNPDGSLLFVASLDSSITLFKFENNELGKPIPLEKNMEQLYRYGVDKDSLDFPESINQLLLEDQTKSFKHTKISTSKLGENHPTLATNSASNQKDNNDASVSRSEHINILIPKRKKDAILNKAVTLKSGKKRVAPTLISTSSSSPFSNGIKKPTLDSKRIENNVKSSTKTINSKNTLLNVPEGVEKKISISSFPLPRLGIHSLIMGTKERSAWKISNSELENDDADNAGGKGSDGTSNSIDDIAVLSEEENDFHRMTLNAKLTQEKIWSEEPTTRCLLQSDVIPDTDVVVLEGGSLDDIAVLEIRNGVERSIQFDSEALLDNPTRILGYQGGKRTIETFIPEVIICAIGSKDCKCWCLASANGSIYILSYNGQQRIPKICLGHKVIKMVTSSKYLLVLTERGLFFAWDLLDLKLVLRNVPILPILNGQPIHGNKVRINKVIKCFRLDGSSCDLLLEVGDPKNVYKWTKDLGCWSLYK

Entity 2 Entity 2 polymer

Description description	Histone H3
Molecular weight formula_weight	15391.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MARTKQTARKSTGGKAPRKQLASKAARKSAPSTGGVKKPHRYKPGTVALREIRRFQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAIGALQESVEAYLVSLFEDTNLAAIHAKRVTIQKKDIKLARRLRGERS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H4
Molecular weight formula_weight	11395.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MSGRGKGGKGLGKGGAKRHRKILRDNIQGITKPAIRRLARRGGVKRISGLIYEEVRAVLKSFLESVIRDSVTYTEHAKRKTVTSLDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone chaperone
Molecular weight formula_weight	31629.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MSIVSLLGIKVLNNPAKFTDPYEFEITFECLESLKHDLEWKLTYVGSSRSLDHDQELDSILVGPVPVGVNKFVFSADPPSAELIPASELVSVTVILLSCSYDGREFVRVGYYVNNEYDEEELRENPPAKVQVDHIVRNILAEKPRVTRFNIVWDNENEGDLYPPEQPGVDDEEEEDDEEEDDDEDDEDDEDDDQEDGEGEAEEAAEEEEEEEEKTEDNETNLEEEEEDIENSDGDEEEGEEEVGSVDKNEDGNDKKRRKIEGGSTDIESTPKDAARSTN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Histone transcription regulator 3
Molecular weight formula_weight	191915.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,D

MSMFNALNSNIEGEQYEAEEHSRELQIEQSFNILQDALIDLKNKDFEKSDSKFQELFQIDVVKPDRWGMYRNSSPTLDNLRYLCYRNRGMYYHLYLENNYERLNSQELVNCILKAVENLVESIQHSDADFAVTDLLARIFKSFNSVKLERLISEYEFTKQENLSLLLGRHRKFLLNDLTLMMNNYVELTNKLLVPNLSDNTIFERYHLEKYKDIKPEPLAFGPILSRISEMKKQDEEIMKKLDVFNVTLNEESWDEVAKALKNLLPSVKTSSLIGRNMDPYNEIEEPIEAVKFELSEAINNTPSLDRESERQEEEQDNESVRADDKSGNLAPSDIQTNEEARPNKRTDEHIDSTKPLQRSSKRFKEREQENSKELVMDVHKRFFGEFNTLLSYIHILPFCDFDTFASKFIIGSSDKQPEKFIPYTDLYECLKSWSSRYTDIFNQNDYLSSGSNENEELFQLNALLKSNAFDDKESFPRYLNDLDSDHIRSFISEVNAGNLHFHQVRLKLLFKLLGTYDEGNGRRLIIDYLWESQLLKIVLWFVFGIESNIFALINKNKRQCKYLALSIYELLVNHLGNIVEEITNKRIQGHKSADLKSQRNKVEKRIRSWHTLLEQIADEKDKELYVHFQWTHYCFLQYTCDIVDSRLSETLTSLENTIKDSDSSLDIAYPNYRHIPALNLNTVQSQKRKIRIIQNITVEDISEDTNSDTHSENHLETLEKVLLHILHPSTNHSNIDEEMVSFIFNSPFLLKIRLWGVLFSSYVKKSSIQDVQRIYFHVLDFMKGALTSPVYKESNPHGRHQMLLTVLTAIGYLSSQLTAILNSNRWESSDFVLEDYMFEKLLQTFFFFYTVLFYESSAVNDVSNKSFFKRASKSSGKMKDIMIDLATLILYYYDLQAKLRTPAEQGIETTELIWSLHTLFGHFHFCDASNGKFLDLAEKLLCQFINNDSFLQLKQILWCRYHYAIASDNFSPDLHDTKAVEMEKIHSLPLGTYLIKLQYQNKNPYLSSSKTTLKQIMDNIIEKIGDPSTLDNHIISRNSFLLNEYLSRPITADLLKHTFSGATSLYLTSPNDELQQGMTAGLFYVSSLQSLGLYKMRKKSMQARPSELDSIIRMLKNDIIYNTNRFESWILLGKCYSYIVEDDLIWTSDKITVPEKKDVIALTQRKAILCYLMAISIYYSKLDRTIDDKKIILEALDDLGSMLISGYYNPMNKLCFSWKSSAENTMRLSETGEVVMEKTKKITTISDFNIEQSIFLCFNRACSLSGDIKSQDDVFVLNWSSFYNLAKFFFKTDGGNNCKLVAKYITQGCQIAYESSPAKDPIIEPHYLLVNACYKWVKRGVIGVNEALTLLSKDNQFFQEQEEFWVNDEGLAWDYQEKFFFDKIIRLLRHLLSVDKKKWQHRPRYRIARILFDDLGDVNGALEEMDSLISAKSINKNLVNIWKPDFERPGKHFIYTYQYLVLYLDLLFAIKDFNTTGLVIKKLRRFGSGTVNVNELLERAINVYTQSAKIKLQLQDKSYVEQILPTLNYQEFLKISEQLNQVFDQGKYPEEISSGLKLAFQLKKGHSGIAFDSVCLGIYFEYLYFPLARQDQSLTDVNDENNPALPSSGSVTSKSTPDPTSKPSAIKKRVTKKEVFDRVRLLVDKIT

Entity 6 Entity 6 polymer

Description description	Histone promoter control protein 2
Molecular weight formula_weight	67877.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,L

MDQKAIVLDNSKSGSKQTKSSGKMQTQTDTNAEVLNTDNSIKKETGSDSEDLFNKFSNKKTNRKIPNIAEELAKNRNYVKGASPSPIIISGSSSTSPSGPSSSSTNPMGIPTNRFNKNTVELYQHSPSPVMTTNKTDTEEKRQNNRNMDNKNTPERGSSSFAAKQLKISSLLTISSNEDSKTLHINDTNGNKNSNAASNNIPSAYAELHTEGNSIESLIKPPSSPRNKSLTPKVILPTQNMDGTIAKDPHLGDNTPGILIAKTSSPVNLDVESTAQSLGKFNKSTNSLKAALTKAPAEKVSLKRSISSVTNSDSNISSSKKPTSEKAKKSSSASAILPKPTTTKTSKKAASNSSDSTRKKNASNKTTSAIKKESNAGSKLNTVKKENSSLSSIKATEKEKDKGGNSTEAKNSTSNVRKEPTAKSPKRLVAAPTVSPPKILQTAETKAKEPSILIDVPLYQADTNDYLDENGQVIFNLSTLIKEKYHPKSKELAQLKDSKRNLLMQLSDHSNGSLEKEKDEEGDVIELDDDEDMEEDEGEIDTETNTVTTTISPKKKSHPMKGKNLIGKYDVEDPFIDDSELLWEEQRAATKDGFFVYFGPLIEKGHYASLERANGTMKRGGVKNK

▶

Resolution resolution	12.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	366702

Hir1 WD40 domains and Asf1/H3/H4
