SAXSdb — 8ghl

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ghl
沉积日期 deposition_date	2023-03-10
结构标题 title	the Hir complex core
关键词 keywords	Histone, Complex, Replication-Independent, CHAPERONE; CHAPERONE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.61 Å
回转半径 Rg (电子) rg_electron	66.75 Å
零角强度 I(0) i0	2518190000.00
分子量 molecular_weight	435120.0 kDa
排除体积 excluded_volume	549590 Å³
包络体积 envelope_volume	844480 Å³
水化壳体积 shell_volume	109970 Å³
包络直径 envelope_diameter	252.8 Å
壳层 Rg shell_rg	62.85 Å
包络 Rg envelope_rg	66.98 Å
形状 Rg shape_rg	66.83 Å
总 Rg total_rg	66.38 Å
总原子数 total_atoms	30648
残基数 n_residues	3780
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	229.0 Å
Rg (实空间) rg_real	66.39 Å
Rg 误差 (实空间) rg_real_error	2.12 Å
I(0) (实空间) i0_real	2.5150e+09
I(0) 误差 (实空间) i0_real_error	5.6650e+07
Rg (倒空间) rg_reciprocal	64.76 Å
I(0) (倒空间) i0_reciprocal	2510000000.0000
解质量估计 total_estimate	0.8497
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	76.3 Å
偏度 Skewness skewness	0.678
峰度 Kurtosis kurtosis	0.215
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0125
最高正则化参数 α highest_alpha	121200000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.745; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.832

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Protein HIR1
分子量 formula_weight	93983.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,G
原子数 atom_count	30648

MKVVKFPWLAHREESRKYEIYTVDVSHDGKRLATGGLDGKIRIWSIDSILRCMELESLTPEIPLPQDLQMPLCSMSRHTGSITCVKFSPDGKYLASGSDDRILLIWALDEEQSSQPAFGSEHEREHWTVRKRLVAHDNDIQDICWAPDSSILVTVGLDRSVIVWNGSTFEKLKRFDVHQSLVKGVVFDPANKYFATTSDDRTMKIFRYHKTGDISFTIEHIITEPFKESPLTTYFRRPSWSPDGQHIAVPNATNGPVSSVAIVNRGTWDTNVSLIGHDAPTEVARFNPRLFERNAGVKQKKDDDPENALVGQNDDKVHHFDKNIDSVVATAGQDKSLAVWSTSRPRPILVAFDIANKSITDMSWNPDGSLLFVASLDSSITLFKFENNELGKPIPLEKNMEQLYRYGVDKDSLDFPESINQLLLEDQTKSFKHTKISTSKLGENHPTLATNSASNQKDNNDASVSRSEHINILIPKRKKDAILNKAVTLKSGKKRVAPTLISTSSSSPFSNGIKKPTLDSKRIENNVKSSTKTINSKNTLLNVPEGVEKKISISSFPLPRLGIHSLIMGTKERSAWKISNSELENDDADNAGGKGSDGTSNSIDDIAVLSEEENDFHRMTLNAKLTQEKIWSEEPTTRCLLQSDVIPDTDVVVLEGGSLDDIAVLEIRNGVERSIQFDSEALLDNPTRILGYQGGKRTIETFIPEVIICAIGSKDCKCWCLASANGSIYILSYNGQQRIPKICLGHKVIKMVTSSKYLLVLTERGLFFAWDLLDLKLVLRNVPILPILNGQPIHGNKVRINKVIKCFRLDGSSCDLLLEVGDPKNVYKWTKDLGCWSLYK

Entity 2 polymer

描述 description	Histone transcription regulator 3
分子量 formula_weight	191915.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,D

MSMFNALNSNIEGEQYEAEEHSRELQIEQSFNILQDALIDLKNKDFEKSDSKFQELFQIDVVKPDRWGMYRNSSPTLDNLRYLCYRNRGMYYHLYLENNYERLNSQELVNCILKAVENLVESIQHSDADFAVTDLLARIFKSFNSVKLERLISEYEFTKQENLSLLLGRHRKFLLNDLTLMMNNYVELTNKLLVPNLSDNTIFERYHLEKYKDIKPEPLAFGPILSRISEMKKQDEEIMKKLDVFNVTLNEESWDEVAKALKNLLPSVKTSSLIGRNMDPYNEIEEPIEAVKFELSEAINNTPSLDRESERQEEEQDNESVRADDKSGNLAPSDIQTNEEARPNKRTDEHIDSTKPLQRSSKRFKEREQENSKELVMDVHKRFFGEFNTLLSYIHILPFCDFDTFASKFIIGSSDKQPEKFIPYTDLYECLKSWSSRYTDIFNQNDYLSSGSNENEELFQLNALLKSNAFDDKESFPRYLNDLDSDHIRSFISEVNAGNLHFHQVRLKLLFKLLGTYDEGNGRRLIIDYLWESQLLKIVLWFVFGIESNIFALINKNKRQCKYLALSIYELLVNHLGNIVEEITNKRIQGHKSADLKSQRNKVEKRIRSWHTLLEQIADEKDKELYVHFQWTHYCFLQYTCDIVDSRLSETLTSLENTIKDSDSSLDIAYPNYRHIPALNLNTVQSQKRKIRIIQNITVEDISEDTNSDTHSENHLETLEKVLLHILHPSTNHSNIDEEMVSFIFNSPFLLKIRLWGVLFSSYVKKSSIQDVQRIYFHVLDFMKGALTSPVYKESNPHGRHQMLLTVLTAIGYLSSQLTAILNSNRWESSDFVLEDYMFEKLLQTFFFFYTVLFYESSAVNDVSNKSFFKRASKSSGKMKDIMIDLATLILYYYDLQAKLRTPAEQGIETTELIWSLHTLFGHFHFCDASNGKFLDLAEKLLCQFINNDSFLQLKQILWCRYHYAIASDNFSPDLHDTKAVEMEKIHSLPLGTYLIKLQYQNKNPYLSSSKTTLKQIMDNIIEKIGDPSTLDNHIISRNSFLLNEYLSRPITADLLKHTFSGATSLYLTSPNDELQQGMTAGLFYVSSLQSLGLYKMRKKSMQARPSELDSIIRMLKNDIIYNTNRFESWILLGKCYSYIVEDDLIWTSDKITVPEKKDVIALTQRKAILCYLMAISIYYSKLDRTIDDKKIILEALDDLGSMLISGYYNPMNKLCFSWKSSAENTMRLSETGEVVMEKTKKITTISDFNIEQSIFLCFNRACSLSGDIKSQDDVFVLNWSSFYNLAKFFFKTDGGNNCKLVAKYITQGCQIAYESSPAKDPIIEPHYLLVNACYKWVKRGVIGVNEALTLLSKDNQFFQEQEEFWVNDEGLAWDYQEKFFFDKIIRLLRHLLSVDKKKWQHRPRYRIARILFDDLGDVNGALEEMDSLISAKSINKNLVNIWKPDFERPGKHFIYTYQYLVLYLDLLFAIKDFNTTGLVIKKLRRFGSGTVNVNELLERAINVYTQSAKIKLQLQDKSYVEQILPTLNYQEFLKISEQLNQVFDQGKYPEEISSGLKLAFQLKKGHSGIAFDSVCLGIYFEYLYFPLARQDQSLTDVNDENNPALPSSGSVTSKSTPDPTSKPSAIKKRVTKKEVFDRVRLLVDKIT

Entity 3 polymer

描述 description	Protein HIR2
分子量 formula_weight	98553.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,H,I

MRLLKYPLDIHNEQVNALAALGPYIILAGSGGHVMAWRQQQLVDTAFDRVMIKDLKPEVSFQVDQDTTGDIFFITGDLETLYIGSEHRLWGYSGWLCRDTNNINSVEKMNSKLLFECKSPSTITDVKYDINLGILFVLLSNENKILLFRHKTFDKLSEITIDKASKPITGIIDPTGQTFTVMTSDRSILVYQINKTGTHKLINKLTQHVQMYPLHYRISMSPQADILPVINSVKGVPNNATSCTALLDRNNNYKVTKTLVTPSSNGCRVLVYSPAFYEKPNLKKGTSTRYNLIATSGSTDGTILVWNTKRMKPLFNALQVSSTAINDMSWSQDGFTLFAISNDATLYTFAFQEKDLGVALPQTEIKSLQEVNKKLPKLEEPLAEQIPKSFPENIKLEESASAAPIPNDIGRSAVGKKPTKKKTANNQTNGIKTIQSTSMEFNTPSYTVPRDLKRKPKEATPSNIAPGSKKQKKELQPIDFLDTGLLLPNTSFSRIRLATPKIRSTFKYSPINNPNLILDVKNGSGNEQRPTIVKLTSKVLDQDQVLFQDFIPKLITICTAGDTFWSFCSEDGSIYIYSDSGRKLMAPLVLGVSISFLEACGTYLLCLTSIGELYCWNIEQKKLAFPTNTIYPLLNPSLRYSDDILTRAENITLCSITKKGVPLVTLSNGDGYLFDKNMETWLLVSDGWWAYGSQYWDTTNTTGLSSSKANTDSFNGSESNINEIVSDIKNDNQSIINFLECKTNDELNRKGRIKNLQRFARTILMKEGFENMEEIVTLSHLENKILISIRLEEPEEFSKLMMVYCIRLSELGYMDRLNDVFQWLYDDLPISGTGSAFADKDFKRNLLKKILIACGDIRQVQRVTTRYAKEMNIIS

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.96 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	495250

fit	/app/data/saxs_computation/gh/8ghl/8ghl.fit
pddf	/app/data/pr_computation/gh/8ghl/8ghl.pr.out
profile	/app/data/saxs_computation/gh/8ghl/8ghl.dat

the Hir complex core

SAXS 散射曲线 SAXS Profile

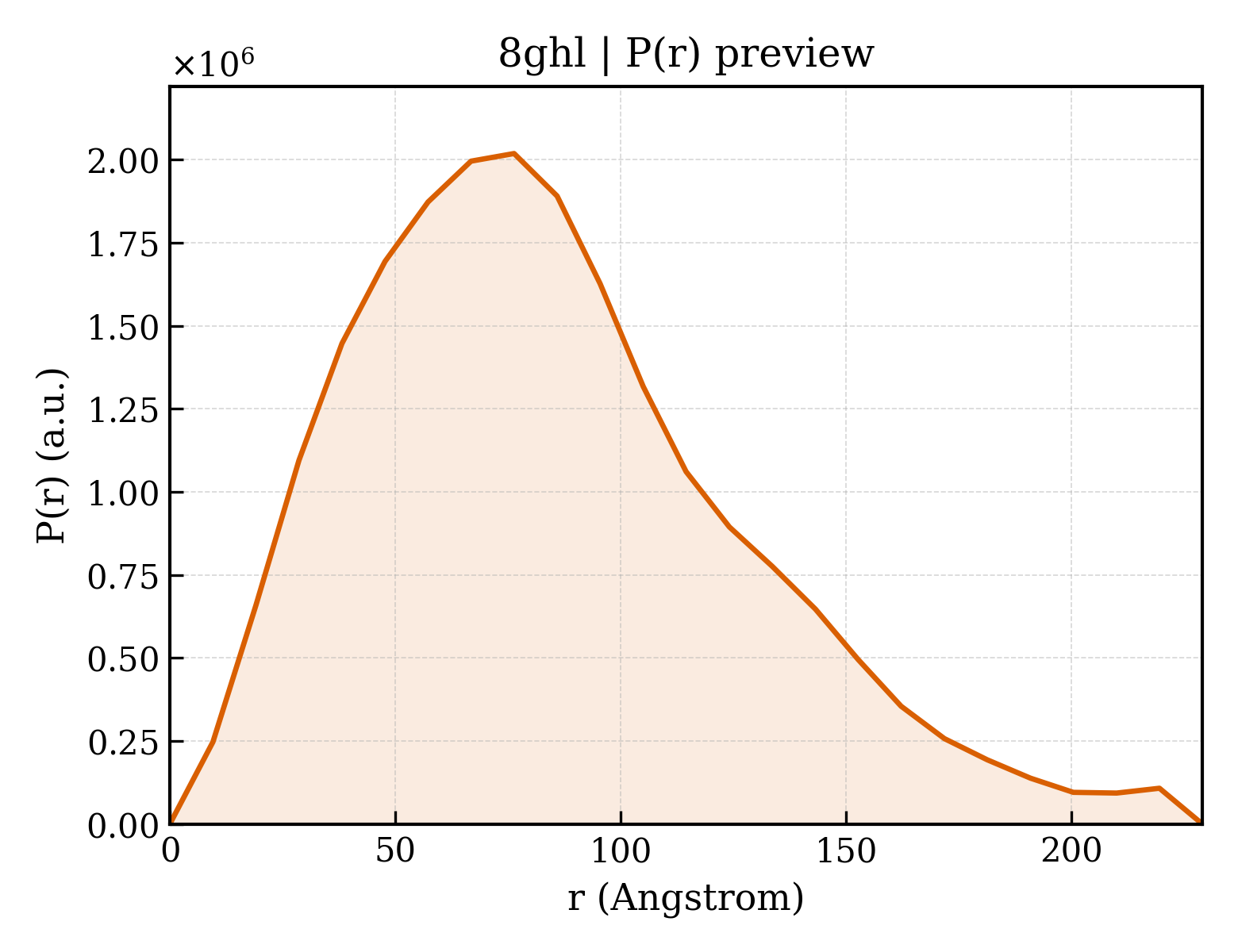

P(r) 距离分布 P(r) Distribution
