2qqg

Hst2 bound to ADP-HPD, acetyllated histone H4 and nicotinamide

Method: X-RAY DIFFRACTION D_max: 68.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NAD-dependent deacetylase HST2

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–294	Not recorded	Histone H4 × 1 （P02309） ZN ZINC ION × 1 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 1 NCA NICOTINAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate, pH 5.6, 200 mM K/Na tartrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 5.60	Resolution 2.05 Å R-free 0.245
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–294	Not recorded	Histone H4 × 2 （P02309） ZN ZINC ION × 2 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 2 NCA NICOTINAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate, pH 5.6, 200 mM K/Na tartrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 5.60	Resolution 2.05 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2QQG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q14 Structure and autoregulation of the yeast Hst2 homolog of Sir2 Deposited 2003-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–357（357 aa） Fragment：histone/protein deacetylase	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEg4K, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.251
1Q17 Structure of the yeast Hst2 protein deacetylase in ternary complex with 2'-O-acetyl ADP ribose and histone peptide Deposited 2003-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–294（294 aa） Fragment：protein deacetylase Chain B 1–294（294 aa） Fragment：protein deacetylase Chain C 1–294（294 aa） Fragment：protein deacetylase	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 4 APR ADENOSINE-5-DIPHOSPHORIBOSE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；(NH4)2SO4, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.247
1Q1A Structure of the yeast Hst2 protein deacetylase in ternary complex with 2'-O-acetyl ADP ribose and histone peptide Deposited 2003-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 5–293（289 aa） Fragment：C-terminla deletion of hst2	Not recorded	ZN ZINC ION × 1 OAD 2'-O-ACETYL ADENOSINE-5-DIPHOSPHORIBOSE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；PEG 4K, , pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.50 Å R-free 0.210
1SZC Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–294（294 aa） Fragment：Catalytic core domain	Not recorded	ZN ZINC ION × 1 CL CHLORIDE ION × 1 CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.75 Å R-free 0.239
1SZC Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–294（294 aa） Fragment：Catalytic core domain	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 2 CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.75 Å R-free 0.239
1SZD Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–294（294 aa） Fragment：catalytic core domain	Not recorded	CL CHLORIDE ION × 1 ZN ZINC ION × 1 APR ADENOSINE-5-DIPHOSPHORIBOSE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-Tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.50 Å R-free 0.230
1SZD Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–294（294 aa） Fragment：catalytic core domain	Not recorded	CL CHLORIDE ION × 2 ZN ZINC ION × 2 APR ADENOSINE-5-DIPHOSPHORIBOSE × 2 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-Tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.50 Å R-free 0.230
2OD2 Crystal Structure of yHst2 I117F mutant bound to carba-NAD+ and an acetylated H4 peptide Deposited 2006-12-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–294（294 aa） Fragment：Hst2 catalytic core domain, residues 1-294	Mutation：I117F	ZN ZINC ION × 1 CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.0 M Ammonium Sulfate, 0.1 M sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.233
2OD2 Crystal Structure of yHst2 I117F mutant bound to carba-NAD+ and an acetylated H4 peptide Deposited 2006-12-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–294（294 aa） Fragment：Hst2 catalytic core domain, residues 1-294	Mutation：I117F	ZN ZINC ION × 2 CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.0 M Ammonium Sulfate, 0.1 M sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.233
2OD7 Crystal Structure of yHst2 bound to the intermediate analogue ADP-HPD, and and aceylated H4 peptide Deposited 2006-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–294（294 aa） Fragment：Hst2 catalytic core domain, residues 1-294	Not recorded	ZN ZINC ION × 1 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；2.0 M Ammonium Sulfate, 0.1 M sodium citrate, 0.2 M potassium/sodium tartrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.234
2OD7 Crystal Structure of yHst2 bound to the intermediate analogue ADP-HPD, and and aceylated H4 peptide Deposited 2006-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–294（294 aa） Fragment：Hst2 catalytic core domain, residues 1-294	Not recorded	ZN ZINC ION × 2 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；2.0 M Ammonium Sulfate, 0.1 M sodium citrate, 0.2 M potassium/sodium tartrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.234
2OD9 Structural Basis for Nicotinamide Inhibition and Base Exchange in Sir2 Enzymes Deposited 2006-12-21	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–294（294 aa） Fragment：Hst2 catalytic core domain, residues 1-294	Not recorded	ZN ZINC ION × 1 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 1 NCA NICOTINAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；2.0 M Ammonium Sulfate, 0.1 M sodium citrate, 0.2 M potassium/sodium tartrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.05 Å R-free 0.245
2OD9 Structural Basis for Nicotinamide Inhibition and Base Exchange in Sir2 Enzymes Deposited 2006-12-21	Different construct Different experimental conditions	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–294（294 aa） Fragment：Hst2 catalytic core domain, residues 1-294	Not recorded	ZN ZINC ION × 2 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 2 NCA NICOTINAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；2.0 M Ammonium Sulfate, 0.1 M sodium citrate, 0.2 M potassium/sodium tartrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.05 Å R-free 0.245
2QQF Hst2 bound to ADP-HPD and Acetylated histone H4 Deposited 2007-07-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–294（294 aa）	Not recorded	ZN ZINC ION × 2 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate and 200 mM K/Na tartrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.253
2QQF Hst2 bound to ADP-HPD and Acetylated histone H4 Deposited 2007-07-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–294（294 aa）	Not recorded	ZN ZINC ION × 1 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate and 200 mM K/Na tartrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.253
7F4E Crystal structure of Hst2 in complex with H3K9bz peptide Deposited 2021-06-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–294（287 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；25% (w/v) PEG 1500, 0.1M MMT/Sodium hydroxide	Resolution 1.78 Å R-free 0.216
7F51 Crystal structure of Hst2 in complex with 2'-O-Benzoyl ADP Ribose Deposited 2021-06-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–294（287 aa）	Not recorded	ZN ZINC ION × 1 BA7 [(2R,3R,4R,5R)-5-[[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxymethyl]-2,4-bis(oxidanyl)oxolan-3-yl] benzoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.2 M Ammonium fluoride, 20% w/v Polyethylene glycol 3350	Resolution 1.98 Å R-free 0.220

11 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HST2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 15–308； UniProt 1–294

Histone H4

OrganismNot specified

UniProt P02309

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 13–23	Fragment：sequence database residues 13-23 Non-standard monomer：Yes (specific site not provided by mmCIF)	NAD-dependent deacetylase HST2 × 1 （P53686） ZN ZINC ION × 1 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 1 NCA NICOTINAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate, pH 5.6, 200 mM K/Na tartrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 5.60	Resolution 2.05 Å R-free 0.245
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 13–23	Fragment：sequence database residues 13-23 Non-standard monomer：Yes (specific site not provided by mmCIF)	NAD-dependent deacetylase HST2 × 2 （P53686） ZN ZINC ION × 2 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 2 NCA NICOTINAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate, pH 5.6, 200 mM K/Na tartrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 5.60	Resolution 2.05 Å R-free 0.245

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2QQG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1E6I Bromodomain from GCN5 complexed with acetylated H4 peptide Deposited 2000-08-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 16–30（15 aa） Fragment：ACETYLATED TAIL, RESIDUES 16-30	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；2.2M AMMONIUM SULPHATE, 20% V/V GLYCEROL, 4MM DITHIOTHREITOL, 100 MM HEPES PH 7.5, 125MM NACL 5:1 PEPTIDE:PROTEIN	Resolution 1.87 Å R-free 0.209
1ID3 CRYSTAL STRUCTURE OF THE YEAST NUCLEOSOME CORE PARTICLE REVEALS FUNDAMENTAL DIFFERENCES IN INTER-NUCLEOSOME INTERACTIONS Deposited 2001-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–102（102 aa） Chain F 1–102（102 aa）	Not recorded	MN MANGANESE (II) ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；Manganese chloride, Potassium chloride, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 3.10 Å R-free 0.292
1Q1A Structure of the yeast Hst2 protein deacetylase in ternary complex with 2'-O-acetyl ADP ribose and histone peptide Deposited 2003-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 12–21（10 aa） Fragment：Residues 12-21	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 OAD 2'-O-ACETYL ADENOSINE-5-DIPHOSPHORIBOSE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；PEG 4K, , pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.50 Å R-free 0.210
1SZC Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 12–21（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 CL CHLORIDE ION × 1 CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.75 Å R-free 0.239
1SZC Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 12–21（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2 CL CHLORIDE ION × 2 CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.75 Å R-free 0.239
1SZD Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 12–21（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 ZN ZINC ION × 1 APR ADENOSINE-5-DIPHOSPHORIBOSE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-Tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.50 Å R-free 0.230
1SZD Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD+-dependent Sir2 histone/protein deacetylases Deposited 2004-04-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 12–21（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 ZN ZINC ION × 2 APR ADENOSINE-5-DIPHOSPHORIBOSE × 2 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；Ammonium Sulfate, Bis-Tris, pH 6.5, VAPOR DIFFUSION, temperature 293K	Resolution 1.50 Å R-free 0.230
2E3K Crystal structure of the human Brd2 second bromodomain in complexed with the acetylated histone H4 peptide Deposited 2006-11-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Q 1–15（15 aa） Fragment：N-terminal H4 di-acetylated tail	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；PEG4000, Ammonium Acetate,, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.268
2E3K Crystal structure of the human Brd2 second bromodomain in complexed with the acetylated histone H4 peptide Deposited 2006-11-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 1–15（15 aa） Fragment：N-terminal H4 di-acetylated tail	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；PEG4000, Ammonium Acetate,, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.268
2H2H The Structural basis of sirtuin substrate specificity Deposited 2006-05-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 75–85（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；293.15 K；20 % PEG, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K, pH 9.5	Resolution 2.20 Å R-free 0.239
2L5A Structural basis for recognition of centromere specific histone H3 variant by nonhistone Scm3 Deposited 2010-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–103（62 aa） Fragment：Cse4(151-228), Scm3(93-172), H4(42-103)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.4；308 K；Ionic strength (raw mmCIF value) 0.00；Pressure ambient NMR sample composition 0.8-1.0 mM [U-100% 15N] scCSH-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-100% 15N] scCSH-2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-13C methyl; U-15N; U-2H] scCSH-3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-13C ; U-15N; 35%-2H] scCSH-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8-0.85 mM [U-13C ; U-15N] scCSH-5, 100% D2O \| 100% D2O NMR sample composition 0.8-0.85 mM scCSH-6, 100% D2O \| 100% D2O	Resolution not provided
2QQF Hst2 bound to ADP-HPD and Acetylated histone H4 Deposited 2007-07-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 13–23（11 aa） Fragment：SEQUENCE DATABASE RESIDUES 13-23	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate and 200 mM K/Na tartrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.253
2QQF Hst2 bound to ADP-HPD and Acetylated histone H4 Deposited 2007-07-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 13–23（11 aa） Fragment：SEQUENCE DATABASE RESIDUES 13-23	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 A1R 5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.0 M Ammonium Sulfate, 100 mM Na citrate and 200 mM K/Na tartrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.253
3TO6 Crystal structure of yeast Esa1 HAT domain complexed with H4K16CoA bisubstrate inhibitor Deposited 2011-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 12–23（12 aa） Fragment：UNP residues 12-23	Not recorded	CMC CARBOXYMETHYL COENZYME *A × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M sodium cacodylate, 1.6 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.10 Å R-free 0.232
4JJN Crystal structure of heterochromatin protein Sir3 in complex with a silenced yeast nucleosome Deposited 2013-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain B 2–103（102 aa） Chain F 2–103（102 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.05 M sodium cacodylate, 32% 2-methyl-2,4-pentanediol (MPD), pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.09 Å R-free 0.255
4KUD Crystal structure of N-terminal acetylated Sir3 BAH domain D205N mutant in complex with yeast nucleosome core particle Deposited 2013-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Mutation：S2A Mutation：S2A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；289 K；16% PEG 400, 0.1M KCl, 0.01M CaCl2, 0.05M sodium citrate(pH4.8), VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.20 Å R-free 0.237
4PSX Crystal structure of histone acetyltransferase complex Deposited 2014-03-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–49（48 aa） Fragment：UNP residues 2-49	Mutation：I21V	COA COENZYME A × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.2M potassium sodium tartrate, 20%(w/v) polyethylene glycol 3,350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.51 Å R-free 0.223
4PSX Crystal structure of histone acetyltransferase complex Deposited 2014-03-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 2–49（48 aa） Fragment：UNP residues 2-49	Mutation：I21V	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.2M potassium sodium tartrate, 20%(w/v) polyethylene glycol 3,350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.51 Å R-free 0.223
4TWI The structure of Sir2Af1 bound to a succinylated histone peptide Deposited 2014-06-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 9–21（13 aa） Fragment：UNP residues 9-21	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M Tris pH 8.5, 200 mM MgCl2, and 20% (w/v) PEG 8,000	Resolution 1.79 Å R-free 0.221
4TWJ The structure of Sir2Af2 bound to a myristoylated histone peptide Deposited 2014-06-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 9–21（13 aa） Fragment：UNP residues 9-21	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 ACT ACETATE ION × 5 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；0.1 M Na-acetate pH 4.8, 14-18% (v/v) 2-propanol, and 14-15% (w/v) PEG 6,000	Resolution 1.65 Å R-free 0.205
5ZBA Crystal structure of Rtt109-Asf1-H3-H4-CoA complex Deposited 2018-02-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–103（103 aa）	Not recorded	COA COENZYME A × 1 IOD IODIDE ION × 37	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100mM sodium citrate, pH 5.0, 22% PEG 1500, 400mM sodium iodide	Resolution 3.50 Å R-free 0.294
5ZBB Crystal structure of Rtt109-Asf1-H3-H4 complex Deposited 2018-02-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–103（103 aa）	Not recorded	IOD IODIDE ION × 23 PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100mM sodium citrate, pH 5.0, 22% PEG 1500, 400mM sodium iodide	Resolution 3.60 Å R-free 0.264
6GEJ Chromatin remodeller-nucleosome complex at 3.6 A resolution. Deposited 2018-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6GEN Chromatin remodeller-nucleosome complex at 4.5 A resolution. Deposited 2018-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6QLD Structure of inner kinetochore CCAN-Cenp-A complex Deposited 2019-01-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain b 25–103（79 aa） Chain f 25–103（79 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
6RXJ Crystal structure of CobB wt in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 13–22（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1M Bis-Tris, 0.03 M HCl, 22% PEG3350	Resolution 1.60 Å R-free 0.188
6RXJ Crystal structure of CobB wt in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 13–22（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1M Bis-Tris, 0.03 M HCl, 22% PEG3350	Resolution 1.60 Å R-free 0.188
6RXK Crystal structure of CobB wt in complex with H4K16-Butyryl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 13–23（11 aa） Fragment：H4K16Bu	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22% PEG 3350 0.1M Bis-Tris 0.03 mM HCL	Resolution 1.35 Å R-free 0.188
6RXL Crystal structure of CobB wt in complex with H4K16-Crotonyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 13–23（11 aa） Fragment：H4K16Ac	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1 M Bis-Tris 22% PEG 3350 0.03 M HCl	Resolution 2.30 Å R-free 0.250
6RXM Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Bis-Tris, 0.03 HCl, 23% PEG3350	Resolution 1.92 Å R-free 0.242
6RXM Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Bis-Tris, 0.03 HCl, 23% PEG3350	Resolution 1.92 Å R-free 0.242
6RXM Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Bis-Tris, 0.03 HCl, 23% PEG3350	Resolution 1.92 Å R-free 0.242
6RXM Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Bis-Tris, 0.03 HCl, 23% PEG3350	Resolution 1.92 Å R-free 0.242
6RXM Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Bis-Tris, 0.03 HCl, 23% PEG3350	Resolution 1.92 Å R-free 0.242
6RXM Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16-Acetyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M Bis-Tris, 0.03 HCl, 23% PEG3350	Resolution 1.92 Å R-free 0.242
6RXO Crystal structure of CobB Ac2 (A76G, I131C, V162A) in complex with H4K16-Buturyl peptide Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 13–23（11 aa） Fragment：H4K16Ac	Mutation：K16ALY Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1M Bis-Tris, 0.03 M HCl, 23% PEG3350	Resolution 1.95 Å R-free 0.215
6RXO Crystal structure of CobB Ac2 (A76G, I131C, V162A) in complex with H4K16-Buturyl peptide Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 13–23（11 aa） Fragment：H4K16Ac	Mutation：K16ALY Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1M Bis-Tris, 0.03 M HCl, 23% PEG3350	Resolution 1.95 Å R-free 0.215
6RXP Crystal structure of CobB Ac2 (A76G,I131C,V162A) in complex with H4K16-Crotonyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1M Bis-Tris, 0.03 M HCl, 23% PEG3350	Resolution 1.80 Å R-free 0.234
6RXP Crystal structure of CobB Ac2 (A76G,I131C,V162A) in complex with H4K16-Crotonyl peptide Deposited 2019-06-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 13–23（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.1M Bis-Tris, 0.03 M HCl, 23% PEG3350	Resolution 1.80 Å R-free 0.234
6RXQ Crystal structure of CobB Ac2 (A76G,I131C,V162A) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after soaking Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 mM Bis-Tris, 0.03M HCl, 23% PEG3350, soaked 36h with 1 mM NAD+	Resolution 1.70 Å R-free 0.228
6RXQ Crystal structure of CobB Ac2 (A76G,I131C,V162A) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after soaking Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 mM Bis-Tris, 0.03M HCl, 23% PEG3350, soaked 36h with 1 mM NAD+	Resolution 1.70 Å R-free 0.228
6RXQ Crystal structure of CobB Ac2 (A76G,I131C,V162A) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after soaking Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 mM Bis-Tris, 0.03M HCl, 23% PEG3350, soaked 36h with 1 mM NAD+	Resolution 1.70 Å R-free 0.228
6RXQ Crystal structure of CobB Ac2 (A76G,I131C,V162A) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after soaking Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 mM Bis-Tris, 0.03M HCl, 23% PEG3350, soaked 36h with 1 mM NAD+	Resolution 1.70 Å R-free 0.228
6RXR Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after co-crystallisation Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.1 M Bis-Tris, 0.02 M HCl, 22% PEG 3350, 1 mM NAD	Resolution 1.70 Å R-free 0.228
6RXR Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after co-crystallisation Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.1 M Bis-Tris, 0.02 M HCl, 22% PEG 3350, 1 mM NAD	Resolution 1.70 Å R-free 0.228
6RXR Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after co-crystallisation Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.1 M Bis-Tris, 0.02 M HCl, 22% PEG 3350, 1 mM NAD	Resolution 1.70 Å R-free 0.228
6RXR Crystal structure of CobB Ac2 (A76G, I131C, V162G) in complex with H4K16Cr-2'OH-ADPr peptide intermediate after co-crystallisation Deposited 2019-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 13–23（11 aa）	Not recorded	KMQ [[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{R},4~{R},5~{S})-4-[(~{E})-but-2-enoxy]-3,5-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.1 M Bis-Tris, 0.02 M HCl, 22% PEG 3350, 1 mM NAD	Resolution 1.70 Å R-free 0.228
7E9C Cryo-EM structure of the 1:1 Orc1 BAH domain in complex with nucleosome Deposited 2021-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7E9F Cryo-EM structure of the 2:1 Orc1 BAH domain in complex with nucleosome Deposited 2021-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7K78 antibody and nucleosome complex Deposited 2020-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.10 Å
7K7G nucleosome and Gal4 complex Deposited 2020-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7XAY Crystal structure of Hat1-Hat2-Asf1-H3-H4 Deposited 2022-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 8–103（96 aa）	Not recorded	COA COENZYME A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；100 mM Bis-Tris propane, pH 6.5, 20% PEG-3350, and 200 mM sodium nitrate	Resolution 3.30 Å R-free 0.256
7Z0O Structure of transcription factor UAF in complex with TBP and 35S rRNA promoter DNA Deposited 2022-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8GHN Composite model of the yeast Hir Complex with Asf1/H3/H4 Deposited 2023-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: 15-meric	Chain N 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain b 1–103（103 aa） Chain f 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain b 1–103（103 aa） Chain f 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8QKU SWR1-nucleosome complex in configuration 1 Deposited 2023-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8QKV SWR1-nucleosome complex in configuration 2 Deposited 2023-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
8QYV SWR1-hexasome complex Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 19-meric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8QZ0 SWR1-hexasome-dimer complex Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8XGC Structure of yeast replisome associated with FACT and histone hexamer, Composite map Deposited 2023-12-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 27 PDB declaration: 29-meric	Chain O 1–103（103 aa） Chain S 1–103（103 aa）	Not recorded	ZN ZINC ION × 7 ADP ADENOSINE-5'-DIPHOSPHATE × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9FBW SWR1 lacking Swc5 subunit in complex with hexasome Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric	Chain C 1–103（103 aa） Chain D 1–103（103 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å

43 other PDB entries and 62 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–11； UniProt 13–23

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

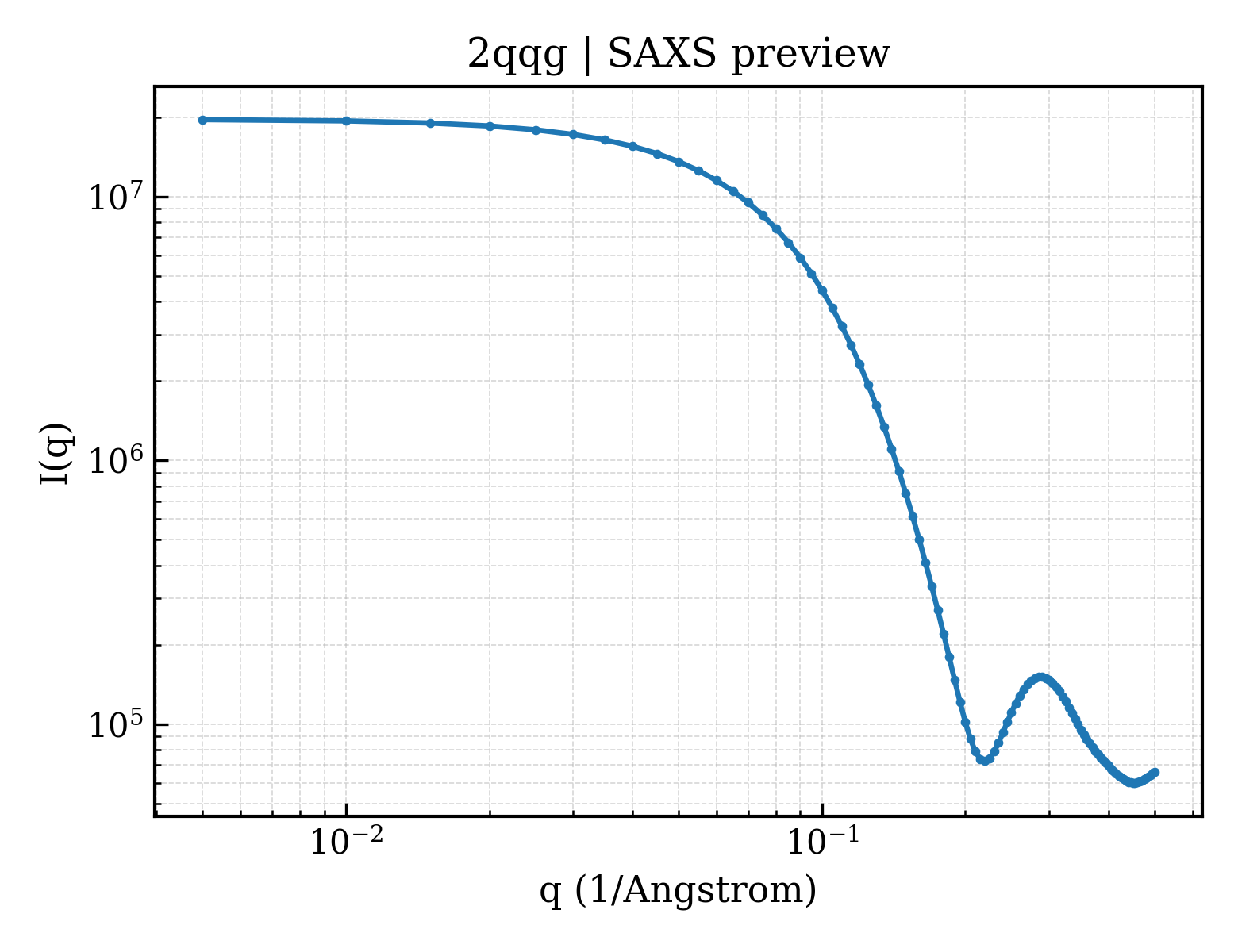

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2qqg
Deposition date deposition_date	2007-07-26
Structure title title	Hst2 bound to ADP-HPD, acetyllated histone H4 and nicotinamide
Keywords keywords	Hst2, Sir2, histone deacetylase, Hydrolase, Metal-binding, NAD, Nucleus, Repressor, Transcription, Transcription regulation, Zinc; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.07 Å
Radius of gyration Rg (electron density) rg_electron	20.04 Å
Forward intensity I(0) i0	19667900.00
Molecular weight molecular_weight	34288.0 kDa
Excluded volume excluded_volume	43123 Å³
Envelope volume envelope_volume	49610 Å³
Hydration-shell volume shell_volume	20886 Å³
Envelope diameter envelope_diameter	69.2 Å
Shell Rg shell_rg	26.46 Å
Envelope Rg envelope_rg	20.25 Å
Shape Rg shape_rg	19.98 Å
Total Rg total_rg	21.08 Å
Total atoms total_atoms	2411
Residues n_residues	297
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	68.0 Å
Rg (real space) rg_real	21.03 Å
Rg uncertainty (real space) rg_real_error	0.40 Å
I(0) (real space) i0_real	1.9670e+07
I(0) uncertainty (real space) i0_real_error	2.2560e+05
Rg (reciprocal space) rg_reciprocal	21.04 Å
I(0) (reciprocal space) i0_reciprocal	19670000.0000
Solution quality estimate total_estimate	0.8868
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.0 Å
Skewness Skewness skewness	0.329
Kurtosis Kurtosis kurtosis	-0.298
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4262000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.842; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NAD-dependent deacetylase HST2
Molecular weight formula_weight	34794.8 kDa
EC 编号 ec_number	3.5.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2527

MRGSHHHHHHGMASMSVSTASTEMSVRKIAAHMKSNPNAKVIFMVGAGISTSCGIPDFRSPGTGLYHNLARLKLPYPEAVFDVDFFQSDPLPFYTLAKELYPGNFRPSKFHYLLKLFQDKDVLKRVYTQNIDTLERQAGVKDDLIIEAHGSFAHCHCIGCGKVYPPQVFKSKLAEHPIKDFVKCDVCGELVKPAIVFFGEDLPDSFSETWLNDSEWLREKITTSGKHPQQPLVIVVGTSLAVYPFASLPEEIPRKVKRVLCNLETVGDFKANKRPTDLIVHQYSDEFAEQLVEELGWQEDFEKILTAQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	1310.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KGGAKRHRKIL

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	5'-O-[(S)-{[(S)-{[(2R,3R,4S)-3,4-DIHYDROXYPYRROLIDIN-2-YL]METHOXY}(HYDROXY)PHOSPHORYL]OXY}(HYDROXY)PHOSPHORYL]ADENOSINE
Molecular weight formula_weight	542.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	NICOTINAMIDE
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	116

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2qqgA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	2qqgA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

▶

8. Citations (1)

▶

Unit-cell length a length_a	105.940 Å
Unit-cell length b length_b	105.940 Å
Unit-cell length c length_c	67.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.050 Å
Low-resolution limit resolution_low	28.340 Å
R factor r_factor	0.2180
R_work r_work	0.2180
R_free r_free	0.2450

fit	/app/data/saxs_computation/qq/2qqg/2qqg.fit
pddf	/app/data/pr_computation/qq/2qqg/2qqg.pr.out
profile	/app/data/saxs_computation/qq/2qqg/2qqg.dat

Hst2 bound to ADP-HPD, acetyllated histone H4 and nicotinamide

1. Protein Identity and Related Structures Protein Identity & Related Structures

NAD-dependent deacetylase HST2

State in the Current Structure

Other States of the Same Protein in the Database

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
