6gyp

Cryo-EM structure of the CBF3-core-Ndc10-DBD complex of the budding yeast kinetochore

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Centromere DNA-binding protein complex CBF3 subunit B

Saccharomyces cerevisiae S288C

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Centromere DNA-binding protein complex CBF3 subunit C × 1 （P35203） Suppressor of kinetochore protein 1 × 1 （P52286） Centromere DNA-binding protein complex CBF3 subunit A × 1 （P32504） METHIONINE × 1 PHENYLALANINE × 1 ASPARAGINE × 1 ARGININE × 1 THREONINE × 2 GLUTAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CBF3B_YEAST
Isoform	—
PDB entities	1, 3
Chains and sequence ranges	Author chain B； PDBConstruct 1–608； UniProt 1–608 Author chain C； PDBConstruct 5–564； UniProt 49–608

Centromere DNA-binding protein complex CBF3 subunit C

Saccharomyces cerevisiae S288C

UniProt P35203

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） Suppressor of kinetochore protein 1 × 1 （P52286） Centromere DNA-binding protein complex CBF3 subunit A × 1 （P32504） METHIONINE × 1 PHENYLALANINE × 1 ASPARAGINE × 1 ARGININE × 1 THREONINE × 2 GLUTAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CBF3C_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–478； UniProt 1–478

Suppressor of kinetochore protein 1

Saccharomyces cerevisiae S288C

UniProt P52286

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） Centromere DNA-binding protein complex CBF3 subunit C × 1 （P35203） Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） Centromere DNA-binding protein complex CBF3 subunit A × 1 （P32504） METHIONINE × 1 PHENYLALANINE × 1 ASPARAGINE × 1 ARGININE × 1 THREONINE × 2 GLUTAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–194； UniProt 1–194

Centromere DNA-binding protein complex CBF3 subunit A

Saccharomyces cerevisiae S288C

UniProt P32504

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） Centromere DNA-binding protein complex CBF3 subunit C × 1 （P35203） Centromere DNA-binding protein complex CBF3 subunit B × 1 （P40969） Suppressor of kinetochore protein 1 × 1 （P52286） METHIONINE × 1 PHENYLALANINE × 1 ASPARAGINE × 1 ARGININE × 1 THREONINE × 2 GLUTAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CBF3A_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–956； UniProt 1–956

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6gyp
Deposition date deposition_date	2018-07-01
Structure title title	Cryo-EM structure of the CBF3-core-Ndc10-DBD complex of the budding yeast kinetochore
Keywords keywords	Complex, CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6gyp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6gyp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

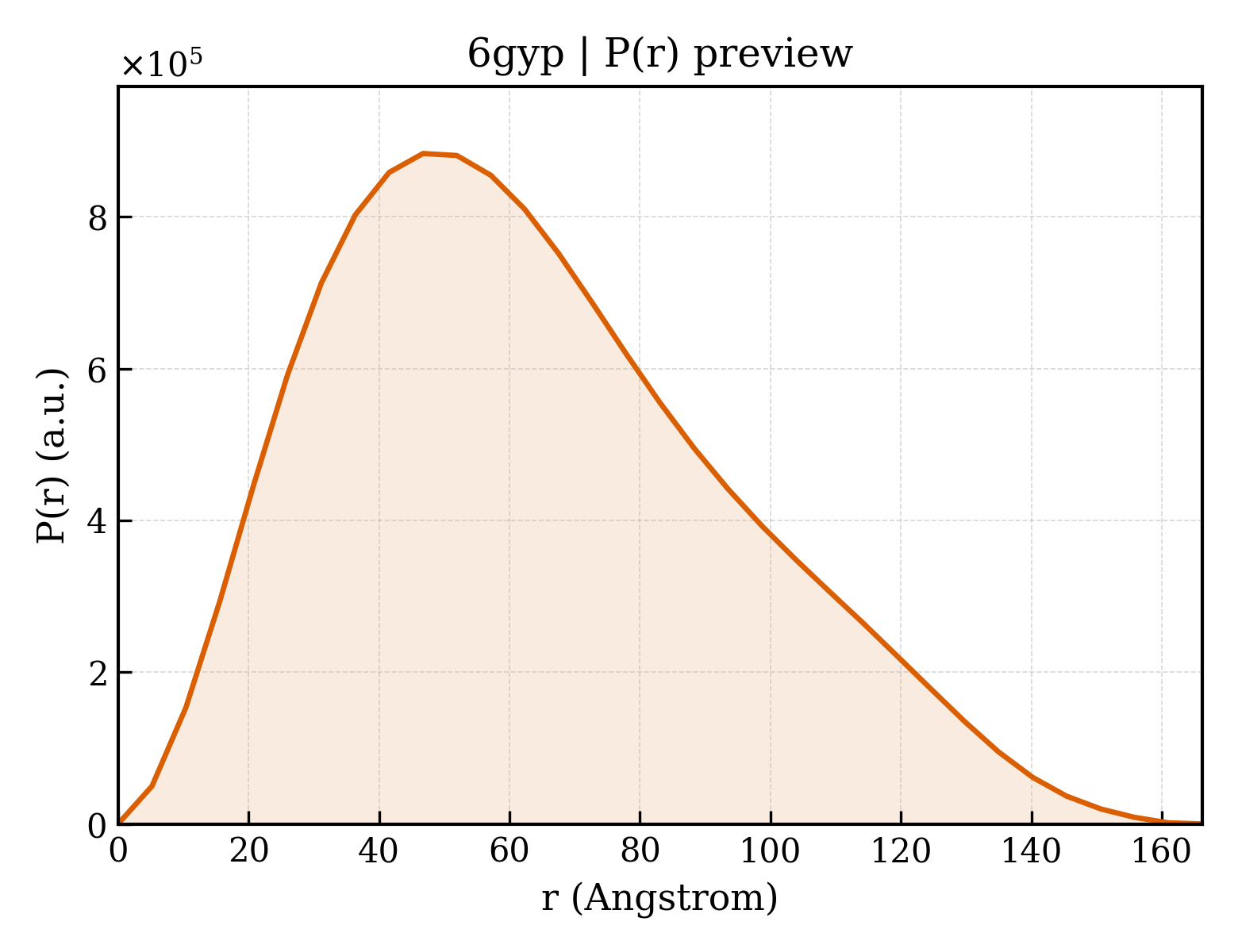

6gyp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.24 Å
Rg (electron density)	49.28 Å
Total Rg	49.25 Å
Atom count	17811
Residues	2141
Excluded volume	319560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6gyp__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Centromere DNA-binding protein complex CBF3 subunit B
Molecular weight formula_weight	71439.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	17811

MFNRTTQLKSKHPCSVCTRRKVKCDRMIPCGNCRKRGQDSECMKSTKLITASSSKEYLPDLLLFWQNYEYWITNIGLYKTKQRDLTRTPANLDTDTEECMFWMNYLQKDQSFQLMNFAMENLGALYFGSIGDISELYLRVEQYWDRRADKNHSVDGKYWDALIWSVFTMCIYYMPVEKLAEIFSVYPLHEYLGSNKRLNWEDGMQLVMCQNFARCSLFQLKQCDFMAHPDIRLVQAYLILATTTFPYDEPLLANSLLTQCIHTFKNFHVDDFRPLLNDDPVESIAKVTLGRIFYRLCGCDYLQSGPRKPIALHTEVSSLLQHAAYLQDLPNVDVYREENSTEVLYWKIISLDRDLDQYLNKSSKPPLKTLDAIRRELDIFQYKVDSLEEDFRSNNSRFQKFIALFQISTVSWKLFKMYLIYYDTADSLLKVIHYSKVIISLIVNNFHAKSEFFNRHPMVMQTITRVVSFISFYQIFVESAAVKQLLVDLTELTANLPTIFGSKLDKLVYLTERLSKLKLLWDKVQLLDSGDSFYHPVFKILQNDIKIIELKNDEMFSLIKGLGSLVPLNKLRQESLLEEEDENNTEPSDFRTIVEEFQSEYNISDILS

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	unidentified baculovirus

Entity 2 Entity 2 polymer

Description description	Centromere DNA-binding protein complex CBF3 subunit C
Molecular weight formula_weight	56416.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MPSFNPVRFLELPIDIRKEVYFHLDGNFCGAHPYPIDILYKSNDVELPGKPSYKRSKRSKKLLRYMYPVFATYLNIFEYSPQLIEKWLEYAFWLRYDCLVLDCFKVNHLYDGTLIDALEWTYLDNELRLAYFNKASMLEVWYTFKEYKKWVIDSVAFDELDLLNVSNIQFNIDNLTPQLVDKCLSILEQKDLFATIGEVQFGQDEEVGEEKDVDVSGANSDENSSPSSTIKNKKRSASKRSHSDNGNVGATHNQLTSISVIRTIRSMESMKSLRKITVRGEKLYELLINFHGFRDNPGKTISYIVKRRINEIRLSRMNQISRTGLADFTRWDNLQKLVLSRVAYIDLNSIVFPKNFKSLTMKRVSKIKWWNIEENILKELKVDKRTFKSLYIKEDDSKFTKFFNLRHTRIKELDKSEINQITYLRCQAIVWLSFRTLNHIKLQNVSEVFNNIIVPRALFDSKRVEIYRCEKISQVLVI

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	unidentified baculovirus

Entity 3 Entity 3 polymer

Description description	Centromere DNA-binding protein complex CBF3 subunit B
Molecular weight formula_weight	66401.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MFNRITASSSKEYLPDLLLFWQNYEYWITNIGLYKTKQRDLTRTPANLDTDTEECMFWMNYLQKDQSFQLMNFAMENLGALYFGSIGDISELYLRVEQYWDRRADKNHSVDGKYWDALIWSVFTMCIYYMPVEKLAEIFSVYPLHEYLGSNKRLNWEDGMQLVMCQNFARCSLFQLKQCDFMAHPDIRLVQAYLILATTTFPYDEPLLANSLLTQCIHTFKNFHVDDFRPLLNDDPVESIAKVTLGRIFYRLCGCDYLQSGPRKPIALHTEVSSLLQHAAYLQDLPNVDVYREENSTEVLYWKIISLDRDLDQYLNKSSKPPLKTLDAIRRELDIFQYKVDSLEEDFRSNNSRFQKFIALFQISTVSWKLFKMYLIYYDTADSLLKVIHYSKVIISLIVNNFHAKSEFFNRHPMVMQTITRVVSFISFYQIFVESAAVKQLLVDLTELTANLPTIFGSKLDKLVYLTERLSKLKLLWDKVQLLDSGDSFYHPVFKILQNDIKIIELKNDEMFSLIKGLGSLVPLNKLRQESLLEEEDENNTEPSDFRTIVEEFQSEYNISDILS

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	unidentified baculovirus

Entity 4 Entity 4 polymer

Description description	Suppressor of kinetochore protein 1
Molecular weight formula_weight	22357.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MVTSNVVLVSGEGERFTVDKKIAERSLLLKNYLNDMHDSNLQNNSDSESDSDSETNHKSKDNNNGDDDDEDDDEIVMPVPNVRSSVLQKVIEWAEHHRDSNFPDEDDDDSRKSAPVDSWDREFLKVDQEMLYEIILAANYLNIKPLLDAGCKVVAEMIRGRSPEEIRRTFNIVNDFTPEEEAAIRRENEWAEDR

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	unidentified baculovirus

Entity 5 Entity 5 polymer

Description description	Centromere DNA-binding protein complex CBF3 subunit A
Molecular weight formula_weight	112066.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MRSSILFLLKLMKIMDVQQQQEAMSSEDRFQELVDSLKPRTAHQYKTYYTKYIQWCQLNQIIPTPEDNSVNSVPYKDLPISAELIHWFLLDTLITDDKPGEKREETEDLDEEEENSFKIATLKKIIGSLNFLSKLCKVHENPNANIDTKYLESVTKLHTHWIDSQKAITTNETNNTNTQVLCPPLLKVSLNLWNPETNHLSEKFFKTCSEKLRFLVDFQLRSYLNLSFEERSKIRFGSLKLGKRDRDAIIYHKVTHSAEKKDTPGHHQLLALLPQDCPFICPQTTLAAYLYLRFYGIPSVSKGDGFPNLNADENGSLLQDIPILRGKSLTTYPREETFSNYYTTVFRYCHLPYKRREYFNKCNLVYPTWDEDTFRTFFNEENHGNWLEQPEAFAFPDKIPFDFKKIMNFKSPYTSYSTNAKKDPFPPPKDLLVQIFPEIDEYKRHDYEGLSQNSRDFLDLMEVLRERFLSNLPWIYKFFPNHDIFQDPIFGNSDFQSYFNDKTIHSKGSPILSFDILPGFNKIYKNKTNFYSLLIERPSQLTFASSHNPDTHPTQKQESEGPLQMSQLDTTQLNELLKQQSFEYVQFQTLSNFQILLSVFNKIFEKLEMKKSSRGYILHQLNLFKITLDERIKKSKIDDADKFIRDNQPIKKEENIVNEDGPNTSRRTKRPKQIRLLSIADSSDESSTEDSNVFKKDGESIEDGAYGENEDENDSEMQEQLKSMINELINSKISTFLRDQMDQFELKINALLDKILEEKVTRIIEQKLGSHTGKFSTLKRPQLYMTEEHNVGFDMEVPKKLRTSGKYAETVKDNDDHQAMSTTASPSPEQDQEAKSYTDEQEFMLDKSIDSIEGIILEWFTPNAKYANQCVHSMNKSGNKSWRANCEALYKERKSIVEFYIYLVNHESLDRYKAVDICEKLRDQNEGSFSRLAKFLRKWRHDHQNSFDGLLVYLSN

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	unidentified baculovirus

Entity 6 Entity 6 non-polymer

Description description	METHIONINE
Molecular weight formula_weight	149.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	PHENYLALANINE
Molecular weight formula_weight	165.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	ASPARAGINE
Molecular weight formula_weight	132.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	ARGININE
Molecular weight formula_weight	175.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	THREONINE
Molecular weight formula_weight	119.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	GLUTAMINE
Molecular weight formula_weight	146.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	6gypD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	6gypE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	20 — Centromere DNA-binding protein complex CBF3 subunit, domain 2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	73894
