SAXSdb — 2quq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Centromere DNA-binding protein complex CBF3 subunit B

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 47–608	Fragment：residues 47-608	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM HEPES, 5% PEG 4000, 500 mM NaCl, pH 7.5, vapor diffusion, hanging drop, temperature 298K	Resolution 2.80 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2QUQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2VEQ Insights into kinetochore-DNA interactions from the structure of Cep3p Deposited 2007-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 48–608（561 aa） Fragment：RESIDUES 48-608	Not recorded	BME BETA-MERCAPTOETHANOL × 2 CAC CACODYLATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；100MM SODIUM CACODYLATE PH 6.5, 0.2M POTASSIUM THIOCYANATE, 12% PEG 4000	Resolution 2.49 Å R-free 0.246
6F07 CBF3 Core Complex Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–608（608 aa） Chain B 1–608（608 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6FE8 Cryo-EM structure of the core Centromere Binding Factor 3 complex Deposited 2017-12-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 47–608（562 aa） Chain B 47–608（562 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6GSA Core Centromere Binding Factor 3 (CBF3) with monomeric Ndc10 Deposited 2018-06-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: tetrameric	Chain A 47–608（562 aa） Chain B 47–608（562 aa）	Mutation：Truncation of the N-terminal domain, UNP residues 1-46 Mutation：Truncation of the N-terminal domain, UNP residues 1-46	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
6GYP Cryo-EM structure of the CBF3-core-Ndc10-DBD complex of the budding yeast kinetochore Deposited 2018-07-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–608（608 aa） Chain C 49–608（560 aa）	Not recorded	MET METHIONINE × 1 PHE PHENYLALANINE × 1 ASN ASPARAGINE × 1 ARG ARGININE × 1 THR THREONINE × 2 GLN GLUTAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6GYS Cryo-EM structure of the CBF3-CEN3 complex of the budding yeast kinetochore Deposited 2018-07-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain B 1–608（608 aa） Chain C 1–608（608 aa） Chain I 1–608（608 aa） Chain J 1–608（608 aa）	Not recorded	ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
6GYU Cryo-EM structure of the CBF3-msk complex of the budding yeast kinetochore Deposited 2018-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–608（608 aa） Chain C 49–608（560 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7K79 CBF3 Deposited 2020-09-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain L 1–608（608 aa） Chain O 1–608（608 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7K7G nucleosome and Gal4 complex Deposited 2020-09-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain M 1–48（48 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain CE 1–608（608 aa） Chain ce 1–608（608 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CBF3B_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–562； UniProt 47–608

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2quq
Deposition date deposition_date	2007-08-06
Structure title title	Crystal Structure of the Essential Inner Kinetochore Protein Cep3p
Keywords keywords	;dimer, Centromere, Chromosomal protein, DNA-binding, Metal-binding, Nucleus, Phosphorylation, Zinc, PROTEIN BINDING, CELL CYCLE, DNA BINDING PROTEIN, STRUCTURAL PROTEIN ;; DNA BINDING PROTEIN, STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.36 Å
Radius of gyration Rg (electron density) rg_electron	24.24 Å
Forward intensity I(0) i0	54821300.00
Molecular weight molecular_weight	60787.0 kDa
Excluded volume excluded_volume	77343 Å³
Envelope volume envelope_volume	91837 Å³
Hydration-shell volume shell_volume	30932 Å³
Envelope diameter envelope_diameter	85.0 Å
Shell Rg shell_rg	32.05 Å
Envelope Rg envelope_rg	24.63 Å
Shape Rg shape_rg	24.24 Å
Total Rg total_rg	25.11 Å
Total atoms total_atoms	4292
Residues n_residues	517
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.8 Å
Rg (real space) rg_real	25.28 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	5.4820e+07
I(0) uncertainty (real space) i0_real_error	7.6680e+05
Rg (reciprocal space) rg_reciprocal	25.31 Å
I(0) (reciprocal space) i0_reciprocal	54820000.0000
Solution quality estimate total_estimate	0.8912
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.2 Å
Skewness Skewness skewness	0.283
Kurtosis Kurtosis kurtosis	-0.286
Angular range angular_range	— – 0.3150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11940000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.867; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Centromere DNA-binding protein complex CBF3 subunit B
Molecular weight formula_weight	66094.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4307

KLITASSSKEYLPDLLLFWQNYEYWITNIGLYKTKQRDLTRTPANLDTDTEECMFWMNYLQKDQSFQLMNFAMENLGALYFGSIGDISELYLRVEQYWDRRADKNHSVDGKYWDALIWSVFTMCIYYMPVEKLAEIFSVYPLHEYLGSNKRLNWEDGMQLVMCQNFARCSLFQLKQCDFMAHPDIRLVQAYLILATTTFPYDEPLLANSLLTQCIHTFKNFHVDDFRPLLNDDPVESIAKVTLGRIFYRLCGCDYLQSGPRKPIALHTEVSSLLQHAAYLQDLPNVDVYREENSTEVLYWKIISLDRDLDQYLNKSSKPPLKTLDAIRRELDIFQYKVDSLEEDFRSNNSRFQKFIALFQISTVSWKLFKMYLIYYDTADSLLKVIHYSKVIISLIVNNFHAKSEFFNRHPMVMQTITRVVSFISFYQIFVESAAVKQLLVDLTELTANLPTIFGSKLDKLVYLTERLSKLKLLWDKVQLLDSGDSFYHPVFKILQNDIKIIELKNDEMFSLIKGLGSLVPLNKLRQESLLEEEDENNTEPSDFRTIVEEFQSEYNISDILS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	15

▶

8. Citations (1)

▶

Unit-cell length a length_a	84.629 Å
Unit-cell length b length_b	84.629 Å
Unit-cell length c length_c	230.948 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	—
R_work r_work	0.2280
R_free r_free	0.2850

fit	/app/data/saxs_computation/qu/2quq/2quq.fit
pddf	/app/data/pr_computation/qu/2quq/2quq.pr.out
profile	/app/data/saxs_computation/qu/2quq/2quq.dat

Crystal Structure of the Essential Inner Kinetochore Protein Cep3p

1. Protein Identity and Related Structures Protein Identity & Related Structures

Centromere DNA-binding protein complex CBF3 subunit B

State in the Current Structure

Other States of the Same Protein in the Database

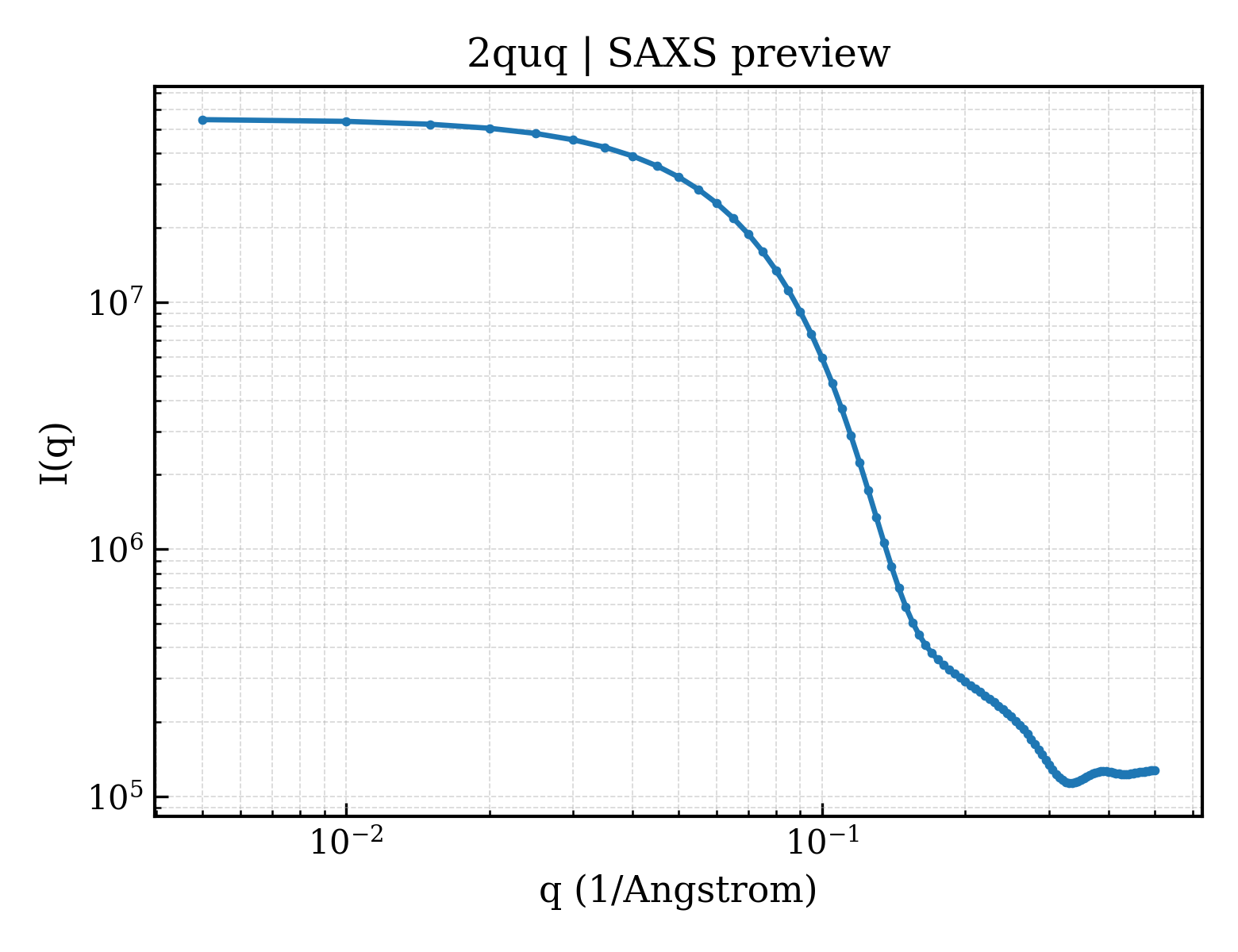

SAXS scattering curve SAXS Profile
