SAXSdb — 3v7d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Suppressor of kinetochore protein 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cell division control protein 4 × 1 （P07834） Protein SIC1 × 1 （P38634） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Cell division control protein 4 × 1 （P07834） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–169； UniProt 1–194 Author chain C； PDBConstruct 4–169； UniProt 1–194

Cell division control protein 4

Saccharomyces cerevisiae

UniProt P07834

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Suppressor of kinetochore protein 1 × 1 （P52286） Protein SIC1 × 1 （P38634） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Suppressor of kinetochore protein 1 × 1 （P52286） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–464； UniProt 263–744 Author chain D； PDBConstruct 3–464； UniProt 263–744

Protein SIC1

OrganismNot specified

UniProt P38634

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Suppressor of kinetochore protein 1 × 1 （P52286） Cell division control protein 4 × 1 （P07834） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIC1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–19； UniProt 67–85

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3v7d
Deposition date deposition_date	2011-12-20
Structure title title	Crystal Structure of ScSkp1-ScCdc4-pSic1 peptide complex
Keywords keywords	WD 40 domain, phospho-peptide complex, E3 ubiquitin ligase, ligase, cell cycle, phospho binding protein, Sic1, phosphorylation; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3v7d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3v7d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

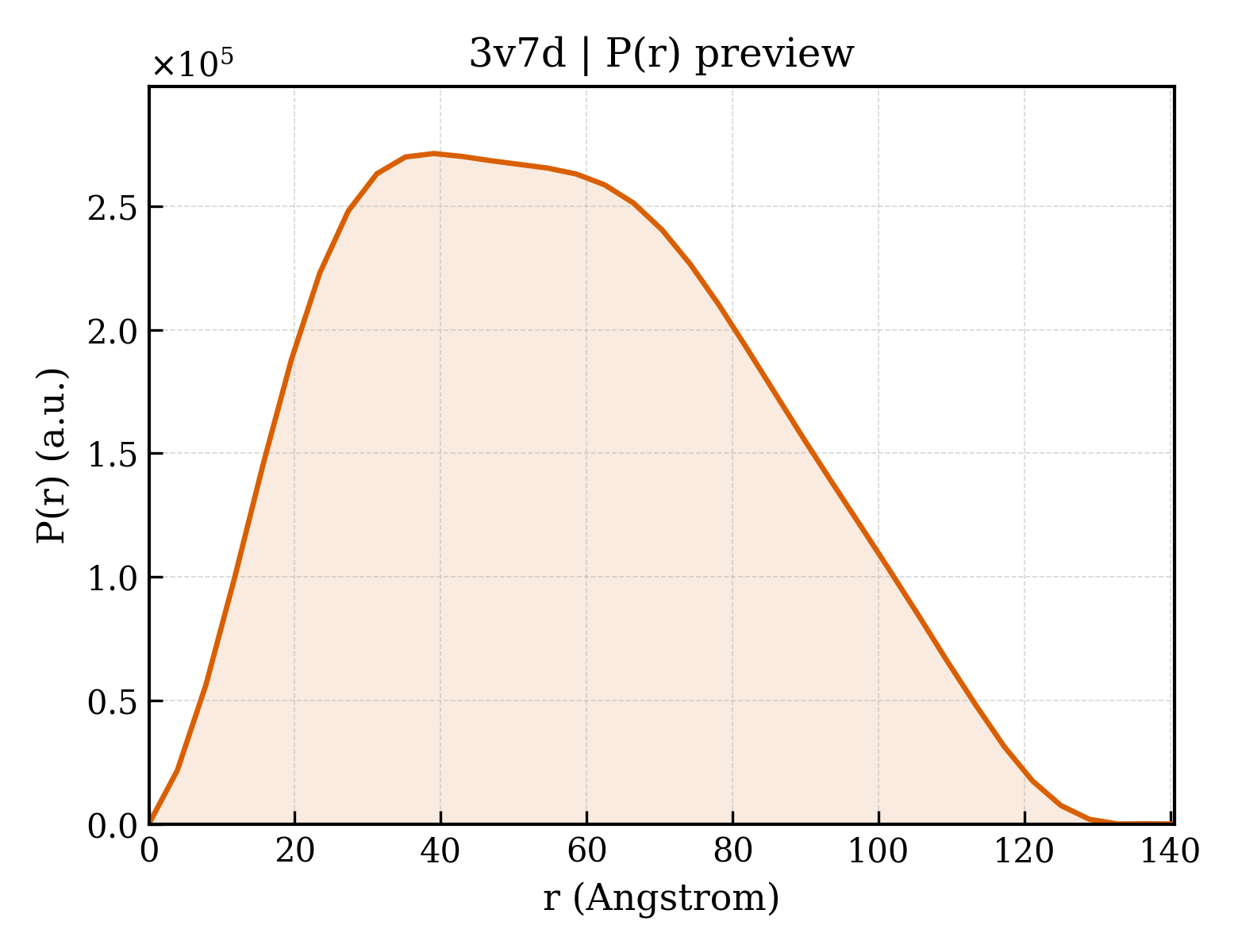

3v7d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.03 Å
Rg (electron density)	30.48 Å
Total Rg	31.12 Å
Atom count	4837
Residues	597
Excluded volume	86163 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3v7d__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3v7d__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Suppressor of kinetochore protein 1
Molecular weight formula_weight	19504.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	9899

GAHMVTSNVVLVSGEGERFTVDKKIAERSLLLKNYLNDMGDDDDEDDDEIVMPVPNVRSSVLQKVIEWAEHHRDSNFPDEDDDDSRKSAPVDSWDREFLKVDQEMLYEIILAANYLNIKPLLDAGCKVVAEMIRGRSPEEIRRTFNIVNDFTPEEEAAIRRENEWAEDR

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cell division control protein 4
Molecular weight formula_weight	52862.1 kDa
Mutation mutation	C608L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GAGTLIKDNLKRDLITSLPFEISLKIFNYLQFEDIINSLGVSQNWNKIIRKSTSLWKKLLISENFVSPKGFNSLNLKLSQKYPKLSQQDRLRLSFLENIFILKNWYNPKFVPQRTTLRGHMTSVITCLQFEDNYVITGADDKMIRVYDSINKKFLLQLSGHDGGVWALKYAHGGILVSGSTDRTVRVWDIKKGCCTHVFEGHNSTVRCLDIVEYKNIKYIVTGSRDNTLHVWKLPKESSVPDHGEEHDYPLVFHTPEENPYFVGVLRGHMASVRTVSGHGNIVVSGSYDNTLIVWDVAQMKCLYILSGHTDRIYSTIYDHERKRCISASMDTTIRIWDLENGELMYTLQGHTALVGLLRLSDKFLVSAAADGSIRGWDANDYSRKFSYHHTNLSAITTFYVSDNILVSGSENQFNIYNLRSGKLVHANILKDADQIWSVNFKGKTLVAAVEKDGQSFLEILDFS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Protein SIC1
Molecular weight formula_weight	2321.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MTSPFNGLTSPQRSPFPKS

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	320

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	3v7dA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	3v7dB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	3v7dB02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	3v7dC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	3v7dD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	3v7dD02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

Unit-cell length a length_a	107.292 Å
Unit-cell length b length_b	107.292 Å
Unit-cell length c length_c	166.679 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.306 Å
Low-resolution limit resolution_low	38.021 Å
R factor r_factor	0.1969
R_work r_work	0.1956
R_free r_free	0.2214
