Staphylococcus aureus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | RNPA_STAAU |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 6–119； UniProt 4–117 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 6d1r |
| Deposition date deposition_date | 2018-04-12 |
| Structure title title | Structure of Staphylococcus aureus RNase P protein at 2.0 angstrom |
| Keywords keywords | RNase, P protein, tRNA processing, RNA metabolism, RNA binding protein; RNA BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

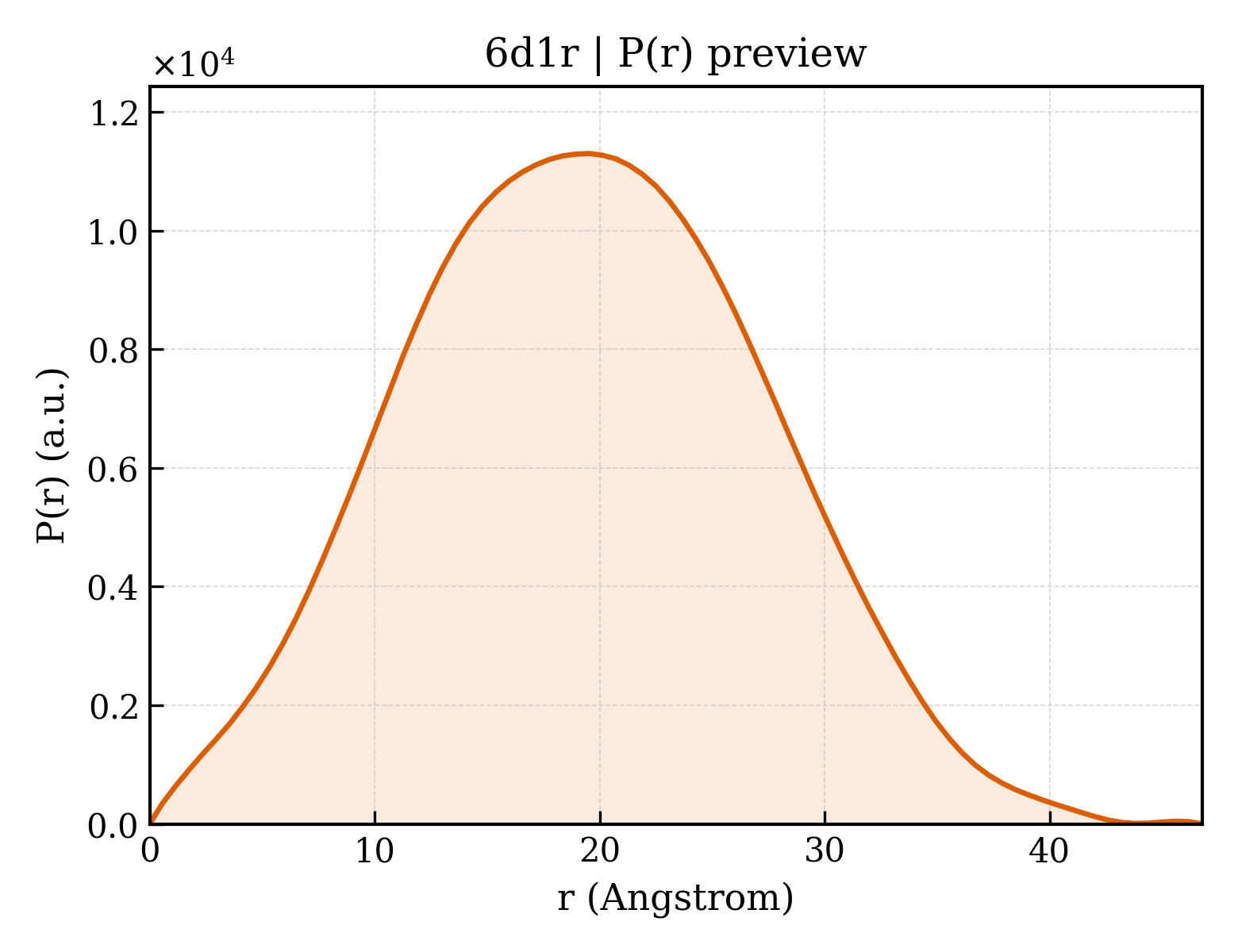

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 14.86 Å |
| Rg (electron density) | 13.43 Å |
| Total Rg | 14.84 Å |
| Atom count | 1768 |
| Residues | 109 |
| Excluded volume | 15607 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d6d1ra_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.14 — Ribosomal protein S5 domain 2-like |
| Superfamily Superfamily superfamily | d.14.1 — Ribosomal protein S5 domain 2-like |
| Family Family family | d.14.1.2 — RNase P protein |
| Domain ID domain_id | 6d1rA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 230 — Ribosomal Protein S5; domain 2 |
| Homologous superfamily homologous superfamily | 10 — |
