SAXSdb — 6dg5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-2 receptor subunit beta

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 2 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 27–235	Not recorded	Neoleukin-2/15 × 1 Cytokine receptor common subunit gamma × 1 （P34902） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.091 M Tris pH 7.5 8 mM imidazole pH 8.0 4.2% DEXTRAN SULFATE 50 mM sodium citrate 2.2 M ammonium sulfate	Resolution 2.52 Å R-free 0.266

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	IL2RB_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–209； UniProt 27–235

Cytokine receptor common subunit gamma

Mus musculus

UniProt P34902

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 2 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 56–254	Not recorded	Neoleukin-2/15 × 1 Interleukin-2 receptor subunit beta × 1 （P16297） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.091 M Tris pH 7.5 8 mM imidazole pH 8.0 4.2% DEXTRAN SULFATE 50 mM sodium citrate 2.2 M ammonium sulfate	Resolution 2.52 Å R-free 0.266

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6DG5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8DDC Intramembrane recognition between transmembrane domains of IL-7R and common gamma chain Deposited 2022-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 253–286（34 aa） Fragment：Transmembrane domain, residues 253-286	Mutation：M271V, C282F	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure 1 NMR sample composition 0.4 mM 15N, 13C, 85%2H Transmembrane domain of the common gamma-chain receptor, 40 mM DMPC, 100 mM DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 15N, 13C, 85%2H Transmembrane domain of the Interleukin-7 receptor alpha subunit, 40 mM DMPC, 100 mM DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 15N, 2H Transmembrane domain of the common gamma-chain receptor, 0.4 mM 13C Transmembrane domain of the Interleukin-7 receptor alpha subunit, 40 mM deuterated DMPC (deuterated), 100 mM deuterated DH6PC (deuterated), 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 15N, 2H Transmembrane domain of the Interleukin-7 receptor alpha subunit, 0.4 mM 13C Transmembrane domain of the common gamma-chain receptor, 40 mM deuterated DMPC (deuterated), 100 mM deuterated DH6PC (deuterated), 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 15N, 13C Transmembrane domain of the common gamma-chain receptor, 0.4 mM 15N, 13C Transmembrane domain of the Interleukin-7 receptor alpha subunit, 40 mM deuterated DMPC (deuterated), 100 mM deuterated DH6PC (deuterated), 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8DDD Intramembrane recognition between transmembrane domains of IL-9R and common gamma chain Deposited 2022-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 253–286（34 aa） Fragment：Transmembrane domain, residues 253-286	Mutation：M271V, C282F	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure 1 NMR sample composition 0.4 mM 15N, 13C, 85%2H Transmembrane domain of the common gamma-chain receptor, 40 mM DMPC, 100 mM DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 15N, 13C, 85%2H Transmembrane domain of the Interleukin-9 receptor alpha subunit, 40 mM DMPC, 100 mM DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 13C Transmembrane domain of the Interleukin-9 receptor alpha subunit, 0.4 mM 15N, 2H Transmembrane domain of the common gamma-chain receptor, 80 mM deuterated DMPC, 200 mM deuterated DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 13C Transmembrane domain of the common gamma-chain receptor, 0.4 mM 15N, 2H Transmembrane domain of the Interleukin-9 receptor alpha subunit, 80 mM deuterated DMPC, 200 mM deuterated DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM 13C Transmembrane domain of the Interleukin-9 receptor alpha subunit, 0.4 mM 15N, 2H Transmembrane domain of the common gamma-chain receptor, 80 mM deuterated DMPC, 200 mM deuterated DH6PC, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL2RG_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–199； UniProt 56–254

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6dg5
Deposition date deposition_date	2018-05-16
Structure title title	Structure of a de novo designed Interleukin-2/Interleukin-15 mimetic complex with IL-2Rb and IL-2Rg
Keywords keywords	cytokine mimetic, cytokine receptor complex, BIOSYNTHETIC PROTEIN, BIOSYNTHETIC PROTEIN-Protein Binding complex; BIOSYNTHETIC PROTEIN/Protein Binding
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.29 Å
Radius of gyration Rg (electron density) rg_electron	27.54 Å
Forward intensity I(0) i0	56450800.00
Molecular weight molecular_weight	58007.0 kDa
Excluded volume excluded_volume	72199 Å³
Envelope volume envelope_volume	90445 Å³
Hydration-shell volume shell_volume	28282 Å³
Envelope diameter envelope_diameter	103.4 Å
Shell Rg shell_rg	33.56 Å
Envelope Rg envelope_rg	27.95 Å
Shape Rg shape_rg	27.53 Å
Total Rg total_rg	28.19 Å
Total atoms total_atoms	4087
Residues n_residues	492
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

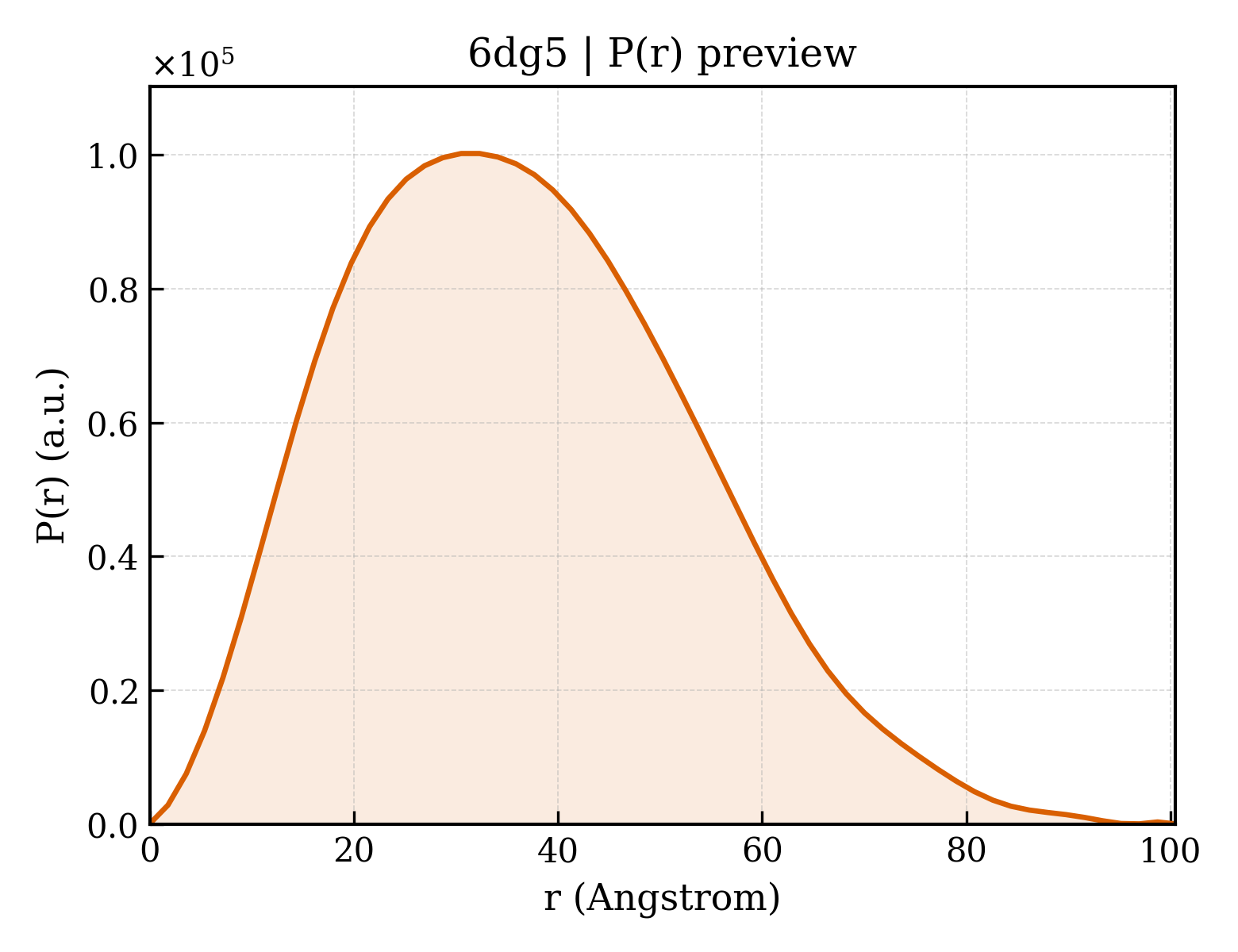

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.5 Å
Rg (real space) rg_real	28.37 Å
Rg uncertainty (real space) rg_real_error	0.98 Å
I(0) (real space) i0_real	5.6450e+07
I(0) uncertainty (real space) i0_real_error	8.6920e+05
Rg (reciprocal space) rg_reciprocal	28.34 Å
I(0) (reciprocal space) i0_reciprocal	56450000.0000
Solution quality estimate total_estimate	0.6832
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	98.7 Å
Skewness Skewness skewness	0.393
Kurtosis Kurtosis kurtosis	-0.275
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12950000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.852; Smooth: 0.933

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Neoleukin-2/15
Molecular weight formula_weight	12112.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4100

GSHMPKKKIQLHAEHALYDALMILNIVKTNSPPAEEKLEDYAFNFELILEEIARLFESGDQKDEAEKAKRMKEWMKRIKTTASEDEQEEMANAIITILQSWIFS

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Interleukin-2 receptor subunit beta
Molecular weight formula_weight	24469.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AVKNCSHLECFYNSRANVSCMWSHEEALNVTTCHVHAKSNLRHWNKTCELTLVRQASWACNLILGSFPESQSLTSVDLLDINVVCWEEKGWRRVKTCDFHPFDNLRLVAPHSLQVLHIDTQRCNISWKVSQVSHYIEPYLEFEARRRLLGHSWEDASVLSLKQRQQWLFLEMLIPSTSYEVQVRVKAQRNNTGTWSPWSQPLTFRTRPA

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Cytokine receptor common subunit gamma
Molecular weight formula_weight	23799.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PLPEVQCFVFNIEYMNCTWNSSSEPQATNLTLHYRYKVSDNNTFQECSHYLFSKEITSGCQIQKEDIQLYQTFVVQLQDPQKPQRRAVQKLNLQNLVIPRAPENLTLSNLSESQLELRWKSRHIKERCLQYLVQYRSNRDRSWTELIVNHEPRFSLPSVDELKRYTFRVRSRYNPICGSSQQWSKWSQPVHWGSHTVEE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1219.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	13

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	6dg5B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6dg5B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6dg5C01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6dg5C02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	65.125 Å
Unit-cell length b length_b	67.914 Å
Unit-cell length c length_c	172.084 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.516 Å
Low-resolution limit resolution_low	47.005 Å
R factor r_factor	0.2256
R_work r_work	0.2211
R_free r_free	0.2659

fit	/app/data/saxs_computation/dg/6dg5/6dg5.fit
pddf	/app/data/pr_computation/dg/6dg5/6dg5.pr.out
profile	/app/data/saxs_computation/dg/6dg5/6dg5.dat
