SAXSdb — 6h16

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Low-density lipoprotein receptor-related protein 6

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 4	VHH L-P2-D07 × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LRP6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–615； UniProt 630–1244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6h16
Deposition date deposition_date	2018-07-11
Structure title title	Structure of LRP6 P3E3P4E4 in complex with VHH L-P2-D07
Keywords keywords	Inhibitor, complex, signalling protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6h16__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6h16__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

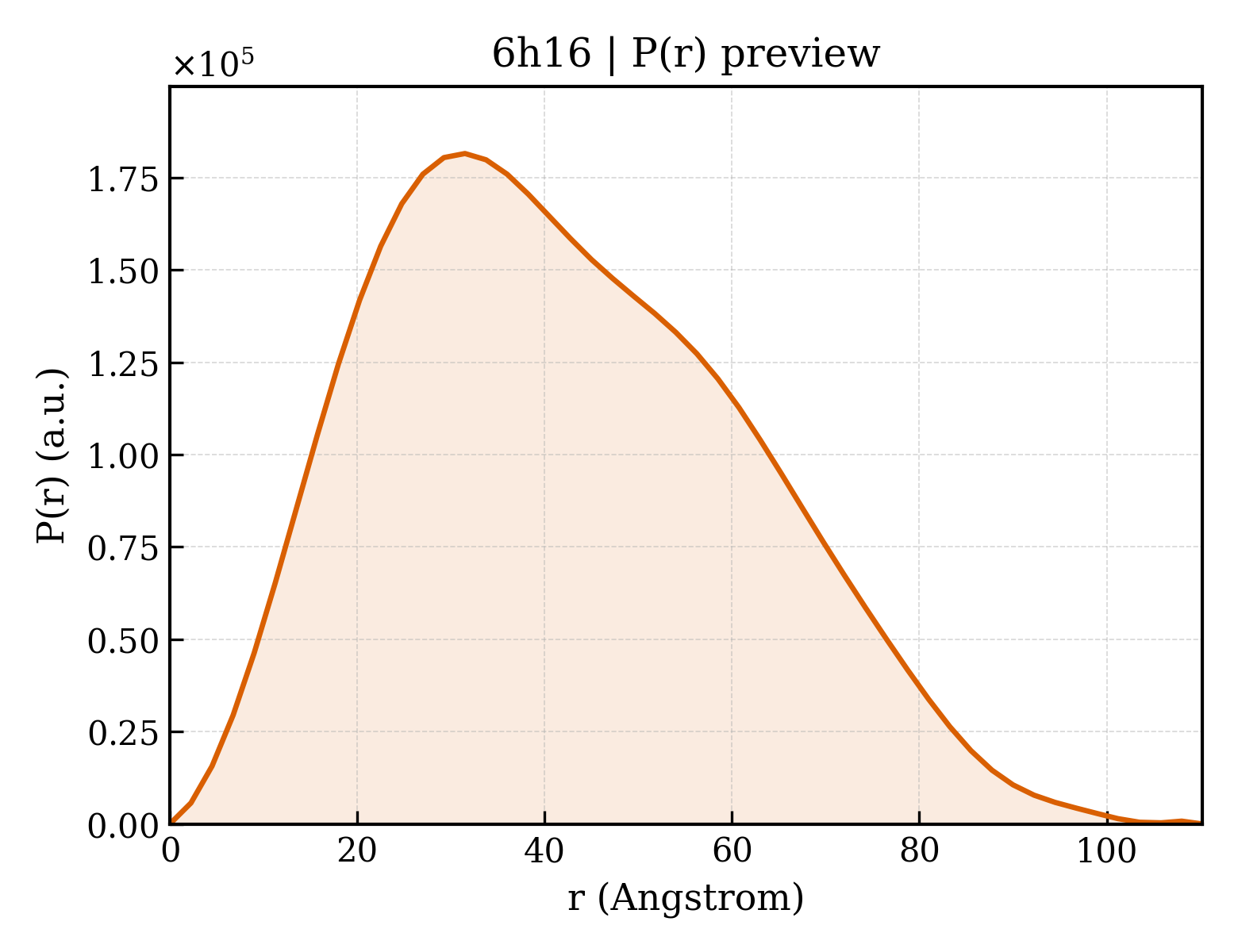

6h16__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.58 Å
Rg (electron density)	31.95 Å
Total Rg	32.58 Å
Atom count	5908
Residues	726
Excluded volume	104350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6h16__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Low-density lipoprotein receptor-related protein 6
Molecular weight formula_weight	69880.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5923

PEAFLLFSRRADIRRISLETNNNNVAIPLTGVKEASALDFDVTDNRIYWTDISLKTISRAFMNGSALEHVVEFGLDYPEGMAVDWLGKNLYWADTGTNRIEVSKLDGQHRQVLVWKDLDSPRALALDPAEGFMYWTEWGGKPKIDRAAMDGSERTTLVPNVGRANGLTIDYAKRRLYWTDLDTNLIESSNMLGLNREVIADDLPHPFGLTQYQDYIYWTDWSRRSIERANKTSGQNRTIIQGHLDYVMDILVFHSSRQSGWNECASSNGHCSHLCLAVPVGGFVCGCPAHYSLNADNRTCSAPTTFLLFSQKSAINRMVIDEQQSPDIILPIHSLRNVRAIDYDPLDKQLYWIDSRQNMIRKAQEDGSQGFTVVVSSVPSQNLEIQPYDLSIDIYSRYIYWTCEATNVINVTRLDGRSVGVVLKGEQDRPRAVVVNPEKGYMYFTNLQERSPKIERAALDGTEREVLFFSGLSKPIALALDSRLGKLFWADSDLRRIESSDLSGANRIVLEDSNILQPVGLTVFENWLYWIDKQQQMIEKIDMTGREGRTKVQARIAQLSDIHAVKELNLQEYRQHPCAQDNGGCSHICLVKGDGTTRCSCPMHLVLLQDELSCGAAA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	VHH L-P2-D07
Molecular weight formula_weight	13088.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EVQLQESGGGLVQAGGSLRLSCAASGRTFSIYTIGWFRQAPGKEREFVAEITWSGGSTYYADSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCAAITYTRGIYKYWGQGTQVTVSS

Source Source

Source organism organism	Lama glama
Common name common_name	Llama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	15

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6h16b_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (2 domains)

Domain ID domain_id	6h16A01
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	30 — TolB, C-terminal domain

Domain ID domain_id	6h16A02
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	30 — TolB, C-terminal domain

▶

Unit-cell length a length_a	92.795 Å
Unit-cell length b length_b	105.954 Å
Unit-cell length c length_c	164.191 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	82.096 Å
R factor r_factor	0.2127
R_work r_work	0.2106
R_free r_free	0.2518
