6hd6

ABL1 IN COMPLEX WITH COMPOUND6 AND IMATINIB (STI-571)

Method: X-RAY DIFFRACTION D_max: 90.6 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein kinase ABL1

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 229–515	Fragment：KINASE DOMAIN	CL CHLORIDE ION × 1 FYH 3-(morpholin-4-ylmethyl)-~{N}-[4-(trifluoromethyloxy)phenyl]benzamide × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；21.4 % PEG 4000, 0.2 M MGCL2, 0.1 M MES PH 5.6	Resolution 2.30 Å R-free 0.238
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 229–515	Fragment：KINASE DOMAIN	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；21.4 % PEG 4000, 0.2 M MGCL2, 0.1 M MES PH 5.6	Resolution 2.30 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6HD6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ABO CRYSTAL STRUCTURE OF THE COMPLEX OF THE ABL TYROSINE KINASE SH3 DOMAIN WITH 3BP-1 SYNTHETIC PEPTIDE Deposited 1995-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 61–121（61 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1ABO CRYSTAL STRUCTURE OF THE COMPLEX OF THE ABL TYROSINE KINASE SH3 DOMAIN WITH 3BP-1 SYNTHETIC PEPTIDE Deposited 1995-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 61–121（61 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1ABO CRYSTAL STRUCTURE OF THE COMPLEX OF THE ABL TYROSINE KINASE SH3 DOMAIN WITH 3BP-1 SYNTHETIC PEPTIDE Deposited 1995-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 61–121（61 aa） Chain B 61–121（61 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1ABQ CRYSTAL STRUCTURE OF THE UNLIGANDED ABL TYROSINE KINASE SH3 DOMAIN Deposited 1995-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 61–121（61 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1FPU CRYSTAL STRUCTURE OF ABL KINASE DOMAIN IN COMPLEX WITH A SMALL MOLECULE INHIBITOR Deposited 2000-08-31	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	PRC N-[4-METHYL-3-[[4-(3-PYRIDINYL)-2-PYRIMIDINYL]AMINO]PHENYL]-3-PYRIDINECARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；PEG 4000, magnesium chloride, mes, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.40 Å R-free 0.264
1FPU CRYSTAL STRUCTURE OF ABL KINASE DOMAIN IN COMPLEX WITH A SMALL MOLECULE INHIBITOR Deposited 2000-08-31	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	PRC N-[4-METHYL-3-[[4-(3-PYRIDINYL)-2-PYRIMIDINYL]AMINO]PHENYL]-3-PYRIDINECARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；PEG 4000, magnesium chloride, mes, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.40 Å R-free 0.264
1IEP CRYSTAL STRUCTURE OF THE C-ABL KINASE DOMAIN IN COMPLEX WITH STI-571. Deposited 2001-04-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	CL CHLORIDE ION × 4 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 4000, MAGNESIUM CHLORIDE, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.262
1IEP CRYSTAL STRUCTURE OF THE C-ABL KINASE DOMAIN IN COMPLEX WITH STI-571. Deposited 2001-04-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	CL CHLORIDE ION × 2 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 4000, MAGNESIUM CHLORIDE, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.262
1M52 Crystal Structure of the c-Abl Kinase domain in complex with PD173955 Deposited 2002-07-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：Kinase Domain (residues 232-503)	Not recorded	P17 6-(2,6-DICHLORO-PHENYL)-8-METHYL-2-(3-METHYLSULFANYL-PHENYLAMINO)-8H-PYRIDO[2,3-D]PYRIMIDIN-7-ONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, isopropanol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.254
1M52 Crystal Structure of the c-Abl Kinase domain in complex with PD173955 Deposited 2002-07-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：Kinase Domain (residues 232-503)	Not recorded	P17 6-(2,6-DICHLORO-PHENYL)-8-METHYL-2-(3-METHYLSULFANYL-PHENYLAMINO)-8H-PYRIDO[2,3-D]PYRIMIDIN-7-ONE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG 20000, MES, isopropanol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.254
1OPJ Structural basis for the auto-inhibition of c-Abl tyrosine kinase Deposited 2003-03-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	CL CHLORIDE ION × 1 MYR MYRISTIC ACID × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；22% PEG 4000, 100 mM MES pH 5.6, 200 mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.242
1OPJ Structural basis for the auto-inhibition of c-Abl tyrosine kinase Deposited 2003-03-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	CL CHLORIDE ION × 1 MYR MYRISTIC ACID × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；22% PEG 4000, 100 mM MES pH 5.6, 200 mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.242
1OPK Structural basis for the auto-inhibition of c-Abl tyrosine kinase Deposited 2003-03-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–515（489 aa） Fragment：SH3-SH2-kinase domain	Mutation：D382N	MYR MYRISTIC ACID × 1 P16 6-(2,6-DICHLOROPHENYL)-2-{[3-(HYDROXYMETHYL)PHENYL]AMINO}-8-METHYLPYRIDO[2,3-D]PYRIMIDIN-7(8H)-ONE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 200 mM potassium nitrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.221
2QOH Crystal Structure of Abl kinase bound with PPY-A Deposited 2007-07-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：residues 228-515	Not recorded	P3Y 5-[3-(2-METHOXYPHENYL)-1H-PYRROLO[2,3-B]PYRIDIN-5-YL]-N,N-DIMETHYLPYRIDINE-3-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；277 K；30% PEG 4K, 0.1M Tris, 0.2M sodium acetate, pH 8.5, EVAPORATION, temperature 277K	Resolution 1.95 Å R-free 0.255
2QOH Crystal Structure of Abl kinase bound with PPY-A Deposited 2007-07-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：residues 228-515	Not recorded	P3Y 5-[3-(2-METHOXYPHENYL)-1H-PYRROLO[2,3-B]PYRIDIN-5-YL]-N,N-DIMETHYLPYRIDINE-3-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；277 K；30% PEG 4K, 0.1M Tris, 0.2M sodium acetate, pH 8.5, EVAPORATION, temperature 277K	Resolution 1.95 Å R-free 0.255
2Z60 Crystal Structure of the T315I Mutant of Abl kinase bound with PPY-A Deposited 2007-07-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：residues 228-511	Mutation：T315I	P3Y 5-[3-(2-METHOXYPHENYL)-1H-PYRROLO[2,3-B]PYRIDIN-5-YL]-N,N-DIMETHYLPYRIDINE-3-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；277 K；30% PEG 4K, 0.1M Tris, 0.2M Sodium acetate, pH 8.5, EVAPORATION, temperature 277K	Resolution 1.95 Å R-free 0.245
3DK3 Crystal structure of mutant ABL kinase domain in complex with small molecule fragment Deposited 2008-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 233–514（282 aa）	Mutation：Y393F, L445P	SX7 2-amino-5-[3-(1-ethyl-1H-pyrazol-5-yl)-1H-pyrrolo[2,3-b]pyridin-5-yl]-N,N-dimethylbenzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；1.9M AMMONIUM SULFATE, 150 mM POTASSIUM SODIUM TARTRATE, 100 Mm SODIUM CITRATE, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.02 Å R-free 0.248
3DK3 Crystal structure of mutant ABL kinase domain in complex with small molecule fragment Deposited 2008-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 233–514（282 aa）	Mutation：Y393F, L445P	SX7 2-amino-5-[3-(1-ethyl-1H-pyrazol-5-yl)-1H-pyrrolo[2,3-b]pyridin-5-yl]-N,N-dimethylbenzamide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；1.9M AMMONIUM SULFATE, 150 mM POTASSIUM SODIUM TARTRATE, 100 Mm SODIUM CITRATE, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.02 Å R-free 0.248
3DK6 Crystal structure of mutant ABL kinase domain in complex with small molecule fragment Deposited 2008-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 233–514（282 aa）	Mutation：Y253F, L445P Non-standard monomer：Yes (specific site not provided by mmCIF)	SX7 2-amino-5-[3-(1-ethyl-1H-pyrazol-5-yl)-1H-pyrrolo[2,3-b]pyridin-5-yl]-N,N-dimethylbenzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；1.95M AMMONIUM SULFATE, 125 mM POTASSIUM SODIUM TARTRATE, 100 mM SODIUM CITRATE, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.02 Å R-free 0.246
3DK6 Crystal structure of mutant ABL kinase domain in complex with small molecule fragment Deposited 2008-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 233–514（282 aa）	Mutation：Y253F, L445P Non-standard monomer：Yes (specific site not provided by mmCIF)	SX7 2-amino-5-[3-(1-ethyl-1H-pyrazol-5-yl)-1H-pyrrolo[2,3-b]pyridin-5-yl]-N,N-dimethylbenzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；1.95M AMMONIUM SULFATE, 125 mM POTASSIUM SODIUM TARTRATE, 100 mM SODIUM CITRATE, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.02 Å R-free 0.246
3DK7 Crystal structure of mutant ABL kinase domain in complex with small molecule fragment Deposited 2008-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 233–505（273 aa）	Mutation：T315I, L445P Non-standard monomer：Yes (specific site not provided by mmCIF)	SX7 2-amino-5-[3-(1-ethyl-1H-pyrazol-5-yl)-1H-pyrrolo[2,3-b]pyridin-5-yl]-N,N-dimethylbenzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；1.9M AMMONIUM SULFATE, 150 mM POTASSIUM SODIUM TARTRATE, 100 mM SODIUM CITRATE, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.01 Å R-free 0.242
3DK7 Crystal structure of mutant ABL kinase domain in complex with small molecule fragment Deposited 2008-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 233–505（273 aa）	Mutation：T315I, L445P Non-standard monomer：Yes (specific site not provided by mmCIF)	SX7 2-amino-5-[3-(1-ethyl-1H-pyrazol-5-yl)-1H-pyrrolo[2,3-b]pyridin-5-yl]-N,N-dimethylbenzamide × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；292 K；1.9M AMMONIUM SULFATE, 150 mM POTASSIUM SODIUM TARTRATE, 100 mM SODIUM CITRATE, pH 5.6, VAPOR DIFFUSION, temperature 292K	Resolution 2.01 Å R-free 0.242
3IK3 AP24534, a Pan-BCR-ABL Inhibitor for Chronic Myeloid Leukemia, Potently Inhibits the T315I Mutant and Overcomes Mutation-Based Resistance Deposited 2009-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–513（285 aa）	Mutation：T315I	0LI 3-(imidazo[1,2-b]pyridazin-3-ylethynyl)-4-methyl-N-{4-[(4-methylpiperazin-1-yl)methyl]-3-(trifluoromethyl)phenyl}benzam ide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M Tris-HCl (pH 8.5), 30% w/v polyethylene glycol 4000, and 0.2 M sodium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.258
3IK3 AP24534, a Pan-BCR-ABL Inhibitor for Chronic Myeloid Leukemia, Potently Inhibits the T315I Mutant and Overcomes Mutation-Based Resistance Deposited 2009-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–513（285 aa）	Mutation：T315I	0LI 3-(imidazo[1,2-b]pyridazin-3-ylethynyl)-4-methyl-N-{4-[(4-methylpiperazin-1-yl)methyl]-3-(trifluoromethyl)phenyl}benzam ide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M Tris-HCl (pH 8.5), 30% w/v polyethylene glycol 4000, and 0.2 M sodium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.258
3K5V Structure of Abl kinase in complex with imatinib and GNF-2 Deposited 2009-10-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：Kinase domain (UNP residues 229 to 515)	Not recorded	STJ 3-(6-{[4-(trifluoromethoxy)phenyl]amino}pyrimidin-4-yl)benzamide × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；0.1 M MES pH 5.6, 0.2 M MgCl2, 18 % PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.74 Å R-free 0.231
3K5V Structure of Abl kinase in complex with imatinib and GNF-2 Deposited 2009-10-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：Kinase domain (UNP residues 229 to 515)	Not recorded	STJ 3-(6-{[4-(trifluoromethoxy)phenyl]amino}pyrimidin-4-yl)benzamide × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；0.1 M MES pH 5.6, 0.2 M MgCl2, 18 % PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.74 Å R-free 0.231
3KF4 Structural analysis of DFG-in and DFG-out dual Src-Abl inhibitors sharing a common vinyl purine template Deposited 2009-10-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：residues 115-401	Not recorded	B90 N-[4-(dimethylphosphoryl)phenyl]-9-[(E)-2-(5-methyl-1H-indazol-4-yl)ethenyl]-9H-purin-6-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M TRIS-HCL, pH 8.0, 30% w/v PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.240
3KF4 Structural analysis of DFG-in and DFG-out dual Src-Abl inhibitors sharing a common vinyl purine template Deposited 2009-10-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：residues 115-401	Not recorded	B90 N-[4-(dimethylphosphoryl)phenyl]-9-[(E)-2-(5-methyl-1H-indazol-4-yl)ethenyl]-9H-purin-6-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M TRIS-HCL, pH 8.0, 30% w/v PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.240
3KFA Structural analysis of DFG-in and DFG-out dual Src-Abl inhibitors sharing a common vinyl purine template Deposited 2009-10-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：residues 115-401	Not recorded	B91 3-{(E)-2-[6-(cyclopropylamino)-9H-purin-9-yl]ethenyl}-4-methyl-N-[3-(4-methyl-1H-imidazol-1-yl)-5-(trifluoromethyl)phenyl]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M TRIS-HCL, pH 8.5, 30% w/v PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.22 Å R-free 0.201
3KFA Structural analysis of DFG-in and DFG-out dual Src-Abl inhibitors sharing a common vinyl purine template Deposited 2009-10-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：residues 115-401	Not recorded	B91 3-{(E)-2-[6-(cyclopropylamino)-9H-purin-9-yl]ethenyl}-4-methyl-N-[3-(4-methyl-1H-imidazol-1-yl)-5-(trifluoromethyl)phenyl]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M TRIS-HCL, pH 8.5, 30% w/v PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.22 Å R-free 0.201
3MS9 ABL kinase in complex with imatinib and a fragment (FRAG1) in the myristate pocket Deposited 2010-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：KINASE DOMAIN, residues 229-515	Not recorded	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 MS9 methyl 2-amino-4-chlorobenzoate × 1 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；protein concentration: 20mg/ml. Crystallisation buffer: 0.1M MES pH 6.5, 0.2M MgCl2, 18.4% PEG4000, VAPOR DIFFUSION, temperature 277K	Resolution 1.80 Å R-free 0.234
3MS9 ABL kinase in complex with imatinib and a fragment (FRAG1) in the myristate pocket Deposited 2010-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：KINASE DOMAIN, residues 229-515	Not recorded	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 MS9 methyl 2-amino-4-chlorobenzoate × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；protein concentration: 20mg/ml. Crystallisation buffer: 0.1M MES pH 6.5, 0.2M MgCl2, 18.4% PEG4000, VAPOR DIFFUSION, temperature 277K	Resolution 1.80 Å R-free 0.234
3MSS Abl kinase in complex with imatinib and fragment (FRAG2) in the myristate site Deposited 2010-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：KINASE DOMAIN, residues 229-515	Not recorded	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 MS7 O-benzyl-N-methyl-L-tyrosinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；Buffer: 0.1M imidazole pH 6.5, 0.2M MgCl2, 2%EG, 13.8% PEG4000, VAPOR DIFFUSION, temperature 277K	Resolution 1.95 Å R-free 0.220
3MSS Abl kinase in complex with imatinib and fragment (FRAG2) in the myristate site Deposited 2010-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：KINASE DOMAIN, residues 229-515	Not recorded	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 MS7 O-benzyl-N-methyl-L-tyrosinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；Buffer: 0.1M imidazole pH 6.5, 0.2M MgCl2, 2%EG, 13.8% PEG4000, VAPOR DIFFUSION, temperature 277K	Resolution 1.95 Å R-free 0.220
3MSS Abl kinase in complex with imatinib and fragment (FRAG2) in the myristate site Deposited 2010-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 229–515（287 aa） Fragment：KINASE DOMAIN, residues 229-515	Not recorded	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 MS7 O-benzyl-N-methyl-L-tyrosinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；Buffer: 0.1M imidazole pH 6.5, 0.2M MgCl2, 2%EG, 13.8% PEG4000, VAPOR DIFFUSION, temperature 277K	Resolution 1.95 Å R-free 0.220
3MSS Abl kinase in complex with imatinib and fragment (FRAG2) in the myristate site Deposited 2010-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 229–515（287 aa） Fragment：KINASE DOMAIN, residues 229-515	Not recorded	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1 MS7 O-benzyl-N-methyl-L-tyrosinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；Buffer: 0.1M imidazole pH 6.5, 0.2M MgCl2, 2%EG, 13.8% PEG4000, VAPOR DIFFUSION, temperature 277K	Resolution 1.95 Å R-free 0.220
3OXZ Crystal structure of ABL kinase domain bound with a DFG-out inhibitor AP24534 Deposited 2010-09-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–511（283 aa） Fragment：UNP residues 229-511	Not recorded	0LI 3-(imidazo[1,2-b]pyridazin-3-ylethynyl)-4-methyl-N-{4-[(4-methylpiperazin-1-yl)methyl]-3-(trifluoromethyl)phenyl}benzam ide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% w/v polyethylene glycol, 0.2 M sodium acetate, 0.1 M Tris-HCl, pH 8.5 , VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.261
3OY3 Crystal structure of ABL T315I mutant kinase domain bound with a DFG-out inhibitor AP24589 Deposited 2010-09-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–511（283 aa） Fragment：UNP residues 229-511	Mutation：T315I	XY3 5-[(5-{[4-{[4-(2-hydroxyethyl)piperazin-1-yl]methyl}-3-(trifluoromethyl)phenyl]carbamoyl}-2-methylphenyl)ethynyl]-1-methyl-1H-imidazole-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% w/v polyethylene glycol, 0.2 M sodium acetate, 0.1 M Trs-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.95 Å R-free 0.266
3OY3 Crystal structure of ABL T315I mutant kinase domain bound with a DFG-out inhibitor AP24589 Deposited 2010-09-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–511（283 aa） Fragment：UNP residues 229-511	Mutation：T315I	XY3 5-[(5-{[4-{[4-(2-hydroxyethyl)piperazin-1-yl]methyl}-3-(trifluoromethyl)phenyl]carbamoyl}-2-methylphenyl)ethynyl]-1-methyl-1H-imidazole-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；30% w/v polyethylene glycol, 0.2 M sodium acetate, 0.1 M Trs-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.95 Å R-free 0.266
6HD4 ABL1 IN COMPLEX WITH COMPOUND 7 AND IMATINIB (STI-571) Deposited 2018-08-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	GOL GLYCEROL × 1 CL CHLORIDE ION × 1 FYW 6-[(3~{R})-3-oxidanylpyrrolidin-1-yl]-5-pyrimidin-5-yl-~{N}-[4-(trifluoromethyloxy)phenyl]pyridine-3-carboxamide × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；20.0 % PEG 4000, 0.2 M MGCL2, 0.1 M MES PH 5.6	Resolution 2.03 Å R-free 0.223
6HD4 ABL1 IN COMPLEX WITH COMPOUND 7 AND IMATINIB (STI-571) Deposited 2018-08-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 229–515（287 aa） Fragment：KINASE DOMAIN	Not recorded	FYW 6-[(3~{R})-3-oxidanylpyrrolidin-1-yl]-5-pyrimidin-5-yl-~{N}-[4-(trifluoromethyloxy)phenyl]pyridine-3-carboxamide × 1 STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；20.0 % PEG 4000, 0.2 M MGCL2, 0.1 M MES PH 5.6	Resolution 2.03 Å R-free 0.223

21 other PDB entries and 41 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ABL1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–293； UniProt 229–515 Author chain B； PDBConstruct 7–293； UniProt 229–515

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6hd6
Deposition date deposition_date	2018-08-17
Structure title title	ABL1 IN COMPLEX WITH COMPOUND6 AND IMATINIB (STI-571)
Keywords keywords	PHOSPHOTRANSFERASE, Inhibitor complex, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.76 Å
Radius of gyration Rg (electron density) rg_electron	27.89 Å
Forward intensity I(0) i0	70151800.00
Molecular weight molecular_weight	67009.0 kDa
Excluded volume excluded_volume	84328 Å³
Envelope volume envelope_volume	107910 Å³
Hydration-shell volume shell_volume	32498 Å³
Envelope diameter envelope_diameter	95.2 Å
Shell Rg shell_rg	35.13 Å
Envelope Rg envelope_rg	28.07 Å
Shape Rg shape_rg	27.89 Å
Total Rg total_rg	28.66 Å
Total atoms total_atoms	4714
Residues n_residues	568
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

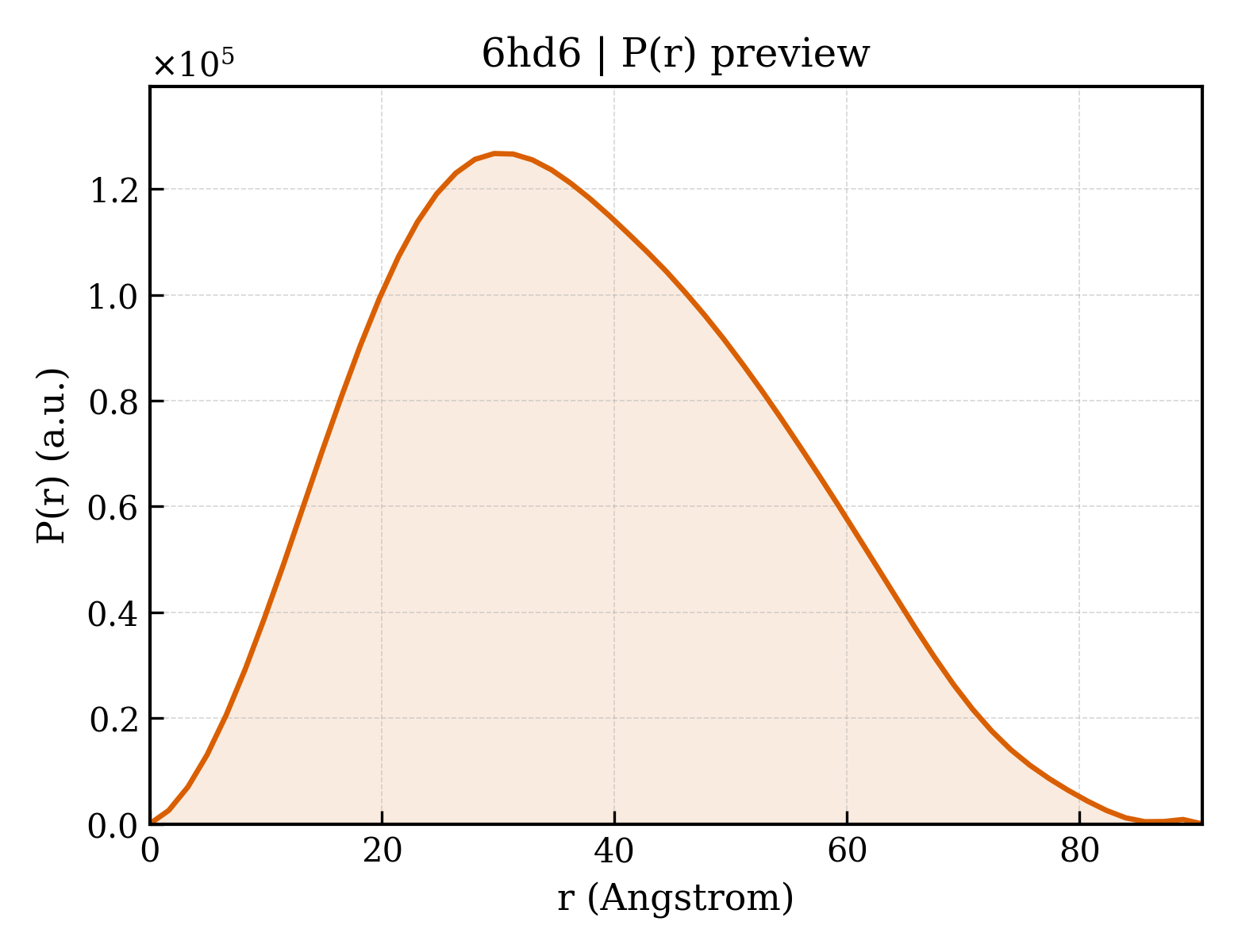

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	90.6 Å
Rg (real space) rg_real	28.75 Å
Rg uncertainty (real space) rg_real_error	0.67 Å
I(0) (real space) i0_real	7.0150e+07
I(0) uncertainty (real space) i0_real_error	1.1250e+06
Rg (reciprocal space) rg_reciprocal	28.76 Å
I(0) (reciprocal space) i0_reciprocal	70150000.0000
Solution quality estimate total_estimate	0.9030
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.6 Å
Skewness Skewness skewness	0.284
Kurtosis Kurtosis kurtosis	-0.547
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	18100000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.916

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein kinase ABL1
Molecular weight formula_weight	33743.5 kDa
EC 编号 ec_number	2.7.10.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5135

GAMDPSSPNYDKWEMERTDITMKHKLGGGQYGEVYEGVWKKYSLTVAVKTLKEDTMEVEEFLKEAAVMKEIKHPNLVQLLGVCTREPPFYIITEFMTYGNLLDYLRECNRQEVSAVVLLYMATQISSAMEYLEKKNFIHRDLAARNCLVGENHLVKVADFGLSRLMTGDTYTAHAGAKFPIKWTAPESLAYNKFSIKSDVWAFGVLLWEIATYGMSPYPGIDLSQVYELLEKDYRMERPEGCPEKVYELMRACWQWNPSDRPSFAEIHQAFETMFQESSISDEVEKELGKRGT

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	House Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	3-(morpholin-4-ylmethyl)-~{N}-[4-(trifluoromethyloxy)phenyl]benzamide
Molecular weight formula_weight	380.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE
Molecular weight formula_weight	493.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	385

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6hd6a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d6hd6a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d6hd6b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d6hd6b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	6hd6A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	6hd6A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	6hd6B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	6hd6B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.080 Å
Unit-cell length b length_b	65.201 Å
Unit-cell length c length_c	66.347 Å
Unit-cell angle α angle_alpha	73.30 °
Unit-cell angle β angle_beta	79.82 °
Unit-cell angle γ angle_gamma	84.54 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	35.250 Å
R factor r_factor	0.1779
R_work r_work	0.1747
R_free r_free	0.2380
