1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding protein GTR1

Saccharomyces cerevisiae S288c

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–310	Not recorded	GTP-binding protein GTR2 × 1 （P53290） Protein MEH1 × 1 （Q02205） Ego2 × 1 （Q3E830） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain F； UniProt 1–310	Not recorded	GTP-binding protein GTR2 × 1 （P53290） Protein MEH1 × 1 （Q02205） Ego2 × 1 （Q3E830） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6JWP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3R7W Crystal Structure of Gtr1p-Gtr2p complex Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–310（303 aa） Fragment：residues 8-310	Non-standard monomer：Yes (specific site not provided by mmCIF)	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1M HEPES, 10% PEG monomethyl ether 5000, 5%(v/v) Tacsimate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.77 Å R-free 0.283
3R7W Crystal Structure of Gtr1p-Gtr2p complex Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 8–310（303 aa） Fragment：residues 8-310	Non-standard monomer：Yes (specific site not provided by mmCIF)	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1M HEPES, 10% PEG monomethyl ether 5000, 5%(v/v) Tacsimate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.77 Å R-free 0.283
4ARZ The crystal structure of Gtr1p-Gtr2p complexed with GTP-GDP Deposited 2012-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–310（310 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 3.10 Å R-free 0.272
9H4Q Cryo-EM structure of the SEAC wing - EGOC Deposited 2024-10-21	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain a 1–310（310 aa）	Not recorded	MG MAGNESIUM ION × 1 AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain a 1–310（310 aa） Chain b 1–310（310 aa）	Not recorded	ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GTR1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–312； UniProt 1–310 Author chain F； PDBConstruct 3–312； UniProt 1–310

GTP-binding protein GTR2

Saccharomyces cerevisiae S288c

UniProt P53290

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 1–341	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） Protein MEH1 × 1 （Q02205） Ego2 × 1 （Q3E830） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain G； UniProt 1–341	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） Protein MEH1 × 1 （Q02205） Ego2 × 1 （Q3E830） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6JWP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3R7W Crystal Structure of Gtr1p-Gtr2p complex Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 11–341（331 aa） Fragment：residues 11-341	Non-standard monomer：Yes (specific site not provided by mmCIF)	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1M HEPES, 10% PEG monomethyl ether 5000, 5%(v/v) Tacsimate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.77 Å R-free 0.283
3R7W Crystal Structure of Gtr1p-Gtr2p complex Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 11–341（331 aa） Fragment：residues 11-341	Non-standard monomer：Yes (specific site not provided by mmCIF)	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1M HEPES, 10% PEG monomethyl ether 5000, 5%(v/v) Tacsimate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.77 Å R-free 0.283
4ARZ The crystal structure of Gtr1p-Gtr2p complexed with GTP-GDP Deposited 2012-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–341（341 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 3.10 Å R-free 0.272
9H4Q Cryo-EM structure of the SEAC wing - EGOC Deposited 2024-10-21	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain c 1–341（341 aa）	Not recorded	MG MAGNESIUM ION × 1 AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain c 1–341（341 aa） Chain d 1–341（341 aa）	Not recorded	ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GTR2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–345； UniProt 1–341 Author chain G； PDBConstruct 5–345； UniProt 1–341

Protein MEH1

Saccharomyces cerevisiae S288c

UniProt Q02205

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain C； UniProt 33–184	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） GTP-binding protein GTR2 × 1 （P53290） Ego2 × 1 （Q3E830） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain H； UniProt 33–184	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） GTP-binding protein GTR2 × 1 （P53290） Ego2 × 1 （Q3E830） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6JWP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4XPM Crystal structure of EGO-TC Deposited 2015-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 146–184（39 aa） Fragment：UNP RESIDUES 146-184	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, 0.1M Bis-Tris (pH 5.5), 25% PEG 3350	Resolution 2.40 Å R-free 0.217
9H4Q Cryo-EM structure of the SEAC wing - EGOC Deposited 2024-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain R 1–184（184 aa）	Not recorded	MG MAGNESIUM ION × 1 AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain R 1–184（184 aa） Chain S 1–184（184 aa）	Not recorded	ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MEH1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 2–129； UniProt 33–184 Author chain H； PDBConstruct 2–129； UniProt 33–184

Ego2

Saccharomyces cerevisiae S288c

UniProt Q3E830

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain D； UniProt 1–75	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） GTP-binding protein GTR2 × 1 （P53290） Protein MEH1 × 1 （Q02205） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain I； UniProt 1–75	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） GTP-binding protein GTR2 × 1 （P53290） Protein MEH1 × 1 （Q02205） Protein SLM4 × 1 （P38247） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6JWP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4XPM Crystal structure of EGO-TC Deposited 2015-01-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–75（75 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, 0.1M Bis-Tris (pH 5.5), 25% PEG 3350	Resolution 2.40 Å R-free 0.217
9H4Q Cryo-EM structure of the SEAC wing - EGOC Deposited 2024-10-21	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain U 1–75（75 aa）	Not recorded	MG MAGNESIUM ION × 1 AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain U 1–75（75 aa） Chain W 1–75（75 aa）	Not recorded	ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	YC075_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–75； UniProt 1–75 Author chain I； PDBConstruct 1–75； UniProt 1–75

Protein SLM4

Saccharomyces cerevisiae S288c

UniProt P38247

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 1–162	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） GTP-binding protein GTR2 × 1 （P53290） Protein MEH1 × 1 （Q02205） Ego2 × 1 （Q3E830） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain J； UniProt 1–162	Not recorded	GTP-binding protein GTR1 × 1 （Q00582） GTP-binding protein GTR2 × 1 （P53290） Protein MEH1 × 1 （Q02205） Ego2 × 1 （Q3E830） GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；100mM HEPES (pH 7.5), 200mM NaCl, and 12%(w/v) PEG 8000	Resolution 3.20 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6JWP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3LGO Structure of Gse1p, member of the GSE/EGO complex Deposited 2010-01-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–162（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3；293 K；100 mM sodium citrate buffer, pH 2.0, 500-800 mM ammonium sulfate, 200 mM lithium sulfate, 200-350 mM L-arginine-HCl, pH 5.75, 5% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.351
3LGO Structure of Gse1p, member of the GSE/EGO complex Deposited 2010-01-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–162（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3；293 K；100 mM sodium citrate buffer, pH 2.0, 500-800 mM ammonium sulfate, 200 mM lithium sulfate, 200-350 mM L-arginine-HCl, pH 5.75, 5% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.351
4FTX Crystal structure of Ego3 homodimer Deposited 2012-06-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–162（162 aa） Chain B 1–162（162 aa）	Not recorded	SIN SUCCINIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；35% tacsimate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.10 Å R-free 0.221
4FUW Crystal structure of Ego3 mutant Deposited 2012-06-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–162（162 aa） Chain B 1–162（162 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；1.6M ammonium sulfate, 0.1M MES monohydrate, 10% 1,4-dioxane, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.60 Å R-free 0.253
4XPM Crystal structure of EGO-TC Deposited 2015-01-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–162（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, 0.1M Bis-Tris (pH 5.5), 25% PEG 3350	Resolution 2.40 Å R-free 0.217
9H4Q Cryo-EM structure of the SEAC wing - EGOC Deposited 2024-10-21	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain Y 1–162（162 aa）	Not recorded	MG MAGNESIUM ION × 1 AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9H5K Cryo-EM structure of the SEAC-EGOC supercomplex Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric	Chain Y 1–162（162 aa） Chain Z 1–162（162 aa）	Not recorded	ZN ZINC ION × 28 MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SLM4_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–162； UniProt 1–162 Author chain J； PDBConstruct 1–162； UniProt 1–162

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6jwp
Deposition date deposition_date	2019-04-21
Structure title title	crystal structure of EGOC
Keywords keywords	EGOC, roadblock domain, Gtr1, TORC1, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	58.72 Å
Radius of gyration Rg (electron density) rg_electron	60.30 Å
Forward intensity I(0) i0	493792000.00
Molecular weight molecular_weight	187170.0 kDa
Excluded volume excluded_volume	235330 Å³
Envelope volume envelope_volume	347390 Å³
Hydration-shell volume shell_volume	55705 Å³
Envelope diameter envelope_diameter	237.2 Å
Shell Rg shell_rg	50.79 Å
Envelope Rg envelope_rg	59.62 Å
Shape Rg shape_rg	60.34 Å
Total Rg total_rg	59.83 Å
Total atoms total_atoms	13142
Residues n_residues	1671
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

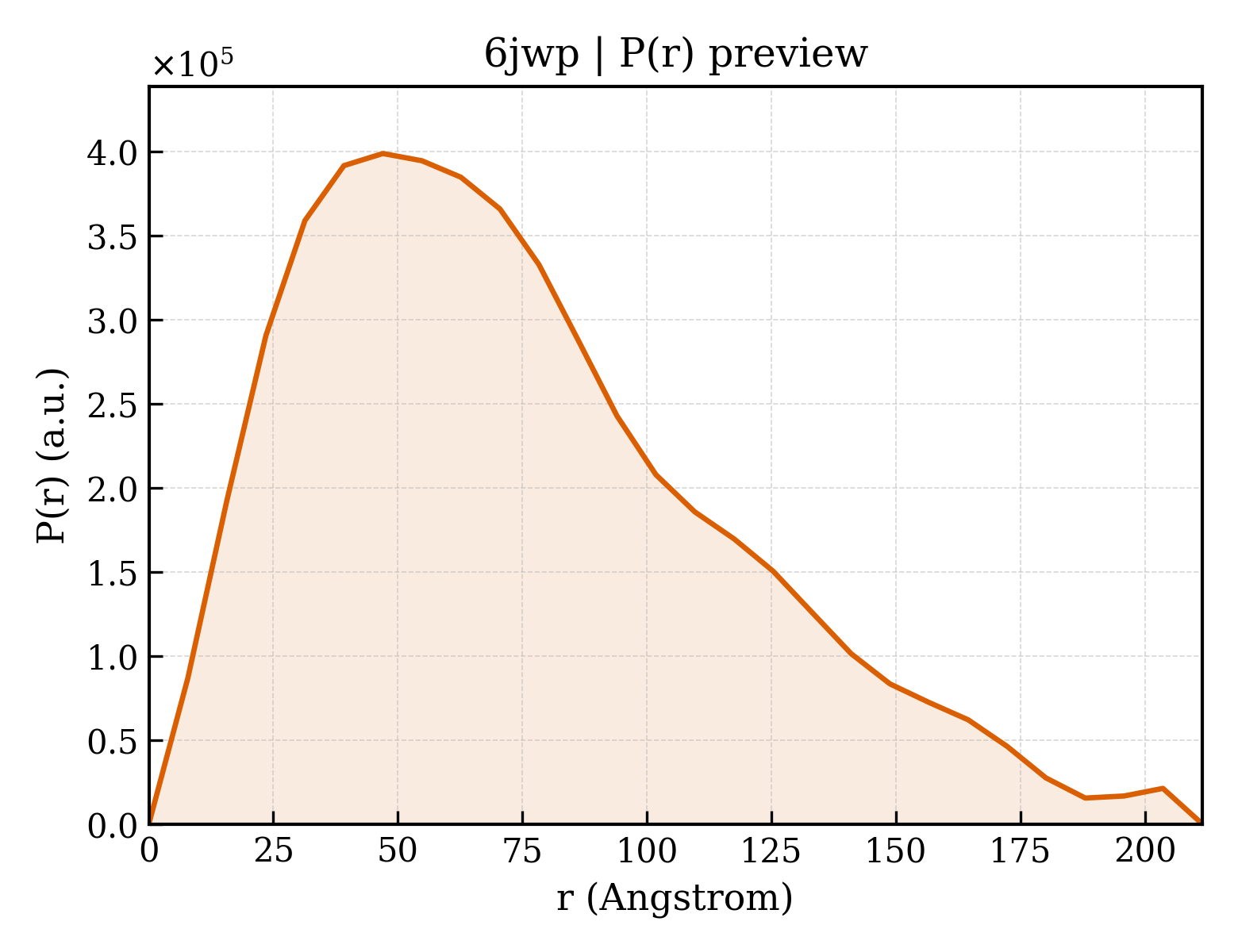

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	211.5 Å
Rg (real space) rg_real	59.78 Å
Rg uncertainty (real space) rg_real_error	2.27 Å
I(0) (real space) i0_real	4.9350e+08
I(0) uncertainty (real space) i0_real_error	1.1170e+07
Rg (reciprocal space) rg_reciprocal	57.70 Å
I(0) (reciprocal space) i0_reciprocal	492100000.0000
Solution quality estimate total_estimate	0.7612
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	47.0 Å
Skewness Skewness skewness	0.715
Kurtosis Kurtosis kurtosis	-0.004
Angular range angular_range	— – 0.1350 Å⁻¹
Current regularization parameter α current_alpha	0.0034
Highest regularization parameter α highest_alpha	16610000.0000
Real-space data points n_real_points	28
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.609; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.442; Smooth: 0.624

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	GTP-binding protein GTR1
Molecular weight formula_weight	36117.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F
Atom count atom_count	13142

SHMSSNNRKKLLLMGRSGSGKSSMRSIIFSNYSAFDTRRLGATIDVEHSHLRFLGNMTLNLWDCGGQDVFMENYFTKQKDHIFQMVQVLIHVFDVESTEVLKDIEIFAKALKQLRKYSPDAKIFVLLHKMDLVQLDKREELFQIMMKNLSETSSEFGFPNLIGFPTSIWDESLYKAWSQIVCSLIPNMSNHQSNLKKFKEIMNALEIILFERTTFLVICSSNGENSNENHDSSDNNNVLLDPKRFEKISNIMKNFKQSCTKLKSGFKTLILNNNIYVSELSSNMVCFIVLKDMNIPQELVLENIKKAKEFFQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	GTP-binding protein GTR2
Molecular weight formula_weight	39092.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G

MGIRMSLEATDSKAMVLLMGVRRCGKSSICKVVFHNMQPLDTLYLESTSNPSLEHFSTLIDLAVMELPGQLNYFEPSYDSERLFKSVGALVYVIDSQDEYINAITNLAMIIEYAYKVNPSINIEVLIHKVDGLSEDFKVDAQRDIMQRTGEELLELGLDGVQVSFYLTSIFDHSIYEAFSRIVQKLIPELSFLENMLDNLIQHSKIEKAFLFDVNSKIYVSTDSNPVDIQMYEVCSEFIDVTIDLFDLYKAPVLRNSQKSSDKDNVINPRNELQNVSQLANGVIIYLRQMIRGLALVAIIRPNGTDMESCLTVADYNIDIFKKGLEDIWANARASQAKNSIEDDV

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Protein MEH1
Molecular weight formula_weight	14471.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,H

MANDEYDAEQMRLKEHEHEQKLLAREQELRDIVANTNDKLIDISMINNSGIVIQGTDLQEALDKRQPSSGSAQATTHQTAPRTNTFTLLTSPDSAKISKEQLKKLHSNILNEIFSQSQVNKPGPLTVPF

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Ego2
Molecular weight formula_weight	8104.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,I

MEAEKQSDIKGTIAFDTHGNVIESTGVGSQRIEDIGDLSKVTLDAEGFAQVQGDSLLVHLYKRNDITLAVYTSAQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Protein SLM4
Molecular weight formula_weight	18371.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,J

MVMLHSKNVKGFLENTLKPYDLHSVDFKTSSLQSSMIITATNGGILSYATSNNDVPKNSINEINSVNNLKMMSLLIKDKWSEDENDTEEQHSNSCYPVEIDSFKTKIYTYEMEDLHTCVAQIPNSDLLLLFIAEGSFPYGLLVIKIERAMRELTDLFGYKLG

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288c
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

▼

7. Fold Classification (SCOP + CATH) 7 domains

CATH v4.4 (7 domains)

Domain ID domain_id	6jwpA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	190 —

Domain ID domain_id	6jwpB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	6jwpB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	190 —

Domain ID domain_id	6jwpD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1840 — Profilin-like
Homologous superfamily homologous superfamily	10 — YNR034W-A-like

Domain ID domain_id	6jwpF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	190 —

Domain ID domain_id	6jwpG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	190 —

Domain ID domain_id	6jwpI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1840 — Profilin-like
Homologous superfamily homologous superfamily	10 — YNR034W-A-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	81.675 Å
Unit-cell length b length_b	120.547 Å
Unit-cell length c length_c	323.274 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	49.240 Å
R factor r_factor	0.2329
R_work r_work	0.2301
R_free r_free	0.2854

fit	/app/data/saxs_computation/jw/6jwp/6jwp.fit
pddf	/app/data/pr_computation/jw/6jwp/6jwp.pr.out
profile	/app/data/saxs_computation/jw/6jwp/6jwp.dat

crystal structure of EGOC

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding protein GTR1

State in the Current Structure

Other States of the Same Protein in the Database

GTP-binding protein GTR2

State in the Current Structure

Other States of the Same Protein in the Database

Protein MEH1

State in the Current Structure

Other States of the Same Protein in the Database

Ego2

State in the Current Structure

Other States of the Same Protein in the Database

Protein SLM4

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

7. Fold Classification (SCOP + CATH) 7 domains

CATH v4.4 (7 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
