SAXSdb — 6kds

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha N-terminal protein methyltransferase 1B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 61–283	Not recorded	CENP-A peptide × 1 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8.1；291 K；0.1M Tris pH 8.1, 14% w/v Polyethylene glycol 8000	Resolution 1.84 Å R-free 0.205

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6KDS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5UBB Crystal structure of human alpha N-terminal protein methyltransferase 1B Deposited 2016-12-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 58–278（221 aa） Fragment：UNP residues 58-278	Not recorded	SAM S-ADENOSYLMETHIONINE × 2 UNX UNKNOWN LIGAND × 52	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.2 M sodium acetate	Resolution 2.00 Å R-free 0.250
6DUB Crystal structure of a methyltransferase Deposited 2018-06-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 58–278（221 aa） Fragment：UNP residues 58-278	Not recorded	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 2 UNX UNKNOWN LIGAND × 37	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；30% PEG2000, 0.1 M potassium thiocyanate	Resolution 1.20 Å R-free 0.178
6DUB Crystal structure of a methyltransferase Deposited 2018-06-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 58–278（221 aa） Fragment：UNP residues 58-278	Not recorded	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1 UNX UNKNOWN LIGAND × 23	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；30% PEG2000, 0.1 M potassium thiocyanate	Resolution 1.20 Å R-free 0.178
6KDR Crystal structure of human NRMT2 in complex with human centromere protein B peptide Deposited 2019-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 61–283（223 aa） Fragment：Protein N-terminal methyltransferase Chain B 61–283（223 aa） Fragment：Protein N-terminal methyltransferase	Not recorded	SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 GOL GLYCEROL × 3 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.3；291 K；0.1M Tris pH 8.3, 6% w/v Polyethylene glycol 8000	Resolution 2.11 Å R-free 0.205

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NTM1B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–244； UniProt 61–283

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6kds
Deposition date deposition_date	2019-07-02
Structure title title	Crystal structure of human NRMT2 in complex with alpha-N-monomethylated human CENP-A peptide
Keywords keywords	core methyltransferase fold, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.61 Å
Radius of gyration Rg (electron density) rg_electron	16.28 Å
Forward intensity I(0) i0	12327900.00
Molecular weight molecular_weight	26050.0 kDa
Excluded volume excluded_volume	32543 Å³
Envelope volume envelope_volume	36245 Å³
Hydration-shell volume shell_volume	17979 Å³
Envelope diameter envelope_diameter	54.1 Å
Shell Rg shell_rg	23.15 Å
Envelope Rg envelope_rg	16.66 Å
Shape Rg shape_rg	16.26 Å
Total Rg total_rg	17.39 Å
Total atoms total_atoms	1827
Residues n_residues	226
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

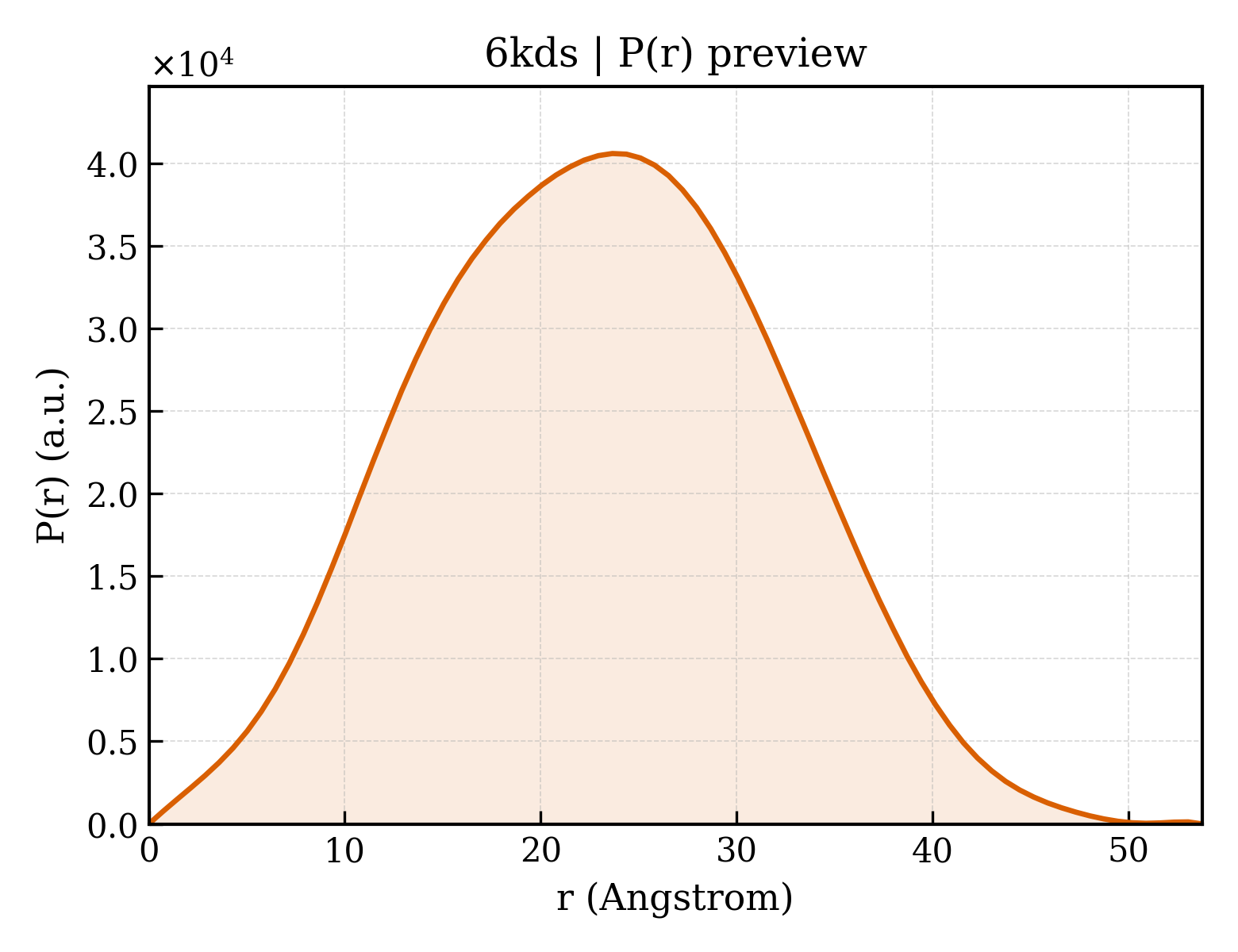

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.8 Å
Rg (real space) rg_real	17.45 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	1.2330e+07
I(0) uncertainty (real space) i0_real_error	1.3610e+05
Rg (reciprocal space) rg_reciprocal	17.47 Å
I(0) (reciprocal space) i0_reciprocal	12330000.0000
Solution quality estimate total_estimate	0.8961
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.7 Å
Skewness Skewness skewness	0.058
Kurtosis Kurtosis kurtosis	-0.467
Angular range angular_range	— – 0.4500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5723000.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Alpha N-terminal protein methyltransferase 1B
Molecular weight formula_weight	27519.5 kDa
EC 编号 ec_number	2.1.1.299
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2019

MGSSHHHHHHSSGLVPRGSHMVINGEMQFYARAKLFYQEVPATEEGMMGNFIELSSPDIQASQKFLRKFVGGPGRAGTDCALDCGSGIGRVSKHVLLPVFNSVELVDMMESFLLEAQNYLQVKGDKVESYHCYSLQEFTPPFRRYDVIWIQWVSGHLTDKDLLAFLSRCRDGLKENGIIILKDNVAREGCILDLSDSSVTRDMDILRSLIRKSGLVVLGQEKQDGFPEQCIPVWMFALHSDRHS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	CENP-A peptide
Molecular weight formula_weight	744.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

GPRRRS

Entity 3 Entity 3 non-polymer

Description description	S-ADENOSYL-L-HOMOCYSTEINE
Molecular weight formula_weight	384.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	167

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6kdsA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.603 Å
Unit-cell length b length_b	108.191 Å
Unit-cell length c length_c	38.799 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.844 Å
Low-resolution limit resolution_low	32.979 Å
R factor r_factor	0.1796
R_work r_work	0.1783
R_free r_free	0.2047

fit	/app/data/saxs_computation/kd/6kds/6kds.fit
pddf	/app/data/pr_computation/kd/6kds/6kds.pr.out
profile	/app/data/saxs_computation/kd/6kds/6kds.dat
