SAXSdb — 6kzj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ankyrin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1499–1570	Not recorded	Nuclear distribution protein nudE-like 1 × 2 （Q9ERR1）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 5.6；289 K；1.9M ammonium sulfate, 0.16M potassium sodium tartrate tetrahydrate, 0.1M sodium citrate tribasic dehydrate pH 5.6	Resolution 1.50 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6KZJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4D8O Crystal Structure of the ankyrin-B ZU5-ZU5-UPA-DD tandem Deposited 2012-01-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 966–1210（245 aa） Fragment：residues 966-1535 Chain A 1253–1568（316 aa） Fragment：residues 966-1535	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；18% PEG3350, 0.2M ammonium acetate, 5% n-Octyl-beta-D-glucoside, pH 7.5, vapor diffusion, hanging drop, temperature 289K	Resolution 2.20 Å R-free 0.245
4RLV Crystal Structure of AnkB 24 Ankyrin Repeats in Complex with AnkR Autoinhibition Segment Deposited 2014-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–873（846 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；0.5 M ammonium sulfate, 1.0 M lithium sulfate, and 0.1 M sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.49 Å R-free 0.253
4RLY Crystal Structure of AnkB Ankyrin Repeats (R1-R9) in Complex with Nav1.2 Ankyrin Binding Domain Deposited 2014-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–318（291 aa）	Not recorded	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；1.8 M ammonium sulfate, 6-8% dioxane, and 0.1 M MES , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.50 Å R-free 0.238
4RLY Crystal Structure of AnkB Ankyrin Repeats (R1-R9) in Complex with Nav1.2 Ankyrin Binding Domain Deposited 2014-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–318（291 aa）	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；1.8 M ammonium sulfate, 6-8% dioxane, and 0.1 M MES , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.50 Å R-free 0.238
5Y4D Crystal Structure of AnkB Ankyrin Repeats in Complex with AnkR/AnkB Chimeric Autoinhibition Segment Deposited 2017-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3707–3718（12 aa） Fragment：UNP RESIDUES 1577-1613,UNP RESIDUES 3707-3718,UNP RESIDUES 28-693 Chain A 28–693（666 aa） Fragment：UNP RESIDUES 1577-1613,UNP RESIDUES 3707-3718,UNP RESIDUES 28-693	Not recorded	SO4 SULFATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；4 M ammonium acetate, 0.1 M Bis-Tris propane (pH 7.0)	Resolution 3.30 Å R-free 0.229
5Y4E Crystal Structure of AnkB Ankyrin Repeats R8-14 in complex with autoinhibition segment AI-b Deposited 2017-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 857–896（40 aa） Fragment：UNP RESIDUES 857-896,UNP RESIDUES 264-483 Chain A 264–483（220 aa） Fragment：UNP RESIDUES 857-896,UNP RESIDUES 264-483	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；0.1 M HEPES (pH 7.0), 1 M ammonium sulfate, 0.5% w/v PEG 8000	Resolution 2.34 Å R-free 0.233
5Y4E Crystal Structure of AnkB Ankyrin Repeats R8-14 in complex with autoinhibition segment AI-b Deposited 2017-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 857–896（40 aa） Fragment：UNP RESIDUES 857-896,UNP RESIDUES 264-483 Chain B 264–483（220 aa） Fragment：UNP RESIDUES 857-896,UNP RESIDUES 264-483	Not recorded	SO4 SULFATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；0.1 M HEPES (pH 7.0), 1 M ammonium sulfate, 0.5% w/v PEG 8000	Resolution 2.34 Å R-free 0.233
5Y4F Crystal Structure of AnkB Ankyrin Repeats R13-24 in complex with autoinhibition segment AI-c Deposited 2017-08-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 430–873（444 aa） Fragment：UNP RESIDUES 430-873	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.2 M CaCl2, 0.1 M HEPES (pH 7.5), 28% v/v PEG 400	Resolution 1.95 Å R-free 0.220
5Y4F Crystal Structure of AnkB Ankyrin Repeats R13-24 in complex with autoinhibition segment AI-c Deposited 2017-08-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 430–873（444 aa） Fragment：UNP RESIDUES 430-873	Not recorded	CA CALCIUM ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.2 M CaCl2, 0.1 M HEPES (pH 7.5), 28% v/v PEG 400	Resolution 1.95 Å R-free 0.220
5YIR Crystal Structure of AnkB LIR/GABARAP complex Deposited 2017-10-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1588–1614（27 aa） Fragment：UNP RESIDUES 1588-1614	Not recorded	NI NICKEL (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；289 K；12% w/v PEG 3350, 5 mM CoCl2, 5 mM NiCl2, 5 mM CdCl2, 5 mM MgCl2, 0.1 M HEPES buffer (pH 7.5)	Resolution 2.75 Å R-free 0.224
5YIR Crystal Structure of AnkB LIR/GABARAP complex Deposited 2017-10-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1588–1614（27 aa） Fragment：UNP RESIDUES 1588-1614	Not recorded	NI NICKEL (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；289 K；12% w/v PEG 3350, 5 mM CoCl2, 5 mM NiCl2, 5 mM CdCl2, 5 mM MgCl2, 0.1 M HEPES buffer (pH 7.5)	Resolution 2.75 Å R-free 0.224
5YIR Crystal Structure of AnkB LIR/GABARAP complex Deposited 2017-10-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1588–1614（27 aa） Fragment：UNP RESIDUES 1588-1614	Not recorded	NI NICKEL (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；289 K；12% w/v PEG 3350, 5 mM CoCl2, 5 mM NiCl2, 5 mM CdCl2, 5 mM MgCl2, 0.1 M HEPES buffer (pH 7.5)	Resolution 2.75 Å R-free 0.224
5YIS Crystal Structure of AnkB LIR/LC3B complex Deposited 2017-10-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1588–1614（27 aa） Fragment：UNP RESIDUES 1588-1614	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；289 K；2.4 M ammonium phosphate dibasic, 0.1 M Tris buffer (pH 8.5)	Resolution 2.20 Å R-free 0.250
5YIS Crystal Structure of AnkB LIR/LC3B complex Deposited 2017-10-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1588–1614（27 aa） Fragment：UNP RESIDUES 1588-1614	Not recorded	GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；289 K；2.4 M ammonium phosphate dibasic, 0.1 M Tris buffer (pH 8.5)	Resolution 2.20 Å R-free 0.250
6M3Q Crystal structure of AnkB/beta4-spectrin complex Deposited 2020-03-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 951–1458（508 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；289 K；25% w/v pentaerythritol propoxylate 629 (17/8 PO/OH), 50 mM magnesium chloride and 0.1 M HEPES, pH 7.5	Resolution 3.44 Å R-free 0.307
8ZE8 Arf-GTPase activating protein Asap1 SH3 domain in complex with 440 Kd Ankyrin-B fragment Deposited 2024-05-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1699–1710（12 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；0.1 M MES monohydrate, pH=6.0, 20 % w/v Polyethylene glycol 6,000	Resolution 2.07 Å R-free 0.226
8ZE8 Arf-GTPase activating protein Asap1 SH3 domain in complex with 440 Kd Ankyrin-B fragment Deposited 2024-05-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1699–1710（12 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；0.1 M MES monohydrate, pH=6.0, 20 % w/v Polyethylene glycol 6,000	Resolution 2.07 Å R-free 0.226
8ZE8 Arf-GTPase activating protein Asap1 SH3 domain in complex with 440 Kd Ankyrin-B fragment Deposited 2024-05-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1699–1710（12 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；0.1 M MES monohydrate, pH=6.0, 20 % w/v Polyethylene glycol 6,000	Resolution 2.07 Å R-free 0.226
8ZE8 Arf-GTPase activating protein Asap1 SH3 domain in complex with 440 Kd Ankyrin-B fragment Deposited 2024-05-04	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1699–1710（12 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；0.1 M MES monohydrate, pH=6.0, 20 % w/v Polyethylene glycol 6,000	Resolution 2.07 Å R-free 0.226

10 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ANK2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–76； UniProt 1499–1570

Nuclear distribution protein nudE-like 1

Mus musculus

UniProt Q9ERR1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 238–284 Chain C； UniProt 238–284	Not recorded	Ankyrin-2 × 1 （Q01484）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 5.6；289 K；1.9M ammonium sulfate, 0.16M potassium sodium tartrate tetrahydrate, 0.1M sodium citrate tribasic dehydrate pH 5.6	Resolution 1.50 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6KZJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5YI4 Solution Structure of the DISC1/Ndel1 complex Deposited 2017-10-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 238–284（47 aa） Fragment：UNP residues 765-852,UNP residues 238-284	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 50 NaCl；Pressure 1 NMR sample composition 0.8 mM [U-99% 13C; U-99% 15N] DISC1_Ndel1, 100% D2O \| 100% D2O NMR sample composition 0.8 mM [U-99% 15N] DISC1_Ndel1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-99% 13C; U-99% 15N] DISC1_Ndel1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM no labelling DISC1_Ndel1, 100% D2O \| 100% D2O	Resolution not provided

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NDEL1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–51； UniProt 238–284 Author chain C； PDBConstruct 5–51； UniProt 238–284

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6kzj
Deposition date deposition_date	2019-09-24
Structure title title	Crystal structure of Ankyrin B/NdeL1 complex
Keywords keywords	PROTEIN TRANSPORT, STRUCTURAL PROTEIN, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.42 Å
Radius of gyration Rg (electron density) rg_electron	16.47 Å
Forward intensity I(0) i0	4682530.00
Molecular weight molecular_weight	15685.0 kDa
Excluded volume excluded_volume	19781 Å³
Envelope volume envelope_volume	23807 Å³
Hydration-shell volume shell_volume	12875 Å³
Envelope diameter envelope_diameter	65.9 Å
Shell Rg shell_rg	21.54 Å
Envelope Rg envelope_rg	17.21 Å
Shape Rg shape_rg	16.53 Å
Total Rg total_rg	17.27 Å
Total atoms total_atoms	1100
Residues n_residues	150
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	67.0 Å
Rg (real space) rg_real	17.47 Å
Rg uncertainty (real space) rg_real_error	0.69 Å
I(0) (real space) i0_real	4.6830e+06
I(0) uncertainty (real space) i0_real_error	6.7340e+04
Rg (reciprocal space) rg_reciprocal	17.47 Å
I(0) (reciprocal space) i0_reciprocal	4683000.0000
Solution quality estimate total_estimate	0.7768
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.8 Å
Skewness Skewness skewness	0.481
Kurtosis Kurtosis kurtosis	0.051
Angular range angular_range	— – 0.4550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1050000.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.465; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.699; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ankyrin-2
Molecular weight formula_weight	8237.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1172

GPGSASPDLLSEVSEMKQDLIKMTAILTTDVSDKAGSIKVKELVKAAEEEPGEPFEIVERVKEDLEKVNEILRSGT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nuclear distribution protein nudE-like 1
Molecular weight formula_weight	5236.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

GPGSGFGTSPLTPSARISALNIVGDLLRKVGALESKLAACRNFAKDQASRK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.446 Å
Unit-cell length b length_b	44.690 Å
Unit-cell length c length_c	77.880 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1628
R_work r_work	0.1605
R_free r_free	0.2108

fit	/app/data/saxs_computation/kz/6kzj/6kzj.fit
pddf	/app/data/pr_computation/kz/6kzj/6kzj.pr.out
profile	/app/data/saxs_computation/kz/6kzj/6kzj.dat

Crystal structure of Ankyrin B/NdeL1 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ankyrin-2

State in the Current Structure

Other States of the Same Protein in the Database

Nuclear distribution protein nudE-like 1

State in the Current Structure

Other States of the Same Protein in the Database

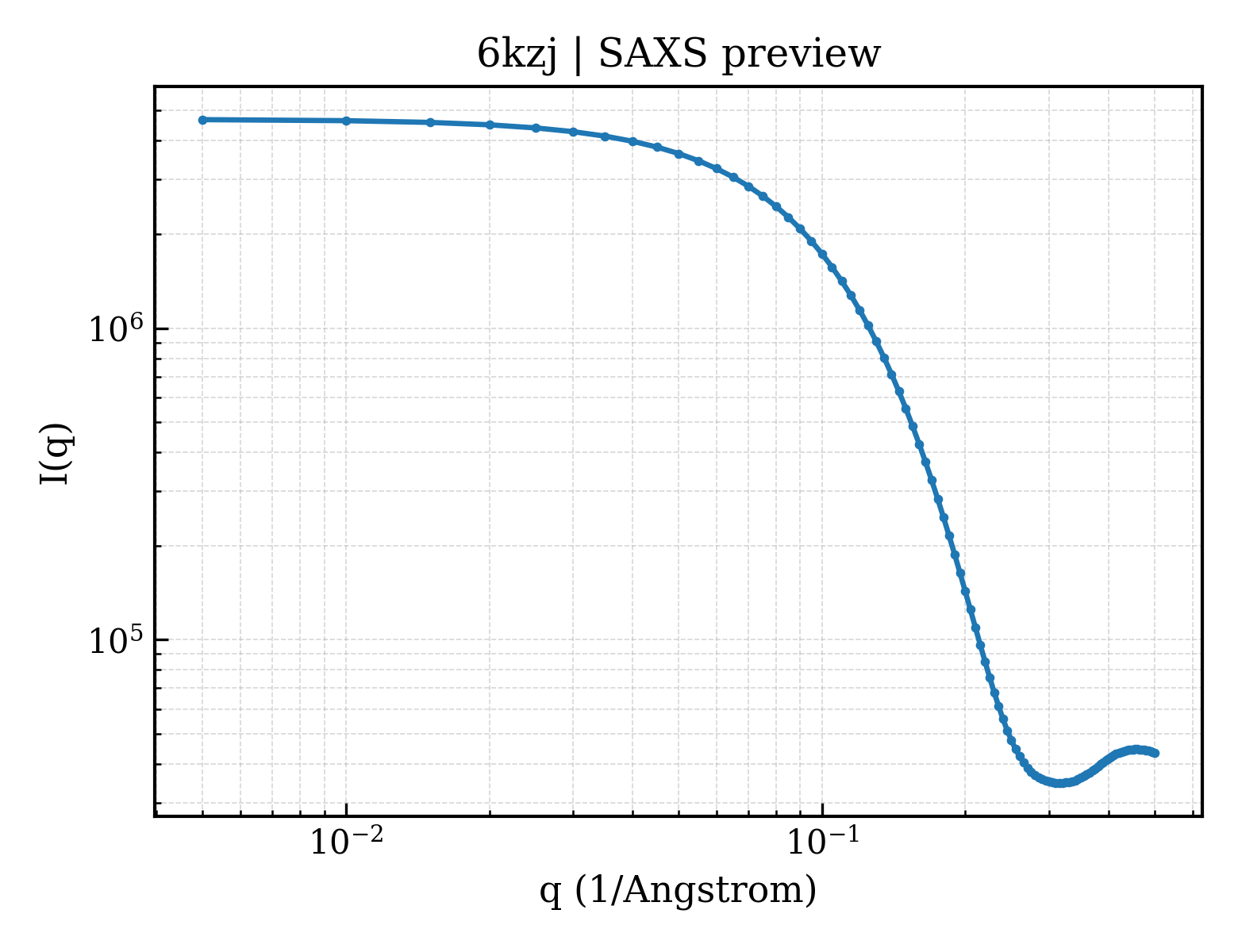

SAXS scattering curve SAXS Profile

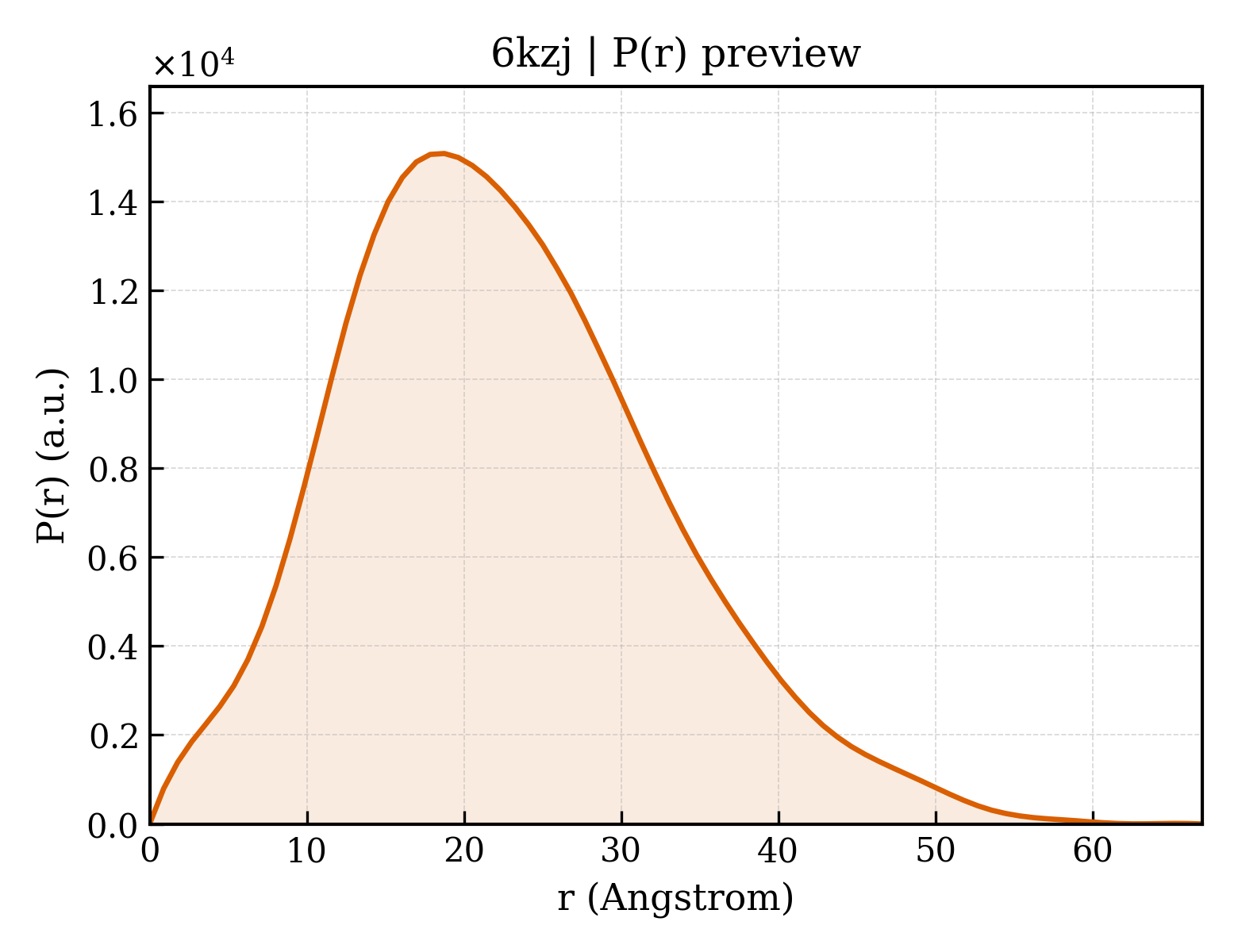

P(r) Distance Distribution P(r) Distribution
