6myg

Mouse Gamma S Crystallin L16 Octamer

Method: X-RAY DIFFRACTION D_max: 98.2 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma-crystallin S

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–178 Chain B； UniProt 1–178 Chain C； UniProt 1–178 Chain D； UniProt 1–178	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；297 K；0.15 M Sodium acetate pH 5.0, 22% PEG MME 550, 8% PEG 300	Resolution 2.92 Å R-free 0.284

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6MYG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ZWM NMR structure of murine gamma-S crystallin Deposited 2005-06-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–177（177 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 25 mM imidazole, 10 mM KCl, 0.04% NaN3；Pressure 1 NMR sample composition 0.7-1.5 mM gS, 25 mM imidazole, pH 6.0, 10 mM KCl, 0.04% NaN3. Dipolar couplings measured in 2H/15N/13C gammaS, in stretched polyacrylamide gel, and in 3 mg/mL Pf1 (gelled), 120 mM KCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
1ZWO NMR structure of murine gamma-S crystallin Deposited 2005-06-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–177（177 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 25 mM imidazole, 10 mM KCl, 0.04% NaN3；Pressure 1 NMR sample composition 0.7-1.5 mM gS, 25 mM imidazole, pH 6.0, 10 mM KCl, 0.04% NaN3, 25C. Dipolar couplings measured in 2H/15N/13C gammaS, in stretched polyacrylamide gel, and in 3 mg/mL Pf1 (gelled), 120 mM KCl; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2A5M NMR structure of murine gamma-S crystallin from joint refinement with SAXS data Deposited 2005-06-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–177（177 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；291.4 K；Ionic strength (raw mmCIF value) 25 mM IMIDAZOLE, 10 mM KCL, 0.04% NaN3；Pressure 1 NMR sample composition 0.22 mM gamma-S crystallin, 25 mM imidazole, pH 6.0, 10 mM KCl, 0.04% NaN3, 10 mM DTT, for SAXS data. All NMR conditions as reported for 1ZWM \| 90% H2O/10% D2O	Resolution not provided
7RJ0 Mouse Gamma S Crystallin L16 Octamer Deposited 2021-07-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–178（177 aa） Chain B 2–178（177 aa） Chain C 2–178（177 aa） Chain D 2–178（177 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；297 K；0.15 M sodium acetate, pH 5.0, 22% PEG550 MME, 8% PEG300	Resolution 2.92 Å R-free 0.290
9Z75 Crystal Structure of Wild-type Mouse Gamma(S)-Crystallin Deposited 2025-11-16	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 6–178（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M HEPES, 0.5% v/v Jeffamine	Resolution 1.83 Å R-free 0.193

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CRYGS_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–178； UniProt 1–178 Author chain B； PDBConstruct 1–178； UniProt 1–178 Author chain C； PDBConstruct 1–178； UniProt 1–178 Author chain D； PDBConstruct 1–178； UniProt 1–178

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

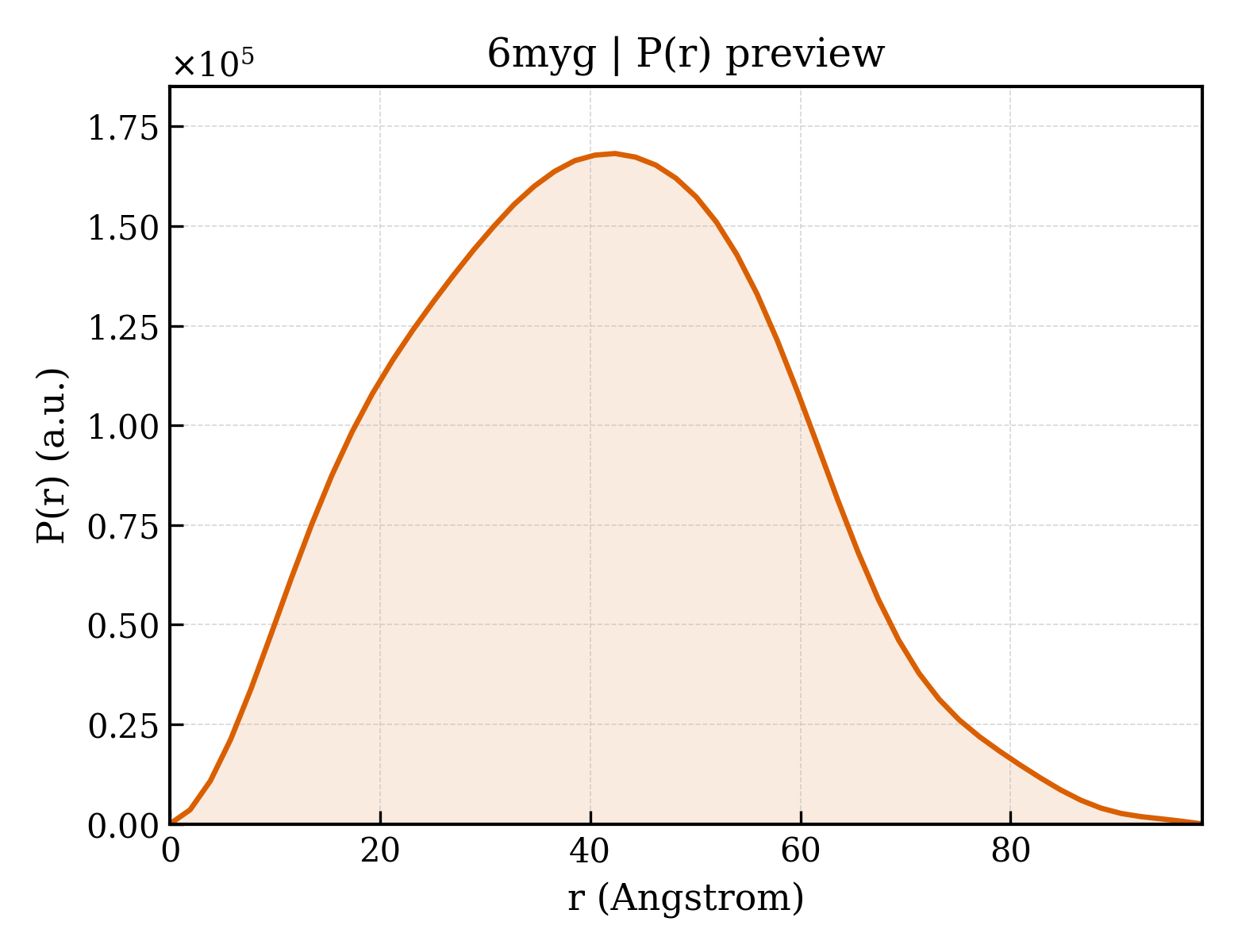

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6myg
Deposition date deposition_date	2018-11-01
Structure title title	Mouse Gamma S Crystallin L16 Octamer
Keywords keywords	Octamer Domain-swap Oxidation Disorder, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.35 Å
Radius of gyration Rg (electron density) rg_electron	30.69 Å
Forward intensity I(0) i0	101036000.00
Molecular weight molecular_weight	76688.0 kDa
Excluded volume excluded_volume	94433 Å³
Envelope volume envelope_volume	123860 Å³
Hydration-shell volume shell_volume	34412 Å³
Envelope diameter envelope_diameter	102.0 Å
Shell Rg shell_rg	37.04 Å
Envelope Rg envelope_rg	30.08 Å
Shape Rg shape_rg	30.69 Å
Total Rg total_rg	31.23 Å
Total atoms total_atoms	5449
Residues n_residues	700
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.2 Å
Rg (real space) rg_real	31.24 Å
Rg uncertainty (real space) rg_real_error	0.61 Å
I(0) (real space) i0_real	1.0100e+08
I(0) uncertainty (real space) i0_real_error	1.4610e+06
Rg (reciprocal space) rg_reciprocal	31.29 Å
I(0) (reciprocal space) i0_reciprocal	101000000.0000
Solution quality estimate total_estimate	0.8975
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	42.4 Å
Skewness Skewness skewness	0.161
Kurtosis Kurtosis kurtosis	-0.479
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10220000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.851

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d6myga1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6myga2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6mygb1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6mygb2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6mygc1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6mygc2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6mygd1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d6mygd2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

CATH v4.4 (8 domains)

Domain ID domain_id	6mygA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	6mygD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.095 Å
Unit-cell length b length_b	77.591 Å
Unit-cell length c length_c	154.052 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.919 Å
Low-resolution limit resolution_low	48.001 Å
R factor r_factor	0.2090
R_work r_work	0.2046
R_free r_free	0.2836

Description description	Gamma-crystallin S
Molecular weight formula_weight	20863.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A,C,D
Atom count atom_count	5544

Mouse Gamma S Crystallin L16 Octamer

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma-crystallin S

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37
