9z75
Crystal Structure of Wild-type Mouse Gamma(S)-Crystallin

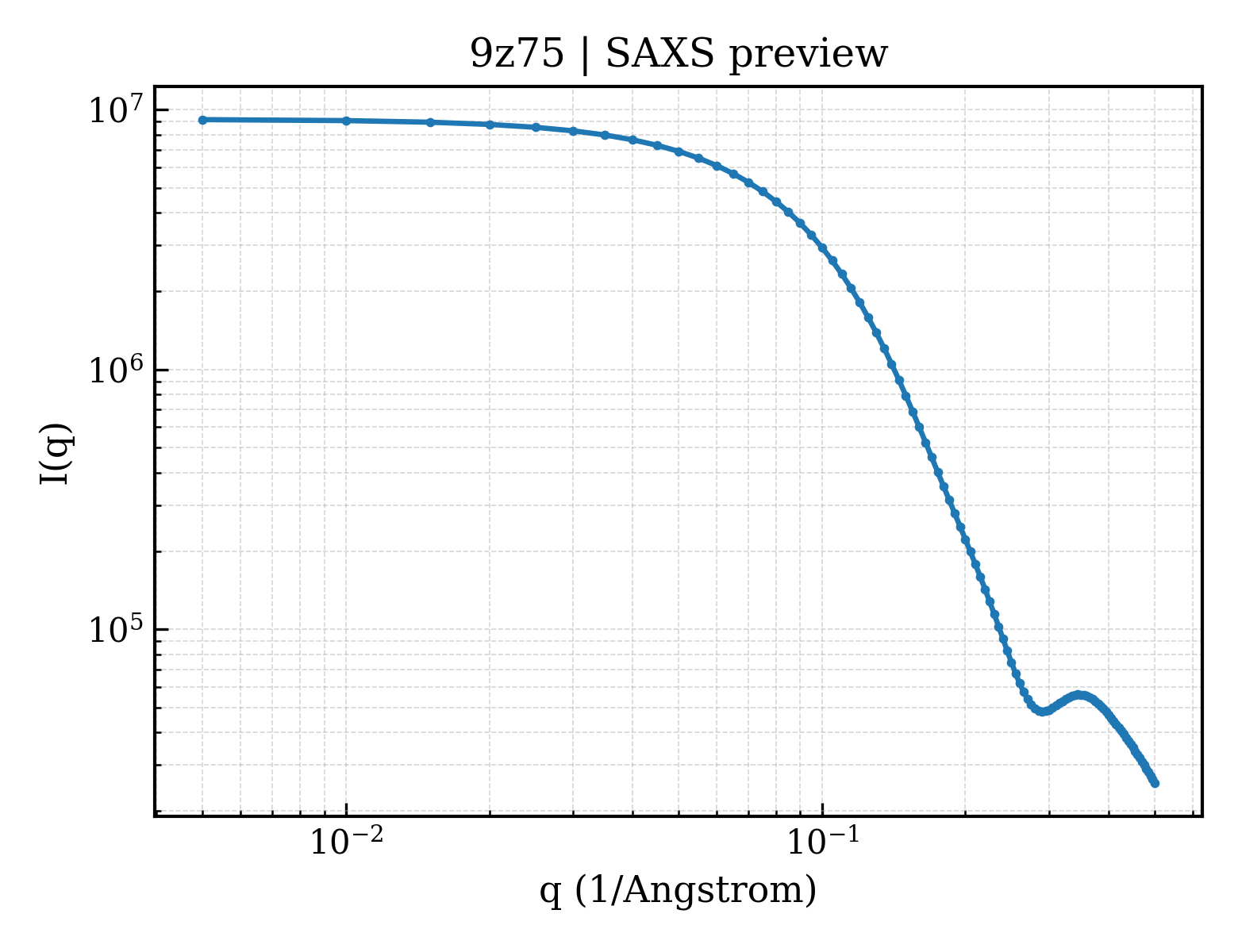

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9z75 |
| deposition_date | 2025-11-16 |
| last_revision | 2025-12-10 |
| title | Crystal Structure of Wild-type Mouse Gamma(S)-Crystallin |
| keywords | crystallin, lens, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.45 Å |
| rg_electron | 17.21 Å |
| i0 | 9168820.00 |
| molecular_weight | 21151.0 kDa |
| excluded_volume | 25934 ų |
| envelope_volume | 30337 ų |
| shell_volume | 15161 ų |
| envelope_diameter | 60.9 Å |
| shell_rg | 22.78 Å |
| envelope_rg | 17.57 Å |
| shape_rg | 17.20 Å |
| total_rg | 18.14 Å |
| total_atoms | 1491 |
| n_residues | 179 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.4 Å |
| rg_real | 18.42 Å |
| rg_real_error | 0.41 Å |
| i0_real | 9.1690e+06 |
| i0_real_error | 1.2160e+05 |
| rg_reciprocal | 18.43 Å |
| i0_reciprocal | 9169000.0000 |
| total_estimate | 0.8029 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 53.7 Å |
| skewness | 0.301 |
| kurtosis | -0.414 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1974000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.839; Stabil: 0.973; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
