SAXSdb — 6nfa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proto-oncogene vav

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 170–575	Fragment：UNP residues 170-575	ZN ZINC ION × 2 9K1 (2S)-2-{[3-(4-methylphenyl)imidazo[1,2-a]pyrazin-8-yl]amino}-3-(pyridin-3-yl)propan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.3；294 K；16-22% v/v ethylene glycol, 0.1 M Tris, pH 7.3, 15% w/v PEG8000	Resolution 2.70 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6NFA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2CRH Solution structure of the SH2 domain of human proto-oncogene protein VAV1 Deposited 2005-05-20	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 629–775（147 aa） Fragment：SH2 (residues 1-138)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120 mM；Pressure ambient NMR sample composition 1.15mM 13C,15N-labeled protein; 20mM d-Tris-HCl(pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2LCT Solution structure of the Vav1 SH2 domain complexed with a Syk-derived doubly phosphorylated peptide Deposited 2011-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 664–767（104 aa） Fragment：SH2 domain residues 664-767	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1.1 mM [U-13C; U-15N] protein, 20 mM TRIS, 100 mM sodium chloride, 1 mM DTT, 0.02 % sodium azide, 1.1 mM peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MC1 Solution structure of the Vav1 SH2 domain complexed with a Syk-derived singly phosphorylated peptide Deposited 2013-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 664–767（104 aa） Fragment：SH2 domain (UNP residues 664-767)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1 mM [U-99% 13C; U-99% 15N] protein, 1 mM peptide, 20 mM TRIS, 100 mM sodium chloride, 1 mM DTT, 0.02 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2ROR Solution structure of the VAV1 SH2 domain complexed with a tyrosine-phosphorylated peptide from SLP76 Deposited 2008-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 629–775（147 aa） Fragment：SH2 domain, UNP residues 629-775	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1.08mM [U-13C; U-15N] Proto-oncogene vav; 1.08mM tyrosine-phosphorylated peptide; 20mM [U-2H] TRIS; 100mM sodium chloride; 0.02% sodium azide; 1mM [U-2H] DTT; 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3BJI Structural Basis of Promiscuous Guanine Nucleotide Exchange by the T-Cell Essential Vav1 Deposited 2007-12-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 189–565（377 aa） Fragment：Vav1 DH/PH/CRD	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；17% PEG-3350, 100 mM HEPES, pH 7.5, 200 mM ammonium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.293
3BJI Structural Basis of Promiscuous Guanine Nucleotide Exchange by the T-Cell Essential Vav1 Deposited 2007-12-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 189–565（377 aa） Fragment：Vav1 DH/PH/CRD	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；17% PEG-3350, 100 mM HEPES, pH 7.5, 200 mM ammonium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.293
3KY9 Autoinhibited Vav1 Deposited 2009-12-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–584（583 aa） Fragment：CH-DH-PH-C1 DOMAINS	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.02 M TRIS, 0.05 M NACL, 5% GLYCEROL, 2 mM TCEP, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.73 Å R-free 0.271
3KY9 Autoinhibited Vav1 Deposited 2009-12-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–584（583 aa） Fragment：CH-DH-PH-C1 DOMAINS	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.02 M TRIS, 0.05 M NACL, 5% GLYCEROL, 2 mM TCEP, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.73 Å R-free 0.271
6NEW Apo structure of the activated truncation of Vav1 Deposited 2018-12-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–575（406 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；294 K；16-22% (v/v) Ethylene Glycol, 0.1M TRIS pH 7.3, and 15% (w/v) Polyethylene Glycol 8000	Resolution 2.50 Å R-free 0.257
6NF1 Vav1 inhibited by an allosteric inhibitor: Vav1 inhibitors block GEF activity Deposited 2018-12-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–575（574 aa）	Not recorded	9JY (2S)-3-[(3S)-1-(ethylsulfonyl)piperidin-3-yl]-2-{[3-(4-methylphenyl)imidazo[1,2-a]pyrazin-8-yl]amino}propan-1-ol × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；294 K；16-22% (v/v) Ethylene Glycol, 0.1M TRIS pH 7.3, and 15% (w/v) Polyethylene Glycol 8000.	Resolution 2.60 Å R-free 0.233
9NFR Crystal structure of CRBN-DDB1 and MRT-23227 in complex with VAV1 Deposited 2025-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 782–839（58 aa）	Not recorded	ZN ZINC ION × 1 A1BYX (3R)-3-{2-chloro-4'-[(1-methyl-1H-pyrazol-3-yl)methoxy][1,1'-biphenyl]-3-yl}piperidine-2,6-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2.6 % PEG Smear Low, 6.1 % PEG Smear Medium, 4.3 % PEG Smear High, 5 % glycerol, 0.1 M CaCl2, and 0.1 M MES pH 5.8	Resolution 3.40 Å R-free 0.271

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VAV_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 16–421； UniProt 170–575

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6nfa
Deposition date deposition_date	2018-12-19
Structure title title	Vav1 inhibited by an allosteric inhibitor: Vav1 inhibitors block GEF activity
Keywords keywords	GEF, Rac, Vav1, SIGNALING PROTEIN-INHIBITOR complex; SIGNALING PROTEIN/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.34 Å
Radius of gyration Rg (electron density) rg_electron	26.48 Å
Forward intensity I(0) i0	35677100.00
Molecular weight molecular_weight	45232.0 kDa
Excluded volume excluded_volume	56216 Å³
Envelope volume envelope_volume	72022 Å³
Hydration-shell volume shell_volume	23426 Å³
Envelope diameter envelope_diameter	86.1 Å
Shell Rg shell_rg	32.73 Å
Envelope Rg envelope_rg	26.40 Å
Shape Rg shape_rg	26.47 Å
Total Rg total_rg	27.19 Å
Total atoms total_atoms	3167
Residues n_residues	386
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

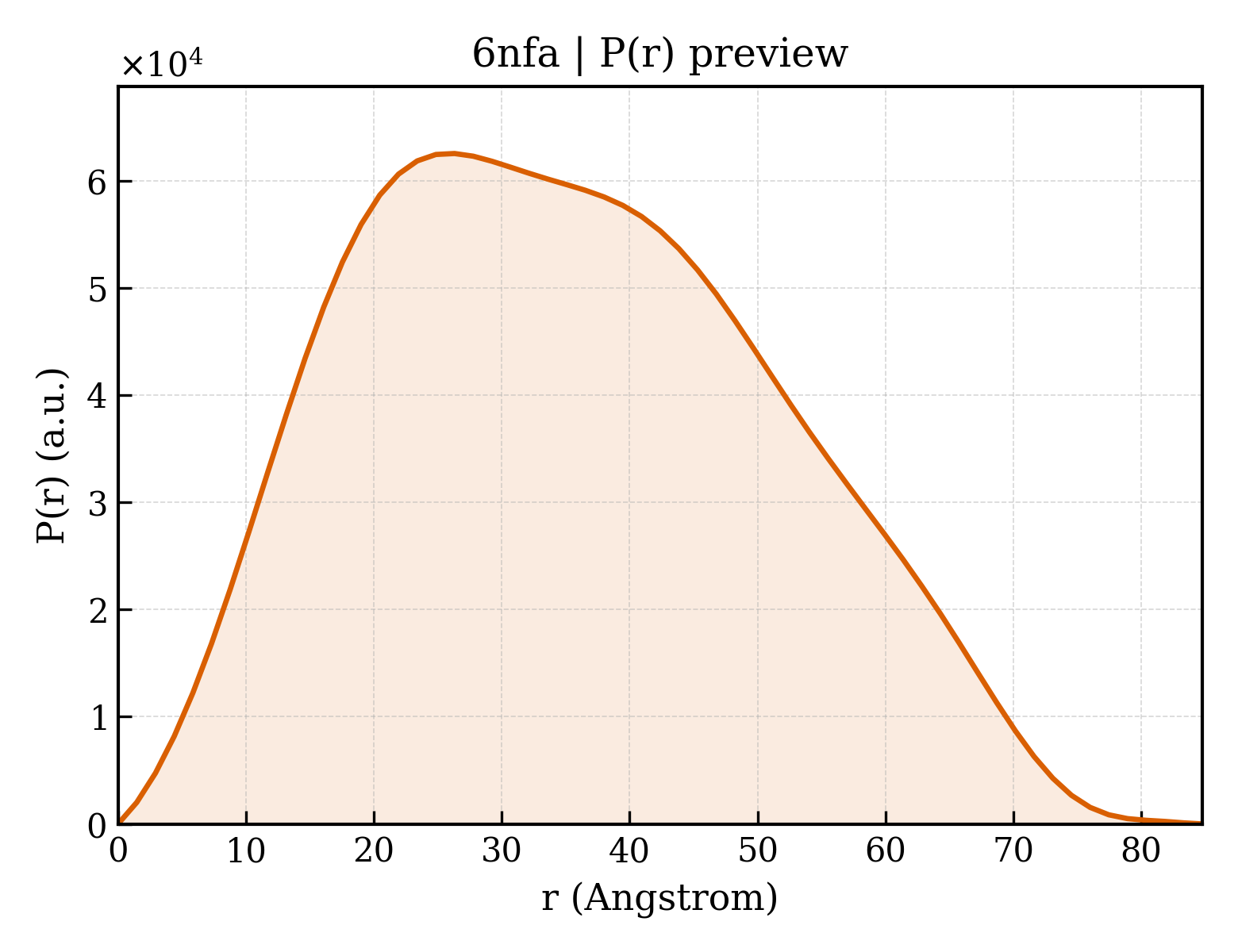

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.8 Å
Rg (real space) rg_real	27.35 Å
Rg uncertainty (real space) rg_real_error	0.50 Å
I(0) (real space) i0_real	3.5680e+07
I(0) uncertainty (real space) i0_real_error	5.2750e+05
Rg (reciprocal space) rg_reciprocal	27.35 Å
I(0) (reciprocal space) i0_reciprocal	35680000.0000
Solution quality estimate total_estimate	0.9078
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	26.3 Å
Skewness Skewness skewness	0.236
Kurtosis Kurtosis kurtosis	-0.699
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6417000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.929

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Proto-oncogene vav
Molecular weight formula_weight	49679.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3243

MGKHHHHHHENLYFQGDEIYEDLMRSEPVSMPPKMTEYDKRCCCLREIQQTEEKYTDTLGSIQQHFLKPLQRFLKPQDIEIIFINIEDLLRVHTHFLKEMKEALGTPGAANLYQVFIKYKERFLVYGRYCSQVESASKHLDRVAAAREDVQMKLEECSQRANNGRFTLRDLLMVPMQRVLKYHLLLQELVKHTQEAMEKENLRLALDAMRDLAQCVNEVKRDNETLRQITNFQLSIENLDQSLAHYGRPKIDGELKITSVERRSKMDRYAFLLDKALLICKRRGDSYDLKDFVNLHSFQVRDDSSGDRDNKKWSHMFLLIEDQGAQGYELFFKTRELKKKWMEQFEMAISNIYPENATANGHDFQMFSFEETTSCKACQMLLRGTFYQGYRCHRCRASAHKECLGRVPPCGRHGQDFPGTM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	(2S)-2-{[3-(4-methylphenyl)imidazo[1,2-a]pyrazin-8-yl]amino}-3-(pyridin-3-yl)propan-1-ol
Molecular weight formula_weight	359.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	76

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6nfaA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	900 — Dbl Homology Domain; Chain A
Homologous superfamily homologous superfamily	10 — Dbl homology (DH) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.880 Å
Unit-cell length b length_b	67.641 Å
Unit-cell length c length_c	179.544 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	63.300 Å
R factor r_factor	0.1900
R_work r_work	0.1880
R_free r_free	0.2420
