SAXSdb — 6o3a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Frizzled-7

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain E； UniProt 42–179	Not recorded	Antibody F7.B Fab, Light chain × 1 Antibody F7.B Fab, Heavy chain × 1 CXS 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 1 EDO 1,2-ETHANEDIOL × 6 NA SODIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 10；293 K；0.1 M CAPS, pH 10.5, 20% (w/v) PEG 3350, 0.2 M NaCl	Resolution 2.10 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6O3A	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5T44 Crystal structure of Frizzled 7 CRD Deposited 2016-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–168（138 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；0.1M MES at pH6.9, 12% 1-propanol, 10% PEG 500MME	Resolution 1.99 Å R-free 0.252
5T44 Crystal structure of Frizzled 7 CRD Deposited 2016-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–168（138 aa） Chain B 31–168（138 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；0.1M MES at pH6.9, 12% 1-propanol, 10% PEG 500MME	Resolution 1.99 Å R-free 0.252
5T44 Crystal structure of Frizzled 7 CRD Deposited 2016-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 31–168（138 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；0.1M MES at pH6.9, 12% 1-propanol, 10% PEG 500MME	Resolution 1.99 Å R-free 0.252
5URV Crystal structure of Frizzled 7 CRD in complex with C24 fatty acid Deposited 2017-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 30–168（139 aa） Chain B 30–168（139 aa）	Not recorded	NER (15E)-TETRACOS-15-ENOIC ACID × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 8 1PG 2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.1M MES sodium salt pH 6.5, 2.0M Ammonium sulfate, 5%(w/v) PEG 400	Resolution 2.20 Å R-free 0.210
5WBS Crystal structure of Frizzled-7 CRD with an inhibitor peptide Fz7-21 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 30–178（149 aa） Chain B 30–178（149 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；1-propanol 14% (v/v; cat. no. 09158; Fluka), 9% PEG5000 MME (cat. no. HR-2-615; Hampton Research), and 0.1 M MES at pH 6.9 (cat. no. HR2-243; Hampton Research)	Resolution 2.88 Å R-free 0.244
5WBS Crystal structure of Frizzled-7 CRD with an inhibitor peptide Fz7-21 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 30–178（149 aa） Chain D 30–178（149 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；1-propanol 14% (v/v; cat. no. 09158; Fluka), 9% PEG5000 MME (cat. no. HR-2-615; Hampton Research), and 0.1 M MES at pH 6.9 (cat. no. HR2-243; Hampton Research)	Resolution 2.88 Å R-free 0.244
5WBS Crystal structure of Frizzled-7 CRD with an inhibitor peptide Fz7-21 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 30–178（149 aa） Chain F 30–178（149 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；1-propanol 14% (v/v; cat. no. 09158; Fluka), 9% PEG5000 MME (cat. no. HR-2-615; Hampton Research), and 0.1 M MES at pH 6.9 (cat. no. HR2-243; Hampton Research)	Resolution 2.88 Å R-free 0.244
5WBS Crystal structure of Frizzled-7 CRD with an inhibitor peptide Fz7-21 Deposited 2017-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 30–178（149 aa） Chain H 30–178（149 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；1-propanol 14% (v/v; cat. no. 09158; Fluka), 9% PEG5000 MME (cat. no. HR-2-615; Hampton Research), and 0.1 M MES at pH 6.9 (cat. no. HR2-243; Hampton Research)	Resolution 2.88 Å R-free 0.244
6NE2 Designed repeat protein in complex with Fz7 Deposited 2018-12-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 46–163（118 aa）	Not recorded	ACT ACETATE ION × 9 SO4 SULFATE ION × 10 EDO 1,2-ETHANEDIOL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.1 M Sodium Acetate: HCl, pH 4.5, 2 M Ammonium Sulfate	Resolution 1.30 Å R-free 0.184
6NE4 Designed repeat protein specifically in complex with Fz7CRD Deposited 2018-12-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 46–163（118 aa）	Not recorded	SO4 SULFATE ION × 14 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M Na2HPO4, citric acid, pH 4.2 and 2M Ammonium sulfate	Resolution 1.65 Å R-free 0.186
6O3B Crystal structure of Frizzled 7 CRD in complex with F6 Fab Deposited 2019-02-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 42–179（138 aa）	Not recorded	GOL GLYCEROL × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；0.2 M Na2HPO4, 20% (w/v) PEG 3350	Resolution 2.50 Å R-free 0.283
6O3B Crystal structure of Frizzled 7 CRD in complex with F6 Fab Deposited 2019-02-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 42–179（138 aa）	Not recorded	GOL GLYCEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；0.2 M Na2HPO4, 20% (w/v) PEG 3350	Resolution 2.50 Å R-free 0.283
8QEO cryo-EM structure complex of Frizzled-7 and Clostridioides difficile toxin B Deposited 2023-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–574（542 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；100 mM TRIS-HCl pH 7.5 200 mM NaCl 0.002% LMNG 0.0002% CHS 0.0002% GDN cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
8YY8 Fzd7 -Gs complex Deposited 2024-04-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 38–574（537 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
9EPO High resolution structure of FZD7 in inactive conformation Deposited 2024-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–574（542 aa） Chain D 33–574（542 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 4 PLM PALMITIC ACID × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.90 Å
9EW2 High resolution structure of FZD7 in complex with miniGs protein Deposited 2024-04-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 38–574（537 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9RHG FZD7 in complex with negative allosteric modulator C407 Deposited 2025-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–574（542 aa） Chain B 33–574（542 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 4 A1JGQ ethyl 3-[2-[(2-fluorophenyl)amino]-2-oxidanylidene-ethyl]-5-methyl-4-oxidanylidene-thieno[2,3-d]pyrimidine-6-carboxylate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å

11 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FZD7_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–138； UniProt 42–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6o3a
Deposition date deposition_date	2019-02-26
Structure title title	Crystal structure of Frizzled 7 CRD in complex with F7.B Fab
Keywords keywords	Receptor, Wnt, Frizzled, CRD, Antibody, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.00 Å
Radius of gyration Rg (electron density) rg_electron	29.71 Å
Forward intensity I(0) i0	60622300.00
Molecular weight molecular_weight	60752.0 kDa
Excluded volume excluded_volume	75717 Å³
Envelope volume envelope_volume	95143 Å³
Hydration-shell volume shell_volume	28861 Å³
Envelope diameter envelope_diameter	109.7 Å
Shell Rg shell_rg	34.20 Å
Envelope Rg envelope_rg	29.87 Å
Shape Rg shape_rg	29.65 Å
Total Rg total_rg	30.30 Å
Total atoms total_atoms	4268
Residues n_residues	541
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

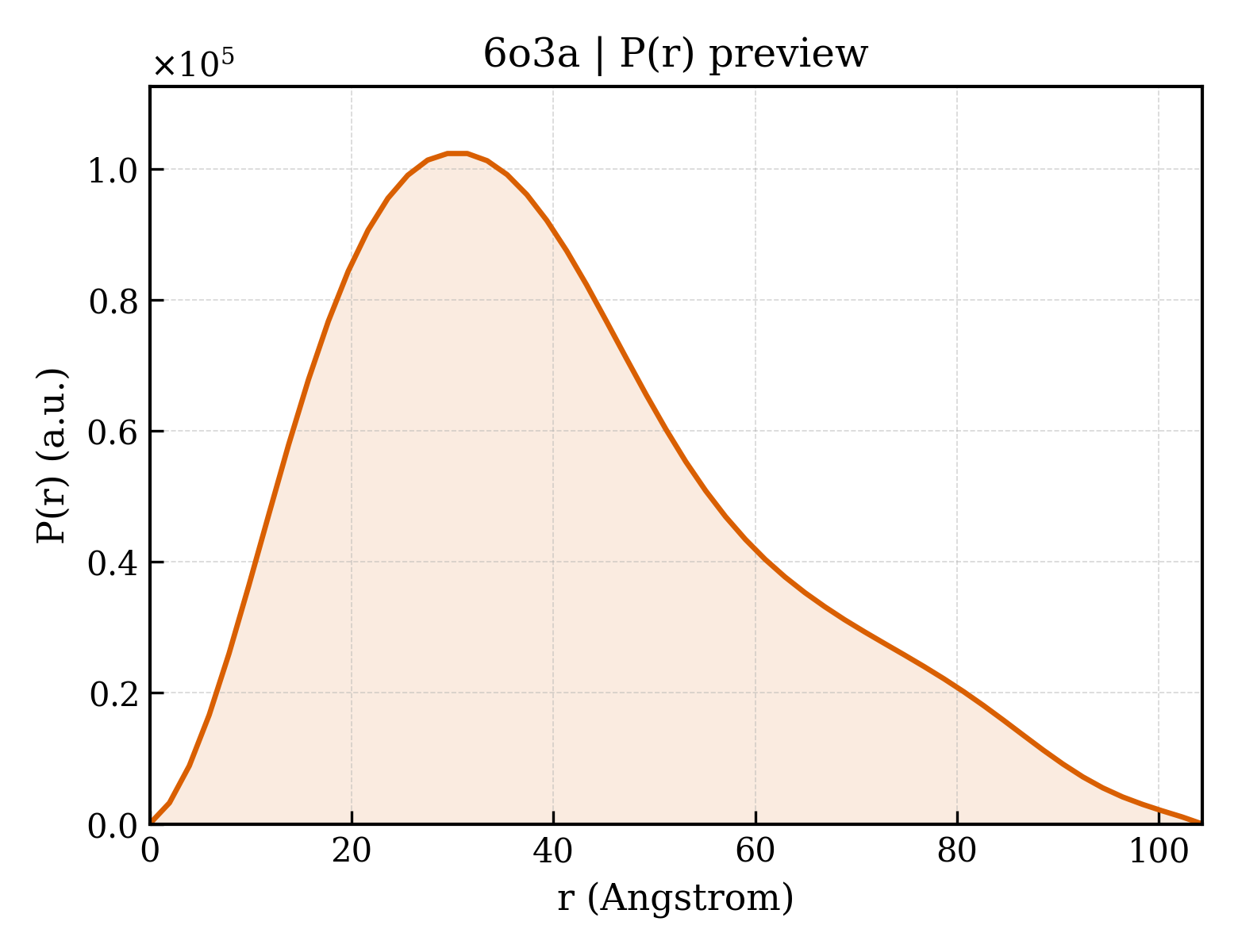

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.3 Å
Rg (real space) rg_real	31.52 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	6.0860e+07
I(0) uncertainty (real space) i0_real_error	8.5270e+05
Rg (reciprocal space) rg_reciprocal	30.18 Å
I(0) (reciprocal space) i0_reciprocal	60620000.0000
Solution quality estimate total_estimate	0.6266
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	0
Primary peak position r_peak_primary	— Å
Skewness Skewness skewness	0.618
Kurtosis Kurtosis kurtosis	-0.185
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	3.5390
Highest regularization parameter α highest_alpha	9097000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.782; Stabil: 0.879; Sysdev: 0.000; Positv: 1.000; Valcen: 0.784; Smooth: 0.408

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Antibody F7.B Fab, Light chain
Molecular weight formula_weight	23209.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4583

DIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYYSLFTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Antibody F7.B Fab, Heavy chain
Molecular weight formula_weight	23404.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EVQLVESGGGLVQPGGSLRLSCAASGFNFSSSSIHWVRQAPGKGLEWVAYIYPSYDYTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARGYFYTWGGMDYWGQGTLVTVSSASTKGPSVFPLAPCSRSTSESTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTKTYTCNVDHKPSNTKVDKRV

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Frizzled-7
Molecular weight formula_weight	15057.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

SVPDHGFCQPISIPLCTDIAYNQTILPNLLGHTNQEDAGLEVHQFYPLVKVQCSPELRFFLCSMYAPVCTVLDQAIPPCRSLCERARQGCEALMNKFGFQWPERLRCENFPVHGAGEICVGQNTSDGSGGPGGGPTAY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	3-CYCLOHEXYL-1-PROPYLSULFONIC ACID
Molecular weight formula_weight	221.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	307

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d6o3aa1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6o3aa2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6o3ab_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6o3ae_
Class class	a — All alpha proteins
Fold Fold fold	a.141 — Frizzled cysteine-rich domain
Superfamily Superfamily superfamily	a.141.1 — Frizzled cysteine-rich domain
Family Family family	a.141.1.0 — automated matches

CATH v4.4 (3 domains)

Domain ID domain_id	6o3aA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o3aA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o3aB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.544 Å
Unit-cell length b length_b	103.446 Å
Unit-cell length c length_c	144.207 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	38.551 Å
R factor r_factor	0.1943
R_work r_work	0.1919
R_free r_free	0.2417

fit	/app/data/saxs_computation/o3/6o3a/6o3a.fit
pddf	/app/data/pr_computation/o3/6o3a/6o3a.pr.out
profile	/app/data/saxs_computation/o3/6o3a/6o3a.dat
