1. Protein Identity and Related Structures Protein Identity & Related Structures

Plasminogen-binding group A streptococcal M-like protein PAM

Streptococcus pyogenes

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 85–133	Fragment：residues 85-133	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition：0.5 mM [U-99% 13C; U-99% 15N] VEK50, 1.5 mM Kringle 2, 2 ug/mL DSS, 20 mM [U-2H] Bis-Tris-d19, 2 ug/mL sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6OQ9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1I5K STRUCTURE AND BINDING DETERMINANTS OF THE RECOMBINANT KRINGLE-2 DOMAIN OF HUMAN PLASMINOGEN TO AN INTERNAL PEPTIDE FROM A GROUP A STREPTOCOCCAL SURFACE PROTEIN Deposited 2001-02-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 85–113（29 aa） Fragment：VEK-30 (30 RESIDUE INTERNAL PEPTIDE) Chain D 85–113（29 aa） Fragment：VEK-30 (30 RESIDUE INTERNAL PEPTIDE)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；23%(w/v) PEG 3350, 0.1 M Mes, 0.2 M Li2SO4, 2mM CaCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.262
2DOI The X-ray crystallographic structure of the angiogenesis inhibitor, angiostatin, bound to a peptide from the group A streptococcus protein PAM Deposited 2006-04-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 85–113（29 aa） Fragment：VEK-30	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；20% PEG 8000, 0.1M potassium phophate (dihydrate), 5% dioxane, soaked in 5mM Pt(C5H5N)2Cl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.296
2DOI The X-ray crystallographic structure of the angiogenesis inhibitor, angiostatin, bound to a peptide from the group A streptococcus protein PAM Deposited 2006-04-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 85–113（29 aa） Fragment：VEK-30	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；20% PEG 8000, 0.1M potassium phophate (dihydrate), 5% dioxane, soaked in 5mM Pt(C5H5N)2Cl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.296
6OG4 plasminogen binding group A streptococcal M protein Deposited 2019-04-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 76–150（75 aa） Fragment：UNP residues 76-150	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M HEPES, pH 7.0, 2 M ammonium sulfate	Resolution 1.70 Å R-free 0.220
6OKW Solution structure of VEK50 Deposited 2019-04-15	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 85–133（49 aa） Fragment：residues 85-133	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] VEK50, 2 ug/mL DSS, 20 mM [U-2H] Bis-Tris-d19, 1 ug/mL DTT, 1 ug/mL sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
6OKX Solution structure of VEK50RH1/AA Deposited 2019-04-15	Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 85–133（49 aa） Fragment：residues 85-133	Mutation：R101A, H102A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] VEK50RH1/AA, 2 ug/mL DSS, 1 ug/mL DTT, 20 mM [U-2H] Bis-Tris-d19, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
6OKY Solution structure of truncated peptide from PAMap53 Deposited 2019-04-15	Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 85–133（49 aa） Fragment：residues 85-133	Mutation：R114A, H115A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] Truncated peptide from PAMAP53, 20 mM [U-2H] Bis-Tris-d19, 2 ug/mL DSS, 1 ug/mL sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
6OQJ SOLUTION STRUCTURE OF THE COMPLEX OF MUTANT VEK50[RH1/AA] AND PLASMINOGEN KRINGLE 2 Deposited 2019-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 85–133（49 aa） Fragment：residues 85-134	Mutation：R19A, H20A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 1.0 mM [U-99% 13C; U-99% 15N] plasminogen kringle 2, 1.0 mM VEK50[RH1/AA], 20 mM [U-2H] Bis-Tris-d19, 2 ug/mL DSS, 2 ug/mL sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 13C; U-99% 15N] VEK50[RH1/AA], 1 mM plasminogen kringle 2, 20 mM [U-2H] Bis-Tris-d19, 2 ug/mL DSS, 2 ug/mL sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6OQK SOLUTION STRUCTURE OF THE COMPLEX OF MUTANT VEK50[RH2/AA] AND PLASMINOGEN KRINGLE 2 Deposited 2019-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 85–133（49 aa）	Mutation：R32A, H33A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 1.0 mM [U-99% 13C; U-99% 15N] plasminogen Kringle 2, 1.0 mM VEK50[RH2/AA], 20 mM [U-2H] Bis-Tris-d19, 2 ug/mL DSS, 2 ug/mL sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-99% 13C; U-99% 15N] VEK50[RH2/AA], 1.0 mM plasminogen Kringle 2, 20 mM [U-2H] Bis-Tris-d19, 2 ug/mL DSS, 2 ug/mL sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8TVL Plasminogen binding group A streptococcus M-like protein from AP53 bound to human plasminogen Deposited 2023-08-18	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–385（356 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；137 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4, and 1.8 mM KH2PO4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PAM_STRPY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–51； UniProt 85–133

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6oq9
Deposition date deposition_date	2019-04-25
Structure title title	Solution structure of VEK50 in the bound form with plasminogen kringle 2
Keywords keywords	Plasminogen binding peptide, blood clotting, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.44 Å
Radius of gyration Rg (electron density) rg_electron	18.11 Å
Forward intensity I(0) i0	148444000.00
Molecular weight molecular_weight	92321.0 kDa
Excluded volume excluded_volume	112390 Å³
Envelope volume envelope_volume	35964 Å³
Hydration-shell volume shell_volume	15582 Å³
Envelope diameter envelope_diameter	87.7 Å
Shell Rg shell_rg	25.96 Å
Envelope Rg envelope_rg	22.01 Å
Shape Rg shape_rg	18.07 Å
Total Rg total_rg	18.59 Å
Total atoms total_atoms	12855
Residues n_residues	780
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.0 Å
Rg (real space) rg_real	16.16 Å
Rg uncertainty (real space) rg_real_error	0.13 Å
I(0) (real space) i0_real	1.4150e+08
I(0) uncertainty (real space) i0_real_error	1.3150e+06
Rg (reciprocal space) rg_reciprocal	17.84 Å
I(0) (reciprocal space) i0_reciprocal	148400000.0000
Solution quality estimate total_estimate	0.6538
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	13.2 Å
Skewness Skewness skewness	0.382
Kurtosis Kurtosis kurtosis	-0.673
Angular range angular_range	— – 0.4550 Å⁻¹
Current regularization parameter α current_alpha	3.6350
Highest regularization parameter α highest_alpha	59530.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.008; Oscil: 0.984; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 0.618; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Plasminogen-binding group A streptococcal M-like protein PAM
Molecular weight formula_weight	6173.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	12855

来源生物 organism	Streptococcus pyogenes
NCBI Class编号 ncbi_taxonomy_id	1314
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/oq/6oq9/6oq9.fit
pddf	/app/data/pr_computation/oq/6oq9/6oq9.pr.out
profile	/app/data/saxs_computation/oq/6oq9/6oq9.dat

Solution structure of VEK50 in the bound form with plasminogen kringle 2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plasminogen-binding group A streptococcal M-like protein PAM

State in the Current Structure

Other States of the Same Protein in the Database

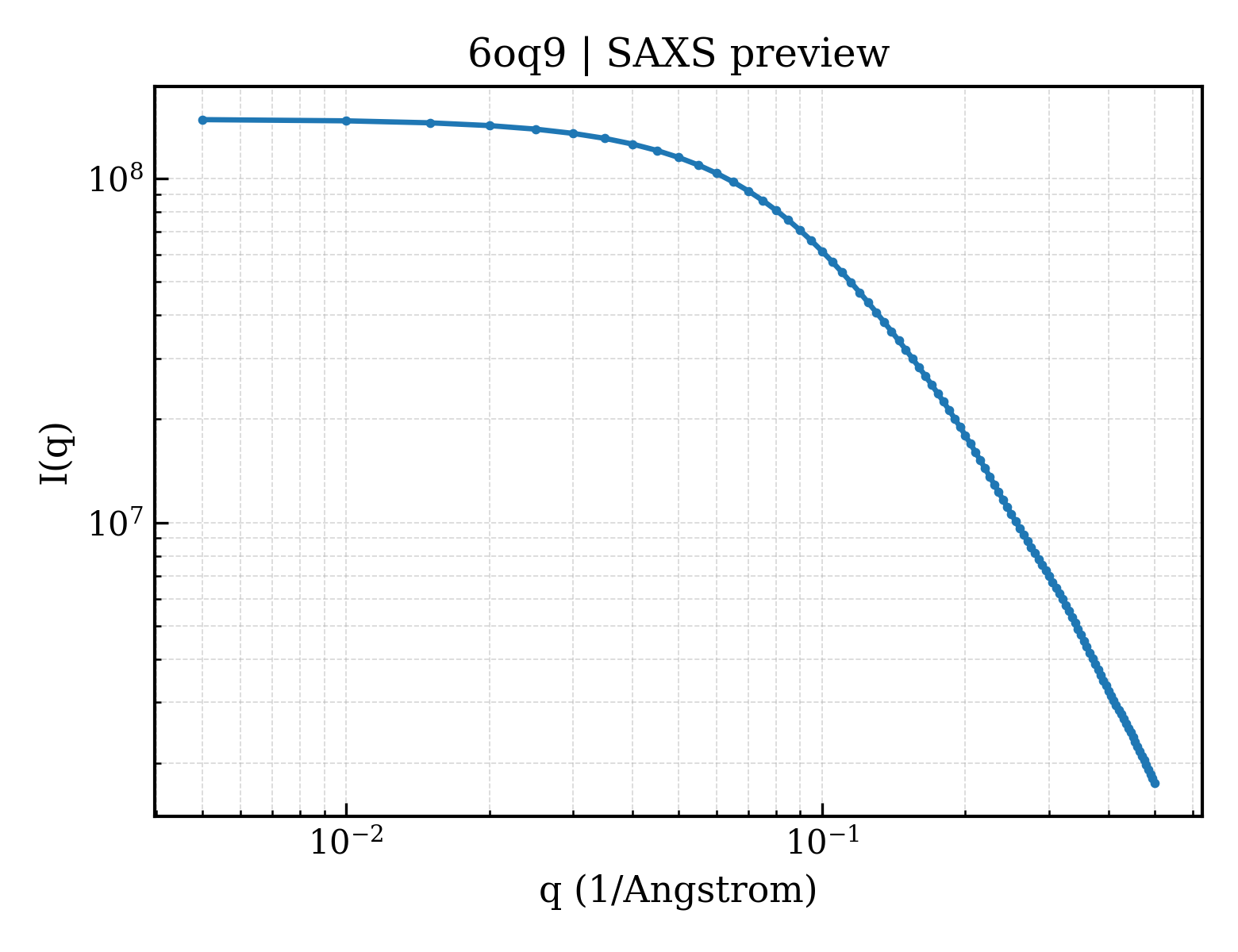

SAXS scattering curve SAXS Profile
